1. Introduktion
Thank you for choosing the RCF F-6X 6 Channel Mixing Console. This manual provides essential information for the safe and efficient operation of your new mixer. Please read it thoroughly before connecting or operating the unit to ensure proper setup and to maximize its performance and longevity. The F-6X is designed for professional audio applications, offering high-quality sound, versatile connectivity, and integrated PRO DSP effects.
2. Vigtige sikkerhedsoplysninger
Always observe the following basic precautions when using this product to avoid the risk of electric shock, short circuit, damage, fire, or other hazards.
- Strømforsyning: Use only the specified external universal power supply. Ensure the voltage er korrekt for din region.
- Jording: Do not defeat the grounding purpose of the polarized or grounding-type plug.
- Fugtighed: Do not expose this equipment to rain or moisture. Do not place objects filled with liquids, such as vases, on the unit.
- Ventilation: Sørg for tilstrækkelig ventilation. Bloker ikke ventilationsåbninger. Installer i overensstemmelse med producentens anvisninger.
- Varme: Må ikke installeres i nærheden af varmekilder såsom radiatorer, varmeapparater, komfurer eller andre apparater (inklusive ampløftere), der producerer varme.
- Kabler: Beskyt netledningen mod at blive trådt på eller klemt, især ved stik, stikkontakter og det sted, hvor de kommer ud af apparatet.
- Service: Overlad al service til kvalificeret servicepersonale. Service er påkrævet, når apparatet er blevet beskadiget på nogen måde, såsom strømforsyningsledning eller stik er beskadiget, væske er blevet spildt, eller genstande er faldet ind i apparatet, apparatet har været udsat for regn eller fugt, ikke fungerer normalt , eller er blevet droppet.
Warning: To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.
Figur 2.1: Rear panel of the RCF F-6X, displaying the power input (12V DC - 2000 mA), power on/off switch, serial number, and important safety warnings regarding electric shock and moisture exposure. The CE compliance mark is also visible, indicating conformity with European safety standards.
3. Produktet er slutview
The RCF F-6X is a compact yet powerful 6-channel mixing console designed for a variety of audio applications. It features two Mic/Line inputs, two stereo line inputs, and a balanced main output audio path. The mixer also includes a 16-preset PRO DSP internal effects processor for enhanced sound shaping.
3.1 Frontpanelets layout

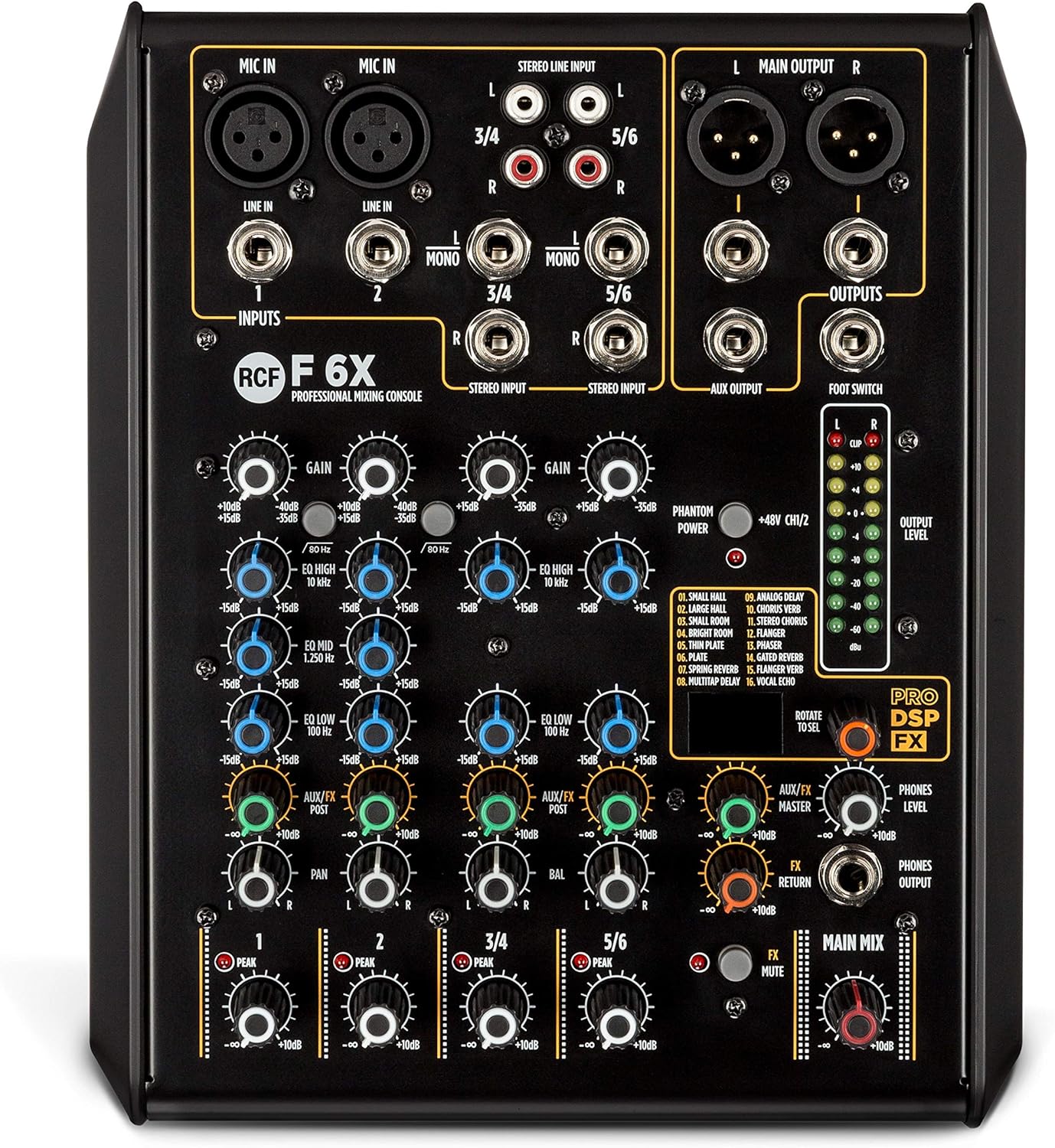

Figur 3.1: The RCF F-6X front panel, showcasing the input section with XLR/Jack combo inputs for Mic/Line channels 1 and 2, and stereo line inputs for channels 3/4 and 5/6. Each channel features GAIN, EQ (HIGH, MID, LOW), AUX/FX, and PAN controls. The master section includes FX MASTER, FX RETURN, PHONES LEVEL, and MAIN MIX controls, along with the PRO DSP FX section and output level meters.
3.2 Nøglefunktioner
- 2 Mic/Line inputs with XLR/Jack combo connectors.
- 2 stereo line inputs (channels 3/4 and 5/6).
- One AUX/FX (POST) send.
- Balanced main output audio path from input to output.
- 16 presets PRO DSP internal FX processor.
- Sturdy metal chassis for durability.
- External universal power supply.
- Designed and engineered in Italy.
4. Opsætningsvejledning
4.1 Udpakning
Carefully remove the mixer and all accessories from the packaging. Retain the packaging for future transport or storage.
4.2 Strømtilslutning
- Sørg for, at mixerens tænd/sluk-knap er i OFF-positionen.
- Connect the provided external power supply to the 12V DC input on the rear panel of the mixer.
- Plug the power supply into a suitable AC outlet.
- Turn the power switch to the ON position. The power indicator LED will illuminate.
4.3 Tilslutning af lydenheder
Before making any connections, ensure all audio equipment is turned off to prevent damage to speakers or other devices.
- Microphones (Mic In 1-2): Connect microphones to the XLR or 1/4" Jack inputs. For condenser microphones requiring phantom power, activate the +48V PHANTOM POWER switch.
- Mono Line Inputs (Line In 1-2): Connect mono line-level sources (e.g., instruments, preamps) to the 1/4" Jack inputs for channels 1 and 2.
- Stereo Line Inputs (Line In 3/4, 5/6): Connect stereo line-level sources (e.g., keyboards, media players) to the 1/4" Jack (L/R) or RCA (L/R) inputs for channels 3/4 and 5/6.
- Main Outputs (Main Output L/R): Connect the mixer's main outputs to your power amplifier, powered speakers, or recording device using XLR or 1/4" Jack cables.
- AUX Output (AUX Output): Connect this output to external effects processors or monitor systems.
- Phones Output (Phones Output): Connect your headphones to the 1/4" Jack for monitoring.
- Fodkontakt: Connect an optional footswitch to control the internal effects bypass.
5. Betjeningsvejledning
5.1 Kanalkontrol
- GEVINST: Adjusts the input sensitivity for each channel. Set this to achieve a healthy signal level without clipping (indicated by the PEAK LED).
- EQ (HØJ, MELLEM, LAV): Trebånds equalizer til at forme tonen for hver kanal.
- HØJ: +/-15 dB @ 10 kHz Shelving.
- MID: +/-15 dB @ 1.25 kHz Bell.
- LAV: +/-15 dB @ 100 Hz Shelving.
- AUX/FX: Controls the amount of signal sent from the channel to the internal effects processor or external AUX output. This is a POST-fader send.
- PAN (Monokanaler) / BAL (Stereokanaler): Adjusts the stereo position of the channel's signal in the main mix.
- NIVEAU: Styrer det samlede udgangsniveau for den enkelte kanal til hovedmixet.
5.2 Master Section
- HOVEDBLANDING: Master-faderen styrer det samlede udgangsniveau for hovedstereomixet.
- FX-MESTER: Controls the overall level of the internal effects return to the main mix.
- FX RETURN: Adjusts the level of the signal returning from the internal effects processor.
- TELEFONNIVEAU: Styrer lydstyrken på hovedtelefonudgangen.
- OUTPUT LEVEL METERS: LED meters display the output level of the main mix. Aim for levels around 0 dB to avoid clipping.
5.3 Internal Effects (PRO DSP FX)
The RCF F-6X features a high-quality PRO DSP effects processor with 16 selectable presets:
- LILLE SAL
- STOR HAL
- LYST VÆRELSE
- WARM ROOM
- PLADE
- SPRING REV
- ANALOG FORSINKELSE
- KOR VERB
- FLANGER VERB
- ROTARY VERB
- TREMOLO VERB
- PHASER VERB
- ANALOG FORSINKELSE
- KOR
- FLANGER
- ROTERENDE
To select an effect, rotate the 'ROTATE TO SEL' knob to browse through the presets. Press the knob to confirm your selection. Adjust the FX MASTER and individual channel AUX/FX sends to control the effect amount.
5.4 Footswitch Functionality
A footswitch can be connected to the dedicated input to remotely bypass (turn on/off) the internal effects, providing hands-free control during performance.
6. Vedligeholdelse og pleje
Proper maintenance ensures the longevity and optimal performance of your RCF F-6X mixer.
- Rensning: Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke slibende rengøringsmidler, voks eller opløsningsmidler.
- Opbevaring: Når mixeren ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
- Ventilation: Ensure that the ventilation openings are not obstructed by dust or debris.
- Kabelstyring: Avoid bending or kinking cables excessively. Disconnect cables by pulling the plug, not the cable itself.
7. Fejlfinding
If you encounter issues with your RCF F-6X mixer, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Power cable not connected; Power supply faulty; Power switch off. | Kontroller strømkablets forbindelse; Prøv en anden stikkontakt; Sørg for, at tænd/sluk-knappen er tændt. |
| No sound from a channel | GAIN too low; Channel LEVEL too low; Input cable faulty; Mute engaged (if applicable). | Increase GAIN and LEVEL; Check input cable; Ensure no mute is active. |
| No sound from main output | MAIN MIX fader too low; Output cables faulty; Connected amphøjttalere slukket eller på lydløs. | Increase MAIN MIX fader; Check output cables; Verify amplifier/speaker status. |
| Forvrænget lyd | GAIN too high (clipping); Output level too high; Faulty cable/device. | Reduce GAIN and output levels; Check all cables and connected devices. |
| Effekter virker ikke | AUX/FX send too low; FX MASTER too low; Effect not selected; Footswitch engaged. | Increase AUX/FX send and FX MASTER; Select an effect; Disengage footswitch. |
Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte RCFs kundesupport eller en kvalificeret servicetekniker.
8. Tekniske specifikationer
| Kategori | Specifikation |
|---|---|
| Generel | |
| Model | F-6X |
| Kanaler | 6 |
| Skab/kassemateriale | Metal |
| Farve | Sort |
| Sikkerhedsstyrelsen | CE-kompatibel |
| Elektroniske specifikationer | |
| Frekvensrespons | 20 Hz – 20 kHz |
| THD+N (20dB gain, 0dBu out) | <0.02% A-Weighted |
| Dynamisk rækkevidde | > 85dB |
| Input specifikationer | |
| Mikrofonindgange | 2 (XLR, Jack) |
| Mic Gain Range | 0 dB – -50 dB |
| Mikrofonindgangsimpedans | 14 kohm |
| Lavskæringsfilter | 80 Hz |
| Fantomkraft | +48V |
| Mono Line-indgange | 2 (Jack) |
| Mono Line Gain Selection | 20 dB – -30 dB |
| Mono Line Input Impedance | 21 kohm |
| Stereo Line-indgange | 2 (Jack, RCA) |
| Stereo Line Gain Selection | 20 dB – -30 dB |
| Stereo Line Input Impedance | 15 kohm |
| Output specifikationer | |
| Main MIX Outputs | 1 (XLR, Jack) |
| Hoved ud niveau | 28 dBu |
| AUX-udgang | 1 (Jack) |
| Aux Out Level | 28 dBu |
| Telefoner output | 1 (Jack) |
| Phones Out Impedance | 150 ohm |
| EQ | |
| Høj | +/-15 dB @ 10 kHz reoler |
| Midt | +/-15 dB @ 1.25 kHz Klokke |
| Lav | +/-15 dB @ 100 Hz reoler |
| Fysiske specifikationer | |
| Højde | 79 mm / 3.11 tommer |
| Bredde | 210 mm / 8.27 tommer |
| Dybde | 255 mm / 10.04 tommer |
| Vægt | 1.8 kg / 3.97 lbs |
9. Garanti og support
RCF products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official RCF webwebsted.
For technical support, service, or spare parts, please contact your authorized RCF dealer or distributor. You can also find additional resources and contact information on the official RCF webwebsted: www.rcf.it
Please have your product model number (F-6X) and serial number ready when contacting support.
