GE APPLIANCES GTW465ASNWW Topbetjent vaskemaskine Brugsanvisning

Indledning

This manual provides essential information for the safe and efficient operation of your GE 4.5 cuft DOE Top Load Washer, model GTW465ASNWW. Please read all instructions carefully before use.

Nøglefunktioner

• GE 4.5 cuft DOE Top Load Washer White
• Model Number: GTW465ASNWW
• Item Package Dimension: 45.0" L x 40.0" W x 70.0" H
• Item Package Weight: 200.0 lb

Opsætning og installation

Proper installation is crucial for the performance and safety of your washing machine. Ensure the unit is placed on a level surface and connected to appropriate water and power sources.

Dimensioner: 1"D x 1"W x 1"H (Product Dimensions) - Note: Package dimensions are 45.0" L x 40.0" W x 70.0" H.

Vægt: 147 pounds (Item Weight) - Note: Package weight is 200.0 lb.

For detailed installation instructions, including water hook-up, leveling, and electrical requirements, please refer to the comprehensive installation guide provided with your appliance.

Betjeningsvejledning

Your GE Top Load Washer features intuitive knob controls for easy cycle selection and customization. Below are key aspects of its operation:

Kontrolpanel overview

The control panel features rotary knobs for Water Level, Temperature, Colors/Whites cycles, Options, and Auto Soak. Indicator lights show the current cycle status (Sensing/Fill, Soak, Wash, Rinse, Spin).

Figur 1: Detaljeret view of the washer's control panel, showing settings for water level, temperature, wash cycles, and options.

Isætning af vaskemaskinen

Load items loosely around the agitator for best cleaning results. Avoid overfilling the tub to ensure proper water circulation and agitation.

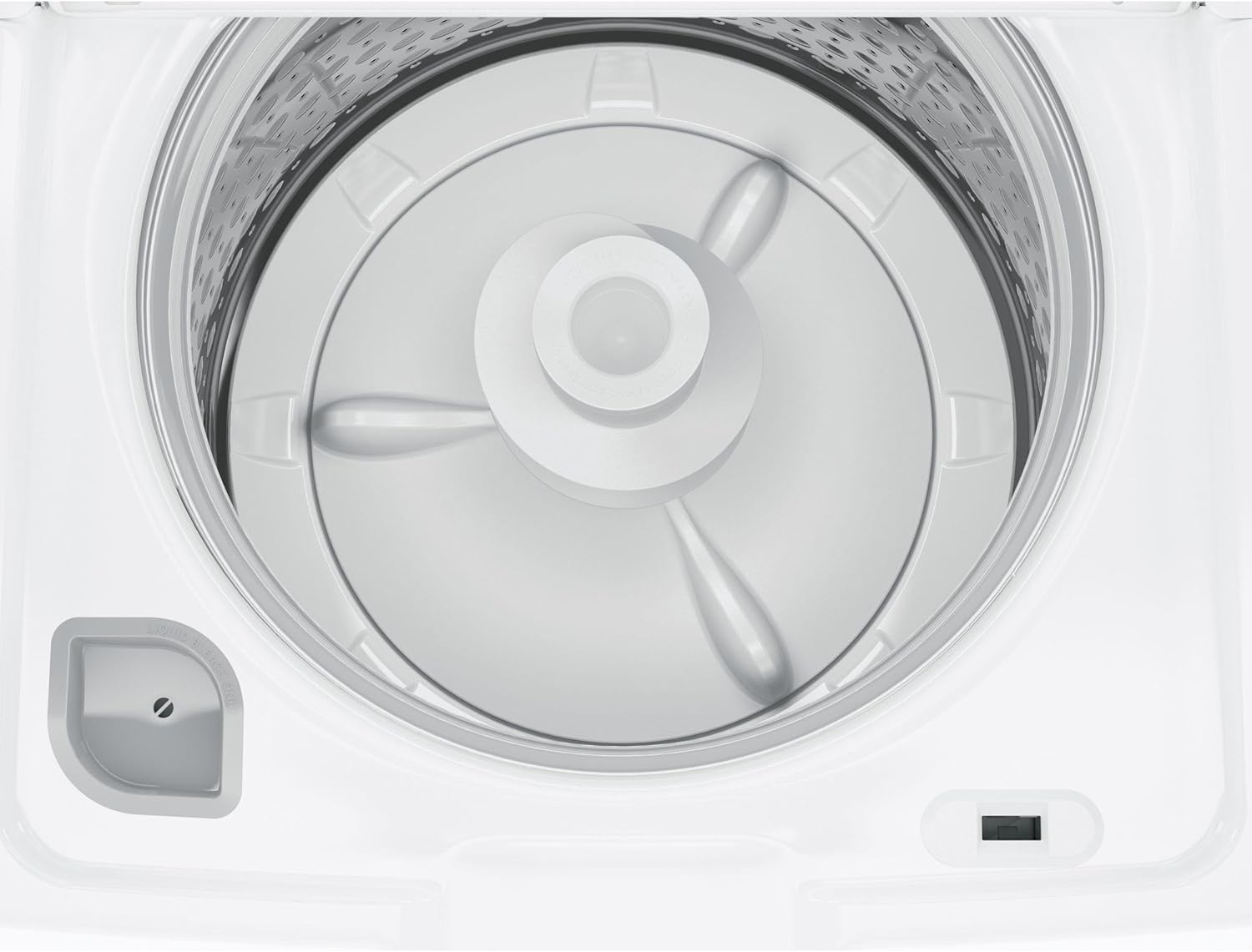

Figure 2: The spacious stainless steel drum with the agitator, designed for efficient washing.

Cyklusvalg

Turn the central 'Colors' or 'Whites' knob to select from 14 standard cycles including DeepClean, Normal, Light, Delicates, Casuals, Speed Wash, Drain & Spin, Active Wear, Towels/Sheets, Jeans, and Bulky Items. Choose the cycle that best suits your laundry type.

Water Level and Temperature

• Vandstand: Select Low, Medium, High, or Max. The Precise Fill option automatically adjusts water levels based on load size.
• Temperatur: Choose from Tap Cold, Cold, Cool, Colors, Warm, or Hot. All cold rinses are available.

Options and Auto Soak

• Valgmuligheder: Includes 2nd Rinse, Extra Spin, 2nd Rinse + Extra Spin, Deep Rinse (select when adding fabric softener), and +2nd Rinse.
• Auto Soak: Set for 15 Min, 30 Min, 1 Hr, or 2 Hr to pre-soak heavily soiled items.

Start/Pause

Press the 'Start/Pause' button to begin or temporarily stop a cycle. Hold for 3 seconds to stop the cycle completely. The 'Lid Locked' indicator will illuminate when the lid is securely locked during operation.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din vaskemaskines levetid og optimale ydeevne.

Rengøring af vaskemaskinen

• Ydre: Tør de udvendige overflader af med en blød, damp klæde. Undgå slibende rengøringsmidler.
• Indre: Periodically run a 'Deep Clean' cycle with a washer cleaner or bleach (following product instructions) to prevent odor and residue buildup in the stainless steel basket.
• Dispenser: Clean the fabric softener and bleach dispensers regularly to prevent clogging.

Fejlfinding

If you encounter issues with your washer, consider the following common solutions:

• Vaskemaskinen starter ikke: Ensure the power cord is securely plugged in and the lid is fully closed and locked. Check if the 'Start/Pause' button was pressed.
• For meget vibration/støj: Verify the washer is level and all four leveling legs are making firm contact with the floor. Redistribute the laundry load evenly around the agitator.
• Clothes not clean/too wet: Ensure you are using the correct amount of detergent for your load size and water hardness. Select an appropriate wash cycle and consider using the 'Deep Rinse' or 'Extra Spin' options for heavily soiled or bulky items. Avoid overloading the washer.
• Water level too low: If using Precise Fill, the washer senses the load size. For maximum water, select the 'Max' water level setting.

For more detailed troubleshooting steps or persistent issues, please refer to the complete user manual or contact customer support.

Specifikationer

Garanti og support

This product comes with a manufacturer's warranty covering parts and labor. Please refer to the official documentation included with your appliance for specific warranty terms and conditions, as well as details on how to register your product.

For customer support, technical assistance, or service requests, please consult the contact information provided in your product's user manual or visit the official GE Appliances webwebsted.
