1. Produktet er slutview
The Orbit B-hyve Smart Hose Tap Timer with Wi-Fi Hub provides intelligent control over your outdoor watering. This system allows you to manage your irrigation from anywhere using the B-hyve app on your smartphone or computer. It features WeatherSense technology for smart watering adjustments based on local conditions and a built-in flow meter to monitor water consumption.
Image: The Orbit B-hyve Smart Hose Tap Timer (left) and its accompanying Wi-Fi Hub (right).
Image: Components of the Orbit B-hyve system, including the hose tap timer, Wi-Fi hub, and power adapter.
2. Nøglefunktioner
- Full App Control: Manage your watering schedules from anywhere using the B-hyve app, available for Android, iOS, and web browsere.
- WeatherSense Technology: Automatically adjusts watering based on real-time weather conditions, soil type, slope, and sun/shade exposure to optimize water usage.
- Built-in Flow Meter: Monitor your water consumption in gallons or by time, providing insights into your water usage.
- Nem opsætning: Simple installation and programming process through the B-hyve app.
- Udvidbart system: One Wi-Fi hub can control multiple B-hyve hose tap timers (additional timers sold separately), allowing for multiple watering zones.
- Manuel vanding mulighed: Initiate watering directly from the timer unit without needing your smart device.
3. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- Orbit B-hyve Smart Hose Tap Timer (Model 94990)
- Orbit B-hyve Wi-Fi Hub
- Power Adapter for Wi-Fi Hub
- Lynstartguide (ikke inkluderet i denne manual)
Note: 2 AA batteries are required for the hose tap timer and are not included in the package.

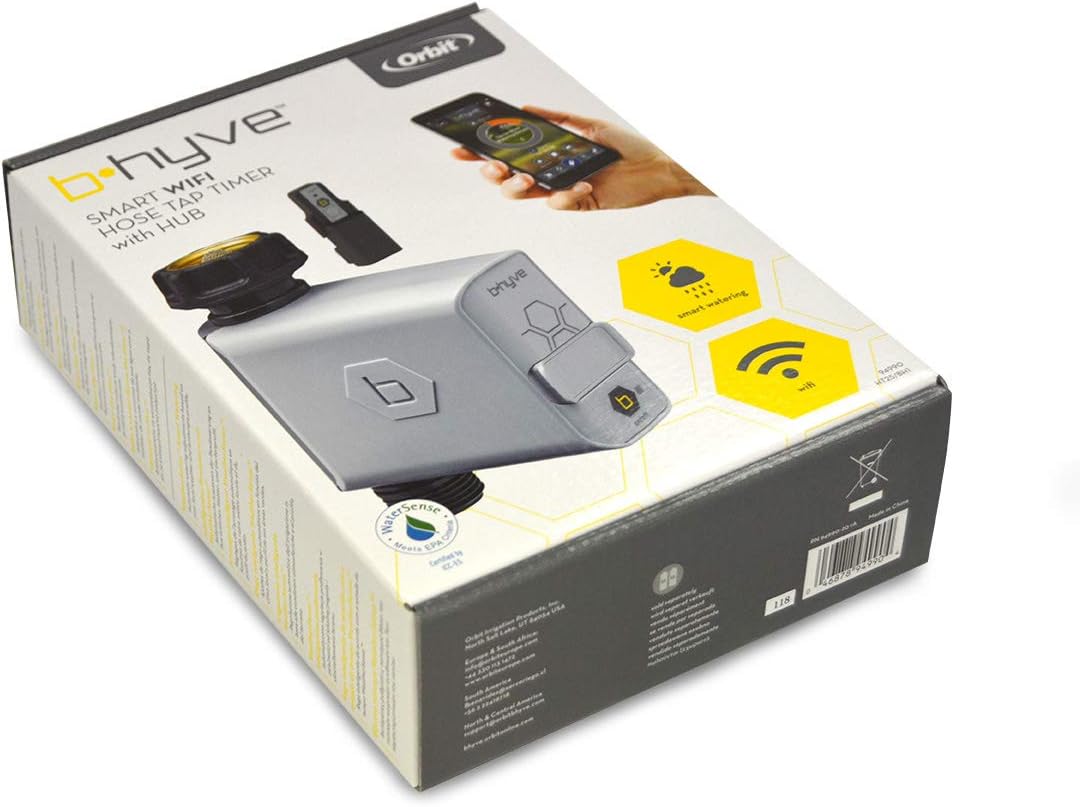

Image: The Orbit B-hyve Smart Hose Tap Timer, Wi-Fi Hub, and power adapter as packaged.
4. Opsætningsvejledning
4.1. Install Batteries in the Timer
- Locate the battery compartment on the hose tap timer.
- Slide open the battery tray.
- Isæt to (2) nye AA alkaline-batterier, og sørg for at polerne vender korrekt (+/-).
- Luk batteribakken ordentligt.
Image: A user inserting two AA batteries into the battery compartment of the B-hyve timer.
4.2. Connect Timer to Hose Tap
- Thread the hose tap timer onto any standard outdoor hose faucet.
- Hand-tighten the connection until secure. Do not overtighten.
- Connect your garden hose to the outlet of the timer.
Image: The Orbit B-hyve timer securely attached to an outdoor water spigot, with a garden hose connected to its outlet.
4.3. Set Up Wi-Fi Hub
- Plug the Wi-Fi Hub into an indoor electrical outlet within range of your Wi-Fi router and the hose tap timer.
- Ensure the hub's indicator light begins to flash, indicating it is ready for pairing.
Image: The Orbit B-hyve Wi-Fi Hub plugged into an electrical socket, ready for setup.
4.4. Download and Pair with B-hyve App
- Download the free B-hyve app from the Apple App Store or Google Play Store.
- Åbn appen og opret en konto eller log ind, hvis du allerede har en.
- Follow the in-app instructions to add your new B-hyve device. The app will guide you through connecting the Wi-Fi Hub to your home network and then pairing it with the hose tap timer.
Image: A screenshot showing the B-hyve app interface on a mobile device, illustrating its design and functionality.
Image: The B-hyve app displaying the device pairing screen, prompting the user to select a device to connect.
5. Betjeningsvejledning
5.1. Manuel vanding
To manually water directly from the timer without using the app:
- Press the 'On/Off' button on the front of the hose tap timer.
- The timer will begin watering for a default duration (e.g., 10 minutes).
- Press the 'On/Off' button again to stop watering manually.
5.2. Smart Watering via B-hyve App
The B-hyve app offers comprehensive control and smart watering features:
- Planlægning: Create custom watering schedules based on specific days, times, and durations.
- Smart vanding: Enable WeatherSense to allow the timer to automatically adjust schedules based on local weather forecasts (rain delays, temperature adjustments) and site conditions.
- Water Budgeting: Adjust watering durations by percentage to conserve water or provide more during dry periods.
- Flowovervågning: View historical water usage data collected by the built-in flow meter.
Image: The B-hyve app displaying options for setting watering schedules, including start times, zones, and days of irrigation.
Image: The main screen of the B-hyve app, showing current watering status and controls.
6. Vedligeholdelse
- Udskiftning af batteri: The B-hyve app will notify you when the timer's batteries are low. Replace them promptly with two new AA alkaline batteries to ensure continuous operation.
- Rensning: Periodically inspect the timer's inlet screen for debris and clean it if necessary to maintain proper water flow. Use a soft brush and water.
- Vinterisering: Before the first frost, disconnect the timer from the hose tap. Remove the batteries and store the timer indoors in a dry, protected area to prevent freezing and damage.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Timeren vander ikke. | Low batteries, water turned off, timer not paired, or schedule not set. | Check battery level in app, ensure hose tap is fully open, verify timer is paired, and check watering schedule in the B-hyve app. |
| App cannot connect to timer/hub. | Hub out of range, Wi-Fi issues, or hub unplugged. | Ensure hub is plugged in and within range of both router and timer. Check home Wi-Fi connection. Restart hub by unplugging and re-plugging. |
| Inaccurate water usage readings. | Debris in flow meter or incorrect setup. | Clean the inlet screen. Ensure the timer is installed correctly and water flow is unobstructed. |
| Timer leaks. | Loose connection or damaged washer. | Ensure connections are hand-tight. Check and replace rubber washers if damaged. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 94990 |
| Produktdimensioner | 7.37 x 16.26 x 22.1 cm |
| Varens vægt | 310 g |
| Materiale Type | Plast |
| Power Source (Timer) | 2 AA batterier (medfølger ikke) |
| Strømkilde (hub) | AC (via power adapter) |
| Forbindelse | Wi-Fi (via Hub), Bluetooth (for initial pairing) |
| Fabrikant | Orbit Irrigation Products Inc. |
9. Garantioplysninger
Orbit products are manufactured to high quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Orbit B-hyve webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
10. Support
For further assistance, technical support, or to access additional resources, please contact Orbit customer support:
- Webwebsted: support.orbitbhyve.com
- Email (Europe & South Africa): info@orbiteurope.com
- Phone (Europe & South Africa): +44 330 113 1472
- Email (North & Central America): support@orbitbhyve.com
- Email (South America): fbenavides@sercoriego.cl
- Phone (South America): +56 2 22419718
You can also find helpful tutorials and FAQs on the B-hyve app and the Orbit B-hyve webwebsted.
