EKO CW2236MT-47L Motion Sensor Trash Can User Manual

1. Introduktion

Thank you for choosing the EKO CW2236MT-47L Motion Sensor Trash Can. This manual provides essential information for the proper setup, operation, and maintenance of your new trash can. Please read these instructions thoroughly before use to ensure optimal performance and longevity of the product.

Image 1.1: The EKO CW2236MT-47L Motion Sensor Trash Can, showcasing its sleek stainless steel finish and black lid.

2. Sikkerhedsinstruktioner

• Do not immerse the lid or any electronic components in water. Clean with a damp kun klud.
• Keep the motion sensor clear of obstructions to ensure proper operation.
• Sørg for, at batterierne vender rigtigt. Bland ikke gamle og nye batterier eller forskellige typer batterier.
• Fjern batterierne, hvis enheden ikke skal bruges i en længere periode.
• Dette produkt er kun designet til indendørs brug.
• Keep out of reach of children and pets to prevent accidental activation or injury.

3. Pakkens indhold

Please check the contents of your package. You should find the following:

• EKO CW2236MT-47L Motion Sensor Trash Can (Body and Lid Assembly)
• Brugervejledning (dette dokument)

Note: 6 AA batteries are required for operation and are not included.

4. Opsætning

4.1 Batteriinstallation

1. Find batterirummet på undersiden af ​​låget.
2. Åbn batterirummets dæksel.
3. Isæt 6 nye AA-batterier, og sørg for at polerne (+/-) vender korrekt som angivet inde i batterirummet.
4. Luk batterirummets dæksel forsvarligt.

4.2 Liner Installation

1. Løft låget på skraldespanden.
2. Place a standard 13-gallon (47L) trash bag into the inner bucket.
3. Ensure the top edge of the trash bag is tucked neatly under the liner rim to prevent excess plastic from being visible.
4. Lower the lid back into position.

4.3 Deodorizer Holder Usage

The trash can includes a built-in deodorizer holder. Insert a compatible deodorizer packet (not included) into the designated slot on the underside of the lid to help control odors.

4.4 Placering

Place the trash can in your desired indoor location, such as a kitchen or office. Ensure there is adequate space above and in front of the sensor for proper operation.

Image 4.1: The EKO trash can positioned next to a kitchen island, demonstrating suitable placement.

5. Betjeningsvejledning

5.1 Betjening af bevægelsessensor

The EKO CW2236MT-47L features an infrared motion sensor for hands-free operation.

• To open the lid automatically, simply wave your hand or approach the sensor area located on the front of the lid.
• The lid will open smoothly and remain open for a few seconds.
• After a short delay, the lid will close softly and quietly.

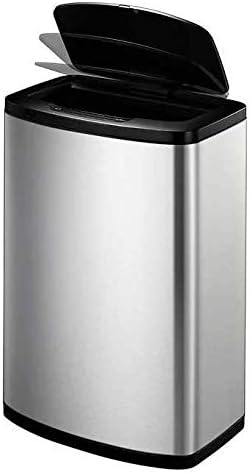

Image 5.1: The lid of the EKO trash can in an open position, demonstrating the motion sensor activation.

5.2 Manuel tilstand

For extended opening or specific tasks, the trash can can be operated in manual mode.

• Find ÅBEN og TÆT buttons on the lid, near the sensor.
• Tryk på ÅBEN button to keep the lid open indefinitely.
• Tryk på TÆT button to close the lid. The motion sensor will reactivate after the lid closes.

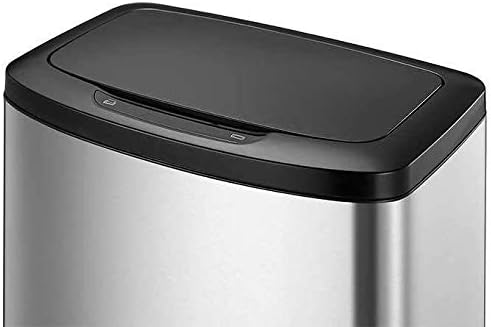

Billede 5.2: En detaljeret view of the trash can lid, highlighting the motion sensor and the manual OPEN/CLOSE buttons.

6. Vedligeholdelse

6.1 Rengøring

• Ydre: The fingerprint-resistant stainless steel exterior can be cleaned with a soft, damp cloth and a mild, non-abrasive cleaner. Wipe dry immediately to prevent water spots.
• Låg: Tør låget af med adamp cloth. Do not submerge the lid in water. Ensure the sensor area is kept clean and free of dust.
• Indre spand: The inner bucket can be removed and washed with soap and water. Rinse thoroughly and dry completely before placing it back into the trash can body.

6.2 Udskiftning af batteri

When the lid operation becomes slow or inconsistent, it is time to replace the batteries. Follow the steps in Section 4.1 to replace all 6 AA batteries with new ones.

6.3 Deodorizer Replacement

Replace the deodorizer packet in the holder as needed, typically every 1-3 months depending on usage and odor levels.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

EKO products are designed for quality and durability. For warranty information, product support, or to purchase replacement parts, please visit the official EKO website or contact their customer service department. Please have your model number (CW2236MT-47L) available when contacting support.

For further assistance, please refer to the contact information provided with your purchase or on the manufacturer's webwebsted.
