1. Introduktion
This manual provides essential information for the safe and effective use of your Snow Joe 24VBAT-XR EcoSharp Pro 24-Volt 5.0-Ah Lithium-Ion Battery. This battery is designed to power compatible 24V iONMAX tools from Snow Joe, Sun Joe, Power Joe, Auto Joe, and Aqua Joe. Please read this manual thoroughly before first use and retain it for future reference.
2. Vigtige sikkerhedsoplysninger
ADVARSEL: Læs alle sikkerhedsadvarsler og instruktioner. Manglende overholdelse af advarsler og instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.
- Always use the correct charger for your battery. Using an incompatible charger can cause fire or injury.
- Do not disassemble, crush, or expose the battery to temperatures above 100°C (212°F).
- Kortslut ikke batteripolerne.
- Keep the battery away from moisture and water.
- Opbevar batteriet et køligt, tørt sted, væk fra direkte sollys og varmekilder.
- Smid ikke batterier i ild. De kan eksplodere.
- If battery fluid comes into contact with skin, wash immediately with soap and water. If it gets into eyes, flush with water for at least 15 minutes and seek medical attention.
- Only use authentic Snow Joe + Sun Joe batteries with your tools. Use of non-authentic accessories will void your tool’s warranty.
3. Produktet er slutview
The Snow Joe 24VBAT-XR is a 24-volt, 5.0-Ah lithium-ion battery designed for optimal performance and durability. It features EcoSharp technology for no-fade power and includes an LED indicator for charge status.
Figure 1: Snow Joe 24VBAT-XR Lithium-Ion Battery. This image shows the main battery unit with its branding and specifications visible.
Nøglefunktioner:
- Certified Authentic: Official Snow Joe + Sun Joe battery.
- Kompatibilitet: Designed for use with 24V iONMAX Snow Joe, Sun Joe, Power Joe, Auto Joe, and Aqua Joe products.
- EcoSharp Technology: 24-Volt exclusive EcoSharp lithium-ion technology with high-capacity cells for consistent, no-fade power.
- LED-indikator: Integrated fuel gauge indicator lights to monitor battery charge capacity.
- Holdbart design: Shock-resistant construction for enhanced durability.
Figure 2: Certified Authentic Battery. This image highlights the "Certified Authentic" branding and compatibility with Snow Joe + Sun Joe 24V iONMAX models.
Figure 3: No-Fade Power. This image illustrates the battery's continuous discharge rate, ensuring consistent power output during use.

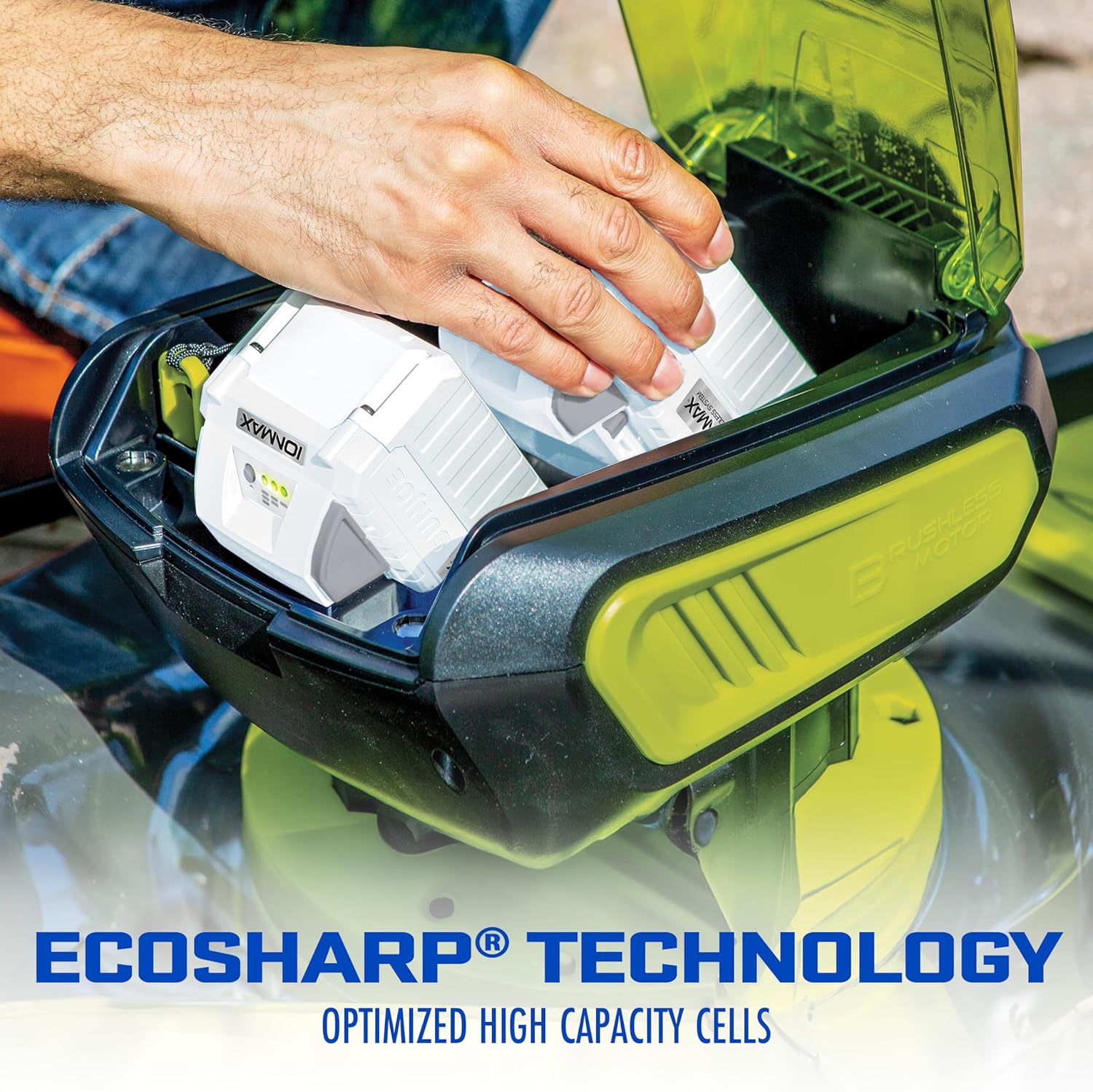

Figure 4: EcoSharp Technology. This image emphasizes the optimized high-capacity cells within the battery, contributing to its efficient performance.
4. Opsætning og installation
Isætning af batteri:
- Ensure the power tool is turned off and any moving parts have come to a complete stop.
- Align the battery with the battery port on your compatible Snow Joe or Sun Joe 24V iONMAX tool.
- Slide the battery into the port until it clicks securely into place. Ensure it is fully seated to prevent accidental dislodgement during operation.
Fjernelse af batteriet:
- Sluk for elværktøjet.
- Press the quick-release button(s) on the battery pack.
- Skub batteriet ud af værktøjet.
Figure 5: Battery Insertion. This image shows the battery being inserted into a compatible power tool, demonstrating the quick-release mechanism.
5. Betjeningsvejledning
Opladning af batteriet:
The 24VBAT-XR battery requires a dedicated 24VCHRG-AC or 24VCHRG-QC charger (sold separately). Charging typically takes up to 3 hours and 20 minutes for a full charge.
- Sørg for, at batteriet er rent og tørt, før det oplades.
- Slide the 24VBAT-XR battery into its compatible charger.
- Tilslut opladeren til en almindelig stikkontakt.
- Monitor the LED indicator lights on the battery or charger to confirm charging status.
Video 1: 24V Series Battery Overview. This video demonstrates the features and usage of the 24V series battery, including insertion and removal from tools, and highlights its compatibility.
Checking Battery Charge Status:
The battery features an integrated fuel gauge with LED indicator lights. Press the button next to the lights to display the current charge level. Three lights indicate a full charge, while one light indicates a low charge, signaling that recharging is needed.
Figure 6: LED Charge Indicator. This image shows the battery's LED lights indicating the current charge level.
6. Vedligeholdelse
- Keep the battery clean and free from debris. Use a dry cloth to wipe down the exterior.
- Undgå at udsætte batteriet for ekstreme temperaturer.
- For long-term storage, ensure the battery is partially charged (around 65%) and stored in a cool, dry place. The 24VBAT-XR can retain up to 65% charge for six months.
- Do not attempt to repair a damaged battery pack. Contact customer support for assistance.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Batteriet oplades ikke. | Charger not plugged in; faulty charger; damaged battery. | Ensure charger is properly connected. Try a different outlet. Inspect charger and battery for damage. Contact customer support if issues persist. |
| Kort løbetid. | Batteriet er ikke fuldt opladet; batteriet er ved at være brugt op; ekstreme driftsforhold. | Ensure battery is fully charged before use. Consider replacing an aging battery. Avoid using in very cold conditions if possible, as this can reduce runtime. |
| Batteriet passer ikke til værktøjet. | Incompatible tool/battery; debris in battery port. | Verify tool and battery model numbers for compatibility. Clean battery port of any obstructions. |
8. Specifikationer
- Model: 24VBAT-XR
- Voltage: 24 volt
- Batterikapacitet: 5.0 Ah (Amp-timer)
- Battericellesammensætning: Lithium Ion
- Varens vægt: 1.8 pund
- Produktdimensioner: 3 x 5 x 2.5 tommer
- Fabrikant: Sne Joe
9. Garanti og support
For warranty information or technical support, please refer to the official Snow Joe + Sun Joe website or contact their customer service directly. Using non-authentic accessories with your Snow Joe + Sun Joe tool will void your tool’s warranty.
Note: This battery is sold separately from the charger. Ensure you have a compatible 24VCHRG-AC or 24VCHRG-QC charger for optimal performance.
