Rommelsbacher DA 1000 Fødevaretørrer Brugsanvisning

1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Rommelsbacher DA 1000 Food Dehydrator. Please read these instructions thoroughly before first use and keep them for future reference. The Rommelsbacher DA 1000 is designed for gentle preservation of various foods, including fruits, vegetables, herbs, mushrooms, meats, and fish, allowing for the creation of healthy snacks and ingredients.

2. Sikkerhedsinstruktioner

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af apparatet:

• Sørg for, at apparatet er placeret på en stabil, varmebestandig overflade.
• Apparatet, netledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
• Opbevar apparatet utilgængeligt for børn.
• Unplug the appliance from the power outlet when not in use, before cleaning, or if a malfunction occurs.
• Betjen ikke apparatet med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Sørg for ordentlig ventilation omkring apparatet under drift.
• Bloker ikke ventilationsåbningerne.
• Use only original accessories and parts.
• Apparatet er kun beregnet til husholdningsbrug.

3. Produktet er slutview

The Rommelsbacher DA 1000 is a high-capacity food dehydrator featuring a robust stainless steel construction and precise electronic controls.

Billede 3.1: Front view of the Rommelsbacher DA 1000 Food Dehydrator, showcasing its stainless steel exterior and transparent door with multiple trays filled with various foods undergoing dehydration.

Nøglefunktioner:

• Konstruktion: Solid double-walled stainless steel housing for durability and efficient insulation.
• Kontrollere: Comfortable touch control panel with an LED display for easy operation.
• Operation: Very quiet during operation, ensuring minimal disturbance.
• Varmefordeling: Uniform heat distribution for consistent drying results.
• Timer: Integrated 24-hour timer for precise control over drying cycles.
• Temperaturkontrol: Adjustable temperature range from 35 °C to 75 °C.
• Strømkabel: Extra-long 1.9 m power cable with integrated cable winder.
• Portabilitet: Practical side handles for easier movement.
• Kapacitet: Designed for large quantities and semi-professional use.
• Bakker: Includes 10 robust stainless steel dehydrator trays, each measuring 39.5 x 39.5 cm.
• Drying Area: Total drying area of approximately 1.56 m² (XXL size).
• Tilbehør: Comes with 2 BPA-free dehydrator mats and 2 dehydrator grids.

Billede 3.2: The Rommelsbacher DA 1000 with its door open, revealing the ten stainless steel trays filled with various fruits and vegetables, demonstrating its large capacity.

Billede 3.3: Et interiør view of the Rommelsbacher DA 1000, with the door open and trays removed, highlighting the rear-mounted fan and heating element for efficient air circulation.

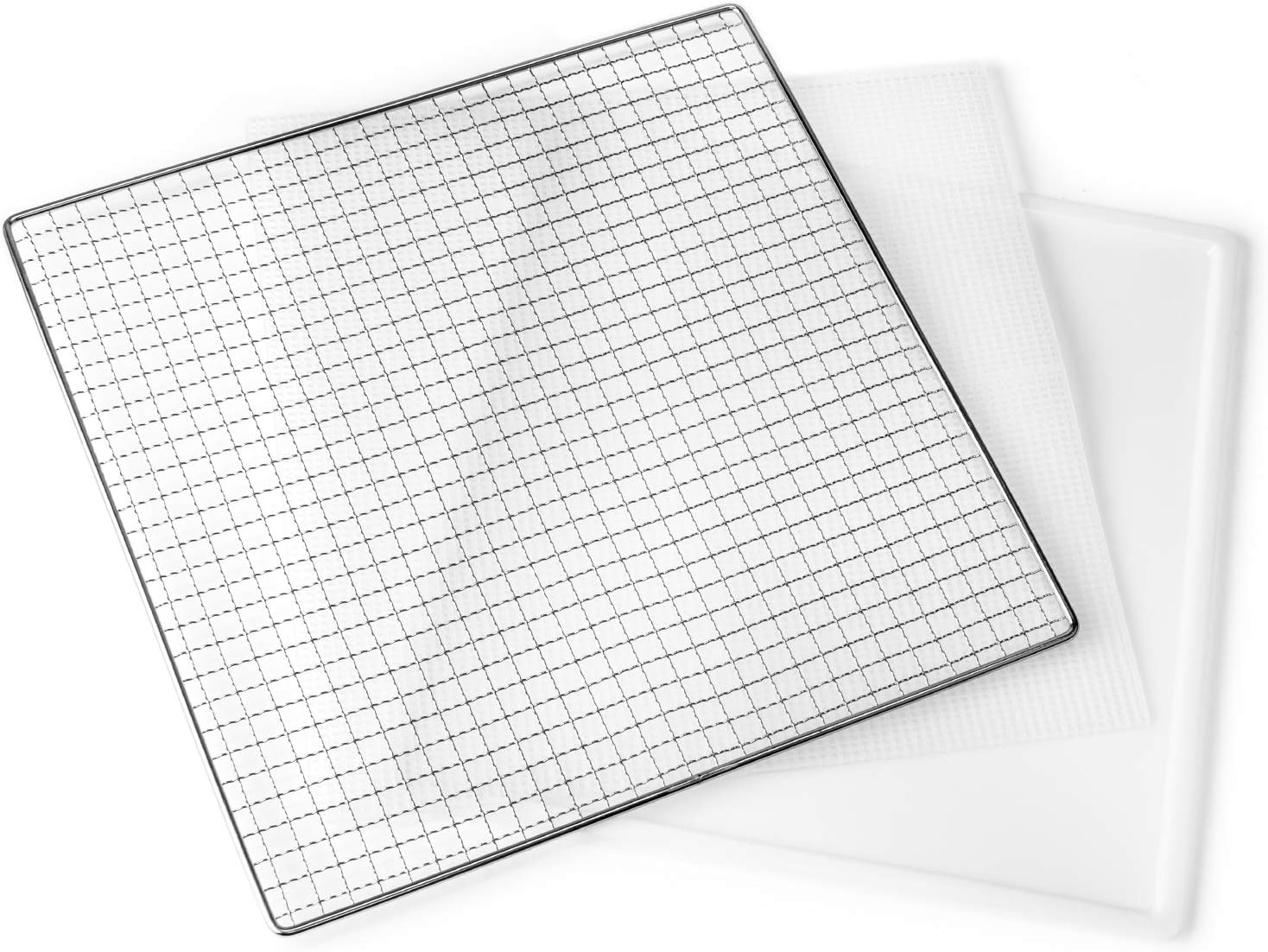

Billede 3.4: Et nærbillede view of the included accessories: a stainless steel dehydrator tray, a BPA-free dehydrator mat, and a dehydrator grid, designed for various food types.

4. Opsætning

1. Udpakning: Carefully remove the dehydrator and all accessories from the packaging. Retain packaging for future storage or transport.
2. Indledende rengøring: Before first use, clean all removable parts (trays, mats, grids) with warm soapy water. Wipe the interior and exterior of the main unit with a damp klud. Sørg for, at alle dele er helt tørre, inden de samles.
3. Placering: Place the dehydrator on a flat, stable, and heat-resistant surface. Ensure there is adequate space (at least 10-15 cm) around all sides of the appliance for proper ventilation. Do not place it near heat sources or flammable materials.
4. Installation af bakke: Insert the stainless steel trays into the designated slots inside the dehydrator. If using, place dehydrator mats or grids on top of the trays as needed for smaller or stickier items.
5. Strømtilslutning: Sæt netledningen i en jordet stikkontakt. Sørg for, at lydstyrken er korrekt.tage matches the specifications of your appliance (230V).

5. Betjeningsvejledning

5.1 Tilberedning af mad til dehydrering

• Vask og rengør grundigt alle fødevarer.
• Cut food into uniform slices or pieces to ensure even drying. Thinner slices dry faster.
• For fruits, consider pre-treating with lemon juice or a commercial anti-darkening solution to preserve color.
• Arrange food in a single layer on the dehydrator trays, ensuring air can circulate freely around each piece. Do not overlap.

5.2 Brug af kontrolpanelet

The control panel features touch buttons and an LED display.

1. Tænd/sluk: Tryk på START/STOP for at tænde eller slukke for apparatet.
2. Indstil temperatur: Tryk på TEMP knappen, og brug derefter + og - buttons to adjust the desired drying temperature (35 °C to 75 °C).
3. Indstil timer: Tryk på TID knappen, og brug derefter + og - buttons to set the desired drying time (up to 24 hours).
4. Start dehydrering: After setting temperature and time, press the START/STOP button to begin the dehydration process. The LED display will show the remaining time and current temperature.
5. Automatisk slukning: The dehydrator will automatically turn off once the set timer expires.

5.3 General Dehydration Guidelines

• Drying times vary significantly based on food type, thickness, moisture content, and ambient humidity.
• Periodically check the food for desired dryness. Foods are typically dry when they are pliable but no longer sticky, or brittle.
• Rotate trays or rearrange food if you notice uneven drying, although the DA 1000 is designed for uniform heat distribution.
• Allow dehydrated food to cool completely before storing.
• Store dried foods in airtight containers in a cool, dark place.

6. Vedligeholdelse og rengøring

Regular cleaning ensures optimal performance and extends the lifespan of your dehydrator.

1. Før rengøring: Tag altid stikket ud af stikkontakten, og lad det køle helt af.
2. Trays, Mats, and Grids: Wash these removable parts in warm soapy water. For stubborn residues, soak them before scrubbing. Rinse thoroughly and dry completely before reassembling or storing. These parts are generally dishwasher safe, but hand washing is recommended for longevity.
3. Hovedenhed: Tør de udvendige og indvendige overflader af med enamp cloth. For sticky residues, use a mild detergent on the cloth. Do not use abrasive cleaners, scouring pads, or harsh chemicals. Ensure no water enters the control panel or fan area.
4. Fan Area: Periodically check the fan area for any food particles. Use a soft brush or vacuum cleaner with a narrow attachment to gently remove any debris.
5. Opbevaring: Store the clean and dry dehydrator in a cool, dry place. Utilize the cable winder for neat storage of the power cord.

7. Fejlfinding

8. Specifikationer

Note: The product dimensions listed in some specifications (e.g., 45 x 12 x 9 cm) appear to be incorrect or refer to packaging. The actual appliance is significantly larger, as indicated by the tray size and total drying area.

9. Garanti og support

Rommelsbacher products are manufactured with high-quality materials and undergo strict quality control. For warranty information, please refer to the warranty card included with your product or visit the official Rommelsbacher website. In case of technical issues or questions regarding your appliance, please contact Rommelsbacher customer support or your authorized dealer. Please have your model number (DA 1000) and purchase details ready when contacting support.

For yderligere hjælp kan du besøge Rommelsbacher official webwebsted.
