1. Vigtige sikkerhedsoplysninger
Læs venligst alle instruktioner omhyggeligt, inden du bruger dette apparat, for at forhindre personskade og materielle skader. Gem denne manual til senere brug.
- This machine is designed for household use only.
- Ensure the power supply matches the machine's requirements (110 Volts, 3 prongs).
- Brug ikke maskinen, hvis netledningen eller stikket er beskadiget.
- Tag altid stikket ud af maskinen, inden du rengør eller udfører vedligeholdelse.
- Hold børn og kæledyr væk fra maskinen under drift.
- Vask ikke genstande, der er snavset med benzin, renserimidler eller andre brandfarlige eller eksplosive stoffer.
2. Produktet er slutview
The Panda PAN56MGP3 is a compact, full-automatic portable washing machine designed for small loads and spaces such as apartments, dorms, and RVs. It features a top-load design with a durable stainless steel drum.
Figur 2.1: Samlet set view of the Panda PAN56MGP3 Portable Washing Machine.

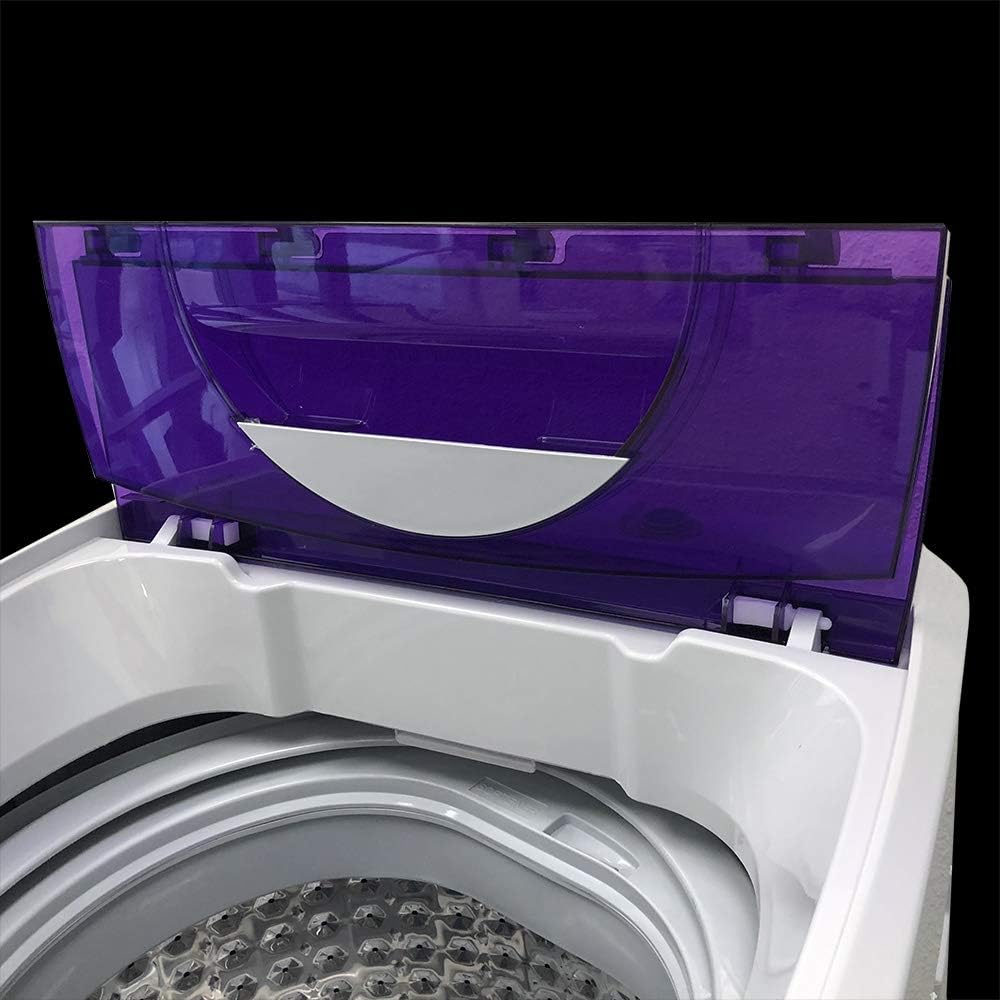

Figure 2.2: Top-load access with the lid open, revealing the drum.
Figur 2.3: Interiør view of the stainless steel drum, designed for durability and rust resistance.
3. Opsætning
3.1 Udpakning og første inspektion
- Fjern forsigtigt alle emballagematerialer.
- Inspect the machine for any shipping damage.
- Vigtig bemærkning: A black rectangular plastic piece located at the bottom of the machine is a motor protection part used during shipment. It is not part of the machine and skal fjernes før du bruger maskinen.
- Water Test Residue: To ensure product quality, all machines are water tested by the manufacturer before shipping. It is normal to find water marks or residual water inside or outside the machine. This does not indicate a used product.
3.2 Placering
- Placer vaskemaskinen på en fast, plan overflade for at minimere vibrationer og støj under drift.
- Sørg for tilstrækkelig plads omkring maskinen til ventilation og adgang.
3.3 Vandtilslutning
This machine has ONE water inlet. It connects to a standard faucet using the provided inlet hose and quick adapter.
Figure 3.1: Included inlet hose and quick adapter kit.
- Attach the quick adapter to your standard faucet. Ensure a tight seal to prevent leaks.
- Connect one end of the inlet hose to the quick adapter on the faucet.
- Connect the other end of the inlet hose to the water inlet port on the back of the washing machine.
- Adjust the water temperature directly from the faucet, as the machine does not have a built-in water heater.
Figure 3.2: Inlet hose connected to a standard faucet.
Figure 3.3: Inlet hose connected to the machine's water inlet.

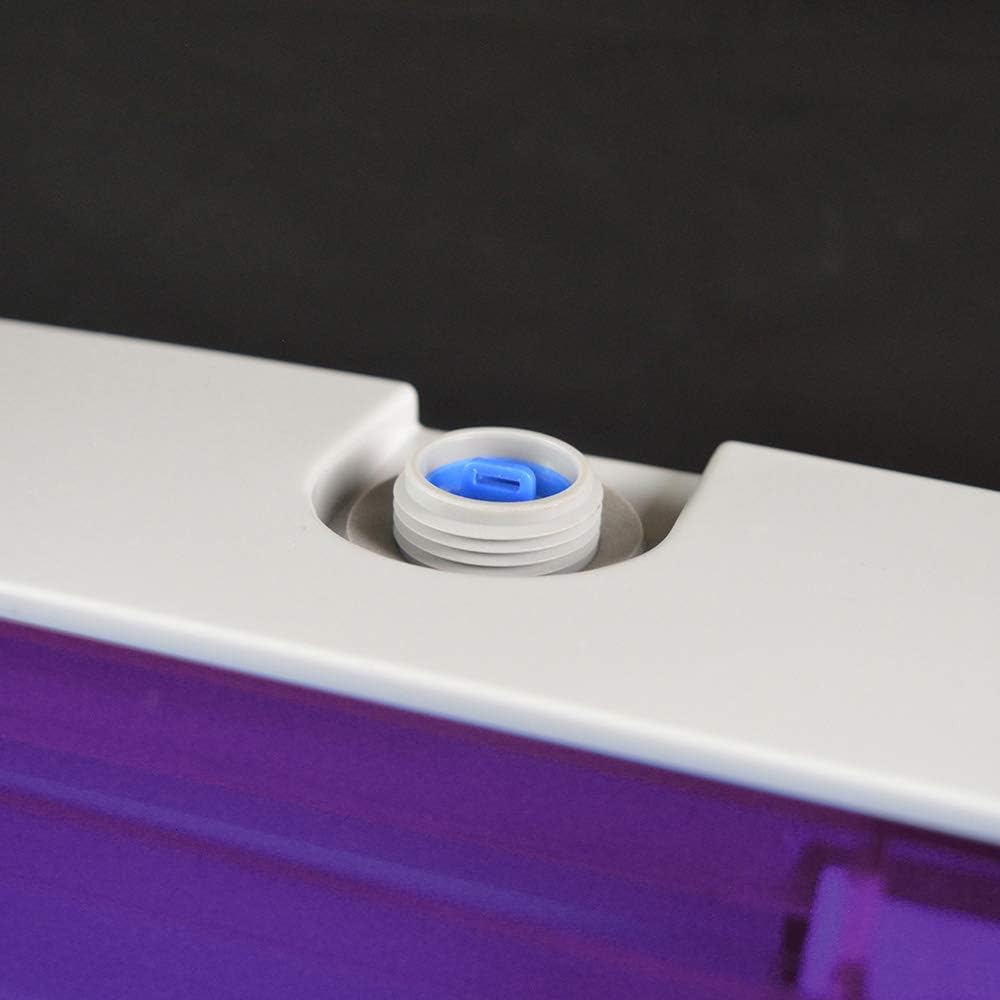

Figure 3.4: Close-up of the water inlet port on the washing machine.
3.4 Opsætning af afløbsslange
Position the drain hose to allow for proper water drainage. The machine features upper drainage.
Figure 3.5: The drain hose, which should be securely placed for proper drainage.
- Ensure the drain hose is securely placed in a sink, bathtub, or drain pipe to prevent it from dislodging during the drain cycle.
- Do not block the drain hose, as this can cause water to back up.
3.5 Strømtilslutning
- Sæt det almindelige 3-benede netkabel i en jordet 110V stikkontakt.
- Avoid using extension cords if possible. If one is necessary, ensure it is rated for the appliance's power requirements.
4. Betjeningsvejledning
4.1 Kontrolpanel overview
The electronic controls with LED display allow for easy selection of wash programs and settings.
Figure 4.1: The control panel with various buttons and the digital display.
- Power knap: Tænder/slukker maskinen.
- Start/Pause knap: Starter eller sætter den valgte vaskecyklus på pause.
- Program knap: Cycles through the 10 available wash programs.
- Water Level/Spin Button: Adjusts the water level or selects spin-only function.
- Forsinkelsesknap: Sets a delayed start time for the wash cycle.
- Børnelås: Activates/deactivates the child lock feature (refer to specific instructions on the panel).
- LED display: Shows remaining time, selected program, and error codes.
4.2 Ilægning af vasketøj
- Do not overload the machine. The maximum capacity is 10 lbs (1.34 cu. ft.). Overloading can affect washing performance and cause imbalance during spin cycles.
- Distribute laundry evenly around the drum to prevent excessive vibration.
- Tilsæt passende vaskemiddel i dispenseren.
4.3 Valg af vaskeprogram
Maskinen tilbyder 10 vaskeprogrammer:
- Normal
- Standard
- Hurtig vask
- Heavy Duty
- Udblød og vask
- Vask
- Wash & Rinse
- Skyl & Spin
- Spin
- Lufttør
Tryk på Program button repeatedly to select the desired wash cycle. The corresponding indicator on the control panel will light up.
4.4 Water Level Settings
There are 5 water level settings available. Press the Vandstand/Centrifugering button to select the appropriate water level for your load size.
4.5 Start af en vaskecyklus
- After loading laundry, adding detergent, and selecting your program and water level, close the lid.
- Tryk på Start/Pause knappen for at starte vaskecyklussen.
- The machine will automatically fill with water, wash, rinse, and spin according to the selected program.
5. Vedligeholdelse
5.1 Rengøring af ydersiden
- Tør maskinens ydre af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
5.2 Rengøring af tromlen
- Periodically run a cleaning cycle with a washing machine cleaner or a mixture of vinegar and baking soda to prevent odors and residue buildup.
- After each use, leave the lid open for a period to allow the interior to air dry and prevent mildew.
5.3 Filtervedligeholdelse
While not explicitly detailed, most washing machines have a lint filter or drain pump filter that requires periodic cleaning. Consult the full product manual for specific instructions on locating and cleaning any internal filters.
5.4 Opbevaring
- If storing the machine for an extended period, drain all water from the hoses and drum.
- Opbevares tørt og godt ventileret, væk fra direkte sollys og ekstreme temperaturer.
6. Fejlfinding
Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Maskinen starter ikke | Power cord not plugged in; Lid not closed properly; Program not selected. | Check power connection; Ensure lid is fully closed; Select a wash program. |
| Overdreven vibration/støj | Machine not level; Laundry unevenly distributed; Shipping protection not removed. | Adjust leveling feet; Redistribute laundry; Remove the black motor protection piece from the bottom. |
| Vandlækage | Hoses not securely connected; Drain hose dislodged. | Tighten all hose connections; Secure the drain hose properly. |
| Vand løber ikke ud | Afløbsslangen er bøjet eller blokeret; Afløbspumpens filter er tilstoppet (hvis relevant). | Check and clear drain hose; Clean drain pump filter (refer to full manual). |
| Tøj er ikke rent | Overbelastning; Utilstrækkeligt vaskemiddel; Forkert programvalg. | Reduce load size; Use appropriate amount of detergent; Select suitable wash program. |
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Panda |
| Model | PAN56MGP3 |
| Kapacitet | 1.34 kubikfod (ca. 10 lbs) |
| Mål (D x B x H) | 20 x 19 x 34 tommer |
| Varens vægt | 58 pund |
| Voltage | 110 volt |
| Motorhastighed | 310 watt |
| Vaskeprogrammer | 10 |
| Vandniveauer | 5 |
| Badekar Materiale | Rustfrit stål |
| Farve | Light Gray & Purple |
| Max spinhastighed | 800 RPM |
| Støjniveau | 74 dB |
| Inkluderede komponenter | Inlet hose with faucet adaptor, Regular 3 prongs Power Cord |
8. Garanti og support
8.1 Producentens garanti
This Panda washing machine comes with a 1 års producentgaranti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
Gem venligst dit købsbevis for garantikrav.
8.2 Kundesupport
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Panda customer support. Refer to the product packaging or the manufacturer's official webhjemmeside for de seneste kontaktoplysninger.
