Tefal ActiFry FZ710038 Airfryer Brugsanvisning

1. Introduktion

Welcome to the Tefal ActiFry FZ710038 user manual. This appliance is designed to provide a healthy and convenient way to prepare a variety of meals with minimal oil. The ActiFry utilizes a patented heat pulse system and an automatic stirring paddle to ensure even cooking results. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Vigtige sikkerhedsinstruktioner

• Placer altid apparatet på en stabil, varmebestandig overflade.
• Nedsænk ikke hovedenheden i vand eller anden væske.
• Sørg for, at apparatet er taget ud af stikkontakten før rengøring eller vedligeholdelse.
• Hold børn væk fra apparatet under drift.
• Bloker ikke luftindtag eller -udtag under brug.
• Use only the recommended amount of oil as specified in recipes.

2. Produktet er slutview

The Tefal ActiFry FZ710038 is a 1400 Watt air fryer with a 1 kg food capacity. It features a ceramic-coated removable bowl, a digital timer, and an automatic stirring paddle for homogeneous cooking.

Nøglefunktioner:

• Magt: 1400 Watt for efficient cooking.
• ActiFry Express Technology: Patented heat pulse system and stirring paddle for even results.
• Elektronisk temperaturkontrol: Increases airflow by 40% for precise cooking.
• Fødevarekapacitet: 1 kg, suitable for various meal sizes.
• Aftagelig skål: Ceramic coating for non-stick cooking and easy cleaning.
• Digital timer: For accurate cooking time management.
• Pre-set Cooking Programs: Includes programs for French fries, poultry/meat, and vegetables.
• Dele, der tåler opvaskemaskine: Bowl, lid, paddle, and spoon are dishwasher safe.

Komponenter:

Figur 2.1: Forside view of the Tefal ActiFry FZ710038 air fryer, showing the main unit, lid, control panel, and handle.

Figur 2.2: Eksploderet view of the Tefal ActiFry FZ710038, illustrating the removable lid, stirring paddle, and ceramic-coated cooking bowl.

• Main Unit with heating element and fan
• Aftageligt låg
• Removable Ceramic-Coated Cooking Bowl
• Automatic Stirring Paddle
• Måleske
• Control Panel with Digital Timer

3. Opsætning

3.1 Udpakning og første rengøring

1. Fjern alt emballagemateriale og reklamemærker fra apparatet.
2. Tør hovedenheden af ​​med adamp klæde.
3. Wash the removable lid, cooking bowl, stirring paddle, and measuring spoon with warm soapy water. Rinse thoroughly and dry completely. These parts are also dishwasher safe.

3.2 Montering

1. Place the stirring paddle into the center of the cooking bowl, ensuring it is securely seated.
2. Insert the cooking bowl into the main unit.
3. Luk låget forsvarligt, indtil det klikker på plads.

3.3 Placering

Place the ActiFry on a flat, stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation. Ensure the power cord is not tangled or near hot surfaces.

4. Betjeningsvejledning

4.1 Preparing Food

1. Open the lid and place your ingredients into the cooking bowl. Do not exceed the maximum fill line (1 kg capacity).
2. Add the recommended amount of oil using the provided measuring spoon. For many recipes, only one spoon of oil is sufficient.

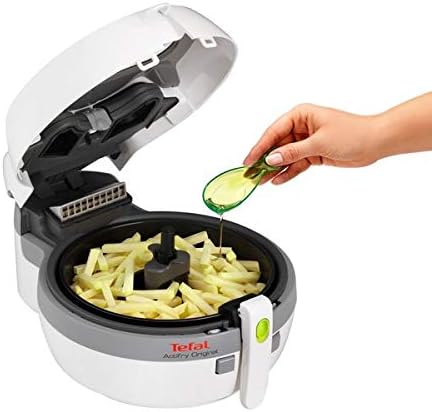

Figure 4.1: Demonstrating the addition of ingredients and a single spoon of oil into the ActiFry cooking bowl.

4.2 Using the Digital Timer and Pre-set Programs

1. Luk låget og sæt apparatet i stikkontakten.
2. Tryk på ON/OFF-knappen for at tænde for enheden.
3. For Pre-set Programs: Select one of the three pre-set programs (French fries, poultry/meat, vegetables) by pressing the corresponding button on the control panel. The appliance will automatically set the optimal cooking time and temperature.
4. For Manual Timer Setting: Use the '+' and '-' buttons on the digital timer to adjust the cooking duration.
5. Press the START button to begin cooking. The stirring paddle will rotate automatically.
6. The timer will count down, and the appliance will emit an audible signal when cooking is complete.
7. Carefully open the lid and remove the cooked food.

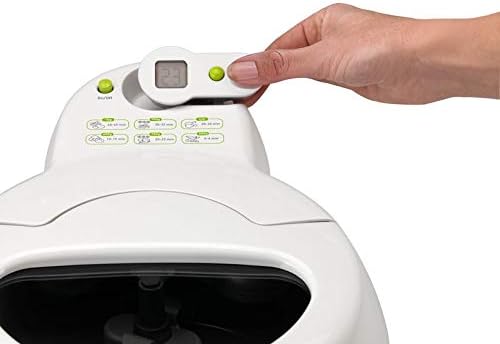

Figure 4.2: Close-up of the ActiFry control panel, highlighting the digital timer display and control buttons for setting cooking duration.

Figure 4.3: The ActiFry cooking bowl containing a mix of vegetables and chicken, demonstrating its versatility for different recipes.

5. Vedligeholdelse og rengøring

5.1 Rengøring af apparatet

1. Tag altid stikket ud af stikkontakten, og lad det køle helt af før rengøring.
2. The removable bowl, lid, stirring paddle, and measuring spoon are dishwasher safe. Alternatively, wash them by hand with warm soapy water and a non-abrasive sponge.
3. Tør ydersiden af ​​hovedenheden af ​​med enamp klæde. Brug ikke slibende rengøringsmidler eller skuremidler.
4. Sørg for, at alle dele er helt tørre, før du samler eller opbevarer apparatet igen.

5.2 Opbevaring

Store the ActiFry in a dry, clean place when not in use. Ensure the power cord is neatly wrapped.

6. Fejlfinding

If you encounter issues with your Tefal ActiFry FZ710038, please refer to the following common solutions:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte Tefals kundesupport.

7. Specifikationer

8. Garanti og support

The Tefal ActiFry FZ710038 comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or service inquiries, please visit the official Tefal webwebstedet eller kontakt deres kundeserviceafdeling i din region.
