AmazonBasics TV Trolley (Model TC40) User Manual

1. Introduktion

Welcome to the user manual for your AmazonBasics TV Trolley, Model TC40. This mobile TV stand is designed to securely hold flat panel televisions ranging from 32 to 70 inches, offering flexibility with its swivel feature and convenient mobility. This manual provides essential information for safe assembly, operation, and maintenance of your TV trolley. Please read all instructions carefully before assembly and use.

2. Vigtige sikkerhedsoplysninger

For at sikre sikker drift og forhindre personskade eller beskadigelse, bedes du overholde følgende sikkerhedsretningslinjer:

• Læs alle instruktioner omhyggeligt før montering og brug.
• Do not exceed the maximum weight capacity of the trolley. Refer to the 'Specifications' section for details.
• Ensure all screws and bolts are securely tightened before placing a TV on the trolley and before moving it.
• Do not allow children to climb on or play with the TV trolley.
• Always move the trolley slowly and carefully, especially on uneven surfaces.
• Lock the wheels when the trolley is in a stationary position to prevent accidental movement.
• Only use the provided hardware or manufacturer-approved replacements.
• Hvis nogen dele mangler eller er beskadiget, skal du straks kontakte kundesupport.

3. Pakkens indhold

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

Figur 3.1: Overview of the AmazonBasics TV Trolley. This image displays the complete TV trolley assembly, featuring the vertical support posts, the adjustable TV mounting bracket, the central equipment shelf, and the wheeled base for mobility.

Included Hardware and Components

• Main TV Trolley Frame (Vertical Posts, Base Legs)
• TV monteringsbeslag
• Justerbar hylde
• Wheels (with locking mechanism)
• Hardware Kit (various screws, washers, nuts, Allen keys, spanners)
• Brugervejledning (dette dokument)

Figur 3.2: Close-up of the TV mounting bracket and the top sections of the vertical posts, illustrating the attachment points for the television and the height adjustment mechanism.

4. Monteringsvejledning

Follow these step-by-step instructions carefully. It is recommended to have a second person assist with mounting the TV for safety and ease.

Værktøj påkrævet

• Stjerneskruetrækker (medfølger ikke)
• unbraconøgler (medfølger)
• Spanners (included)

1. Trin 1: Saml basen. Attach the base legs to the central base connector. Secure with the provided bolts and tighten using the included spanner. Ensure all connections are firm.


Figur 4.1: Illustration of the base assembly, showing the four legs connected to the central hub, ready for wheel attachment.

2. Step 2: Attach the Wheels. Insert and secure the wheels into the base legs. Ensure that the two locking wheels are placed on the front legs as indicated in the diagram (if applicable) to prevent accidental movement.
3. Step 3: Install Vertical Posts. Connect the vertical support posts to the assembled base. Secure them firmly with the appropriate bolts and Allen key.


Figur 4.2: View of the vertical support posts being inserted into the base, highlighting the connection points for stability.

4. Step 4: Attach the Shelf. Position the adjustable shelf at the desired height on the vertical posts and secure it using the provided hardware. Ensure it is level and stable.
5. Step 5: Mount the TV Bracket. Attach the TV mounting bracket to the top section of the vertical posts. Ensure it is centered and securely fastened.
6. Step 6: Prepare TV for Mounting. Attach the TV mounting arms to the back of your television using the appropriate VESA screws from the hardware kit. Select screws that fit your TV's VESA pattern and do not overtighten. Ensure the arms are level and securely fastened to the TV.
7. Step 7: Mount the TV. With assistance, carefully lift the television and hook the mounting arms onto the TV bracket on the trolley. Secure the TV to the bracket using the safety screws or locking mechanisms provided. Double-check all connections for security.

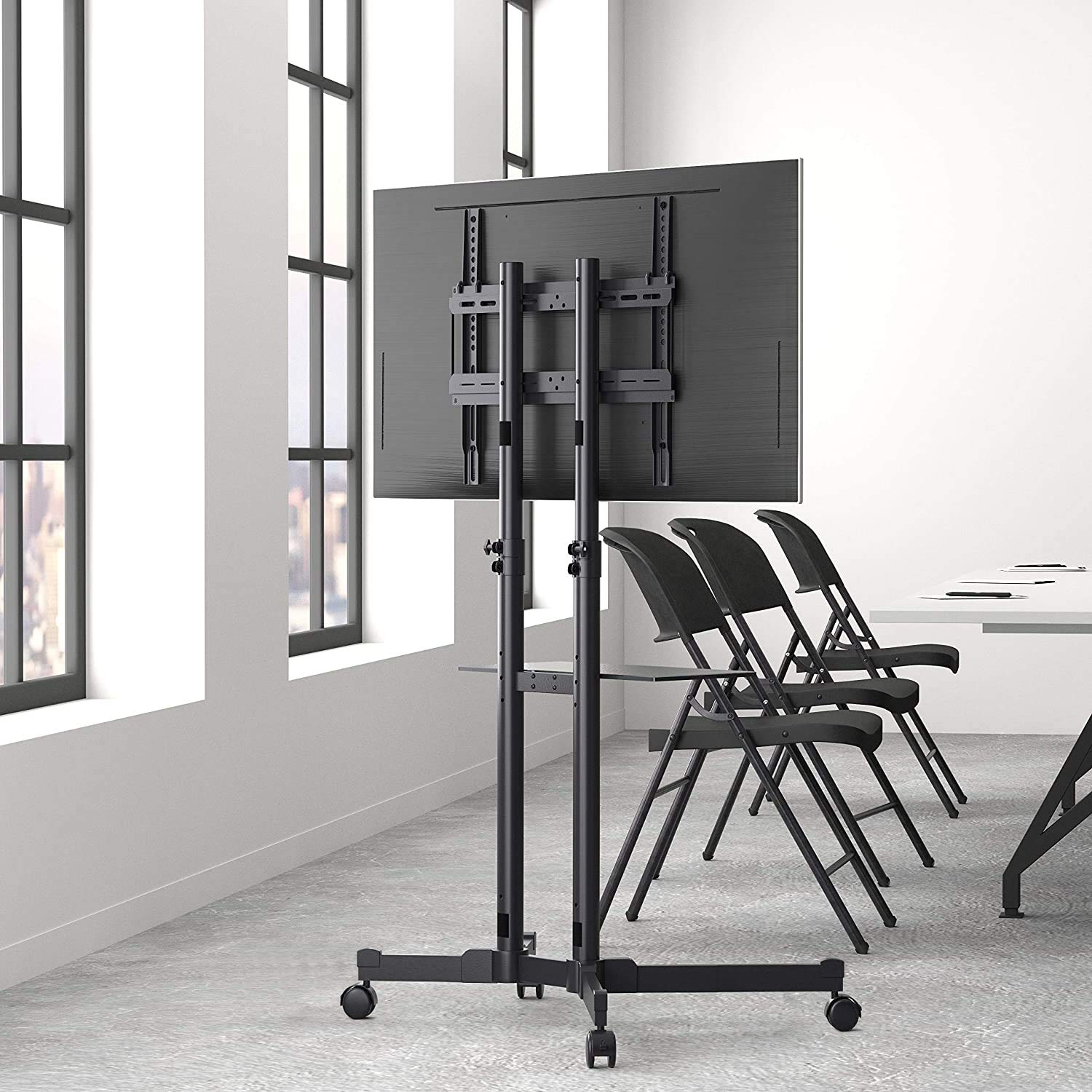

Figur 4.3: Rear perspective of the TV trolley with a television securely mounted, illustrating the VESA bracket attachment and cable management options.

5. Betjeningsvejledning

Moving the TV Trolley

• Unlock all wheels by disengaging their locking mechanisms before attempting to move the trolley.
• Push the trolley gently from the base or the lower part of the vertical posts. Avoid pushing directly on the TV screen.
• Lock the wheels once the trolley is in its desired stationary position to prevent accidental movement.

Justering af tv-højde

The TV height can be adjusted by loosening the securing bolts on the vertical posts, carefully raising or lowering the TV to the desired level, and then re-tightening the bolts firmly. Always ensure the TV is level and secure after adjustment.

Using the Swivel Feature

The TV mounting bracket allows for horizontal swivel movement. Gently rotate the TV to achieve the desired viewing angle. Avoid excessive force or sudden movements.

Figur 5.1: The AmazonBasics TV Trolley positioned in a modern office environment, showcasing its mobility and suitability for various settings.

6. Vedligeholdelse

Rensning

• Tør overflader af med en blød, damp klæde.
• Avoid abrasive cleaners, harsh chemicals, or solvents, as these may damage the finish.

Inspektion

• Periodically check all screws and bolts for tightness. Re-tighten if necessary to maintain stability.
• Inspect the wheels for smooth operation and ensure the locking mechanisms function correctly.
• Check the TV mounting bracket and all structural components for any signs of wear, damage, or deformation.

7. Fejlfinding

Se tabellen nedenfor for almindelige problemer og deres mulige løsninger.

8. Specifikationer

Technical details for the AmazonBasics TV Trolley, Model TC40:

9. Garanti og support

For warranty information and customer support regarding your AmazonBasics TV Trolley, please refer to the AmazonBasics official website or contact Amazon customer service directly. It is advisable to keep your purchase receipt as proof of purchase for any warranty claims.
