Luceco Vipbar LED-lommelygte med USB-powerbank Brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Luceco Tilting LED Flashlight with USB Power Bank. Please read this manual thoroughly before using the product and retain it for future reference.

The Luceco 5W USB rechargeable tilting LED work lamp delivers 450 lumens of cool white light (6500K) and features two distinct light modes. Its design incorporates a magnetic base and a fold-out hook, enabling versatile hands-free operation.

2. Produktfunktioner

• Dual Illumination Modes: Offers two light modes from the flashlight head and side, providing 450 lumens of 6500K cool white light for various tasks.
• Forlænget LED-levetid: Designed for durability with an estimated 25,000 hours of LED life.
• Håndfri betjening: Equipped with a 200° tilting magnetic base and a fold-out hook for flexible positioning and hands-free use.
• Integrated Power Bank: Features a built-in power bank function for charging external devices on the go.
• USB-C genopladelig: Conveniently recharges via a USB Type-C port using the included charging cable.
• Langtidsholdbart batteri: A 2000 mAh battery provides up to 2 hours of continuous light output.
• Ryd felt af View: A unique light source design helps prevent multiple shadows, ideal for precise task lighting.
• Robust konstruktion: IK05 impact resistant and IP20 dust resistant casing, suitable for daily use in demanding environments. Features a molded rubber handle for a comfortable grip.
• Kompakt design: Nem at opbevare og transportere.

3. Pakkens indhold

Tjek venligst pakken for følgende varer:

• 1 x Luceco Tilting LED Work Light
• 1 x USB ladekabel

Hvis der mangler eller er beskadigede varer, bedes du kontakte kundesupport.

4. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at mindske risikoen for personskade eller beskadigelse:

• Se ikke direkte ind i LED-lyset, når det er tændt, da dette kan forårsage øjenskader.
• Hold enheden væk fra vand og andre væsker.
• Forsøg ikke at skille ad, reparere eller ændre enheden. Dette vil ugyldiggøre garantien og kan forårsage skade.
• Use only the provided USB charging cable or a certified equivalent.
• Udsæt ikke enheden for ekstreme temperaturer eller direkte sollys.
• Opbevares utilgængeligt for børn.

5. Opsætning

The Luceco Tilting LED Flashlight comes pre-assembled and ready for use after an initial charge.

Indledende opladning

Before first use, fully charge the flashlight. Refer to the "Charging the Device" section for detailed instructions.

Image: The USB-C charging port and a standard USB-A output port on the side of the flashlight, indicating its rechargeable nature and power bank capability. The text on the image highlights that it is USB-C rechargeable with the cable included.

6. Betjeningsvejledning

Powering On/Off and Switching Modes

1. Press the power button once to turn on the main LED light (flashlight head).
2. Press the power button a second time to switch to the side LED light.
3. Press the power button a third time to turn off the flashlight.

Hands-Free Positioning

The flashlight offers versatile positioning options:

• Magnetisk base: The base of the flashlight contains a strong magnet. Attach it to any ferrous metal surface for stable, hands-free illumination. The base can tilt up to 200° to direct the light as needed.
• Fold-Out Hook: A hook is integrated into the design, allowing you to hang the flashlight from various fixtures or objects. The hook can rotate 360° for optimal placement.

Image: The Luceco LED flashlight demonstrating its 360° foldable hanging hook and 360° rotatable and tiltable magnetic base, illustrating its hands-free capabilities.

Ansøgninger

This flashlight is suitable for a wide range of uses, including:

• General inspection and maintenance tasks.
• DIY projects around the home or workshop.
• Udendørs aktiviteter som f.eksamping.
• Automotive repairs and inspections.

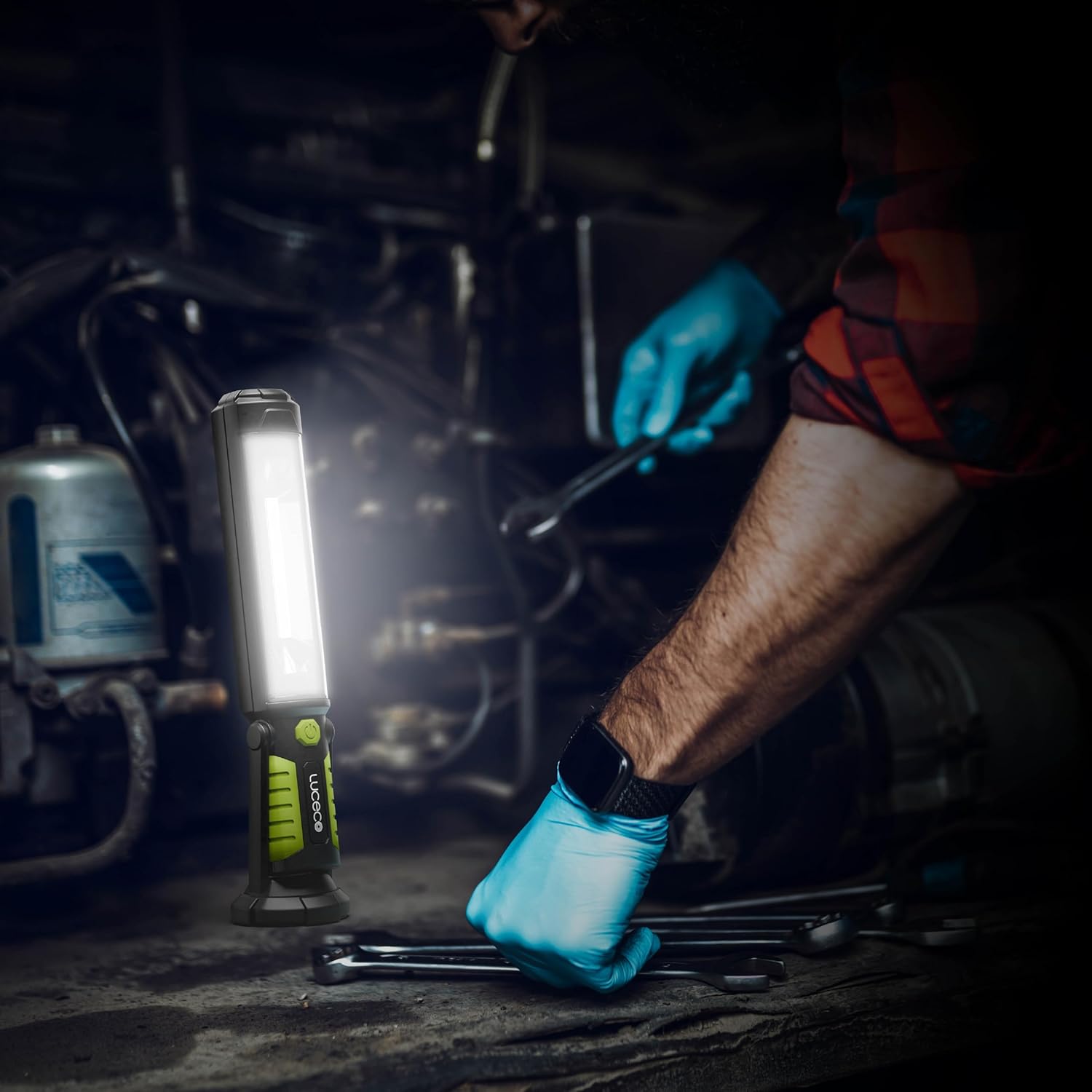

Image: A person using the Luceco LED flashlight to illuminate an engine bay during maintenance, showcasing its utility in a professional setting.

Image: A person inspecting a car's wheel well with the Luceco LED flashlight, demonstrating its effectiveness for detailed automotive work.

7. Opladning af enheden

The flashlight is equipped with a rechargeable 2000 mAh Lithium-Ion battery.

Opladningsprocedure

1. Locate the USB Type-C input port on the side of the flashlight.
2. Connect the provided USB charging cable to the flashlight's USB Type-C port.
3. Connect the other end of the USB cable to a compatible USB power source (e.g., a wall adapter, computer USB port, or car charger).
4. The charging indicator light will illuminate to show that the device is charging.
5. Once fully charged, the indicator light will change or turn off (refer to the product's specific indicator behavior if available). Disconnect the cable.

A full charge provides up to 2 hours of light output.

8. Brug som powerbank

The flashlight features an integrated power bank function, allowing you to charge other USB-powered devices.

Power Bank Procedure

1. Locate the standard USB-A output port on the side of the flashlight.
2. Connect your device's charging cable (e.g., smartphone, tablet) to the USB-A output port on the flashlight.
3. The flashlight will begin charging your device. Monitor your device's charging status.
4. Disconnect your device once charging is complete or if the flashlight's battery is depleted.

Image: The Luceco LED flashlight connected via a USB cable to a smartphone, demonstrating its integrated power bank functionality for charging other devices.

9. Vedligeholdelse

Korrekt vedligeholdelse sikrer din lommelygtes levetid og optimale ydeevne.

Rensning

• Tør lommelygtens yderside af med en blød, tør klud.amp klæde.
• Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen eller de indvendige komponenter.
• Ensure the charging ports are free from dust and debris. Use a dry, soft brush if necessary.

Opbevaring

• Opbevar lommelygten på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• For long-term storage, it is recommended to charge the battery every 3-6 months to maintain battery health.

Billede: Et nærbillede view of the Luceco LED flashlight's durable and robust construction, highlighting the molded rubber grip designed for comfortable handling and resistance to demanding work environments.

10. Fejlfinding

If you encounter issues with your Luceco Tilting LED Flashlight, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Luceco customer support.

11. Specifikationer

12. Garantioplysninger

Luceco products are manufactured to high standards and undergo rigorous quality control. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear. For specific warranty terms and conditions, please refer to the official Luceco webwebsted eller kontakt deres kundeservice.

13. Support

For further assistance, technical support, or to inquire about replacement parts, please contact Luceco customer service through their official webwebstedet eller de kontaktoplysninger, der er angivet med dit køb.

Webwebsted: www.luceco.com (Se venligst for regionale webwebsteder)

When contacting support, please have your product model number (LILT45T65-01) and proof of purchase readily available.
