1. Introduktion
This manual provides essential information for the safe and efficient operation of your Telwin Dynamic 520 Battery Charger and Starter. The Dynamic 520 is designed for charging free electrolyte (WET) batteries with 12V or 24V voltage and for starting various vehicles, including cars, vans, and light trucks.
Læs venligst denne manual grundigt, inden du bruger apparatet, og gem den til senere brug.

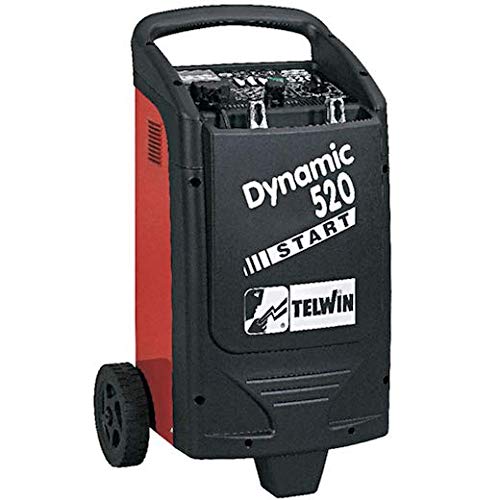

Figure 1: Telwin Dynamic 520 Battery Charger and Starter. This image shows the front and side view of the red and black unit, featuring a handle at the top, control panel, and wheels for portability.
2. Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af enheden:
- Sørg for, at arbejdsområdet er godt ventileret.
- Bær passende personlige værnemidler, herunder øjenværn og handsker.
- Do not operate the charger in damp eller våde forhold.
- Disconnect the unit from the main power supply before making any connections or disconnections to the battery.
- Undgå kortslutning af batteriklemmenamps.
- The unit is equipped with protection against overloads and polarity reversal. However, always ensure correct polarity when connecting to a battery.
- Hold børn og uautoriserede personer væk fra driftsområdet.
3. Opsætning og installation
3.1 Udpakning
Carefully remove the Telwin Dynamic 520 from its packaging. Inspect the unit for any signs of damage during transit. Report any damage to your supplier immediately.
3.2 Placering
Place the unit on a stable, level surface. Ensure adequate clearance around the unit for ventilation. The unit dimensions are 365x460x755 mm and it weighs 21 Kg, so consider its size and weight when choosing a location.
3.3 Elektrisk tilslutning
Connect the unit to a 230V 50/60Hz 1-phase main voltage supply. Ensure the power outlet is properly grounded and capable of handling the absorbed power of 1.6 kW for charging and 10 kW for starting.
4. Betjeningsvejledning
4.1 Tilslutning til batteriet
- Ensure the Telwin Dynamic 520 is disconnected from the main power supply.
- Identificer de positive (+) og negative (-) poler på batteriet.
- Tilslut den røde (+) clamp from the charger to the positive (+) terminal of the battery.
- Tilslut den sorte (-) clamp from the charger to the negative (-) terminal of the battery. For vehicles, connect the black clamp to a metal part of the vehicle chassis, away from the battery and fuel line.
- Bekræft, at alle forbindelser er sikre.
4.2 Opladning af et batteri
The Dynamic 520 supports charging of 12V and 24V WET batteries with a rated reference capacity of 20 to 1000 Ah.
- Select the desired charge voltage (12V eller 24V) ved brug af voltage vælgerkontakt.
- Choose between "Normal Charge" or "Quick Charge (BOOST)" using the mode selector.
- If using "Quick Charge," you may set the timer for the quick charge duration.
- Tilslut enheden til hovedstrømforsyningen.
- Monitor the charging current displayed on the unit. The rated charge current is 50A, with a maximum charge current of 75A.
- The unit has 4 adjustment positions for fine-tuning the charging process.
4.3 Quick Start Function
The quick start function provides a high current burst to assist in starting vehicles with discharged batteries.
- Ensure the battery is connected as described in Section 4.1.
- Select the "Quick Start" mode on the unit.
- Tilslut enheden til hovedstrømforsyningen.
- Attempt to start the vehicle. Do not crank the engine for more than 5 seconds at a time, and allow a 1-minute cool-down period between attempts.
- Monitor the starting current displayed on the unit. The starting peak current is 400A, with a rated starting current of 300A.
- Once the vehicle starts, disconnect the unit from the main power supply, then disconnect the clamps from the vehicle/battery in reverse order of connection.
5. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your Telwin Dynamic 520.
- Rensning: Disconnect the unit from power before cleaning. Use a dry, soft cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
- Opbevaring: Store the unit in a dry, cool place, away from direct sunlight and moisture. Ensure cables are neatly coiled to prevent damage.
- Kabelinspektion: Periodically inspect the power cord and battery clampKontroller for tegn på slid, snit eller skader. Udskift beskadigede komponenter med det samme.
- Intern beskyttelse: The unit features built-in protection against overloads and polarity reversal, minimizing the risk of internal damage from common operational errors.
6. Fejlfinding
This section addresses common issues you might encounter with your Telwin Dynamic 520.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | No main power supply; faulty power cord; internal fuse. | Check power outlet and cord. Consult a qualified technician if the issue persists. |
| Batteriet oplades ikke. | Incorrect battery connection (polarity reversal); battery deeply discharged; incorrect voltage selection; overload protection activated. | Verify correct polarity. Ensure battery is not excessively discharged. Select correct 12V/24V setting. Allow unit to cool if overload protection is active. |
| Vehicle not starting with Quick Start. | Battery too weak; poor connections; engine issues unrelated to battery. | Ensure strong, clean connections. Allow battery to charge for a few minutes before attempting start. Consult vehicle mechanic if engine issues are suspected. |
| Overload protection activates frequently. | Attempting to charge/start a battery too large for the unit; short circuit in connections. | Ensure battery capacity is within the unit's rated reference capacity (20-1000 Ah). Check for short circuits. |
7. Tekniske specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Telwin |
| Type | Batterioplader og starter |
| Model | Dynamisk 520 |
| Main Voltage | 230V 50/60Hz 1-phase |
| Charge Absorbed Power | 1.6 kW |
| Start Absorbed Power | 10 kW |
| Charge / Starter Voltage | 12V - 24V |
| Max ladestrøm | 75 A |
| Nominel ladestrøm | 50 A |
| Rated Starting Current | 300 A |
| Start af maksimal strøm | 400 A |
| Rated Reference Capacity | 20 / 1000 Ah |
| Adjustment Positions | 4 |
| Dimensioner (LxBxH) | 365 x 460 x 755 mm |
| Vægt | 21 kg |
8. Garantioplysninger
Telwin products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Telwin webwebsted. Gem din købsbevis til garantikrav.
9. Kundesupport
If you require technical assistance, have questions about operation, or need to report a fault, please contact Telwin customer service or your authorized dealer. Provide the product model (Dynamic 520) and serial number (if applicable) when contacting support.
For the most up-to-date contact information, please visit the official Telwin webwebsted.
