Mistral Stand Fan MSF040 User Manual

1. Introduktion

Tak for købetasing the Mistral Stand Fan MSF040. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new fan. Please read these instructions thoroughly before use and retain them for future reference.

Figure 1: Fully assembled Mistral Stand Fan MSF040. This image displays the fan's overall design, including the circular base, adjustable stand pole, and the fan head with its protective grille.

2. Vigtige sikkerhedsinstruktioner

For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger:

• Læs alle instruktioner, før du bruger denne ventilator.
• Sørg for, at strømforsyningen voltage stemmer overens med typeskiltet på ventilatoren.
• Do not operate any fan with a damaged cord or plug. If the cord or plug is damaged, contact qualified service personnel for repair or replacement.
• Tag ventilatorens stik ud af stikkontakten, når den ikke er i brug, før rengøring eller før flytning.
• Ventilatoren, stikket eller ledningen må ikke nedsænkes i vand eller andre væsker.
• Keep the fan out of reach of children and pets. Close supervision is necessary when the fan is used near children.
• Stik ikke fingre eller genstande ind gennem gitteret, når ventilatoren er i drift.
• Placer ventilatoren på en stabil, plan overflade for at forhindre den i at vælte.
• Brug ikke blæseren i vådt eller damp steder, såsom badeværelser eller vaskerum.
• Bloker ikke luftåbningerne, og brug ikke apparatet i nærheden af ​​gardiner eller andre materialer, der kan blokere luftstrømmen.

3. Pakkens indhold

Når du åbner pakken, skal du sørge for, at alle følgende komponenter er til stede:

• Fan Motor Unit with Rear Grille
• Ventilator Vinge
• Frontgitter
• Låsemøtrik til gitter
• Klingehætte
• Stand Pole (Upper and Lower sections)
• Rund base
• Base fikseringsskrue
• Netledning (integreret)
• Brugermanual

4. Monteringsvejledning

Follow these steps to assemble your Mistral Stand Fan MSF040:

1. Saml basen: Place the stand pole onto the round base. Secure it from underneath the base using the provided base fixing screw. Ensure it is tightened firmly.
2. Fastgør motorenheden: Insert the fan motor unit onto the top of the stand pole. Secure it with the pole locking screw, if present, or by twisting until it clicks into place.
3. Installer baggitteret: Place the rear grille onto the motor unit, aligning the notches. Secure it with the grille locking nut, turning clockwise until tight.
4. Mount the Fan Blade: Slide the fan blade onto the motor shaft, ensuring the pin on the shaft aligns with the groove on the blade. Secure it with the blade cap, turning counter-clockwise until tight.
5. Fastgør frontgitteret: Position the front grille over the rear grille, aligning the clips. Secure the front grille by pressing the clips firmly around the edge until it is fully closed.

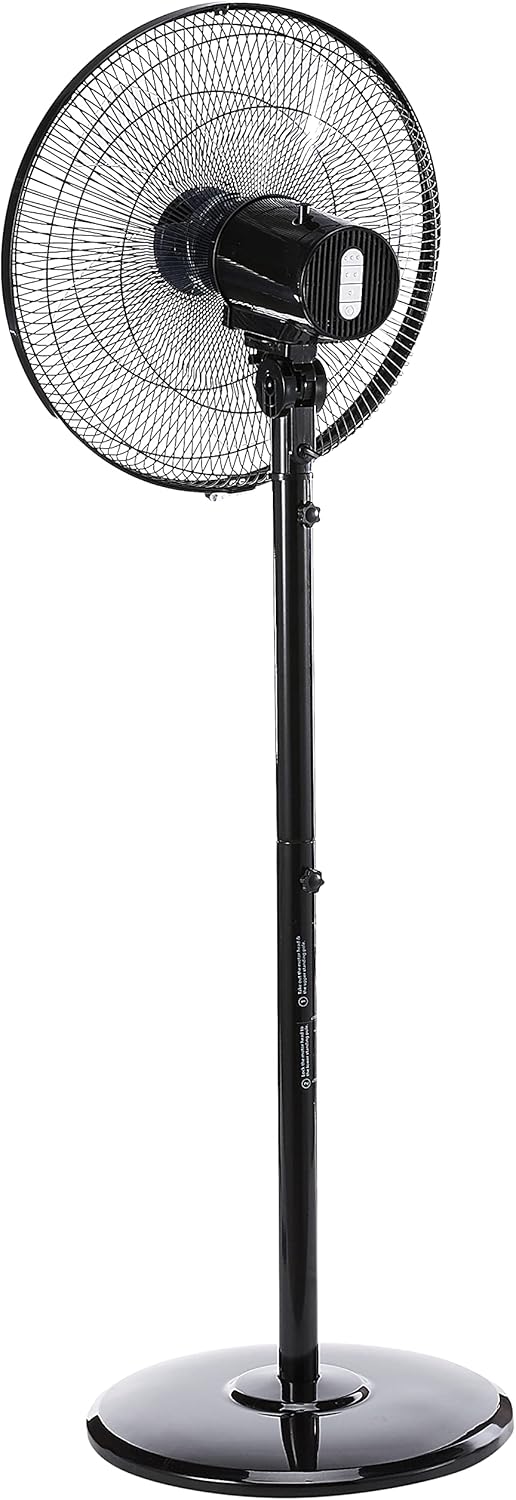

Figur 2: Side view of the fan, illustrating the adjustable height feature of the stand pole. The pole can be extended or retracted to suit different user preferences.

5. Betjeningsvejledning

Once assembled, your Mistral Stand Fan MSF040 is ready for operation:

• Strømtilslutning: Sæt strømstikket i en passende stikkontakt.
• Tænd/sluk: Use the power button on the control panel to turn the fan on or off.
• Hastighedsvalg: The fan offers 3 speed selections. Press the speed control buttons on the control panel to cycle through low, medium, and high settings.
• oscillation: To activate the left and right oscillation, press the oscillation button on the control panel. Press it again to stop oscillation.
• Justering af hældning: The fan head can be tilted 30° up or down. Gently adjust the fan head to your desired angle.
• Højdejustering: The stand pole features a convertible height mechanism. Loosen the height adjustment knob on the stand pole, adjust to the desired height, and then tighten the knob firmly.

Figur 3: Nærbillede view of the fan's control panel, featuring tactile buttons for power, speed selection, and oscillation.

6. Vedligeholdelse og rengøring

Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your fan:

• Tag altid stikket ud af ventilatoren fra stikkontakten før rengøring.
• Tør ventilatorens yderflader af med en blød, tør klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• For thorough cleaning of the fan blades, the front grille can be carefully removed. Refer to the assembly instructions in reverse order for safe disassembly and reassembly.
• Ensure all parts are completely dry before plugging the fan back in and operating it.
• Opbevar ventilatoren et køligt og tørt sted, når den ikke er i brug i længere perioder.

7. Fejlfinding

Hvis du støder på problemer med din ventilator, bedes du se følgende almindelige problemer og løsninger:

• Ventilator tænder ikke:
  • Kontroller, om netledningen er tilsluttet korrekt til en fungerende stikkontakt.
  • Ensure the power button on the control panel is pressed.
  • Verify that the household circuit breaker or fuse has not tripped.
• Fan makes unusual noise:
  • Unplug the fan and check for any obstructions (e.g., loose debris, wires) in the fan blades or grilles.
  • Ensure all parts are securely assembled and tightened.
• Fan does not oscillate:
  • Ensure the oscillation button on the control panel has been pressed.

Hvis problemet fortsætter efter at have kontrolleret disse punkter, bedes du kontakte kundesupport.

8. Specifikationer

Figure 4: Close-up of the power plug, indicating the corded electric power source for the fan.

9. Garanti og support

Your Mistral Stand Fan MSF040 comes with a 2 års lokal (Singapore) garantiGem venligst din købsbevis i tilfælde af garantikrav.

For technical support, service, or warranty inquiries, please contact Mistral customer service through their official channels. Refer to the product packaging or the official Mistral webwebsted for kontaktoplysninger.
