Ultimate Speed Portable Power Bank and Car Jump Starter

1. Introduktion

Thank you for choosing the Ultimate Speed Portable Power Bank and Car Jump Starter. This versatile 2-in-1 device is designed to provide emergency jump-starting for vehicles and serve as a portable power bank for charging electronic devices. Please read this manual carefully before first use to ensure safe and optimal operation.

2. Sikkerhedsoplysninger

WARNING: Improper use can lead to serious injury or damage to the device/vehicle.

• Always wear eye protection and gloves when working with batteries.
• Udsæt ikke enheden for regn, fugt eller ekstreme temperaturer.
• Opbevares utilgængeligt for børn.
• Sørg for ordentlig ventilation under brug.
• Kortslut ikke jumpstarteren.amps.
• Do not attempt to jump start a frozen or visibly damaged battery.
• This device is spark-proof, but always avoid contact with flammable materials.
• Disconnect the device from the vehicle battery immediately after jump-starting.

3. Pakkens indhold

Tjek venligst pakken for følgende varer:

• Ultimate Speed Portable Power Bank and Car Jump Starter
• 12V Jump Start Cable with clamps
• Micro USB Adapter for mobile phones/tablets
• Fabric Storage Case
• Acrylonitrile Butadiene Styrene (ABS) Plastic Case
• Oplader (strømadapter)

Image: The Ultimate Speed jump starter with its complete set of accessories, including the jump start cables, USB charging cable, and power adapter.

4. Produktfunktioner og komponenter

The Ultimate Speed Jump Starter features a robust design and advanced technology for reliable performance.

• 2-i-1 funktionalitet: Car jump starter and powerful power bank.
• Flere porte: Two USB output ports (1A/2A) and one Micro-USB input port (5V/1A).
• Integreret LED-lommelygte: With a blinking function for emergencies.
• Avanceret beskyttelse: Built-in safeguards against reverse polarity, short circuit, and overload. Detects defective batteries and deep discharges for maximum user and electronic protection.
• Spark-Proof Design: Enhances safety during connection.
• LiFePO4-batteri: Powerful Lithium-Ion (Iron Phosphate) battery for high electronic efficiency (up to 90% usable capacity), long cycle stability, and very low self-discharge.
• Skridsikker overflade: For secure handling.
• Direct Start: Provides a high current pulse for immediate starting without long charging times.

Billede: Forside view of the Ultimate Speed jump starter, showing the product label with model information and key specifications.

Billede: Side view of the device, highlighting the USB output ports, Micro-USB input, 12V output, power button, and integrated LED flashlight.

5. Opsætning

5.1 Initial Charging of the Device

Before first use, fully charge the jump starter. Connect the provided charger to the Micro-USB input port on the device and plug it into a 230V mains outlet. The charging time is approximately 13.5 hours for a full charge. The charge status is indicated by individual start LEDs.

5.2 Kontrol af opladningsniveau

Press the power button briefly to check the current charge level. The LEDs will illuminate to indicate the remaining battery capacity.

6. Betjeningsvejledning

6.1 Jumpstart af et køretøj

This device is suitable for petrol engines up to 3.0 L displacement and diesel engines up to 2.0 L displacement.

1. Sørg for, at jumpstarteren er tilstrækkeligt opladet.
2. Turn off the vehicle's ignition and all electrical accessories.
3. Tilslut den røde (+) clamp of the jump start cable to the positive (+) terminal of the vehicle's battery.
4. Tilslut den sorte (-) clamp of the jump start cable to a clean, unpainted metal part of the vehicle's engine block or chassis, away from the battery.
5. Connect the jump start cable's plug to the 12V output port on the jump starter.
6. Start the vehicle's engine. If it doesn't start immediately, wait 30 seconds before trying again. Do not crank for more than 3 seconds.
7. Once the engine starts, immediately disconnect the jump start cable from the jump starter.
8. Frakobl derefter den sorte (-) kabelamp from the vehicle, followed by the red (+) clamp.

Image: The Ultimate Speed jump starter connected to a car battery, demonstrating the proper clamp placement for jump-starting.

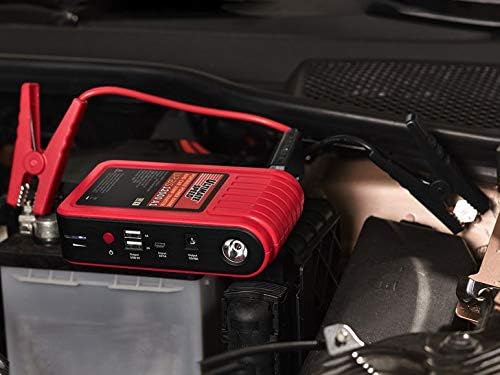

Billede: En anden view of the jump starter connected to a car battery, showing the compact size of the device in an engine bay.

6.2 Brug som powerbank

The device can charge mobile phones, tablets, and other USB-powered devices.

1. Connect your device's USB charging cable to one of the USB output ports (1A or 2A) on the jump starter.
2. Tilslut den anden ende af kablet til din elektroniske enhed.
3. The jump starter will begin charging your device automatically.

Image: The jump starter being used as a power bank, charging a smartphone via its USB port.

6.3 Brug af LED-lommelygten

Press and hold the power button to turn the LED flashlight on or off. Press the power button briefly while the flashlight is on to cycle through different modes (e.g., steady light, blinking light).

7. Vedligeholdelse

• Genopladning: To maintain battery health, recharge the jump starter every 3-6 months, even if not in use.
• Opbevaring: Opbevar enheden et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Rensning: Rengør enheden med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

For warranty claims or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Specific warranty terms and conditions may vary by region and retailer.
