Indledning
Thank you for choosing the Reginox Spring Stainless Steel Single Hand Mixer Sink Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and keep it for future reference. Proper installation and care will ensure long-lasting performance and satisfaction with your Reginox product.
Vigtige sikkerhedsinstruktioner
- Sluk altid for hovedvandforsyningen, inden du påbegynder installations- eller vedligeholdelsesarbejde.
- Hvis du er usikker på nogen del af installationsprocessen, anbefales det at konsultere en kvalificeret VVS-installatør.
- Brug passende personlige værnemidler, såsom sikkerhedsbriller og handsker, under installationen.
- Sørg for, at alle forbindelser er sikre og vandtætte for at forhindre lækager.
- Brug ikke slibende rengøringsmidler eller stærke kemikalier på vandhanens overflade, da dette kan beskadige finishen.
Pakkens indhold
Kontroller venligst, at alle komponenter er til stede, før installationen påbegyndes:
- Reginox Spring Stainless Steel Single Hand Mixer Sink Faucet (Main Unit)
- Monteringsudstyr (møtrikker, skiver, pakninger)
- Flexible Connection Hoses (G 3/8" standard)
- Installationsvejledning (dette dokument)

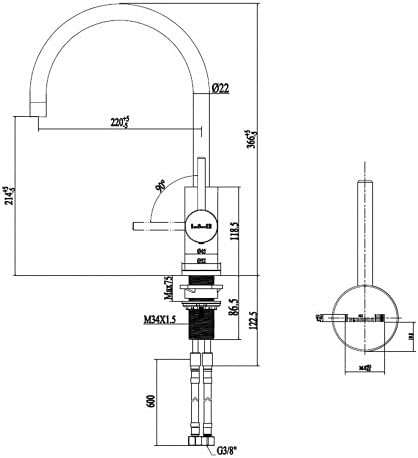

Image: Technical diagram illustrating the dimensions and connection points of the Reginox Spring faucet, including the G 3/8" connectors and mounting details.
Installationsvejledning
This faucet is designed for single-hole, deck-mount installation. Follow these steps carefully:
- Prepare the Sink/Countertop: Ensure the mounting hole in your sink or countertop is clean and free of debris. The faucet requires a standard single hole for installation.
- Installer vandhanen: Place the faucet base into the mounting hole. Ensure the rubber gasket is correctly positioned between the faucet base and the sink surface to prevent water leakage.
- Fastgør vandhanen: From underneath the sink, slide the metal washer and then the mounting nut onto the threaded shank of the faucet. Tighten the nut securely using an appropriate wrench. Do not overtighten.
- Tilslut vandforsyningsledninger: Attach the flexible hot and cold water supply hoses (G 3/8" standard) to the corresponding inlets on the faucet. Connect the other ends of the hoses to your hot and cold water supply valves. Ensure all connections are hand-tightened first, then gently tightened with a wrench.
- Tjek for lækager: Slowly turn on the main water supply. Check all connections for any signs of leakage. If leaks are detected, gently tighten the connections until the leak stops.
- Test drift: Operate the faucet handle to ensure proper hot and cold water flow and temperature mixing. Allow water to run for a few minutes to flush out any debris from the new installation.
Operating Your Faucet
The Reginox Spring faucet features a single lever for easy control of water flow and temperature. The swivel spout allows for flexible use in your sink area.
- Vandstrømskontrol: Lift the lever handle upwards to increase water flow. Push it downwards to decrease or shut off the flow.
- Temperaturkontrol: Move the lever handle to the left for hot water and to the right for cold water. Adjust the position to achieve your desired water temperature.
- Drejelig tud: The spout can be rotated to direct water flow as needed, providing convenience for various kitchen tasks.
This faucet is designed for economical consumption, providing efficient water usage without compromising performance.
Pleje og vedligeholdelse
To maintain the pristine appearance and functionality of your Reginox faucet, follow these simple care instructions:
- Regelmæssig rengøring: Rengør vandhanen regelmæssigt med en blød klud og mild sæbe og vand. Skyl grundigt og tør med en blød klud for at undgå vandpletter.
- Undgå skrappe rengøringsmidler: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any cleaners containing bleach, acids, or alcohol. These can damage the stainless steel finish and internal components.
- Vedligeholdelse af belufter: If water flow becomes restricted, the aerator at the tip of the spout may be clogged. Unscrew the aerator, clean any debris, and rinse it under running water before reattaching.
- Keramisk patron: The faucet is equipped with a durable 35mm ceramic cartridge, designed for long-term, drip-free performance. If issues arise with water flow or temperature control, professional service may be required to inspect or replace the cartridge.
Fejlfinding
If you encounter any issues with your faucet, refer to the table below for common problems and their solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lav vandgennemstrømning | Tilstoppet perlator; delvist lukket afspærringsventil; knækket forsyningsledning. | Rengør perlatoren; sørg for, at afspærringsventilerne er helt åbne; kontroller forsyningsledningerne for knæk. |
| Lækage fra tud | Slidt keramisk patron. | Contact a qualified plumber for cartridge inspection or replacement. |
| Lækage fra base | Løs monteringsmøtrik; forkert monteret pakning. | Tighten mounting nut; ensure gasket is correctly positioned. |
| Intet varmt/koldt vand | Supply valve closed; issue with water heater/supply. | Check hot/cold supply valves are open; consult a plumber if supply is confirmed. |
If the problem persists after attempting these solutions, please contact Reginox customer support or a qualified plumber.
Produktspecifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | R31780 |
| Mærke | Reginox |
| Materiale | Rustfrit stål |
| Slutte | Rustfrit stål (børstet) |
| Højde | 366 mm |
| Spout Reach (Exhaust) | 214 mm |
| Connector Type | Højtryk |
| Connector Standard | G 3/8" (according to German standard) |
| Keramisk patronstørrelse | 35 mm |
| Installationsmetode | Enkelt hul, dækmontering |
| Antal håndtag | 1 (Lever Style) |
| Anbefalet brug | Køkkenvask |
Garanti og support
Reginox products are manufactured to high quality standards and are designed for durability. For specific warranty information regarding your Reginox Spring Stainless Steel Faucet, please refer to the warranty card included with your purchase or visit the official Reginox webwebsted.
For technical assistance, spare parts, or any other inquiries, please contact Reginox customer support through their official channels. When contacting support, please have your model number (R31780) and purchase details ready.
