1. Introduktion
This manual provides essential information for the safe and effective use of the STI MS46-20-955-Q1-X Safety Light Curtain Transmitter. This device is designed to create a protective light barrier for industrial safety applications, detecting intrusions into hazardous areas. Please read this manual thoroughly before installation, operation, or maintenance.

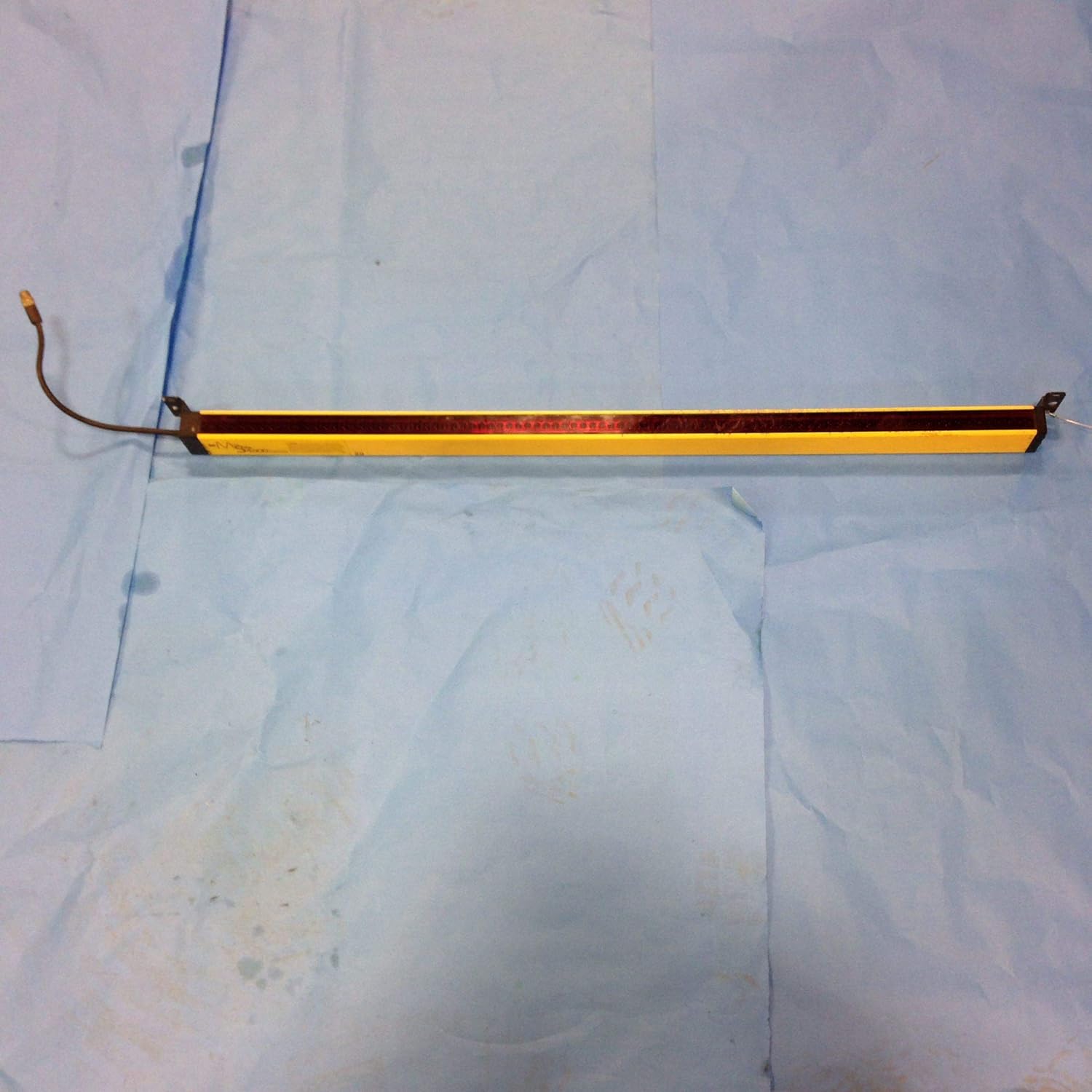

Figur 1: Overview of the STI MS46-20-955-Q1-X Safety Light Curtain Transmitter. This image shows the elongated yellow and black housing of the light curtain transmitter, with a cable extending from one end, laid on a light blue surface.
2. Opsætning og installation
Proper installation is crucial for the safety and performance of the light curtain. Ensure all local and national safety regulations are followed during installation.
2.1 Montering
The transmitter should be securely mounted using appropriate brackets. Ensure the light curtain is positioned to create the desired protective zone.
Figure 2: Close-up of the mounting bracket and end of the light curtain. This image highlights the black mounting bracket attached to the yellow light curtain housing, with visible screws securing it. A thin wire is also visible extending from the end.
2.2 Elektrisk tilslutning
Connect the transmitter to the control system according to the wiring diagram provided in the full product documentation. Ensure power is off before making any connections.
Figure 3: Detail of the electrical connector. This image shows the black cable extending from the light curtain, terminating in a silver threaded connector, ready for attachment to the control system.
2.3 Justering
Align the transmitter with its corresponding receiver (sold separately) to ensure a clear optical path. Refer to the receiver's manual for detailed alignment procedures.
3. Betjeningsvejledning
Once installed and aligned, the light curtain system operates by detecting interruptions in the light beams. When an object breaks the light curtain, a safety output signal is triggered.
- Tænd: Apply power to the system. The light curtain will perform a self-check.
- Statusindikatorer: Observe the status indicators (LEDs) on both the transmitter and receiver for proper operation. Consult the full manual for indicator meanings.
- Test: Regularly test the light curtain by intentionally interrupting the beams to ensure the safety output is activated.
4. Vedligeholdelse
Regular maintenance ensures the longevity and reliable operation of the safety light curtain.
- Rensning: Keep the optical surfaces of the transmitter and receiver clean and free from dust, dirt, or debris. Use a soft, lint-free cloth and a mild cleaning solution if necessary.
- Inspektion: Periodically inspect cables, connectors, and mounting hardware for any signs of wear, damage, or loose connections.
- Funktionstest: Perform functional tests as per your facility's safety protocols, typically at the start of each shift or after any maintenance work.
5. Fejlfinding
This section provides basic troubleshooting steps for common issues. For complex problems, consult a qualified technician or the manufacturer.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Light curtain not active | Misalignment, dirty optics, power issue, damaged cable. | Check alignment, clean optical surfaces, verify power supply, inspect cables. |
| False trips | Reflective surfaces, external light interference, vibration. | Shield reflective surfaces, reduce ambient light, secure mounting. |
6. Specifikationer
Key technical specifications for the STI MS46-20-955-Q1-X Safety Light Curtain Transmitter.
Figure 4: Product label showing detailed specifications. This image displays a yellow label with black text, providing model number, input voltage, current, response time, enclosure rating, and environmental class.
- Model: MS46-20-955-Q1-X
- Varenummer: 70157-1008
- Input bindtage: 24VDC +/-20 %
- Strøm: 285mA
- Minimum Object Size: 19 mm/30 mm/41 mm
- E.A.A.: +/-2.5°
- Temperaturområde: 0-55°C
- Svartid: <35 ms
- Bedømmelse af kabinet: IP 65
- Sikkerhedsklasse: 4
- Miljøtype: 12
- Produktdimensioner: 39.17 x 6.3 x 8.27 tommer (41" D x 2" B x 2" H)
- Varens vægt: 2.03 kilogram (4.48 pund)
- Fabrikant: STI
- Dato først tilgængelig: 4. september 2019
7. Garanti og support
Information regarding product warranty and customer support is typically provided with the original purchase documentation or can be found on the manufacturer's official website. Please refer to those resources for the most current and detailed information.
For technical assistance or inquiries, please contact STI customer service. Contact details are usually available on the manufacturer's webwebsted eller produktemballage.
