Indledning

This manual provides detailed instructions for the safe and efficient operation of your Fuzion Digital Kitchen Scale, model PT3000-SLV. Please read this manual thoroughly before use and retain it for future reference.

Opsætning

1. Udpakning

Carefully remove all components from the packaging. Ensure all items listed in the package contents are present.

2. Batteriinstallation

The scale requires 2 AAA batteries (included). Open the battery compartment located on the underside of the scale. Insert the batteries according to the polarity indicators (+/-). Close the compartment securely.

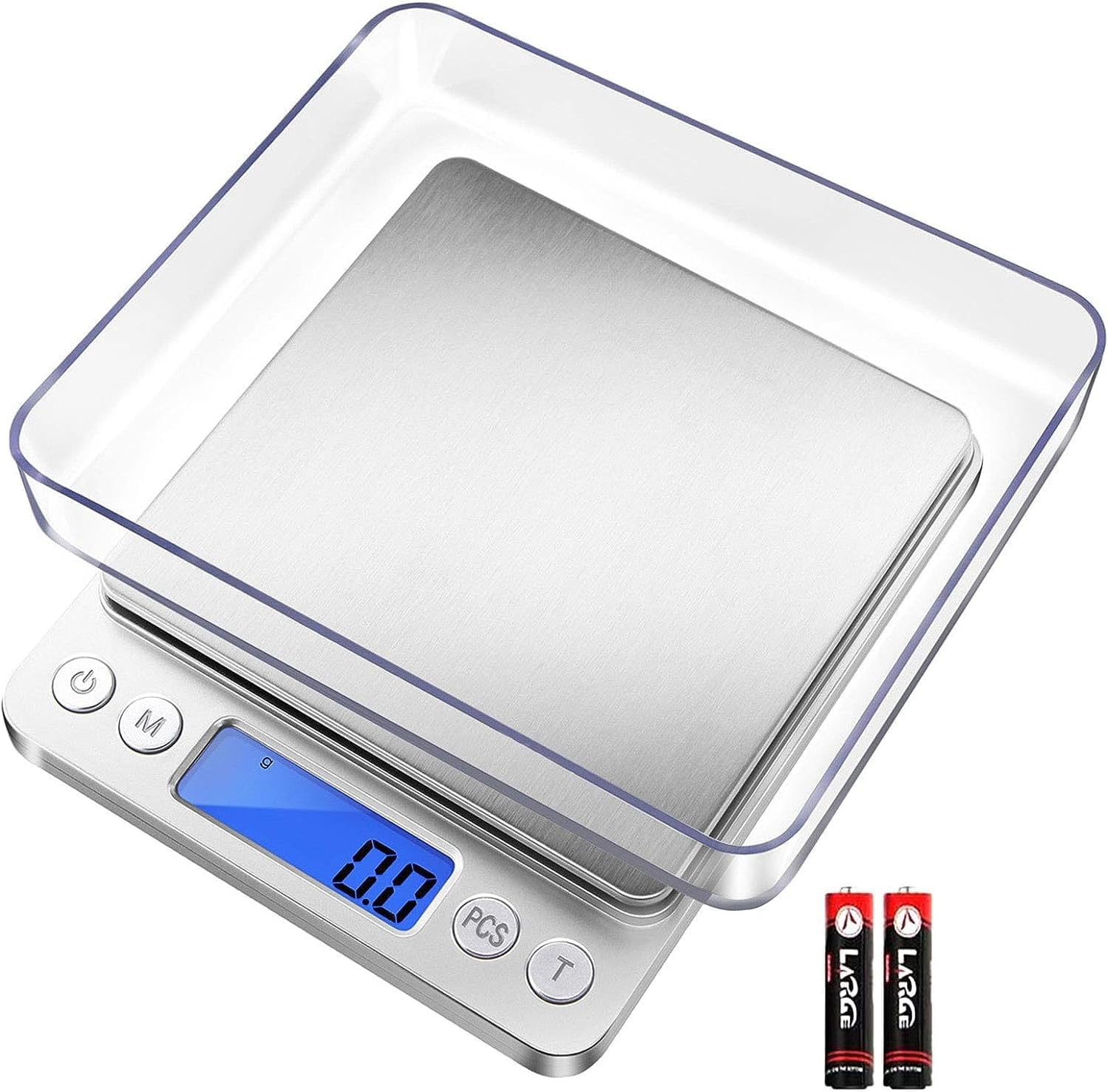

Billedbeskrivelse: A silver Fuzion Digital Kitchen Scale is shown with two clear plastic trays and two AAA batteries. The scale has a stainless steel weighing platform and a blue backlit LCD display. The trays can be used as protective covers or weighing containers.

3. Placering

Place the scale on a hard, flat, and stable surface to ensure accurate readings. Avoid placing it on soft or uneven surfaces, or near sources of vibration or extreme temperature changes.

Betjeningsvejledning

1. Tænd/sluk

• Tryk på ⑂ (Power) button to turn the scale on. The LCD display will show "88888" then "0.0 g" (or the last used unit).
• For at slukke vægten skal du trykke på og holde ⑂ (Power) button for a few seconds, or wait for the automatic 180-second auto-off function to engage.

2. Enhedskonvertering

• Tryk på M (Mode) button to cycle through the available measurement units: grams (g), ounces (oz), grains (gn), carats (ct), troy ounces (ozt), and pennyweights (dwt).


Billedbeskrivelse: A close-up of the scale's blue backlit LCD display. It shows "0.0" with "g" (grams) selected, and an illustration of the six available measurement units: g, oz, gn, ct, ozt, dwt.

3. Tarafunktion

• To weigh items in a container, place the empty container on the scale.
• Tryk på T (Tare) button. The display will reset to "0.0".
• Læg de varer, du ønsker at veje, i beholderen. Displayet viser kun varernes nettovægt.


Billedbeskrivelse: A sequence of three images demonstrating the tare function. First, the scale is on with "0.0" displayed. Second, an empty clear tray is placed on the scale, and the "T" button is pressed to reset the display to "0.0". Third, peppercorns are added to the tray, and their net weight is displayed.

4. Piece Counting (PCS) Function

• Turn the scale on and place a sample quantity (25, 50, 75, or 100 pieces) of the items you wish to count on the platform.
• Tryk og hold på PCS button until "PCS" appears on the display.
• Tryk på M (Mode) button to select the sample quantity you placed (e.g., "25").
• Tryk på PCS button again to confirm. The scale is now calibrated for piece counting.
• You can now add any quantity of the same items, and the scale will display the number of pieces.

Nøglefunktioner

• Høj præcision: Equipped with a high-precision sensor system, providing accurate measurements from 0.5g up to 3000g in 0.1g increments.
• Flere enheder: Supports 6 different measurement modes: g, oz, gn, ct, ozt, dwt.
• Kompakt design: Designed for easy storage and portability, with dimensions of 5 x 4.1 x 0.8 inches.


Billedbeskrivelse: The compact Fuzion Digital Kitchen Scale is displayed alongside a smartphone to illustrate its small, portable size. Dimensions are provided for both the scale (5.0 x 4.1 x 0.8 inches) and a typical smartphone (5.8 x 2.8 inches).

• Holdbar konstruktion: Features a high-quality stainless steel platform and an ABS plastic frame.
• Included Trays: Comes with two trays that can be used as protective covers or as containers for weighing items.

Vedligeholdelse & Pleje

• Rengør vægten med en blød, damp klud. Brug ikke slibende rengøringsmidler, og nedsænk ikke vægten i vand.
• Opbevar vægten på et køligt, tørt sted.
• Fjern batterierne, hvis vægten ikke skal bruges i længere tid, for at forhindre lækage.
• Avoid exposing the scale to extreme temperatures or sudden temperature changes.

Fejlfinding

• Upræcise læsninger: Ensure the scale is on a flat, stable surface. Check battery levels. Avoid overloading the scale.
• Visningsfejl: If the display shows "EEEE", the scale is overloaded. Remove items immediately. If "Lo" is displayed, replace the batteries.

Specifikationer

Garanti & Support

Fuzion offers a 2 års garanti og livslang teknisk support for this digital scale. For any issues or inquiries, please contact Fuzion customer service directly through your Amazon order page.
