DXQ FL-40 High Pressure Diaphragm Pump User Manual

1. Introduktion

Thank you for choosing the DXQ FL-40 High Pressure Diaphragm Pump. This manual provides essential information for the proper installation, operation, and maintenance of your pump. Please read it thoroughly before use to ensure safe and efficient performance.

Figure 1: DXQ FL-40 High Pressure Diaphragm Pump

Nøglefunktioner:

• Holdbart materiale: Constructed from high-strength cast iron with powder coating, ensuring waterproof and rust-resistant properties for long-term use.
• Powerful Automatic Pressure Pump: A fully automatic self-priming pump with a maximum flow rate of 17 L/min and an inlet PSI set to Max 40PSI (2.76Bar). Operates on 12V AC power.
• Sikkerhedsbeskyttelse: Features built-in thermal protection and automatic pressure protection. Designed for long service life with quiet operation and no leakage.
• Hurtig installation: Compact size, lightweight design, and stable performance facilitate instant assembly.
• Alsidige applikationer: Suitable for various uses including food and beverage filling, liquid transfer, clean machine requirements, road work, and cooling systems.

Figure 2: Wide range of applications for the FL-40 pump

2. Sikkerhedsinstruktioner

Always observe the following safety precautions to prevent injury or damage to the pump.

• Sørg for, at strømforsyningen passer til pumpens volumentage krav (12V).
• Do not operate the pump with damaged wiring or connections.
• Avoid running the pump dry for extended periods, as this can cause damage.
• Sørg for tilstrækkelig ventilation omkring pumpen under drift.
• Do not use the pump for flammable liquids or in explosive atmospheres.
• Hold hænder og løstsiddende tøj væk fra bevægelige dele.
• Afbryd strømmen, før du udfører vedligeholdelse eller fejlfinding.
• The pump features built-in thermal protection to prevent overheating. If the pump stops unexpectedly, allow it to cool down before restarting.

Figure 3: Thermal Protection feature of the pump

3. Komponenter inkluderet

The DXQ FL-40 High Pressure Diaphragm Pump package typically includes the following components:

• 1 x Diaphragm Water Pump
• 1 x filter
• 3 x Fittings (various types for connection)

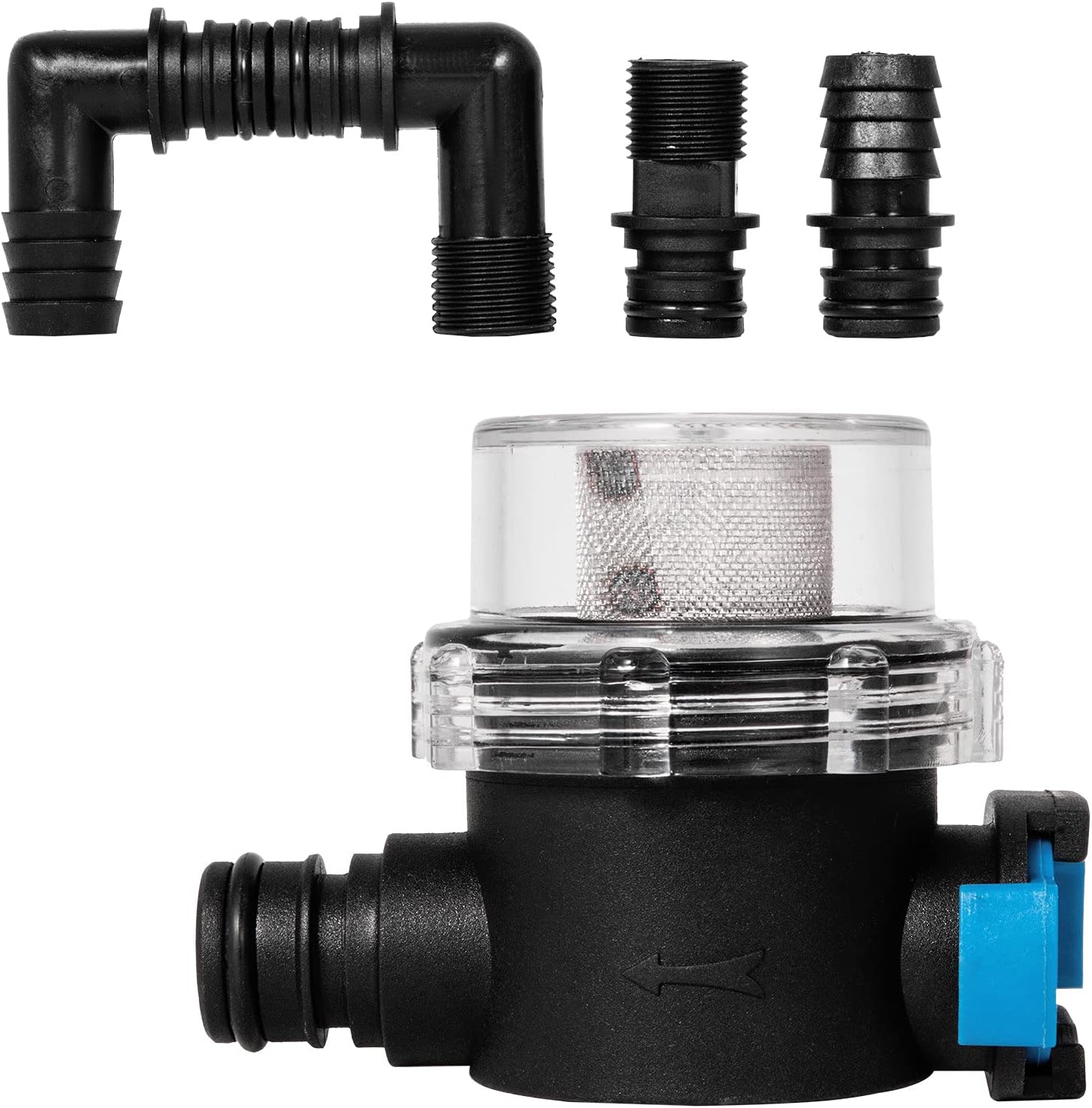

Figure 4: Included filter and fittings

Figure 5: Key components and connections of the pump

4. Opsætning og installation

Follow these steps for quick and proper installation of your diaphragm pump:

1. Montering: Securely mount the pump in a dry, well-ventilated area using the stable bracket. Ensure it is on a flat, stable surface to minimize vibration.
2. Indgangsforbindelse: Connect the water inlet hose to the designated inlet port (often labeled 'Inlet' or indicated by an arrow pointing towards the pump). It is recommended to install the included filter on the inlet line to prevent debris from entering the pump.
3. Udgangstilslutning: Connect the water outlet hose to the designated outlet port (often labeled 'Outlet' or indicated by an arrow pointing away from the pump).
4. Elektrisk tilslutning: Connect the pump's power wires to a 12V DC power source. Ensure correct polarity (red wire to positive, black wire to negative). It is advisable to install an inline fuse for protection.
5. Prime the Pump (if necessary): While this is a self-priming pump, ensuring the inlet line is filled with water before the first use can aid in faster priming.
6. Tjek for lækager: After all connections are made, slowly introduce water into the system and check for any leaks at the fittings. Tighten connections as needed.

Figure 6: Fast assembly and water flow direction

5. Betjening

Once installed, operating the DXQ FL-40 pump is straightforward:

• Start af pumpen: Ensure all connections are secure and the power source is ready. Apply 12V DC power to the pump. The pump will begin to operate and self-prime.
• Automatisk drift: The pump is designed to automatically turn on when water is demanded (e.g., a faucet is opened) and turn off when the demand stops and pressure builds up in the system.
• Flow og tryk: The pump delivers a maximum flow of 17 L/min and maintains pressure up to 40 PSI.
• Overvågning: Periodically check the pump for unusual noises, vibrations, or leaks during operation.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer pumpens levetid og optimale ydeevne:

• Filterrensning: Regularly inspect and clean the inlet filter to prevent clogging and maintain optimal flow. Disconnect power, remove the filter housing, clean the mesh screen, and reassemble.

Figure 7: The included metal filter for debris prevention

• Tilslutningskontrol: Periodically check all hose and electrical connections for tightness and signs of wear.
• Vinterisering (hvis relevant): If the pump is used in an environment where temperatures drop below freezing, ensure it is drained completely or protected with RV antifreeze to prevent damage from freezing water.
• Generel rengøring: Hold pumpens yderside ren og fri for snavs og affald.

7. Fejlfinding

Se tabellen nedenfor for almindelige problemer og løsninger på disse:

8. Tekniske specifikationer

Detailed specifications for the DXQ FL-40 Diaphragm Pump:

Figure 8: Pump dimensions

Figure 9: Durable Cast Iron Material

9. Garantioplysninger

For specific warranty terms and conditions, please refer to the product packaging or contact the seller/manufacturer directly. Keep your proof of purchase for any warranty claims.

10. Kundesupport

If you encounter any issues not covered in this manual or require further assistance, please contact the seller or manufacturer through the platform where you purchased the product. Provide your model number and a detailed description of the issue for faster service.
