Barnes 4WD Superduty Dana 60 akseltruss-byttesæt til Jeep JK instruktionsmanual

Produkt overview

The Barnes 4WD Superduty Dana 60 Axle Truss Swap Kit is engineered to facilitate the installation of a 2005-2022 Ford Superduty Dana 60 front axle into a Jeep JK. This kit is specifically designed for a driver-drop Dana 60 front axle from a Ford F-250 or F-350. Its keyed design ensures straightforward component alignment during installation, with all suspension brackets locating off the main truss.

Nøglefunktioner:

• Keyed design for simplified installation.
• Kraftig konstruktion for holdbarhed.
• Lav-profile design for optimal clearance.

Opsætning og installation

Vigtig: This installation requires welding and advanced fabrication skills. Professional installation is recommended. Ensure all safety precautions are followed, including proper eye protection, ventilation, and fire prevention measures.

Nødvendige værktøjer og materialer (medfølger ikke):

• Welding equipment and consumables
• Grinding tools
• Measuring and marking tools
• Cutting tools (e.g., plasma cutter, angle grinder)
• Køretøjsløfter eller donkrafte
• Grundlæggende håndværktøj

Installationstrin:

1. Forbered akslen: Remove the existing front axle from your Jeep JK. Prepare the Superduty Dana 60 axle by cleaning it thoroughly.
2. Trimming Requirements: Trimming of the casting on the driver's side of the Dana 60 axle and the inner C's is required for proper fitment of the truss and associated brackets. Carefully measure and mark the areas to be trimmed before cutting.
3. Placer bindingsværket: Center the main truss component on the Dana 60 axle. The keyed design will help in aligning the truss correctly.
4. Indstil vinklen: Adjust the angle of the truss to match your desired suspension geometry. Once the angle is set, all other components will locate off from the truss.
5. Install Suspension Brackets: Attach all included suspension brackets to the truss and axle. These brackets are designed to integrate with the keyed truss system.
6. Svejsning: Securely weld all components to the axle and truss. Ensure full penetration welds for maximum strength and safety. Allow welds to cool properly.
7. Frame Side Track Bar Bracket: Install the new frame side track bar bracket (included in the kit) to accommodate the new axle setup.
8. Custom Components: Note that custom lower control arms and a custom track bar are required and are not included in this kit. These must be fabricated or sourced separately to complete the installation.
9. Afsluttende kontrol: After welding and assembly, inspect all welds and connections. Ensure proper clearance for all moving parts.

Vigtige monteringsbemærkninger:

• The lug pattern on the Superduty Dana 60 is 8x170, which will not match the factory lug pattern on your Jeep JK. This requires corresponding wheel and tire changes.
• Brake lines, driveshaft modifications, vent tube routing, and steering linkages are the responsibility of the end user and must be addressed for a complete and safe installation.

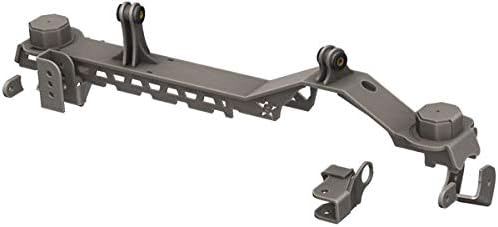

Figur 1: Overview of the Barnes 4WD Superduty Dana 60 Axle Truss Swap Kit components. This image displays the main truss structure along with various brackets and mounting points, illustrating the heavy-duty construction and keyed design elements.

Post-Installation Considerations

After completing the installation, it is crucial to perform thorough checks and adjustments to ensure safe and proper vehicle operation.

• Justering: Have a professional alignment performed immediately after installation to ensure correct steering and suspension geometry.
• Fastgørelsesmoment: Re-check the torque on all fasteners after the first 50-100 miles of driving and periodically thereafter.
• Væskeniveauer: Verify axle fluid levels and ensure no leaks are present.
• Bremsesystem: Bleed the brake system if brake lines were modified or replaced. Test brake function in a safe environment.
• Styresystem: Confirm that the steering system operates smoothly and without binding.

Opretholdelse

The Barnes 4WD Axle Truss Kit is designed for heavy-duty use. Regular inspection is key to maintaining its performance and longevity.

• Visuel inspektion: Periodically inspect all welded areas and mounting points for cracks, corrosion, or signs of stress, especially after off-road use.
• Komponentintegritet: Check all associated suspension components, including control arms, track bar, and bushings, for wear or damage.
• Rensning: Keep the axle and truss free from excessive mud, dirt, and debris to prevent corrosion and allow for easier inspection.

Fejlfinding

This section addresses common issues that may arise during or after the installation of the axle truss kit.

• Spørgsmål: Components do not align correctly during assembly.
  Løsning: Re-verify that the correct Dana 60 axle (2005-2022 Ford F-250/F-350 driver drop) is being used. Ensure all required trimming of the axle casting and inner C's has been performed accurately. The keyed design should guide alignment; if not, re-check measurements and component orientation.
• Spørgsmål: Vehicle handling issues after installation.
  Løsning: This often indicates an alignment problem. Ensure a professional wheel alignment has been performed. Also, verify that custom lower control arms and a custom track bar have been correctly installed and adjusted. Check all suspension mounting points for proper torque and integrity.
• Spørgsmål: Unwanted noises or vibrations.
  Løsning: Inspect all components for contact points, loose fasteners, or worn bushings. Ensure driveshaft angles are correct and that any necessary driveshaft modifications have been properly executed.

For issues not covered here, please contact Barnes 4WD customer support.

Specifikationer

Garanti og support

For specific warranty information regarding your Barnes 4WD Superduty Dana 60 Axle Truss Swap Kit, please refer to the official Barnes 4WD website or contact their customer service directly. Support for installation questions or technical assistance can also be obtained through Barnes 4WD customer service channels.

Kontaktoplysninger: Please visit the official Barnes 4WD webhjemmeside for de seneste kontaktoplysninger.
