Powerextra BP-95 V-Mount Battery User Manual

1. Introduktion og overview

The Powerextra BP-95 V-Mount V-Lock Battery is a high-capacity 95Wh (6600mAh) lithium-ion battery designed for professional video and digital camera equipment. It provides reliable power for a wide range of compatible devices, including Sony video cameras, camcorders, broadcast equipment, DSLRs, LED lights, and monitors. Featuring a D-tap output and an independent 5V/2.1A USB output, it offers versatile power solutions for various accessories and can even charge smartphones. Built with durable Grade 18650 cells, the battery ensures safety and stability with built-in circuit protection against overcharging, short circuits, high temperatures, and overcurrent. A 4-level LED indicator displays the remaining charge, providing clear status updates during use.

Figure 1: Powerextra BP-95 V-Mount Battery

2. Nøglefunktioner

• Høj kapacitet: 6600mAh/95Wh, 14.8V Polymer Li-ion battery, providing extended operational time.
• Bred kompatibilitet: Designed for Sony Camera and Camcorder models including DSR-250/300/370K2/570WSL/600P, EX250/330/350 S270, PMW-EX330K/330L 580K/580L, PMW-F5 F55 F23 F35 F3K F3L, PWM-FS5/FS7, TD300 680/700/850, HDW-F900R 800P 680, PDW-700/850, DVM-7/70/707P/709WSP/790WSP/90/90WS, BVP-5/50/550W/7/70/90-BVV5, BVW-200/300/400/400A/505/507/550/570/590/D600, and other V-mount devices.
• Sikkerhed og pålidelighed: Features durable Grade 18650 cells with over 400+ recharge cycles. Safety certified with CE/FCC/RoHS, and includes built-in circuit protection against overcharging, short circuits, high temperatures, and overcurrent.
• LED display: A 4-level LED indicator provides a clear display of the remaining charge.
• Alsidige udgange: Equipped with a Power D-tap output and an independent 5V/2.1A USB output, suitable for charging smartphones and other USB-powered devices.

Figure 2: LED Indicator for Charge Status

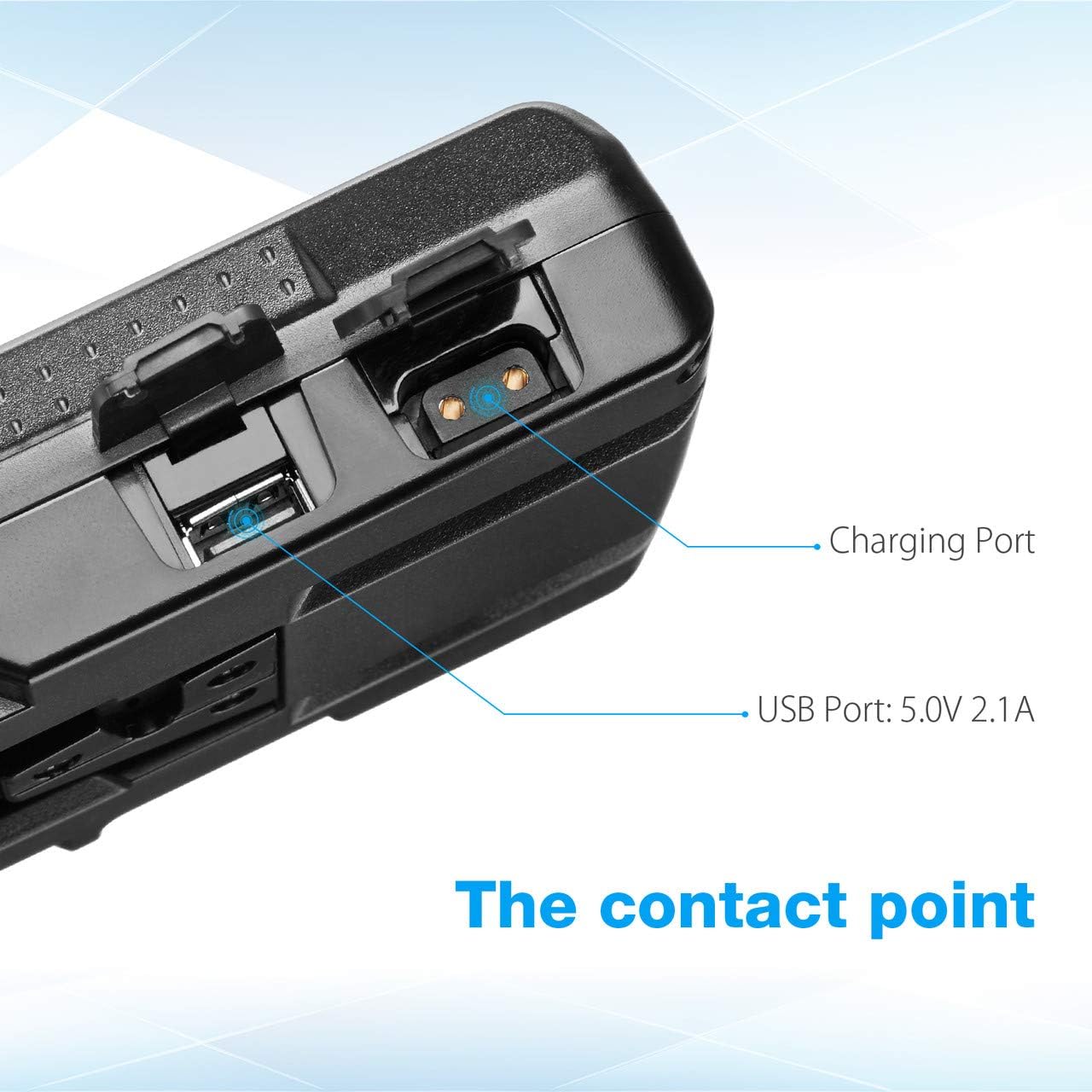

Figure 3: Charging and USB Output Ports

Figure 4: Battery in use with a camcorder

3. Opsætning

3.1 Indledende opladning

Before first use, fully charge the battery. The battery comes with a wall plug and charger for self-charging. Connect the charger to the battery's charging port and plug it into a standard wall outlet. The LED indicators will show charging progress. A red light indicates charging, and the light turning off indicates a full charge.

3.2 Attaching to Devices

The BP-95 battery features a V-mount interface for secure attachment to compatible cameras, camcorders, and other V-mount plates. Align the battery with the V-mount plate on your device and slide it down until it clicks securely into place. Ensure a firm connection to prevent accidental detachment during operation.

Figure 5: V-Mount Interface

4. Betjeningsvejledning

4.1 Powering Devices via V-Mount

Once securely mounted, the battery will provide power to your V-mount compatible device. Standard working time on a full charge is approximately 5 hours, depending on the power consumption of the connected equipment.

4.2 Using the D-Tap Output

The D-tap port allows you to power external accessories such as LED lights, monitors, or other D-tap compatible devices. Connect your accessory's D-tap cable to the battery's D-tap port. Ensure the accessory's voltage requirements are compatible with the battery's output.

4.3 Using the USB Output

The independent 5V/2.1A USB output can be used to charge or power USB-compatible devices like smartphones, tablets, or small USB lights. Simply connect your device's USB cable to the battery's USB port.

Figure 6: Charging a Smartphone via USB

4.4 Kontrol af batteriniveau

Press the small button next to the LED indicators to check the remaining charge. Blue lights indicate the battery level. Four blue lights mean full charge, while fewer lights indicate a lower charge.

5. Vedligeholdelse

5.1 Generel pleje

To ensure optimal performance and longevity of your Powerextra BP-95 battery, follow these guidelines:

• Brug kun den anbefalede oplader.
• Charge and operate the battery at temperatures between 0°C and 40°C (32°F and 104°F).
• Keep the battery pack away from fire and extreme heat.
• Undlad at skille batteriet ad eller forsøge at reparere det.
• Må ikke knuses, punkteres eller kortsluttes af de eksterne kontakter.
• Clean the battery contacts periodically with a dry, soft cloth to ensure good electrical conductivity.

5.2 Opbevaring

When storing the battery for extended periods, ensure it is charged to approximately 50-70% capacity. Store it in a cool, dry place away from direct sunlight and extreme temperatures. Recharge the battery every 3-6 months to prevent deep discharge, which can reduce its lifespan.

6. Fejlfinding

6.1 Batteriet oplades ikke

• Check Charger Connection: Ensure the charger is properly connected to the battery and the power outlet.
• Verify Charger Functionality: If possible, test the charger with another compatible battery or device to confirm it is working.
• Undersøg batterikontakterne: Check for any dirt, debris, or damage on the battery's charging contacts and the charger's pins. Clean if necessary.
• Temperatur: Ensure the battery is within the recommended charging temperature range (0°C to 40°C).

6.2 Enheden tændes ikke

• Tjek batteriopladning: Verify the battery has sufficient charge using the LED indicator.
• Sikker forbindelse: Ensure the battery is firmly seated on the V-mount plate or that D-tap/USB cables are securely connected.
• Enhedskompatibilitet: Confirm that your device is compatible with the battery's voltage og effektudgang.
• Overbelastningsbeskyttelse: If the battery has been subjected to an overload, it might temporarily shut down. Disconnect all devices, wait a few minutes, and try again.

6.3 Kort batterilevetid

• Enhedens strømforbrug: High power-consuming devices will drain the battery faster.
• Batteriets alder: Over time, all rechargeable batteries experience a reduction in capacity. The BP-95 is rated for over 400+ cycles.
• Opladningsvaner: Frequent deep discharges or charging outside recommended temperatures can reduce overall battery lifespan.

7. Specifikationer

8. Garanti og support

Powerextra is committed to providing high-quality products and excellent customer service. Your BP-95 V-Mount Battery comes with a 12 måneders problemfri garanti.

For any inquiries, technical support, or warranty claims, please contact Powerextra customer service. We offer:

• 12-Hour Response Time
• 7*24 Hour Stand-By Support
• Lifetime Support

You can find more information and contact details by visiting the official Powerextra store on Amazon: Powerextra Store.
