Retevis RT622 PMR446 Two-Way Radio User Manual

1. Introduktion

Thank you for choosing the Retevis RT622 PMR446 Two-Way Radio. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference. The Retevis RT622 is a lightweight, compact, and robust two-way radio designed for clear and reliable communication across various environments.

Figure 1: Retevis RT622 Two-Way Radios with 6-Way Charger

2. Produktet er slutview

2.1 Nøglefunktioner

• Let og kompakt: Weighs only 113g and measures 2.14cm wide (including battery), making it easy to carry.
• PMR446 Frequencies: Operates on PMR446 frequencies with 16 channels and CTCSS/DCS codes for clear communication and interference avoidance.
• VOX funktion: Stemmeaktiveret transmission til håndfri betjening.
• Robust design: High-quality PC plastic casing provides durability and resistance to drops.
• Long-Distance Communication: Strong anti-interference and anti-dust capabilities with good signal penetration.
• Squelch funktion: Reduces background noise for clear audio output.
• Efficient 6-Way Charger: Safe and reliable multi-unit charger (5V/4A) for simultaneous charging of multiple radios.

2.2 Pakkens indhold

Ved udpakning skal du kontrollere, at alle varer er til stede og i god stand:

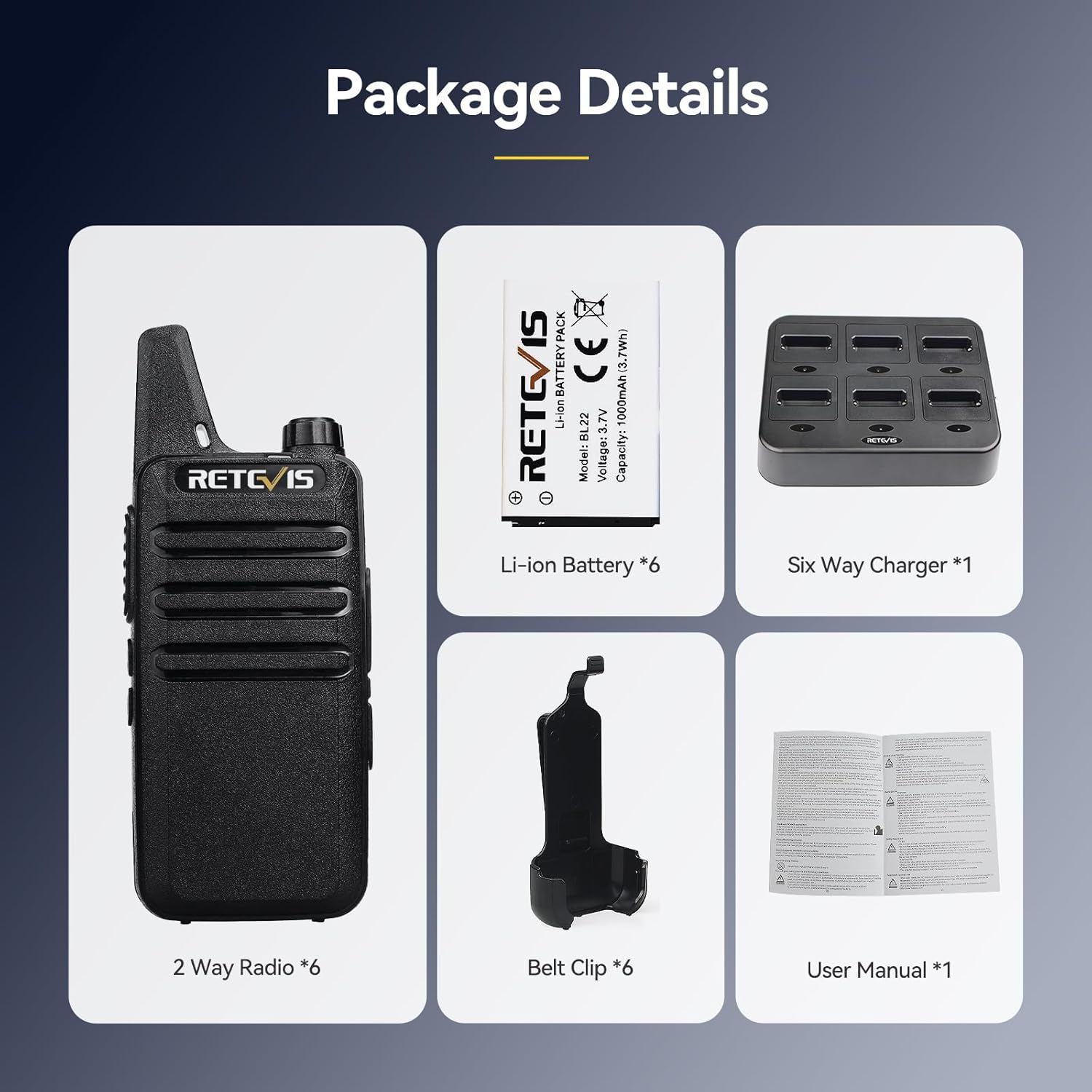

Figur 2: Pakkens indhold

• Retevis RT622 Two-Way Radio (quantity as purchased)
• Li-ion Battery (quantity matching radios)
• Belt Clip (quantity matching radios)
• 6-Way Multi-Unit Charger (1 unit)
• Power Adapter for Charger (1 unit)
• Brugervejledning (dette dokument)

2.3 Fysiske egenskaber

Figure 3: Compact Size of the RT622 Radio

The RT622 radio is designed for portability and ease of use. Its dimensions are approximately 13.6 cm (height) x 5.6 cm (width) x 2.1 cm (depth), and it weighs around 113g with the battery installed. It features an all-inclusive removable back clip for convenient attachment to clothing or belts.

Figure 4: Removable Belt Clip for Easy Carrying

3. Opsætning

3.1 Batteriinstallation

1. Sørg for, at radioen er slukket.
2. Find batteridækslet på bagsiden af ​​radioen.
3. Slide the cover down or unlatch it according to the radio's design.
4. Insert the Li-ion battery, ensuring the contacts align correctly.
5. Sæt batterirummets dæksel på igen og fastgør det.

3.2 Charging the Radios

The Retevis RT622 radios are charged using the provided 6-way multi-unit charger.

Figure 5: 6-Way Multi-Unit Charger in Use

1. Connect the power adapter to the 6-way charger and plug it into a standard electrical outlet.
2. Place the RT622 radios into the charging slots. Ensure each radio is seated correctly.
3. Observe the independent pilot lamps for each slot:
• Rødt lys: Indicates the radio is currently charging.
• Grønt lys: Angiver, at opladningen er fuldført.


Figure 6: Charger Pilot Lamp Indikatorer

4. Once fully charged, remove the radios from the charger.

4. Betjeningsvejledning

4.1 Tænd/sluk

For at tænde radioen skal du dreje tænd/sluk-/lydstyrkeknappen med uret, indtil du hører et klik. For at slukke skal du dreje knappen mod uret, indtil den klikker.

4.2 Kanalvalg

The RT622 has 16 channels. Use the channel selector knob (usually located near the antenna) to choose your desired channel. Ensure all radios you wish to communicate with are set to the same channel.

4.3 Justering af lydstyrke

Drej tænd/sluk-/lydstyrkeknappen med uret for at øge lydstyrken og mod uret for at sænke den.

4.4 Tryk-og-tal-knap (PTT).

To transmit, press and hold the PTT button (located on the side of the radio). Speak clearly into the microphone. Release the PTT button to listen for a response.

4.5 VOX Function (Voice-Activated Transmission)

The VOX function allows for hands-free transmission. When activated, the radio will transmit automatically when it detects your voice, without needing to press the PTT button.

Figure 7: VOX Function for Hands-Free Communication

For at aktivere VOX:

1. Sluk for radioen.
2. Indstil kanalvælgeren til kanal 7.
3. While holding down the "+" button (if present, or refer to specific radio button for VOX activation), turn the power knob clockwise to power on the radio.
4. The radio will indicate VOX activation (e.g., a voice prompt or specific LED pattern).

To deactivate VOX, repeat the activation steps or power cycle the radio normally.

4.6 Squelch-funktion

The squelch function automatically mutes the speaker when no signal is received, reducing background noise and static. This ensures that you only hear clear transmissions.

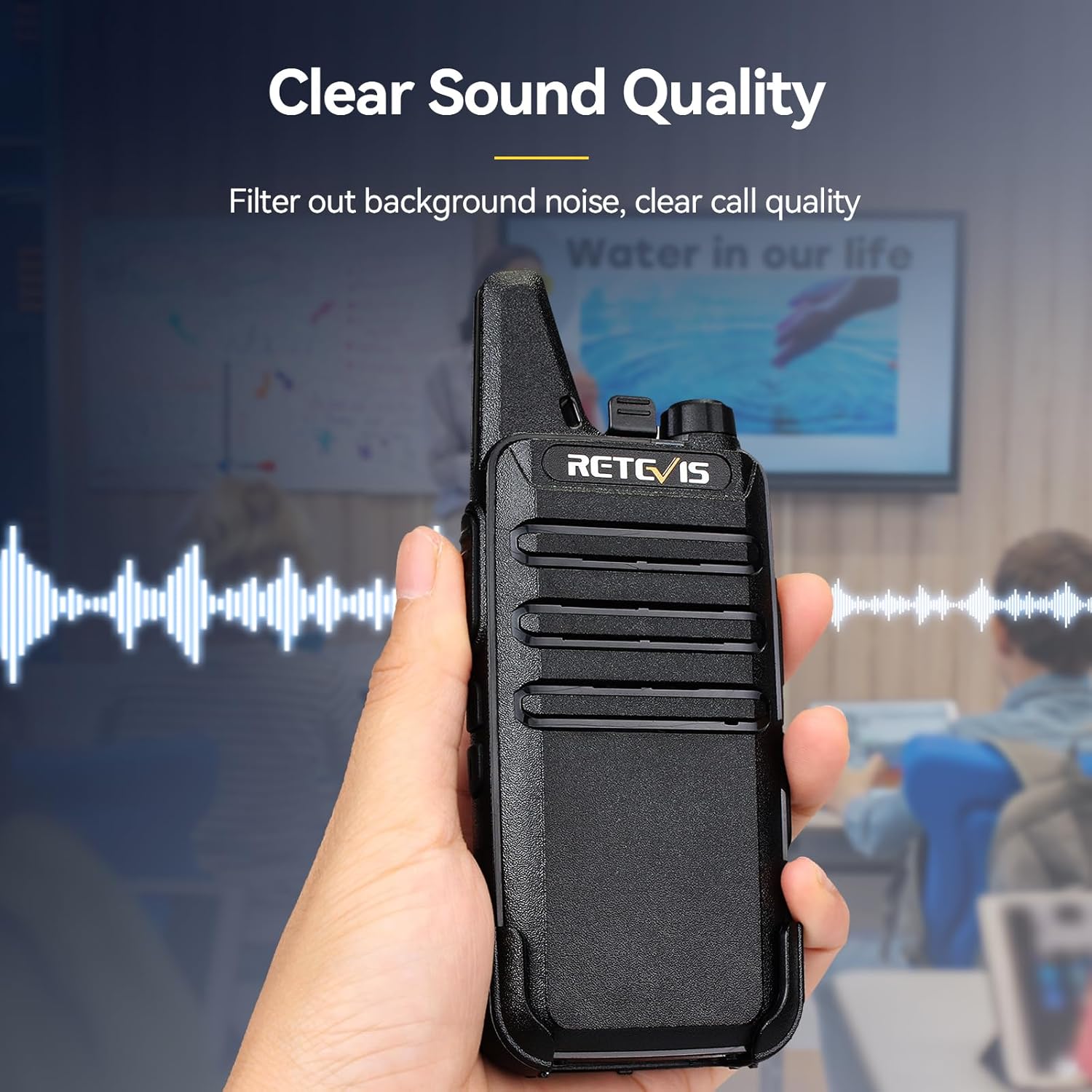

Figure 8: Clear Sound Quality with Squelch

5. Vedligeholdelse

• Rensning: Brug en blød, damp klud til at rengøre radioens yderside. Brug ikke skrappe kemikalier eller opløsningsmidler.
• Batteripleje: Fully charge batteries before initial use. For long-term storage, charge batteries to about 50% and store in a cool, dry place. Avoid overcharging or completely draining the battery.
• Opbevaring: Opbevar radioen et tørt, støvfrit miljø væk fra direkte sollys og ekstreme temperaturer.
• Vandtæthed: The RT622 is not waterproof. Avoid exposing it to water or high humidity.

6. Fejlfinding

If the problem persists after attempting these solutions, please contact Retevis customer support.

7. Specifikationer

8. Garanti og support

8.1 Producentens garanti

Retevis offers a 2-year warranty for the radio body and a 1-year warranty for accessories. Additionally, a 30-day return policy without reason is provided. Beyond the warranty period, maintenance services are still available, with buyers responsible for associated costs.

8.2 Kundesupport

For any questions, issues, or warranty claims, please contact Retevis customer support via Amazon. Responses are typically provided within 12 hours.

9. Videoressourcer

Der blev ikke leveret officielle produktvideoer i produktdataene til indlejring i denne manual.
