1. Introduktion
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Hafele 34 1/2-inch Black Steel Table Legs. Please read this manual thoroughly before beginning installation to ensure safe and correct assembly. These steel legs are designed to provide stability and support for various table surfaces, offering customizable length and a robust load capacity.
Figure 1: Hafele 34 1/2-inch Black Steel Table Leg
2. Pakkens indhold
Sørg for, at alle komponenter er til stede, før monteringen påbegyndes:
- 4 x Table Legs (Steel, Black, 34 1/2" high)
- 4 x monteringsplader
- 4 x Plastic Levelers (pre-installed in legs)
- Screws #9 x 1" (for attaching mounting plates to table top)
3. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Hafele |
| Farve | Sort |
| Størrelse | 34 1/2" (876 mm) high (including mounting plate and leveler) |
| Stil | Moderne |
| Varens vægt | 18.05 pund (for sættet) |
| Ben stil | Firkant |
| Materiale | Steel (epoxy-coated finish) |
| Antal stykker | 4 |
| Vægtgrænse | 220 Pounds (static load capacity per leg) |
| Produktdimensioner | 1 x 1 x 9 inches (individual leg, likely packaging dimensions) |

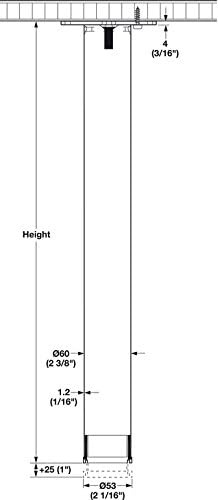

Figure 2: Table Leg Dimensions
4. Vigtige sikkerhedsoplysninger
- Always assemble and install the legs properly according to these instructions.
- Do not use to support more than 220 pounds per leg to prevent accidents and ensure stability.
- Sørg for, at alle skruer og bolte er forsvarligt tilspændt før brug.
- Hold små dele væk fra børn for at undgå kvælningsfare.
5. Opsætning og installation
Follow these steps to install your Hafele table legs:
- Forbered komponenter: Unpack all four table legs, four mounting plates, four levelers, and the provided screws.
- Position Mounting Plates: Place the table top upside down on a soft, protected surface. Position each mounting plate in the desired corner or location on the underside of the table top. Ensure consistent spacing from the edges for all legs.
- Mark and Pre-drill Holes: Use a pen or pencil to mark the screw locations through the holes on each mounting plate. Carefully pre-drill pilot holes at each marked location. This prevents wood splitting or damage to your table top.
- Attach Mounting Plates: Secure each mounting plate to the table top using the provided #9 x 1" screws. Ensure they are tightened firmly.
- Attach Legs to Plates: Each table leg attaches to its corresponding mounting plate using an M10 bolt. Align the top of the leg with the central hole of the mounting plate.
- Sikre ben: Insert the M10 bolt (typically pre-attached or included with the leg) through the plate and into the leg. Tighten the bolt using an Allen key until the leg is firmly secured and flush with the plate.
- Repeat for all Legs: Repeat steps 2-6 for all four table legs.
Figure 3: Mounting Plate Detail
Ressourcer til installationsvideo:
Square Leg Install Video
This video demonstrates the step-by-step process of installing square table legs, including marking screw locations, pre-drilling, attaching the mounting plate, and securing the leg.
Square Adjustable Metal Furniture Legs Installation
This video provides a general guide for installing square adjustable metal furniture legs, showing the attachment of the mounting plate and leg to a table top.
6. Operating Instructions (Height Adjustment)
The Hafele table legs feature integrated plastic levelers for minor height adjustments and to compensate for uneven floors. The overall height of 34 1/2 inches includes the mounting plate and leveler.
- Justering af niveauudliggere: To adjust the height, gently twist the plastic leveler at the bottom of each leg. Turn clockwise to shorten the leg or counter-clockwise to extend it.
- Customizing Length: For a permanent reduction in leg height, the pressed-in plastic levelers can be carefully removed and trimmed to your desired size. Ensure precise measurements before trimming.
7. Vedligeholdelse
To maintain the appearance and longevity of your table legs:
- Rensning: Wipe the legs with a dry cloth to remove dust and debris. Avoid abrasive cleaners or harsh chemicals that may damage the epoxy-coated finish.
- Regelmæssig kontrol: Kontrollér regelmæssigt alle skruer og bolte for at sikre, at de forbliver stramme. Spænd dem igen om nødvendigt for at opretholde stabiliteten.
8. Fejlfinding
If you encounter any issues with your table legs, consider the following:
- Bordsvingninger: Check if all legs are evenly extended using the plastic levelers. Adjust individual levelers until the table is stable. Ensure all mounting screws are securely fastened.
- Loose Legs: Re-tighten the M10 bolts connecting the legs to the mounting plates. If screws attaching the plates to the table top are loose, re-tighten them.
- Scratched Floors: Ensure the plastic levelers are properly installed and intact. Replace if damaged.
9. Garanti og support
For warranty information or technical support, please refer to the documentation included with your purchase or contact Hafele customer service directly. Keep your purchase receipt for warranty claims.
