1. Introduktion
Thank you for choosing the Cecotec PowerMatic-ccino 6000 Series Bianca. This mega-automatic coffee machine is designed to deliver a superior coffee experience with ease and convenience. Featuring a 19-bar pressure system, Thermoblock technology for rapid heating, and a dedicated milk tank, it allows you to prepare a wide variety of hot beverages, from rich espressos to creamy cappuccinos and lattes, all at the touch of a button. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.
Figure 1.1: Cecotec PowerMatic-ccino 6000 Series Bianca in operation.
2. Sikkerhedsinstruktioner
Læs venligst alle sikkerhedsinstruktioner omhyggeligt, inden apparatet tages i brug. Gem denne manual til senere brug.
- Sørg for, at voltagDen strømstyrke, der er angivet på typeskiltet, stemmer overens med din strømforsyning.tage før tilslutning af apparatet.
- Nedsænk ikke apparatet, netledningen eller stikket i vand eller anden væske.
- Always unplug the machine from the power outlet before cleaning, filling, or when not in use.
- Hold hænder og fingre væk fra varme overflader og dampudløb under drift.
- Brug kun koldt, frisk vand i vandtanken.
- Do not operate the appliance if the power cord or plug is damaged, or if the machine malfunctions or has been damaged in any way.
- Dette apparat er kun til husholdningsbrug. Må ikke bruges udendørs.
- Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
3. Produktet er slutview
The PowerMatic-ccino 6000 Series Bianca is equipped with advanced features for a customizable coffee experience:
- ForceAroma Technology: 19 bars of pressure for optimal crema and aroma.
- Full Latte Milk Tank: 400 ml capacity milk tank, detachable for refrigeration.
- Custom4You System: Adjustable intensity, aroma, temperature, volume, milk foam time, and water hardness.
- Integrated Ceramic Grinder: 250g bean reservoir with aroma-preserving lid and 5 grinding levels.
- Termobloksystem: Ensures rapid and homogeneous water heating.
- Digital Control Panel with LCD Screen: Intuitive and easy to use.
- Adjustable Coffee Spout: Height adjustable from 10.5 cm to 15 cm to accommodate various cup sizes.
- AlwaysClean System: Automatic cleaning cycles to maintain the machine.
- Kopvarmerbakke: Helps maintain coffee temperature and enhance aroma.

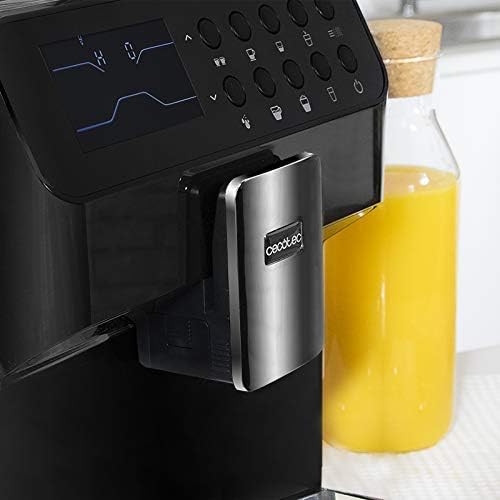

Figure 3.1: Adjustable coffee spout for various cup sizes.
4. Opsætning
- Udpakning: Fjern forsigtigt al emballage. Kontroller for eventuelle skader.
- Indledende rengøring: Before first use, clean the water tank, milk tank, and drip tray with warm soapy water. Rinse thoroughly.
- Fyld vandtank: Fill the 1.7-liter removable water tank with fresh, cold water up to the MAX line.
- Fyld bønnebeholderen: Open the lid of the bean hopper and fill with up to 250g of whole coffee beans. Ensure the lid is securely closed to preserve aroma.
- Connect Milk Tank (Optional): If preparing milk-based drinks, connect the 400ml Full Latte milk tank to the designated port on the machine. Fill with desired milk.
- Tænd: Plug the machine into a grounded power outlet. The machine will perform an initial rinse cycle.
5. Betjeningsvejledning
5.1. At lave kaffe
The PowerMatic-ccino 6000 offers one-touch preparation for various beverages:
- Vælg drikkevare: Use the digital control panel to select your desired drink (e.g., Espresso, Americano, Cappuccino, Latte, Hot Milk, Hot Water).
- Adjust Settings (Custom4You): Before brewing, you can adjust settings such as coffee intensity, volume, and temperature via the LCD screen. For milk-based drinks, adjust milk foam time.
- Placeringspokal: Position your cup under the adjustable coffee spout. Adjust the spout height as needed.
- Begynd at brygge: Press the start button. The machine will grind the beans (if using whole beans) and dispense your beverage.

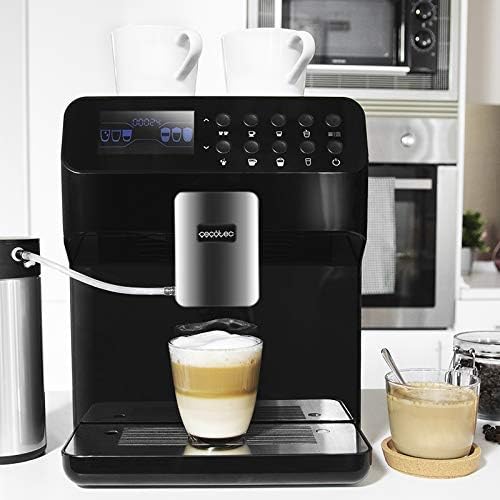

Figure 5.1: Preparing a latte with the external milk container.
5.2. Using Pre-ground Coffee
The machine also supports pre-ground coffee. Refer to your specific model's instructions for the dedicated pre-ground coffee compartment and selection process.
5.3. Mælkeskumning
The integrated Full Latte milk tank provides automatic milk frothing. Ensure the milk tank is filled and properly connected. Select a milk-based beverage, and the machine will automatically froth and dispense milk into your cup.
Figure 5.2: Close-up of automatic milk frothing.
Figure 5.3: The detachable milk container can be stored in the refrigerator.
6. Vedligeholdelse og rengøring
Regelmæssig rengøring sikrer optimal ydeevne og hygiejne.
- AlwaysClean System: The machine performs automatic cleaning cycles upon power-on and power-off. Ensure the drip tray is in place during these cycles.
- Drypbakke og beholder til kaffegrums: Empty and clean the drip tray and coffee grounds container regularly. The drip tray is removable for easy cleaning.
- Vandtank: Clean the water tank periodically with warm water.
- Mælkesystem: After each use of the milk system, run a quick rinse cycle to prevent milk residue buildup. The milk tank should be thoroughly cleaned daily, especially if stored in the refrigerator.
- Afkalkning: The machine will indicate when descaling is required. Follow the instructions in the full product manual for the descaling procedure using a suitable descaling solution.
- Udvendig rengøring: Tør maskinens ydre af med en blød, damp klæde. Brug ikke slibende rengøringsmidler.
7. Fejlfinding
Hvis du støder på problemer med din kaffemaskine, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Coffee is watery or lacks flavor. | Incorrect grind setting, insufficient coffee dose, or low water temperature. | Adjust grinder to a finer setting. Increase coffee intensity/dose in settings. Ensure machine is fully preheated. |
| Mælken skummer ikke ordentligt. | Milk tank not properly connected, milk type/temperature, or milk system clogged. | Ensure milk tank is securely connected. Use cold, fresh milk (e.g., whole milk). Clean the milk system thoroughly. |
| Machine consumes too much water for cleaning. | Automatic rinse cycles are normal. | This is part of the machine's self-cleaning process to maintain hygiene. Ensure water tank is adequately filled. |
| Maskinen er utæt. | Drip tray full, internal hose disconnected (rare, manufacturing defect). | Empty the drip tray. If persistent, contact customer support. |
| Loud beeping sounds. | Indicates need for action (e.g., empty grounds, fill water, clean drip tray). | Address the indicated issue on the display. The beeping will stop once resolved. |
8. Specifikationer
- Modelnummer: 01505
- Farve: Sort
- Dimensioner (L x B x H): 50.5 x 34.5 x 42 cm
- Vægt: 10.9 kilo
- Vandtankkapacitet: 1.7 liter
- Mælketankens kapacitet: 0.4 liter (400 ml)
- Magt: 1500 watt
- Voltage: 220V
- Tryk: 19 barer
- Materiale: Plast
- Støjniveau: 44 dB
- Skærmtype: LCD
9. Garanti og support
Cecotec products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. Spare parts availability is guaranteed for 2 years from the date of purchase.
For teknisk support, garantikrav eller serviceforespørgsler, kontakt venligst Cecotec kundeservice via deres officielle website or the retailer from whom you purchased the product. Please have your proof of purchase and the product's model number (01505) ready when contacting support.
