Avantco P85S Dobbelt Kommerciel Panini Sandwichgrill Brugermanual

1. Produktet er slutview

The Avantco P85S Double Commercial Panini Sandwich Grill is designed for efficient and consistent grilling of sandwiches, quesadillas, and hamburgers in commercial settings. This unit features dual smooth top and bottom cast iron plates, providing complete contact for even heat distribution. With two independently controlled heating elements, it allows for simultaneous cooking of different products or increased output.

Nøglefunktioner omfatter:

• Smooth grill plates ensuring complete contact with food for even heat supply.
• Temperature adjustable between 120 and 570 degrees Fahrenheit per grill.
• Heavy-duty stainless steel construction and cast iron plates for durability.
• Ideal for paninis, sandwiches, quesadillas, and burgers.
• Removable grease tray for easy cleaning.

Figur 1: Forside view of the Avantco P85S Double Commercial Panini Sandwich Grill, showing the two grilling sections and control knobs.

2. Sikkerhedsinstruktioner

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.

• Læs alle instruktioner, før du betjener grillen.
• Rør ikke ved varme overflader. Brug håndtag eller knopper.
• For at beskytte mod elektrisk stød må ledningen, stik eller apparatet ikke nedsænkes i vand eller anden væske.
• Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan forårsage skader.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​bordet eller bordpladen eller røre ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Der skal udvises ekstrem forsigtighed ved flytning af et apparat, der indeholder varm olie eller andre varme væsker.
• Sæt altid stikket i apparatet først, og sæt derefter ledningen i stikkontakten. For at afbryde forbindelsen skal du slukke for en vilkårlig knap og derefter tage stikket ud af stikkontakten.
• Brug ikke apparatet til andet end tilsigtet brug.
• This unit comes with a NEMA 5-15P plug. Ensure the electrical outlet matches the plug type and voltage (120V).

3. Opsætning og installation

Before first use, ensure the grill is properly set up.

1. Udpakning: Carefully remove the grill from its packaging. Retain packaging for future storage or shipping.
2. Placering: Place the grill on a stable, heat-resistant, and level surface. Ensure there is adequate clearance around the unit for ventilation and safe operation. Avoid placing it near flammable materials.
3. Strømtilslutning: This unit requires a 120V electrical supply and is equipped with a NEMA 5-15P plug. Connect the power cord directly to a dedicated, grounded electrical outlet. Do not use extension cords or adapters.
4. Indledende rengøring: Before first use, wipe down the grill plates and exterior with a damp cloth to remove any manufacturing residues. Ensure the unit is completely dry before plugging it in.

Figur 2: Bagside view of the Avantco P85S, illustrating the power cords and ventilation openings.

4. Betjeningsvejledning

The Avantco P85S features dual thermostatic controls, allowing independent operation of each grilling section.

1. Tænd: Ensure the grill is plugged into a suitable 120V outlet.
2. Temperaturindstilling: Each side of the grill has its own temperature control knob. Turn the desired knob clockwise to set the temperature between 120°F and 570°F (49°C - 299°C). The indicator light will illuminate, indicating that the heating element is active.
3. Forvarmning: Allow the grill to preheat for approximately 10-15 minutes, or until the indicator light turns off, signaling that the set temperature has been reached.
4. Madlavning:
   • Carefully place your food item onto the bottom grill plate.
   • Lower the top grill plate using the insulated handle. The specialized hinges allow the top plate to lay flat against the food, ensuring complete contact and uniform cooking.
   • Cook until desired doneness is achieved. Cooking times will vary based on food type, thickness, and desired browning.
5. Fjernelse af mad: Use heat-resistant utensils to remove cooked food from the grill. Avoid using metal utensils that could scratch the non-stick surface.
6. Sluk: After use, turn both temperature control knobs counter-clockwise to the "OFF" position. Unplug the unit from the wall outlet.

Figur 3: Øverst view of the Avantco P85S with both grill plates closed, showing the smooth surfaces.

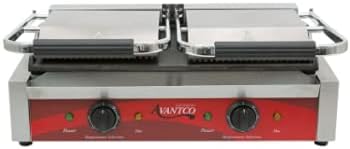

Figur 4: Forside view of the Avantco P85S with both grill plates closed, highlighting the control panel.

5. Vedligeholdelse og rengøring

Regular cleaning and maintenance will extend the life of your Avantco P85S grill.

1. Køl ned: Lad altid grillen køle helt af, inden den rengøres.
2. Fedtbakke: The grill features an angled edge that directs grease into a removable grease tray. Pull out the grease tray from the front of the unit and empty its contents. Wash the tray with warm, soapy water, rinse, and dry thoroughly. Reinsert the tray before next use.
3. Grillplader:
   • For light cleaning, wipe the grill plates with a damp klud eller svamp.
   • For stubborn food residues, use a plastic scraper or a stiff brush designed for non-stick surfaces. Do not use abrasive cleaners, steel wool, or metal scouring pads, as these can damage the plates.
   • A small amount of cooking oil can be applied to the plates after cleaning to season them and prevent sticking.
4. Ydre: Tør det rustfri stål udvendigt af med adamp cloth and mild detergent. Dry thoroughly with a soft cloth to prevent water spots.
5. Opbevaring: When not in use for extended periods, ensure the grill is clean and dry. Store it in a cool, dry place.

Figure 5: The Avantco P85S in use, showing one side open with a sandwich being grilled, and the other side closed.

6. Fejlfinding

Se dette afsnit for almindelige problemer og deres løsninger.

Hvis problemet fortsætter efter at have forsøgt disse løsninger, skal du kontakte kundesupport.

7. Specifikationer

8. Garanti og support

For warranty information or technical support, please contact Avantco customer service. Keep your purchase receipt and product model number (P85S) readily available when contacting support.

For the most up-to-date contact information, please visit the official Avantco webwebstedet eller se den dokumentation, der fulgte med dit køb.
