1. Introduktion

This manual provides essential information for the safe and effective use of the Delfield MCP00143 Temperature Danfoss Control. This genuine OEM replacement part is designed for commercial foodservice equipment, reflecting Delfield's extensive industry experience. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the unit.

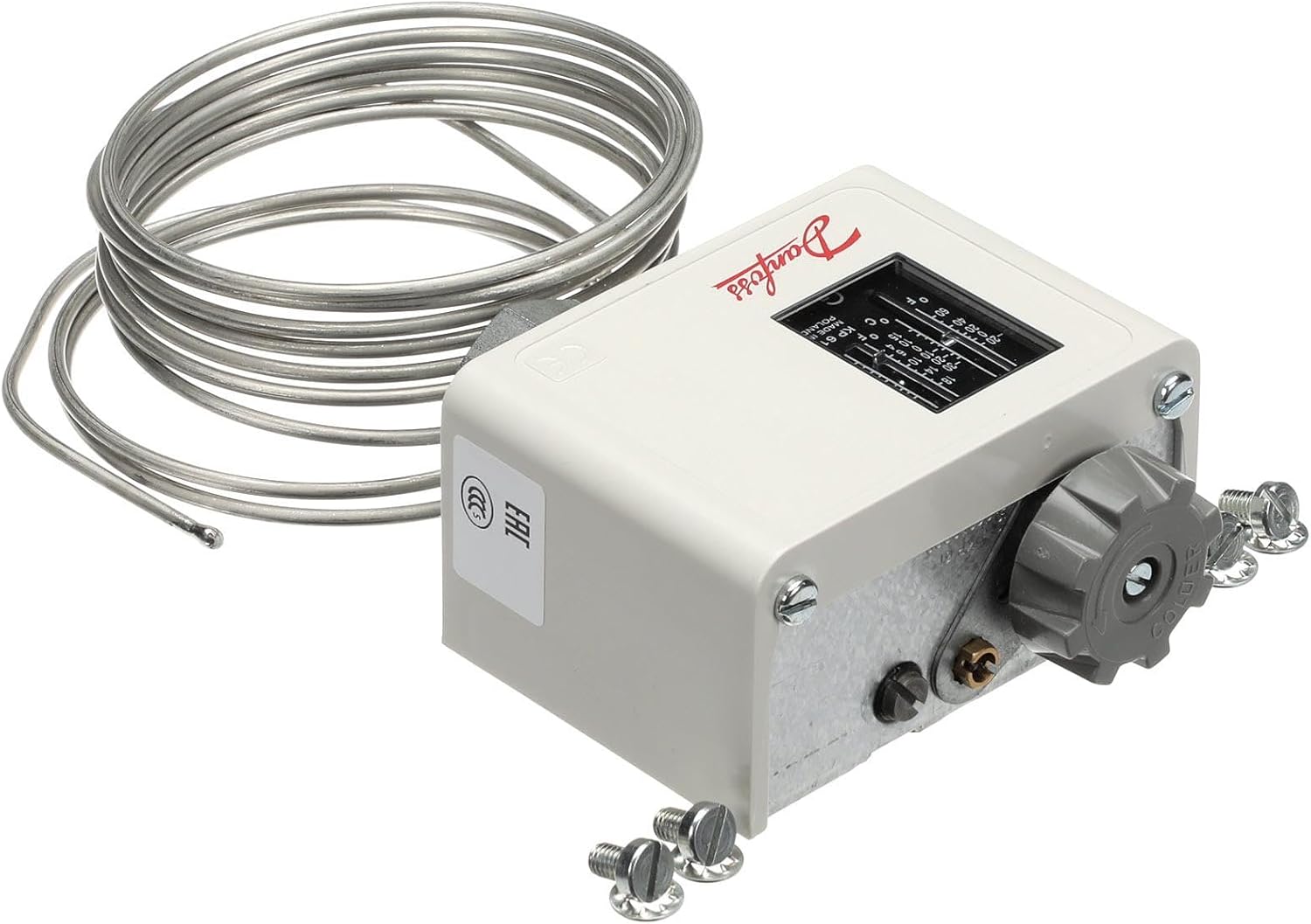

Figur 1: Overview of the Delfield MCP00143 Temperature Danfoss Control, showing the main housing and the coiled capillary tube.

2. Sikkerhedsoplysninger

Always adhere to local electrical codes and safety regulations. Installation and servicing should only be performed by qualified personnel. Disconnect power before performing any work on the control unit or associated equipment. Failure to follow these instructions may result in property damage, serious injury, or death.

• Sørg for, at strømmen er afbrudt før installation eller vedligeholdelse.
• Only use genuine OEM parts for safety, reliability, and performance.
• Do not attempt to repair damaged components; replace them with genuine parts.
• Protect the capillary tube from sharp bends or damage.

3. Produktbeskrivelse og funktioner

The Delfield MCP00143 is a genuine OEM replacement temperature control unit manufactured by Danfoss, specifically designed for Delfield commercial foodservice equipment. This control is essential for maintaining precise temperature regulation within refrigeration systems.

Nøglefunktioner:

• Genuine OEM replacement part, ensuring compatibility and performance.
• Manufactured by Danfoss, a leader in control technology.
• Designed for commercial foodservice equipment.
• Features adjustable temperature control for precise settings.
• Contributes to the safety, reliability, and performance of your equipment.

4. Opsætning og installation

Installation of the Delfield MCP00143 Temperature Danfoss Control requires technical expertise. It is strongly recommended that installation be performed by a certified refrigeration technician or qualified electrician to ensure correct wiring, proper sensor placement, and system integrity.

Installationstrin (generel vejledning):

1. Strømafbrydelse: Ensure all power to the equipment is completely disconnected and locked out before beginning any work.
2. Adgang: Gain access to the existing temperature control unit within the equipment.
3. Fjernelse: Carefully disconnect and remove the old control unit, noting all wiring connections and the routing of the capillary tube.
4. Montering: Mount the new Delfield MCP00143 control unit securely in the designated location.
5. Ledningsføring: Connect the electrical wiring to the new control unit according to the equipment's wiring diagram. Ensure all connections are secure and correct.
6. Placering af kapillærrør: Carefully route and secure the capillary tube to the sensing location within the refrigeration system. Avoid kinks or sharp bends in the tube.
7. Test: After installation, restore power and test the control unit's functionality and temperature sensing accuracy.

Figur 2: Side view of the control unit, highlighting the temperature adjustment dial and mounting screws.

5. Betjeningsvejledning

The Delfield MCP00143 Temperature Danfoss Control is designed for straightforward operation once installed. Its primary function is to regulate the temperature of the connected refrigeration system.

Indstilling af temperatur:

• Locate the temperature adjustment dial on the control unit (refer to Figure 2).
• Rotate the dial to the desired temperature setting. The markings on the dial indicate the temperature range.
• Allow the system to stabilize and monitor the actual temperature to ensure it aligns with the set point. Adjust as necessary.

The control unit will automatically cycle the refrigeration compressor on and off to maintain the set temperature within the specified differential.

6. Vedligeholdelse

Regular maintenance helps ensure the longevity and optimal performance of your Delfield MCP00143 Temperature Danfoss Control. Always disconnect power before performing any maintenance.

• Rensning: Periodically clean the exterior of the control unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Inspektion: Regularly inspect the wiring connections for tightness and signs of wear or corrosion. Check the capillary tube for any damage, kinks, or leaks.
• Sensorplacering: Ensure the temperature sensing bulb of the capillary tube remains securely in its intended location for accurate readings.

Figur 3: Nederst view of the control unit, illustrating the connection point for the capillary tube.

7. Fejlfinding

If you experience issues with your Delfield MCP00143 Temperature Danfoss Control, consider the following common troubleshooting steps. For complex issues, contact a qualified technician.

Figur 4: Vinklet view of the control unit, providing a clearer look at the electrical connection points.

8. Specifikationer

9. Garanti og support

As a genuine OEM replacement part, the Delfield MCP00143 Temperature Danfoss Control is manufactured to high standards. For specific warranty information or technical support, please refer to the documentation provided with your original Delfield equipment or contact Delfield customer service directly. Using genuine OEM parts helps ensure continued warranty coverage for your equipment.

For further assistance, you may visit the official Delfield webwebstedet eller kontakt deres autoriserede serviceudbydere.
