Brugermanual til SMARTGYRO Z-One 2 elektrisk løbehjul

1. Introduktion

Thank you for choosing the SMARTGYRO Z-One 2 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride and keep it for future reference.

The SMARTGYRO Z-One 2 is a lightweight electric scooter designed for urban mobility. It features a 350W 36V Brushless motor, a 8,000 mAh lithium battery offering approximately 30 km of range, and 10-inch pneumatic wheels for a comfortable ride. Safety features include a triple braking system and integrated lighting.

2. Sikkerhedsretningslinjer

Your safety is paramount. Always adhere to local traffic laws and regulations. Wearing a helmet and appropriate protective gear is strongly recommended.

• Brug altid hjelm og andet beskyttelsesudstyr (knæbeskyttere, albuebeskyttere) når du kører.
• Kør ikke i kraftig regn, sne eller isglatte forhold.
• Undgå at køre på glatte overflader, løst grus eller ujævnt terræn.
• Hold en sikker hastighed og afstand til andre køretøjer og fodgængere.
• Udfør ikke stunts eller pludselige manøvrer.
• Ensure both hands are on the handlebars at all times.
• Do not carry passengers or heavy loads.
• Check tire pressure, brakes, and all fasteners before each ride.
• Vær opmærksom på dine omgivelser og potentielle farer.
• The maximum weight limit for the rider is 100 kg.

3. Pakkens indhold

Ved udpakning skal du kontrollere, at alle varer er til stede og i god stand:

• SMARTGYRO Z-One 2 Electric Scooter
• Strømadapter/oplader
• Brugermanual
• Monteringsværktøj (hvis påkrævet)

4. Opsætning

4.1 Udfoldning af scooteren

Tag forsigtigt løbehjulet ud af emballagen. Find foldemekanismen nær bunden af ​​styrstammen. Slip låsen, og løft styrstammen, indtil den låser sikkert fast i den oprejste position. Sørg for, at låsemekanismen er helt aktiveret, før du bruger den.

Image: The SMARTGYRO Z-One 2 Electric Scooter in its unfolded, ready-to-ride state, viewed fra siden.

4.2 Indledende opladning

Before first use, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The indicator light on the charger will typically change from red to green when charging is complete. This usually takes 4-5 hours.

4.3 Dæktrykskontrol

The Z-One 2 features 10-inch pneumatic tires. Ensure they are inflated to the recommended pressure (check the tire sidewall for specific PSI/BAR). Proper tire pressure is crucial for safety, performance, and battery range.

4.4 App-forbindelse

For enhanced features and control, download the 'SmartGyro Core' application on your smartphone. Follow the in-app instructions to connect your scooter via Bluetooth. This app allows you to monitor battery status, adjust settings, and more.

5. Betjeningsvejledning

5.1 Tænd/sluk

Tryk og hold tænd/sluk-knappen på styrets display nede for at tænde eller slukke scooteren.

5.2 Displayfunktioner

The handlebar display shows essential information such as current speed, battery level, and selected driving mode. Refer to the display for real-time operational data.

Billede: Et nærbillede view of the scooter's handlebar, highlighting the integrated turn signal and controls.

5.3 Køretilstande

The Z-One 2 offers three driving modes, selectable via the display:

• Øko-tilstand: For maximum range and energy efficiency, with reduced speed.
• Komforttilstand: A balanced mode offering a good mix of speed and range for daily commuting.
• Sportstilstand: Provides maximum power and speed for dynamic riding.

5.4 Start af scooteren

To engage the motor, kick-start the scooter by pushing off with your foot, then press the accelerator lever. The motor will engage once a minimum speed is reached.

5.5 Bremsesystem

The scooter is equipped with a triple braking system for optimal safety:

• Electric Front Brake: Activated via a lever on the handlebar.
• Bageste skivebremse: Activated via a separate lever on the handlebar.
• Regenerativ bremsning: Integrated with the electric brake, this system converts braking energy back into electricity to recharge the battery, extending range and reducing brake wear.

Image: Detail of the handlebar showing the brake lever and the 'Regenera' system logo, indicating regenerative braking.

5.6 Lys og blinklys

The scooter features a front LED light, rear brake light, and integrated turn signals for visibility and safety. Operate these as required by local regulations and riding conditions.

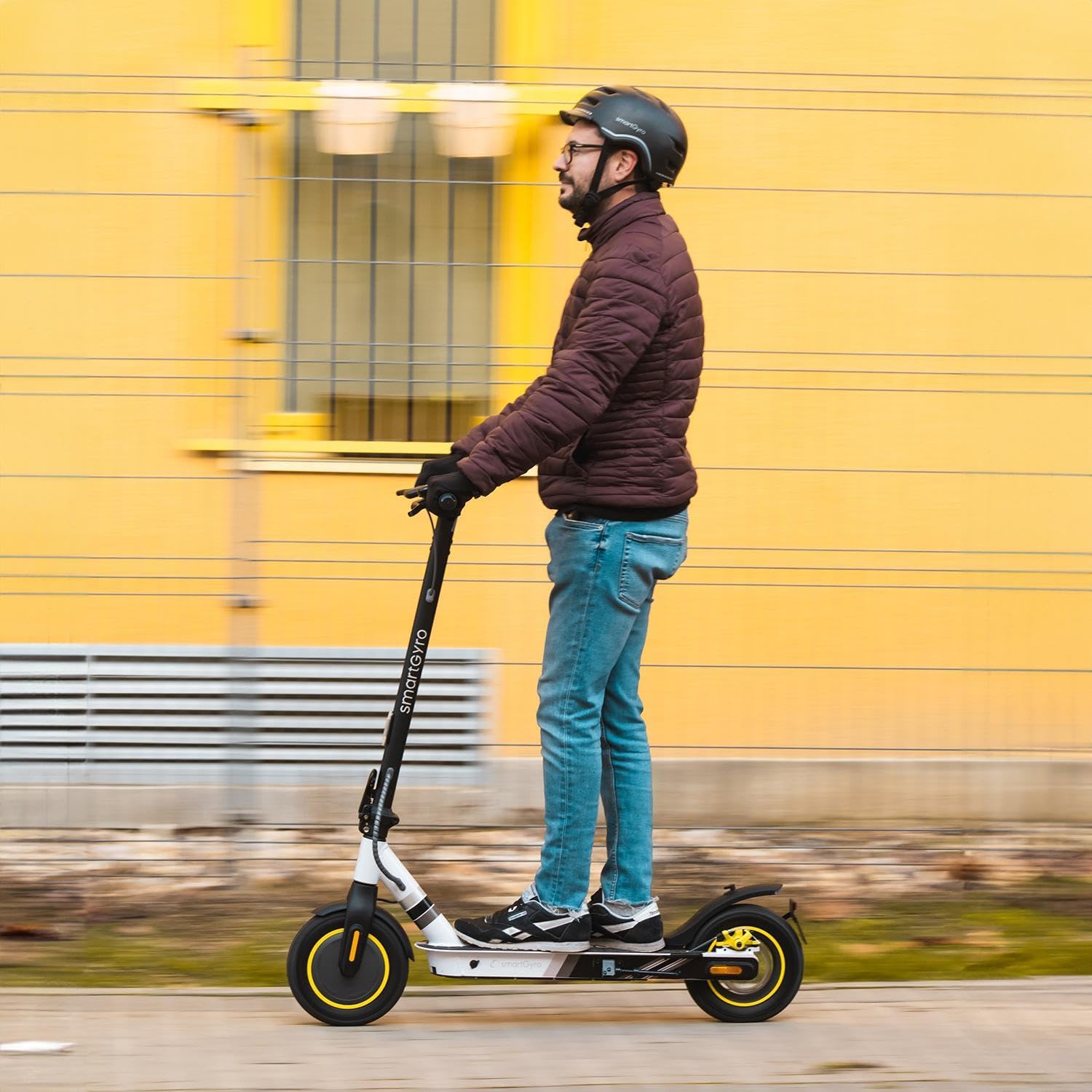

Image: A rider demonstrating the SMARTGYRO Z-One 2 Electric Scooter in use on a paved path, highlighting its operational state.

5.7 Sammenfoldning af løbehjulet

To fold the scooter for storage or transport, ensure it is powered off. Locate the folding mechanism, release the latch, and carefully fold the handlebar stem down until it clicks into place. This compact design facilitates portability.

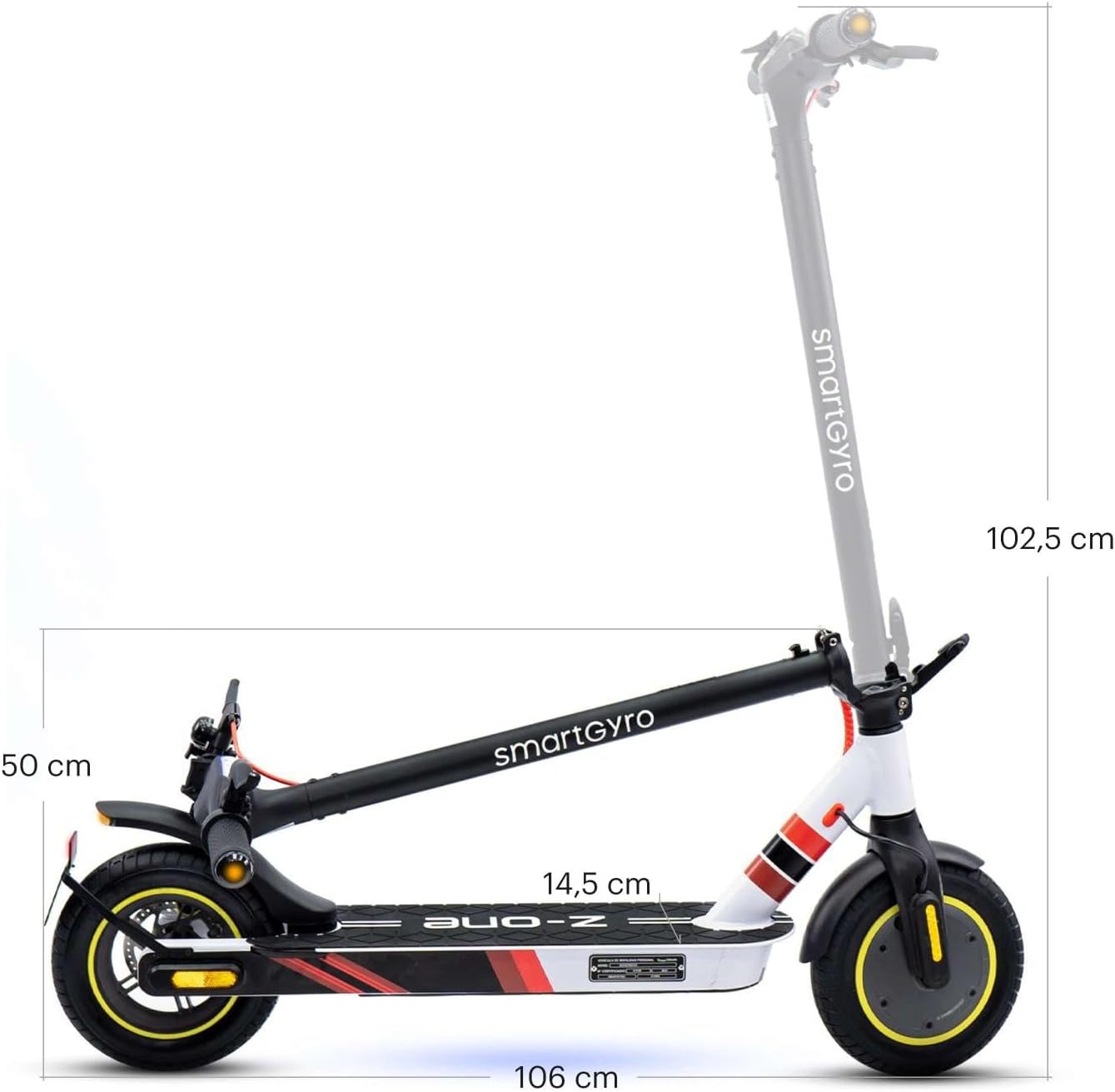

Image: A diagram illustrating the dimensions of the SMARTGYRO Z-One 2 Electric Scooter, including its folded state.

6. Vedligeholdelse

6.1 Pleje af batterier

• Oplad batteriet regelmæssigt, selvom det ikke er i brug, for at bevare dets sundhedstilstand.
• Undgå at aflade batteriet helt før genopladning.
• Opbevar scooteren et køligt og tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Brug kun den medfølgende originale oplader.

6.2 Dækvedligeholdelse

• Regularly check tire pressure and inflate to the recommended PSI/BAR.
• Undersøg dækkene for slid, punkteringer eller skader. Udskift slidte dæk med det samme.

6.3 Bremseinspektion

• Periodically check the functionality of both electric and disc brakes.
• Sørg for, at bremsegrebene fungerer gnidningsløst og vender tilbage til deres oprindelige position.
• Undersøg bremseklodserne for slid, og udskift dem om nødvendigt.

6.4 Generel rengøring og opbevaring

• Rengør scooteren med annonceamp klud. Brug ikke højtryksvand eller skrappe kemikalier.
• Sørg for, at dækslet til opladningsporten er forsvarligt lukket for at forhindre vandindtrængning.
• Opbevar scooteren indendørs på et tørt sted, når den ikke er i brug.

7. Fejlfinding

If you encounter issues with your SMARTGYRO Z-One 2, refer to the following common problems and solutions:

If the problem persists or is not listed here, please contact SMARTGYRO customer support or visit an authorized service center.

8. Specifikationer

Technical specifications for the SMARTGYRO Z-One 2 Electric Scooter:

9. Garanti og support

SMARTGYRO is committed to providing quality products and excellent after-sales service. The Z-One 2 Electric Scooter comes with a warranty that includes:

• Up to 5 years warranty on motors (or up to 100,000 km).
• Access to a network of over 100 authorized workshops nationwide for maintenance and repairs.
• Availability of 100% original spare parts to ensure your scooter remains in optimal condition.

For warranty claims, technical support, or to locate a service center, please refer to the official SMARTGYRO website or contact their customer service department. A circulation certificate can also be redeemed online.
