VIGO VG02029MBK1 Greenwich køkkenarmatur med enkeltgreb og nedtrækbar bruser, brugsanvisning

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your VIGO VG02029MBK1 Greenwich Single-Handle Pull-Down Sprayer Kitchen Faucet. Please read all instructions carefully before beginning installation and retain this manual for future reference.

Produkt overview

The VIGO Greenwich kitchen faucet features a sleek design with a single handle and a pull-down sprayer. It is constructed from solid brass with a durable finish, designed for long-lasting performance in your kitchen.

Figur 1: VIGO Greenwich Single-Handle Pull-Down Sprayer Kitchen Faucet in Matte Black.

Nøglefunktioner:

• Nedtrækkelig sprøjte: Features a flexible hose with clip technology for precise retraction.
• Dual Function Mode: Easily switch between stream and spray functions.
• 360-graders drejelig tud: Provides enhanced flexibility for various kitchen tasks.
• Holdbar konstruktion: Solid brass build with a 7-layer plated finish for corrosion, tarnish, and rust resistance.
• Water Efficient: 1.8 GPM flow rate, CEC (Title 20) compliant.
• Dækplade inkluderet: Allows for installation on 1, 2, 3, or 4-hole sinks.

Figur 2: Key features of the VIGO Greenwich faucet, including 360-degree swivel, self-retracting pull-down hose, and nylon braided hose.

Installationsvejledning

Before beginning installation, ensure all necessary components are present and that water supply lines are shut off. Professional installation is recommended.

Nødvendige værktøjer (ikke inkluderet):

• Justerbar skruenøgle
• Stjerneskruetrækker
• VVS-kit eller silikoneforsegling
• Sikkerhedsbriller

Installationstrin:

1. Klargør vasken: Clean the faucet mounting area on your sink or countertop. If using the included deck plate for a 3-hole installation, ensure it is properly positioned.
2. Monter vandhanen: Insert the faucet body through the mounting hole(s). Secure it from underneath the sink using the provided mounting hardware. Ensure the faucet is oriented correctly.
3. Tilslut vandforsyningsledninger: Attach the hot and cold water supply lines to the corresponding connections on the faucet and your home's water supply. Use an adjustable wrench to tighten connections, but do not overtighten.
4. Install Pull-Down Hose: Connect the pull-down sprayer hose to the quick-connect fitting under the faucet. Ensure a secure connection.
5. Fastgør vægt: Install the counterweight onto the pull-down hose at the specified location (refer to the diagram for optimal placement) to ensure proper retraction of the sprayer.
6. Test for lækager: Slowly turn on the water supply and check all connections for leaks. Operate the faucet to ensure proper function of both stream and spray modes.

Figur 3: Detailed technical drawing showing faucet dimensions, function button, spray hose, and 360-degree swivel mechanism.

Figur 4: The VIGO Greenwich faucet with its included deck plate, designed for versatile installation.

Betjeningsvejledning

Vandgennemstrømning og temperaturkontrol:

• Betjening med ét håndtag: Enkeltgrebet styrer både vandmængde og temperatur.
• Justering af temperatur: Flyt håndtaget til venstre for varmt vand og til højre for koldt vand.
• Justering af flow: Lift the handle upwards to increase water flow and push downwards to decrease or shut off the flow.

Pull-Down Sprayer Function:

• Engaging Sprayer: Pull the spray head downwards from the spout to extend the hose.
• Skift af sprøjtetilstande: Press the button located on the spray head to toggle between a steady stream and a wide spray pattern.
• Retracting Sprayer: When finished, guide the spray head back into the spout. The integrated clip technology will ensure it retracts precisely and securely into place.

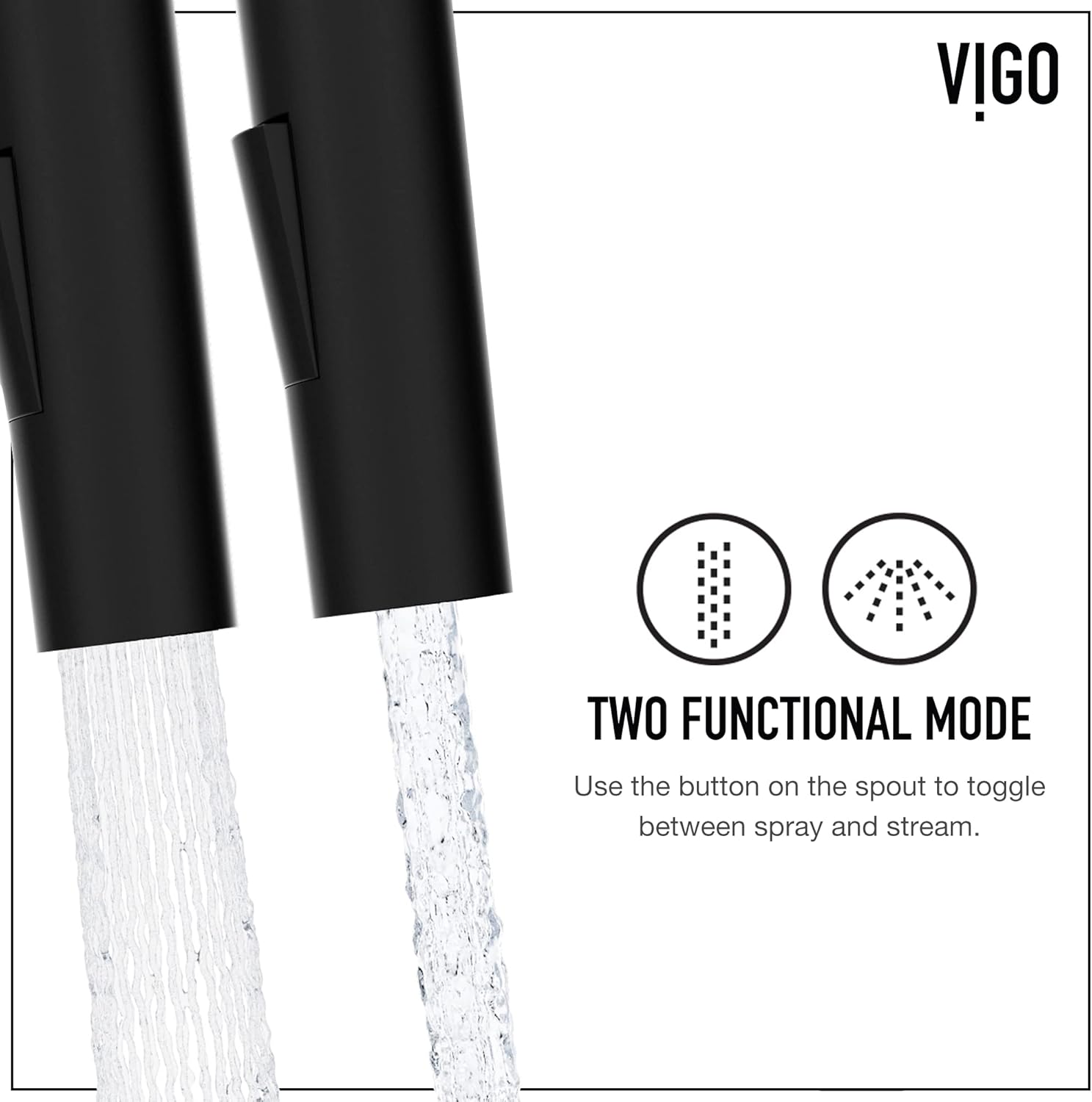

Figur 5: The spray head offers two distinct functional modes: a steady stream and a wide spray, selectable via a button.

Figur 6: Features such as the 25-inch flexible pull-down hose, clip technology for secure docking, and 360-degree rotation for enhanced maneuverability.

Pleje og vedligeholdelse

Proper care and maintenance will ensure the longevity and appearance of your VIGO faucet.

• Rengøring af finishen: Rengør vandhanen regelmæssigt med en blød klud og mild sæbe. Undgå slibende rengøringsmidler, stærke kemikalier eller skuresvampe, da disse kan beskadige den matsorte finish.
• Rengøring af dysen: The mineral-resistant nozzle can be easily cleaned by gently rubbing the rubber spray holes to dislodge any mineral buildup.
• Forebyggelse af vandpletter: Wipe the faucet dry after each use to prevent water spots and mineral deposits.
• Vedligeholdelse af patroner: The faucet is equipped with a Sedal ceramic cartridge, tested for up to 500,000 uses, requiring minimal maintenance. If leaks occur from the handle, the cartridge may need inspection or replacement.

Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på med din vandhane. Ved problemer, der ikke er nævnt her, bedes du kontakte kundesupport.

Specifikationer

Figur 7: Detailed dimensions guide for the VIGO Greenwich faucet, including overall height, width, spout height, and spout reach.

Garantioplysninger

This VIGO product comes with a 30 dages garanti. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects under normal use and service. For specific terms and conditions, please refer to the warranty documentation included with your product or contact VIGO customer service.

Kundesupport

If you have any questions regarding the installation, operation, or maintenance of your VIGO VG02029MBK1 faucet, please contact VIGO customer support. Refer to the contact information provided in your product packaging or visit the official VIGO webwebsted for hjælp.
