1. Introduktion
This manual provides detailed instructions for the safe and effective operation of your MICTUNING 18 LED UV Black Light. Please read this manual thoroughly before use and retain it for future reference.
2. Produktet er slutview
The MICTUNING 18 LED UV Black Light is designed to produce an iridescent violet light source, enhancing various environments. It features multiple lighting modes and can be controlled via a remote or manual panel.
2.1 Komponenter
- 18 UV LED Black Light Unit
- RF Remote Control (battery not included)
- Justerbar monteringsbeslag
- Strømkabel
- Brugermanual
Image: The MICTUNING 18 LED UV Black Light unit, its remote control, power cable, and mounting bracket.
2.2 Nøglefunktioner
- High-Quality UV LEDs: Equipped with 18 high-quality UV LEDs for efficient light output.
- Flere lystilstande: Includes Auto, Jump, Color Gradient, Flash, Pulse, and Sound-activated modes.
- Fjernbetjening: Convenient RF remote control for mode selection and speed adjustment.
- DMX-512-styring: Standard DMX-512 compatibility for professional setups.
- Robust konstruktion: Aluminum alloy housing with an integrated fan for heat dissipation.
- Justerbar vinkel: Features an adjustable mounting bracket for flexible positioning.
3. Opsætningsvejledning
- Pakker ud: Fjern forsigtigt alle komponenter fra emballagen.
- Montering:
- Attach the adjustable bracket to the light unit using the provided screws.
- The unit can be placed on a flat surface or mounted to a wall/ceiling using appropriate hardware (not included).
- Adjust the lighting angle as needed using the knobs on the side of the bracket.
Image: The adjustable bracket allows for 360-degree rotation to direct the light.
- Strømtilslutning: Connect the power cable to the light unit and then plug it into a standard AC 100-240V power outlet.
- Fjernbetjenings batteri: Insert the required battery into the RF remote control (battery not included).
- DMX-forbindelse (valgfri): For DMX control, connect a DMX cable from your DMX controller to the "DMX IN" port on the light unit. If chaining multiple units, connect from "DMX OUT" of the first unit to "DMX IN" of the next.
4. Betjeningsvejledning
The MICTUNING UV Black Light can be operated using the included RF remote control or the manual control panel on the back of the unit.
4.1 Manuelt kontrolpanel
The manual control panel features an LCD screen and buttons for mode selection and adjustment.
Image: The back panel of the light unit showing DMX IN/OUT, LCD display, and control buttons. The remote control layout is also shown.
- Use the buttons next to the LCD screen to navigate through modes and settings.
- The LCD screen will display the currently selected mode (e.g., "A 1.05" for Auto mode).
4.2 Betjening af fjernbetjening
The RF remote control provides convenient access to all lighting modes and adjustments.
- Tænd/sluk: Tryk på rød tænd/sluk-knap for at tænde eller slukke for enheden.
- Valg af tilstand:
- BIL: Automatic mode cycling through various effects.
- SUND: Light reacts to sound/music.
- STROBE: Flashing effect.
- ALT TIL: All LEDs are continuously lit.
- FALME: Gradual transition between effects.
- HOPPE: Abrupt changes between effects.
- PULS: Pulsating light effect.
- FARVE +/-: Adjusts color-related settings or selects specific effects within certain modes.
- HASTIGHED +/-: Adjusts the speed of effects in modes like Auto, Jump, Fade, and Pulse.
5. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your UV Black Light.
- Rensning: Periodically clean the lens and housing with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ventilation: Ensure the integrated fan and ventilation openings are free from dust and obstructions to prevent overheating.
- Opbevaring: Når enheden ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
- Strømafbrydelse: Always disconnect the power before cleaning or performing any maintenance.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply; faulty power cable; unit off. | Check power connection and outlet. Ensure power button is pressed. Try a different power cable if available. |
| Fjernbetjening virker ikke. | Battery depleted or incorrectly inserted; remote out of range; obstruction. | Replace remote battery. Ensure battery is inserted correctly. Operate remote within close range and without obstructions. |
| Light effects are not changing. | Stuck in a single mode; DMX conflict. | Try selecting a different mode using the remote or manual panel. If using DMX, ensure DMX settings are correct and no conflicts exist. |
| Enheden overopheder. | Poor ventilation; fan obstruction. | Ensure adequate airflow around the unit. Clean any dust or debris from the fan and vents. |
7. Specifikationer

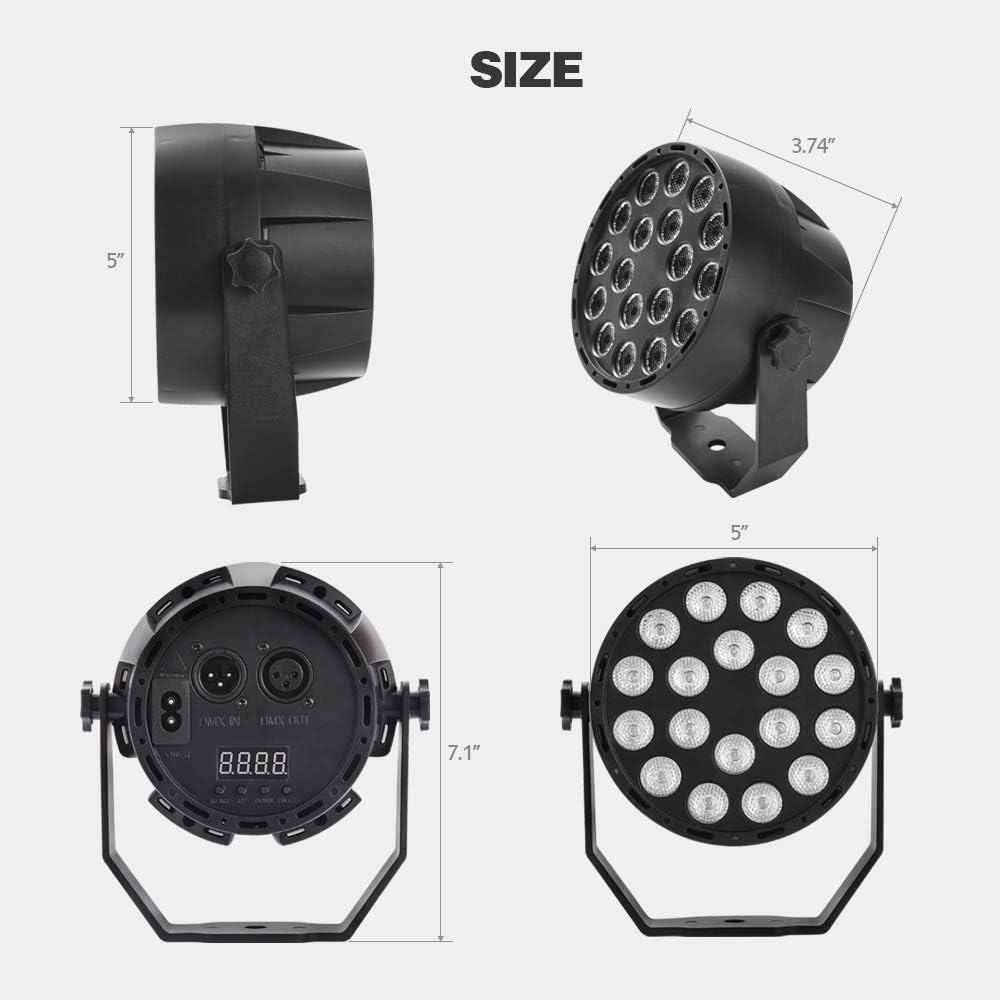

Image: Dimensions of the MICTUNING 18 LED UV Black Light.
| Feature | Detalje |
|---|---|
| Mærke | MICTUNING |
| Modelnummer | MIC-UBL-207D |
| Produktmål (L x B x H) | 9.5 x 9.5 x 12.7 cm (3.74 x 3.74 x 5 tommer) |
| Vægt | 490 gram (1.08 lbs) |
| Materiale | Aluminiumslegering |
| Magt | 18 watt |
| Voltage | AC 100-240 volt |
| Kontroltilstande | Auto, Jump, Color Gradient, Flash, Pulse, Sound, DMX-512 |
| Fjernbetjening | RF Remote (battery not included) |
8. Sikkerhedsoplysninger
- Do not look directly into the UV light source. Prolonged exposure can be harmful to eyes.
- Ensure the unit is securely mounted or placed on a stable surface to prevent falling.
- Hold enheden væk fra vand eller andre væsker.
- Do not operate the unit if the power cable is damaged.
- Dette produkt er kun til indendørs brug.
- Opbevares utilgængeligt for børn.
9. Garanti og support
For warranty information or technical support, please contact MICTUNING customer service. Details regarding spare parts availability are not provided in this manual.
Please refer to the product packaging or the official MICTUNING webwebstedet for de seneste kontaktoplysninger til support.
