Amazon Basics Over-Ear Studio Monitor Headphones (Model MHP-1190-01A) User Manual

1. Introduktion

Thank you for choosing the Amazon Basics Over-Ear Studio Monitor Headphones. These headphones are designed to provide clear audio reproduction and comfort for extended listening sessions, making them suitable for studio monitoring, field recording, and general audio enjoyment. This manual provides essential information for the proper use and care of your headphones.

2. Pakkens indhold

• Amazon Basics Over-Ear Studio Monitor Headphones
• Detachable Audio Cable (3.5mm to 3.5mm with 6.35mm adapter)

3. Produktet er slutview

The Amazon Basics Over-Ear Studio Monitor Headphones feature a robust design with user comfort and audio clarity in mind.

• Over-Ear Design: Helps isolate sound and minimize external noise, ideal for focused listening environments.
• Komfortabel pasform: Contoured ear-cups and a self-adjustable, flexible leather headband ensure comfort during prolonged use.
• Swivel Ear-cups: 90-degree swivel functionality allows for single-ear monitoring.
• Sammenfoldeligt design: Ear-cups fold inward for compact storage and easy transport.
• High-Quality Drivers: Equipped with 40 mm diameter drivers for clear audio output.
• Aftageligt kabel: Features a DJ-style 9.8-foot coiled cable with a detachable standard 6.3mm plug adapter for versatile connectivity.

Figur 1: Vinklet view of the Amazon Basics Over-Ear Studio Monitor Headphones.

4. Opsætningsvejledning

1. Udpak indhold: Carefully remove the headphones and all accessories from the packaging.
2. Tilslut lydkabel: Insert the smaller 3.5mm end of the detachable audio cable into the audio jack located on the left earcup of the headphones. Ensure it is securely seated.


   Figure 2: The detachable coiled audio cable with 3.5mm and 6.35mm connectors.
3. Tilslut til lydkilde:
   • For devices with a 3.5mm audio output (e.g., smartphones, laptops, MP3 players), connect the larger 3.5mm end of the cable directly to the device's audio jack.
   • For devices with a 6.35mm audio output (e.g., audio interfaces, mixing consoles, amplifiers), attach the included 6.35mm adapter to the larger 3.5mm end of the cable, then connect it to the device's audio jack.

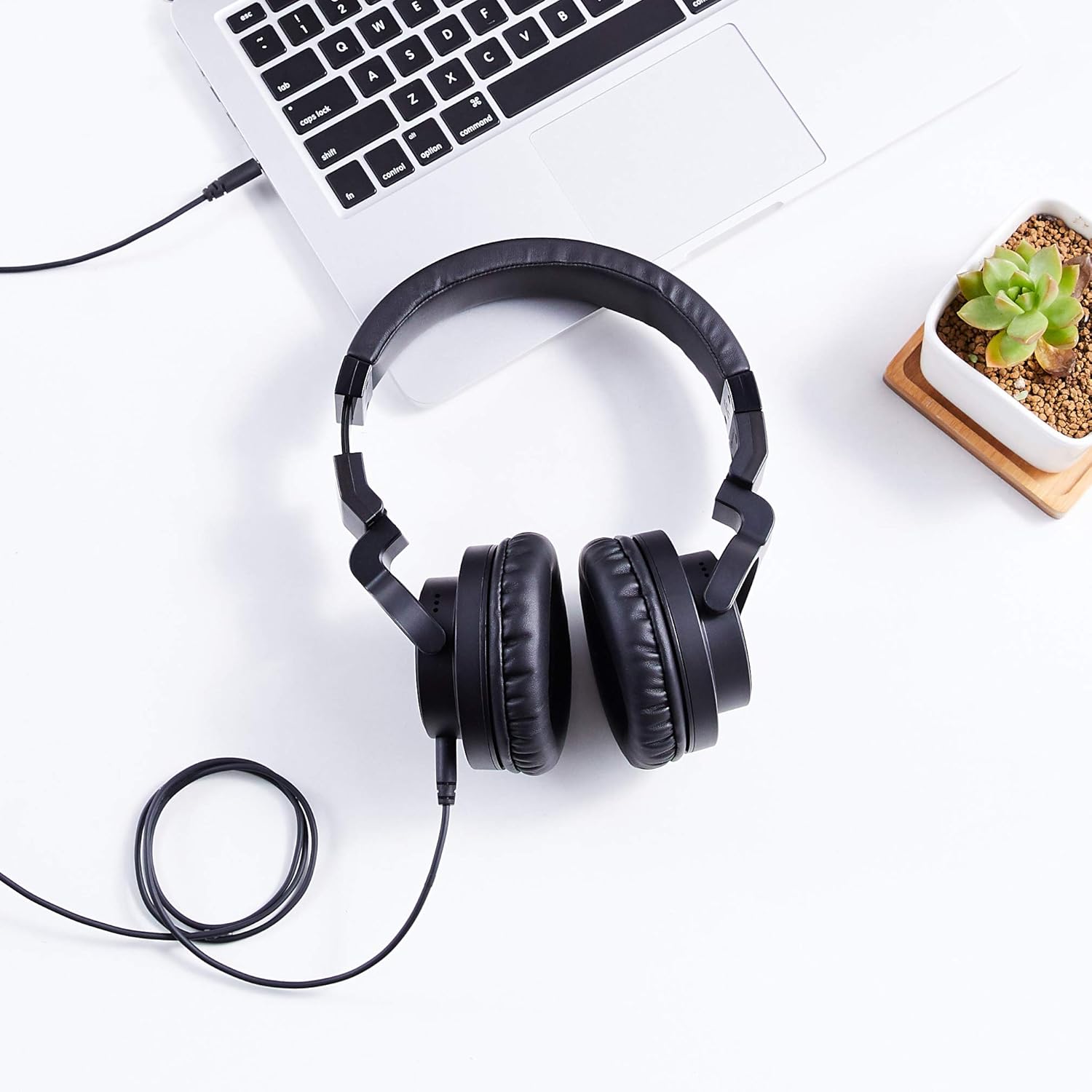

     Figure 3: Headphones connected to a laptop via the audio cable.

4. Juster pandebånd: Place the headphones on your head. Adjust the headband by sliding the earcups up or down until they fit comfortably over your ears. The headband is self-adjustable for optimal fit.
5. Position af ørekopper: Ensure the earcups fully enclose your ears for the best sound isolation and comfort. The earcups are designed to swivel 90 degrees for single-ear monitoring if needed.


   Figure 4: Earcup swiveled for single-ear monitoring.

5. Betjeningsvejledning

1. Power On Audio Source: Ensure your audio source device is powered on and playing audio.
2. Juster lydstyrken: Control the audio volume directly from your connected audio source device. These headphones do not feature inline volume controls.
3. Single-Ear Monitoring: For situations requiring awareness of your surroundings or specific audio monitoring techniques, rotate one earcup 90 degrees to listen with a single ear.
4. Optimal lytning: For the best audio experience, ensure both earcups are fully covering your ears and the headband is adjusted for a secure yet comfortable fit.

6. Vedligeholdelse

Korrekt vedligeholdelse sikrer dine hovedtelefoners levetid og ydeevne.

• Rengøring af ørekopper: Gently wipe the earcups and headband with a soft, dry cloth. For stubborn dirt, a slightly damp En klud kan bruges, men undgå for meget fugt. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Kabelpleje: Avoid sharply bending or twisting the audio cable. When storing, coil the cable loosely. The detachable design allows for easy replacement if the cable becomes damaged.
• Opbevaring: When not in use, store the headphones in a clean, dry place. The foldable design allows for compact storage. Avoid exposing them to extreme temperatures, humidity, or direct sunlight.
• Undgå dråber: Protect the headphones from drops and impacts, which can damage internal components.

7. Fejlfinding

Hvis du støder på problemer med dine hovedtelefoner, kan du se følgende almindelige problemer og løsninger:

8. Specifikationer

9. Garanti og support

These Amazon Basics Over-Ear Studio Monitor Headphones are backed by an Amazon Basics 1-year limited warranty. For detailed warranty information or support, please refer to the official Amazon Basics webwebstedet eller kontakt Amazons kundeservice.

For yderligere hjælp, besøg venligst Amazon Basics Store.
