Indledning
This manual provides detailed instructions for the safe and efficient use of your VIVOHOME 17 FT Inflatable Projector Screen. Please read all instructions carefully before assembly and operation to ensure optimal performance and longevity of your product.
Image: The VIVOHOME 17 FT Inflatable Projector Screen, showcasing its large size and black frame, ready for outdoor movie viewing.
Sikkerhedsoplysninger
- Ensure the screen is securely anchored using all provided stakes and ropes, especially in outdoor environments, to prevent tipping due to wind.
- Keep the air blower away from water and moisture to prevent electrical hazards.
- Do not operate the screen near open flames or excessive heat sources.
- Supervise children around the inflatable screen and blower.
- Always unplug the blower when not in use or during maintenance.
- Do not attempt to repair damaged components; contact customer support.
Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- Inflatable Projector Screen Frame (1)
- Projection Surface (1)
- 370W Built-in Air Blower (1)
- Ground Spikes (10)
- Reb (4)
- 420D Oxford Handy Carry Bag (1)
Image: Visual representation of the VIVOHOME inflatable projector screen components, including the frame, screen, blower, stakes, ropes, and carry bag.
Opsætningsinstruktioner
- Vælg en placering: Select a flat, clear area for setup, free from sharp objects or debris. Ensure adequate space for the screen dimensions (157.2"W x 133.2"H) and for securing ropes.
- Pak ud og udfold: Remove the inflatable frame and projection surface from the carry bag. Lay the black inflatable frame flat on the chosen ground.
- Attach the Projection Surface: Secure the white projection surface to the black inflatable frame using the integrated buckles and straps. Ensure the screen is centered and taut.
- Tilslut blæseren: Locate the air intake sleeve on the inflatable frame. Attach the 370W air blower to this sleeve and ensure it is securely fastened. Make sure the zipper on the frame is closed before inflation.
- Inflate the Screen: Plug the air blower into a suitable power outlet. The screen will begin to inflate rapidly, typically within one minute. Allow it to fully inflate and stand upright.
- Sikr skærmen: Use the provided ground stakes and ropes to anchor the inflatable frame firmly to the ground. Attach ropes to the designated loops on the frame and secure them with stakes to prevent movement, especially in windy conditions.

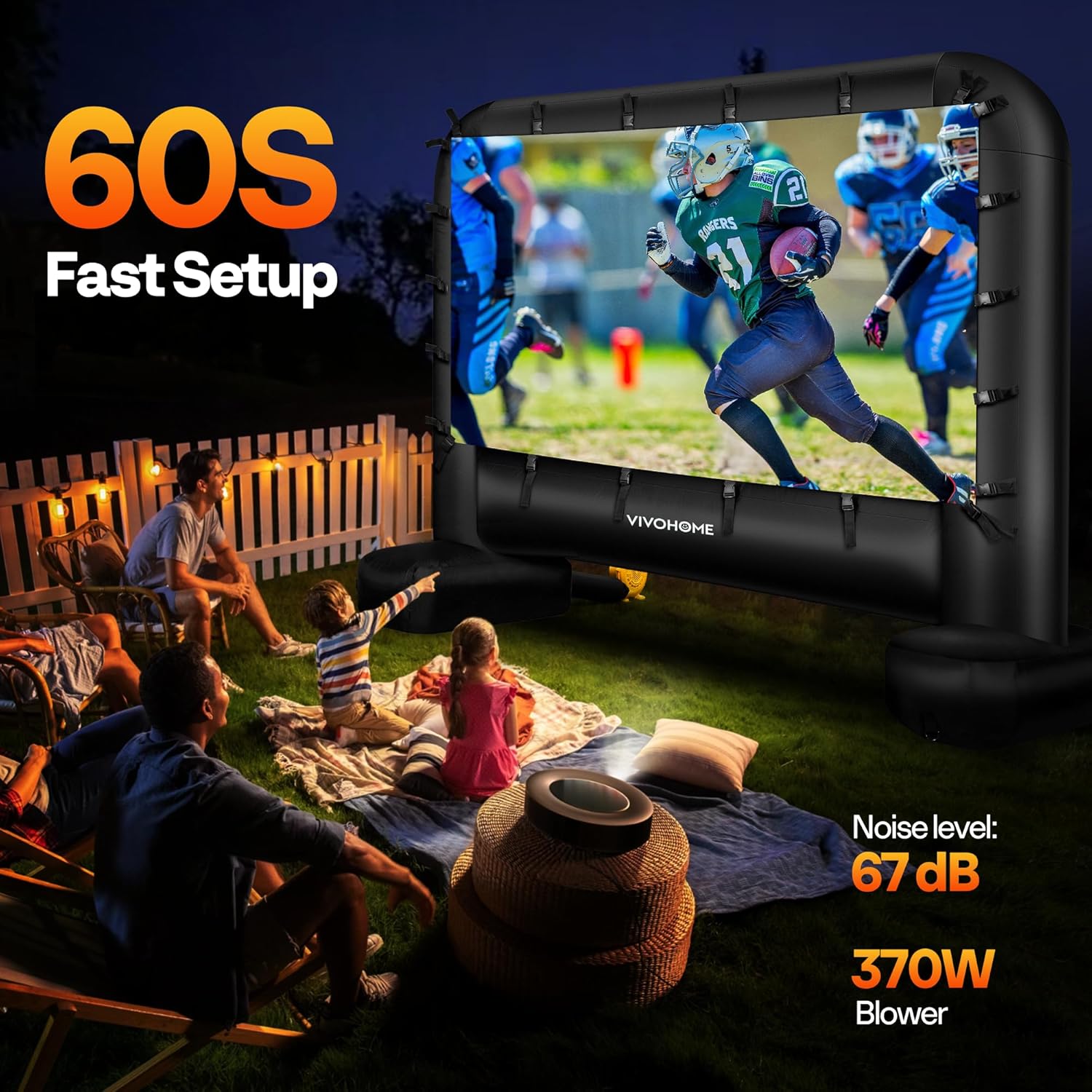

Image: A family enjoying the VIVOHOME inflatable projector screen set up in their backyard, highlighting the fast setup and quiet blower.
Billede: Detaljeret view of the stable design, showing wider feet for stability, screen locking clips, and ground nails with ropes for secure anchoring.
Video: Official VIVOHOME video demonstrating the setup process and features of the inflatable movie screen.
Betjeningsvejledning
Once the VIVOHOME Inflatable Projector Screen is fully set up and secured, you are ready to begin your viewoplevelse.
- Fremskrivning: The screen supports both front and rear projection. Position your projector accordingly based on your desired setup.
- Optimal Viewing: For the best image quality, use the screen in a dark environment. The 16:9 aspect ratio and 132.3” x 76.8” viewing area are designed for a cinematic experience.
- Blæserbetjening: The built-in 370W blower operates continuously to keep the screen inflated. Its noise level is approximately 67dB, which is designed to be minimally intrusive during viewing.

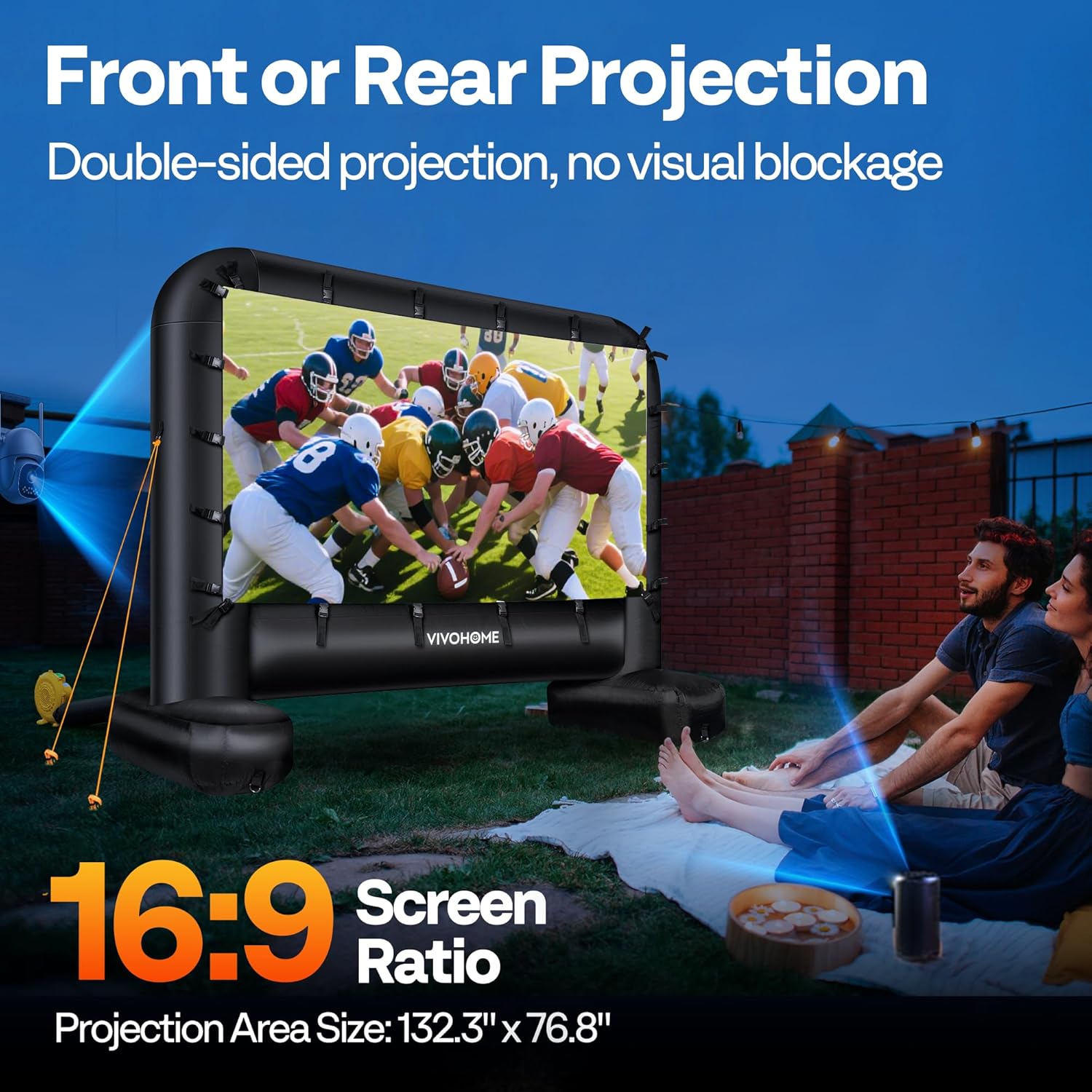

Image: Illustration of the VIVOHOME screen's double-sided projection feature, allowing for flexible projector placement.
Opretholdelse
- Cleaning the Projection Surface: The removable projection surface can be cleaned by wiping it gently with a damp klud. Undgå barske kemikalier eller slibende materialer.
- Cleaning the Inflatable Frame: Wipe down the Oxford cloth frame with a damp cloth as needed. Ensure it is completely dry before storage to prevent mold or mildew.
- Opbevaring: Deflate the screen by unplugging the blower and opening the zipper. Carefully fold the screen and projection surface. Store them in the provided 420D Oxford handy bag in a cool, dry place, away from direct sunlight and extreme temperatures.
Image: Demonstrates the ease of cleaning the removable screen and the portability of the product using its storage bag.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Screen does not inflate fully. | Zipper not closed; blower not properly attached; power issue. | Ensure all zippers are closed. Check blower connection. Verify power supply. |
| Screen is unstable or sways. | Utilstrækkelig forankring; stærk vind. | Ensure all ground stakes and ropes are securely fastened. Consider additional weights in very windy conditions. |
| Image appears wrinkled on screen. | Projection surface not taut. | Adjust the screen locking clips and straps to pull the projection surface tighter. |
| Blower is too loud. | Normal driftsstøj. | The blower operates at approximately 67dB. Position external speakers closer to viewers to mask blower noise if desired. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | VH276 |
| Samlede produktdimensioner | 157.2 cm B x 133.2 cm H |
| Viewing område | 132.3"W x 76.8"H (11.4 x 6.4 feet) |
| Aspektforhold | 16:9 |
| Materiale | 210D Oxford Cloth (Frame), Projection Fabric (Screen) |
| Blower Power | 370W |
| Blower Noise Level | Ca. 67dB |
| Varens vægt | 18.92 pund |
Image: Technical diagram illustrating the key dimensions of the VIVOHOME inflatable projector screen.
Garanti og support
For warranty information, technical support, or to inquire about replacement parts, please refer to the contact information provided with your product packaging or visit the official VIVOHOME webwebsted. Gem din købskvittering for garantikrav.
