1. Introduktion
Tak for købetasing the Commercial Electric 1 ft. x 4 ft. 50-Watt Dimmable White Integrated LED Edge-Lit Deco Panel Ceiling Flushmount Light. This fixture is designed to provide versatile and energy-efficient lighting with selectable color temperature options. This manual provides essential information for safe installation, operation, and maintenance of your new light fixture.
Image 1.1: The Commercial Electric 1x4 ft. LED Flushmount Light, showcasing its sleek, rectangular design.
2. Sikkerhedsoplysninger
Læs og forstå alle instruktioner, før du påbegynder installationen. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller andre farer, der kan forårsage personskade eller materielle skader.
- ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringen eller strømafbryderen før installation eller servicering.
- ADVARSEL: Risk of fire. Use only with 120V, 60Hz circuits.
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Undlad at ændre eller modificere armaturet.
- Sørg for, at alle forbindelser er sikre og korrekte.
- Dette armatur er kun til indendørs brug.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes.
- 1 x LED Flushmount Light Fixture
- 1 x monteringshardwaresæt
- 1 x Brugsanvisning (dette dokument)
Image 3.1: The product packaging for the Commercial Electric 1x4 ft. LED Flushmount Light, indicating its dimensions and features.
4. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Kommerciel elektrisk |
| Modelnummer | 74218/HD |
| Dimensioner | 1 ft. x 4 ft. (approx. 50.9 x 16.2 x 3 inches package) |
| Wattage | 50 watt |
| Lysstyrke | 3800 lumen |
| Farvetemperatur (CCT) | Selectable: 3000K (Soft White), 4000K (Bright White), 5000K (Daylight) |
| Dæmpbar | Ja |
| Voltage | 120 volt |
| Lyskildetype | Integreret LED |
| Materiale | Metal |
| Installationstype | Flush Mount (Ceiling or Wall) |
| Forventet levetid | 50,000 hours / 45.7 years (based on 3 hours/day) |
| Certificeringer | ENERGY STAR, UL, cUL |
Image 4.1: The 'Lighting Facts' label for the LED panel, detailing light output, wattage, efficacy, color accuracy, and correlated color temperature (CCT) options.

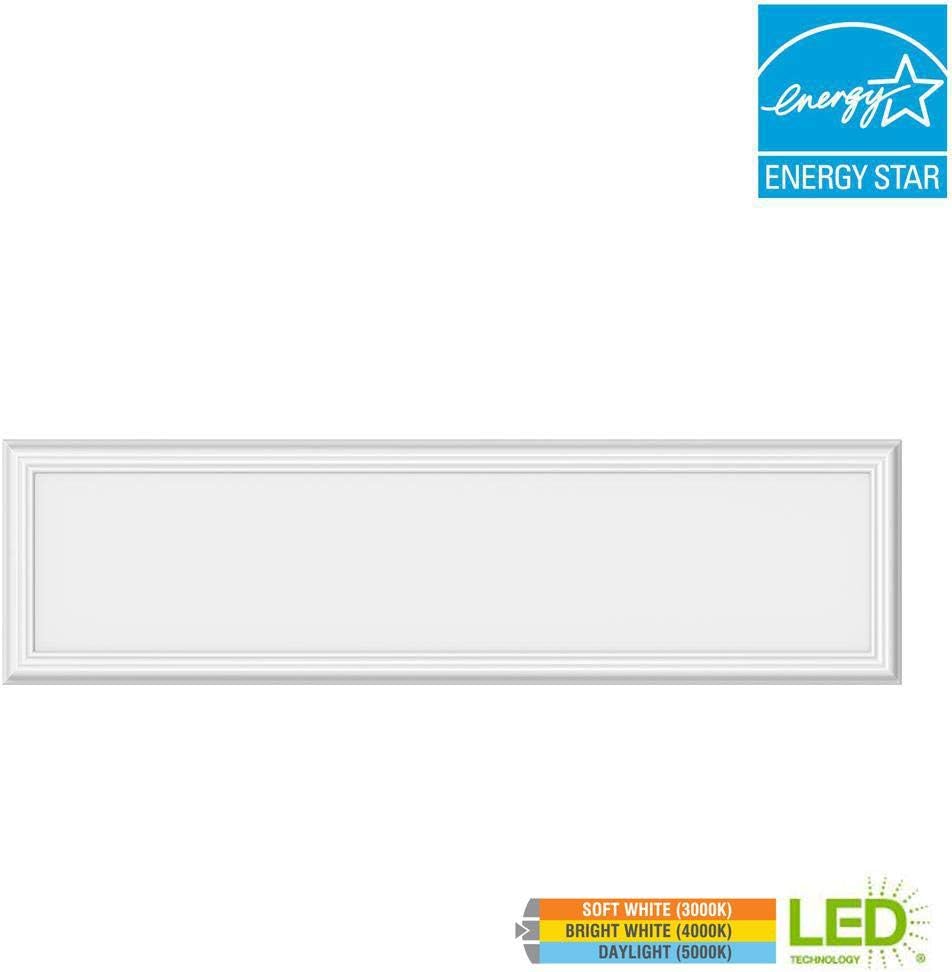

Image 4.2: The Commercial Electric LED panel displaying the ENERGY STAR certification logo, indicating its energy efficiency.
5. Opsætning og installation
This fixture is designed for flush mount installation on ceilings or walls. Professional installation is recommended if you are not familiar with electrical wiring.
- Forbered til installation: Turn off power at the circuit breaker or fuse box. Ensure the power is off before proceeding.
- Monteringsbeslag: Attach the provided mounting bracket to the junction box in the ceiling or wall. Use appropriate screws and anchors for your mounting surface. The fixture features a slide-and-lock simple mounting bracket for ease of installation.
- Ledningsføring: Connect the fixture's wires to the household electrical wires according to standard electrical codes. Typically, connect the black wire from the fixture to the black (live) wire from the outlet box, the white wire from the fixture to the white (neutral) wire from the outlet box, and the ground wire from the fixture to the bare copper or green ground wire from the outlet box. Secure connections with wire nuts.
- Sikker armatur: Carefully tuck all wires into the junction box. Align the fixture with the mounting bracket and secure it in place.
- Gendan strøm: Når armaturet er sikkert installeret, skal strømmen genoprettes ved afbryderen.
Image 5.1: The Commercial Electric LED panel light installed flush with a kitchen ceiling, demonstrating its application in a residential setting.
6. Betjeningsvejledning
This LED fixture offers selectable color temperature and dimmable functionality.
6.1. Valg af farvetemperatur (CCT)
The fixture allows you to choose between three color temperatures: Soft White (3000K), Bright White (4000K), and Daylight (5000K).
- Indledende indstilling: The fixture may have a preset color temperature.
- Switching CCT: To change the color temperature, use a standard wall light switch. Turn the switch OFF and then immediately ON again. The fixture will cycle to the next available color temperature. Repeat this process until your desired CCT is selected.
Image 6.1: A visual representation of the three selectable color temperatures: Soft White (3000K) for relaxation, Bright White (4000K) for productivity, and Daylight (5000K) for alertness.
Image 6.2: An illustration demonstrating the 'Flip the Switch, Switch the Light' feature for selecting between Warm White (3000K), Cool White (4000K), and Daylight (5000K) color temperatures.
6.2. Dæmpningsfunktionalitet
Denne armatur er dæmpbar. For at bruge dæmpningsfunktionen skal du sørge for, at du har en kompatibel LED-dæmper installeret på kredsløbet. Følg dæmperproducentens anvisninger for betjening.
7. Vedligeholdelse
The integrated LED light source does not require bulb replacement. Regular maintenance is minimal.
- Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør armaturet af med en blød, tør eller let fugtet klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen eller de elektriske komponenter.
- Inspektion: Periodically check for any loose wiring or damage. If any damage is observed, discontinue use and consult a qualified electrician.
8. Fejlfinding
Hvis du oplever problemer med din lampe, kan du se følgende almindelige problemer og løsninger:
- Lyset tænder ikke:
- Kontroller om strømmen er tændt ved afbryderen.
- Sørg for, at alle ledningsforbindelser er sikre.
- Verify the wall switch is in the ON position.
- Lyset flimrer eller dæmpes uventet:
- Ensure the dimmer switch is compatible with LED fixtures.
- Tjek for løse ledningsforbindelser.
- Color temperature does not change:
- Ensure you are cycling the power OFF and ON quickly enough for the fixture to register the change.
- If using multiple fixtures on one switch, they may not synchronize perfectly.
Hvis disse trin ikke løser problemet, skal du kontakte kundesupport.
9. Garanti og support
Warranty information for this product is not specified in the provided details. For specific warranty terms and conditions, please refer to the product packaging or contact Commercial Electric customer service directly.
For technical support or further assistance, please contact Commercial Electric customer service.
