Indledning
This user manual provides detailed instructions for the safe and efficient use of your PORTAL Collapsible Wagon Cart. Please read this manual thoroughly before operating the wagon and retain it for future reference.
The PORTAL Collapsible Wagon Cart is designed for versatile use, ideal for hauling tools, camping gear, garden supplies, sports equipment, and groceries. Its heavy-duty construction and foldable design make it a convenient solution for various transport needs.
Sikkerhedsoplysninger
Always prioritize safety when using the wagon. Failure to follow these guidelines may result in injury or damage to the product.
- Overskrid ikke den maksimale vægtgrænse på 225 lbs (102 kg).
- Ensure all folding mechanisms are securely locked before use.
- Distribute weight evenly within the wagon to maintain stability.
- Avoid pulling the wagon at excessive speeds, especially on uneven terrain.
- Hold hænder og fingre væk fra bevægelige dele under foldning og udfoldning.
- Do not allow children to play in or on the wagon unsupervised.
- Use caution when navigating inclines or declines.
Opsætning og montering
Your PORTAL Collapsible Wagon Cart comes pre-assembled and requires no tools for setup. Follow these steps to unfold and prepare your wagon for use.
Unfolding the Wagon
- Step 1: Remove from Storage Bag
Take the folded wagon out of its compact storage bag. - Trin 2: Udvid rammen
Gently pull the sides of the wagon apart until the frame fully extends. The wagon will begin to take its open shape. - Step 3: Insert Bottom Cushion
Place the removable bottom cushion firmly into the base of the wagon to provide a stable floor. Ensure it lies flat. - Step 4: Adjust Handle
Pull the telescoping handle upwards until it locks into your desired height.
Figure 1: Visual guide for unfolding the wagon. The image displays the wagon transitioning from a folded state to fully open, with the bottom cushion being inserted.

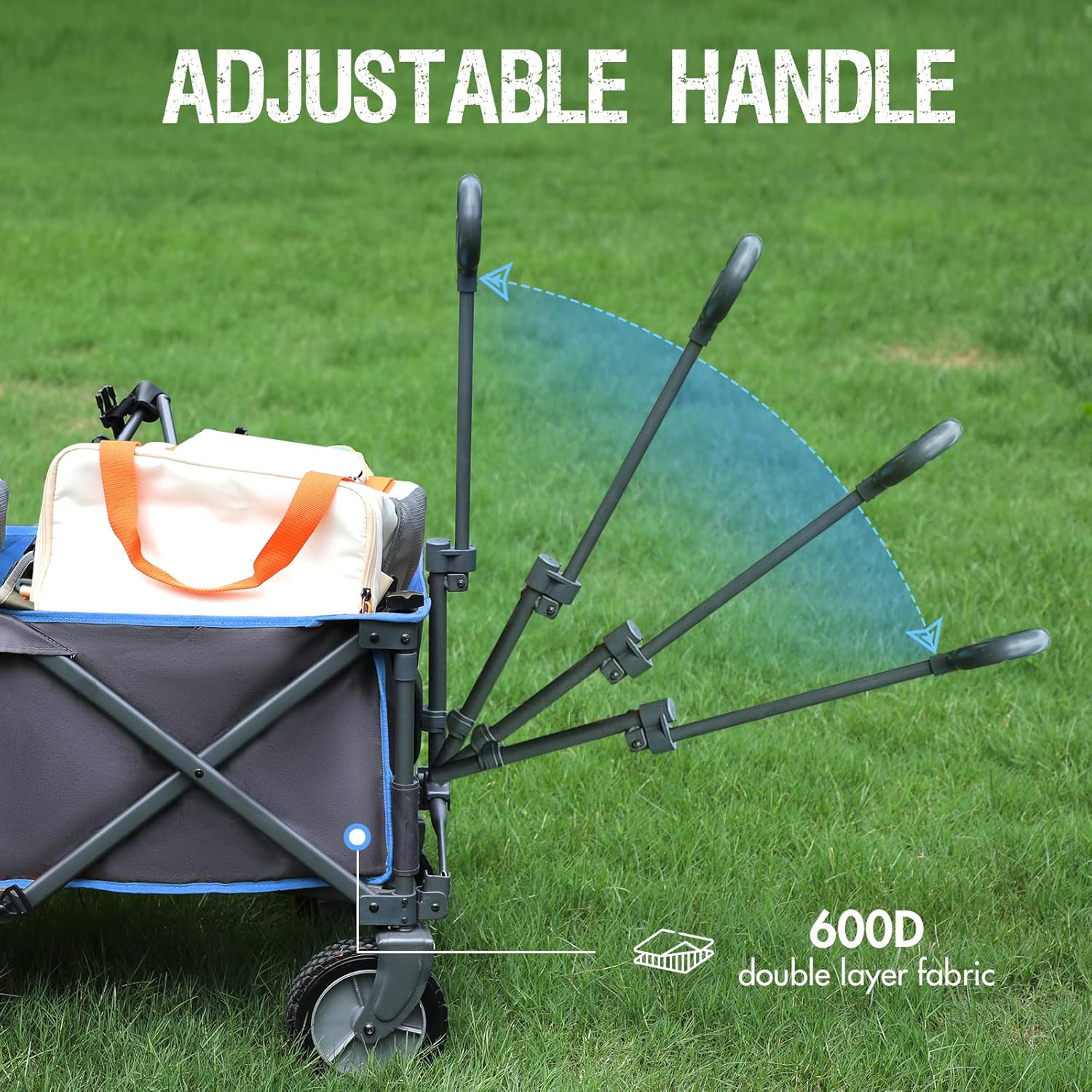

Figure 2: Illustration of the adjustable handle mechanism. The handle can be extended and angled for comfortable pulling.
Video 1: Demonstrates the unfolding and setup of the PORTAL Collapsible Wagon. This video shows how to quickly prepare the wagon for use, including inserting the base and adjusting the handle.
Betjeningsvejledning
Once assembled, your wagon is ready for use. Follow these guidelines for optimal performance.
Loading the Wagon
- Place items evenly across the wagon's interior to maintain balance.
- Do not stack items higher than the wagon's sides if it compromises stability or visibility.
- Secure loose items if transporting over rough terrain to prevent them from falling out.
Figure 3: The wagon shown loaded with various items, demonstrating its large capacity. The image highlights the spacious interior suitable for diverse cargo.
Pulling and Maneuvering
- Hold the adjustable handle firmly.
- The 360° rotating front wheels allow for easy turning and navigation.
- Exercise caution on uneven surfaces, gravel, or soft sand. While designed for various terrains, extremely soft conditions may require more effort.
Figure 4: Close-up of the wagon's 360-degree rotating wheels, illustrating their capability on different surfaces like gravel, lawn, mud, and asphalt.
Video 2: Shows the PORTAL Collapsible Folding Utility Wagon in action, demonstrating its ease of movement and utility for various outdoor activities.
Opretholdelse
Regular maintenance will extend the life of your wagon.
- Rensning: The 600D thickened premium oxford fabric can be machine washed. For the frame, wipe with a damp cloth and mild soap. Ensure all parts are dry before folding and storing.
- Opbevaring: Fold the wagon compactly and store it in a dry place away from direct sunlight when not in use.
- Inspektion: Periodically check all bolts, screws, and moving parts to ensure they are secure and functioning correctly. Tighten any loose fasteners.
Figure 5: The wagon in its compact folded state, highlighting its small storage footprint. This image demonstrates how easily the wagon can be stored when not in use.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Wagon is difficult to pull or steer. | Uneven weight distribution; debris in wheels; wheels not rotating freely. | Redistribute load evenly. Check wheels for obstructions and clear them. Ensure wheels are clean. |
| Wagon does not fold or unfold smoothly. | Mechanism obstructed; fabric caught in frame. | Ensure no items are inside the wagon. Check for fabric or other obstructions in the folding joints. Apply light lubricant to moving parts if necessary. |
| Wagon feels unstable. | Overloaded; weight not distributed evenly; folding mechanism not fully locked. | Reduce load to within weight limit. Redistribute items. Ensure the wagon is fully unfolded and locked into place. |
Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner (udfoldet) | 35.6" D x 21.7" B x 19.1" H |
| Foldede dimensioner | 29.1 cm L x 11.8 cm B x 7.9 cm H |
| Vægt kapacitet | 225 lbs (102 kg) |
| Produktets vægt | 23.8 lbs (10.8 kg) |
| Materiale | 600D Thickened Premium Oxford Fabric, Alloy Steel Frame |
| Hjultype | 360° Rotation Front Wheels |
| Montering påkrævet | Ingen |
Figure 6: Detailed specifications including product dimensions, weight, and weight capacity. This image provides a clear overview of the wagon's physical attributes.
Figur 7: Nærbillede view of the wagon's heavy-duty frame, highlighting the thickened steel tubing for durability and load-bearing capacity.
Garantioplysninger
For specific warranty details and terms, please refer to the warranty card included with your purchase or contact PORTAL customer support. Keep your proof of purchase for warranty claims.
Kundesupport
If you have any questions, require assistance, or need to report an issue with your PORTAL Collapsible Wagon Cart, please contact our customer support team:
- Webwebsted: Visit the PORTAL Store on Amazon
- E-mail: Refer to product packaging or warranty card for direct email support.
- Telefon: Refer to product packaging or warranty card for direct phone support.
When contacting support, please have your product model number (B07G41DJML) and purchase date available.
