Brugermanual til 360 robotstøvsuger og mopper

Indledning

Thank you for choosing the 360 Robot Vacuum and Mop Cleaner. This intelligent cleaning device is designed to provide efficient and thorough cleaning for your home, featuring advanced laser navigation, powerful suction, and smart app control. This manual will guide you through the setup, operation, and maintenance of your new robot vacuum to ensure optimal performance and longevity.

The 360 Robot Vacuum and Mop Cleaner, Model S6, shown with its companion mobile application interface.

Sikkerhedsoplysninger

• Læs alle instruktioner omhyggeligt, før du bruger apparatet.
• Lad ikke børn betjene robotstøvsugeren. Hold opsyn med børn og kæledyr, når robotstøvsugeren er i brug.
• Ensure the charging dock is placed on a flat surface against a wall, with clear space around it.
• Do not use the robot vacuum in wet environments or near liquids.
• Fjern løse kabler, små genstande eller skrøbelige genstande fra gulvet inden rengøring for at forhindre vikling eller beskadigelse.
• Do not use the robot vacuum to pick up large debris, sharp objects, or burning/smoking materials.
• Only use the original charger and battery provided by the manufacturer.
• Udfør regelmæssig vedligeholdelse som beskrevet i denne manual for at sikre sikker og effektiv drift.

Pakkens indhold

Bekræft at alle komponenter er til stede i pakken:

• 360 Robot Vacuum and Mop Cleaner (S6)
• Opladningsdock
• Strømadapter
• Vandtank
• Moppeklud
• Sidebørster (2 par)
• Rengøringsværktøj
• Brugermanual
• Batteri (forudinstalleret)
• Filter (forinstalleret)

Produkt overview

Familiarize yourself with the main components of your 360 Robot Vacuum and Mop Cleaner.

Overview of the robot vacuum's intelligent features including anti-collision, anti-drop sensors, long-lasting battery, LDS laser navigation, and SLAM algorithm for mapping.

Top View:

• LDS Laser Navigation Sensor: For præcis kortlægning og navigation.
• Tænd/sluk-knap: Press to start/pause cleaning, long press to turn on/off.
• Genopladningsknap: Press to send the robot back to the charging dock.
• Dustbin Compartment: Located under the top cover.

Bund View:

• Hovedbørste: Til dybdegående rengøring af tæpper og hårde gulve.
• Sidebørster: Til at feje snavs væk fra kanter og hjørner.
• Drivhjul: Til bevægelse på tværs af forskellige overflader.
• Omnidirektionelt hjul: For steering.
• Opladningskontakter: To connect with the charging dock.
• Klippesensorer: To prevent falling down stairs.
• Wall Sensor: To sweep along walls and corners effectively.

Opsætning

1. Charging the Robot Vacuum

1. Place the charging dock on a hard, level surface against a wall. Ensure there is at least 0.5 meters (1.6 feet) of clear space on both sides and 1.5 meters (4.9 feet) in front of the dock.
2. Connect the power adapter to the charging dock and plug the other end into a power outlet.
3. Place the robot vacuum onto the charging dock, ensuring the charging contacts align. The robot will announce that it is charging. For first use, fully charge the robot before operation.

2. Connecting to the 360 Robot App

1. Download the "360 Robot" app from the App Store (iOS) or Google Play Store (Android).
2. Åbn appen, og opret en konto, eller log ind.
3. Follow the in-app instructions to add your device. This typically involves selecting your robot model, connecting to its Wi-Fi hotspot, and then connecting the robot to your home Wi-Fi network (2.4GHz only).
4. Når den er forbundet, kan du styre robotten, view cleaning maps, set schedules, and access advanced features through the app.

Drift

Start af en rengøringscyklus

• Via robotknap: Press the Power/Clean button on the robot once to start a cleaning cycle. Press again to pause.
• Via app: Open the 360 Robot app and tap the "Clean" button. You can also select specific cleaning modes (e.g., Spot cleaning, Proximity cleaning) or set schedules.
• Via Voice Command (Alexa): If integrated with Alexa, you can use voice commands like "Alexa, ask 360 Robot to start cleaning."

Rengøringstilstande

The robot vacuum is capable of both sweeping (vacuuming) and mopping, utilizing its main brush, side brushes, and mop cloth.

• Autorengøring: The robot intelligently maps your home and cleans systematically. It identifies carpet and automatically switches to Max Mode with 1800Pa suction power for deep cleaning.
• Rengøring af pletter: Directs the robot to clean a specific small area intensively.
• Proximity Cleaning: Cleans a designated area around the robot.
• Moppetilstand: Fastgør vandtanken med annoncenamp mop cloth. The robot will mop hard floors. Note: The mopping function is designed for light mopping and not for heavy stains.

Avancerede app-funktioner

The 360 Robot app allows users to define and set up off-limit areas on the cleaning map, preventing the robot from entering specific zones.

• Multi-map Management: Save and manage multiple floor plans for different levels of your home.
• Off-limit Area: Draw virtual boundaries or no-go zones on the map to prevent the robot from entering specific areas.
• Planlægning: Indstil specifikke tidspunkter, hvor robotten automatisk skal starte rengøringen.
• Fjernbetjening: Manually control the robot's movement using the app.
• Sporrensning: Monitor the robot's real-time cleaning path and progress on the map.
• Sugeniveauer: Adjust suction power (Quiet, Normal, Powerful, Max) according to your cleaning needs.

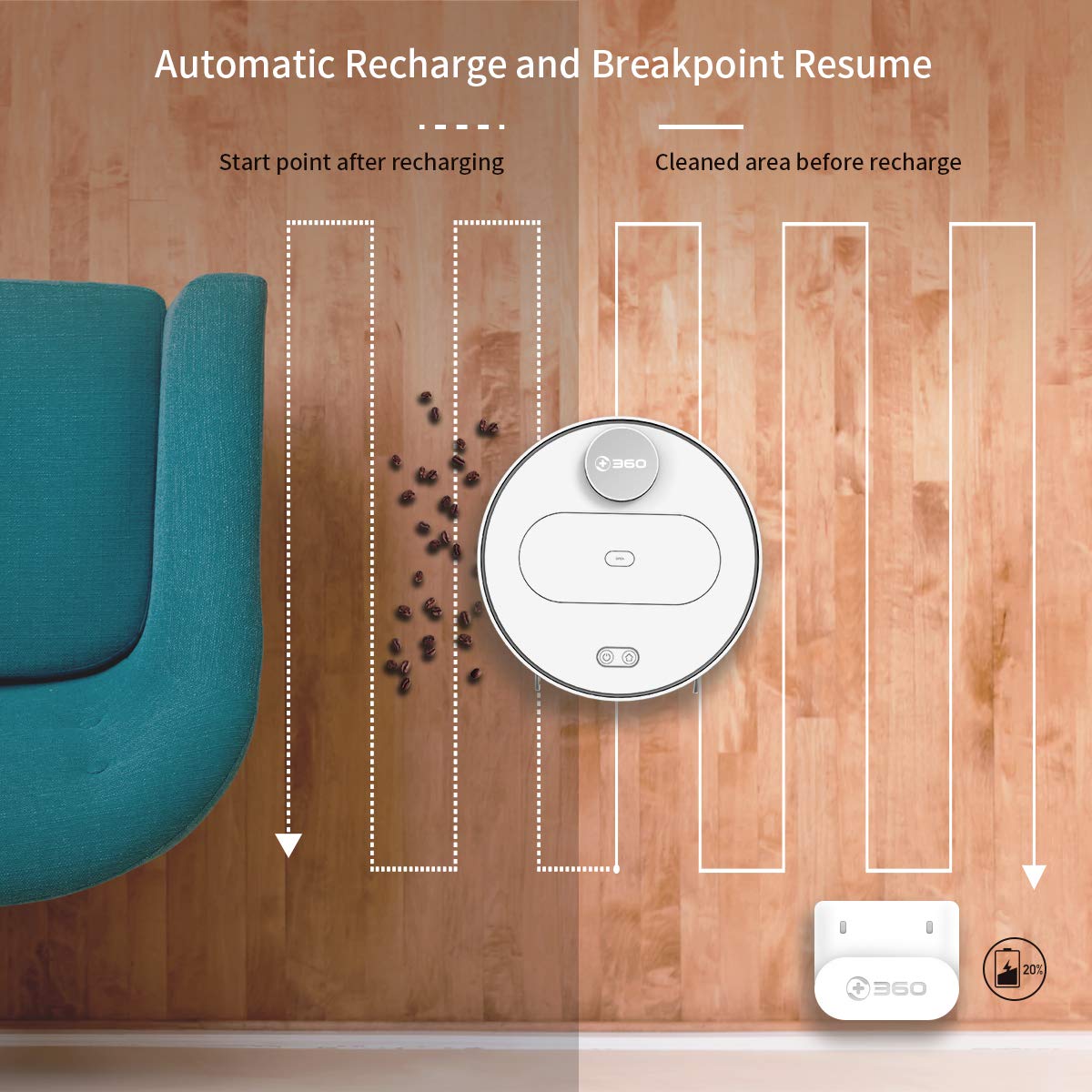

Automatic Recharge and Breakpoint Resume

The robot automatically returns to its charging dock when the battery is low and resumes cleaning from the last uncleaned spot after recharging.

When the battery level is low during a cleaning cycle, the robot will automatically return to its charging dock. Once fully recharged, it will resume cleaning from where it left off, ensuring complete coverage of your home.

Opretholdelse

Regular maintenance is crucial for optimal performance and longevity of your robot vacuum.

1. Tømning af skraldespanden

• Åbn robottens topdæksel, og fjern skraldespanden.
• Åbn låget til skraldespanden, og tøm indholdet i en skraldespand.
• It is recommended to empty the dustbin after each cleaning cycle.

2. Rengøring af filteret

The 360 Robot Vacuum features a washable HEPA filter, which helps maintain high filtration efficiency and contributes to cleaner indoor air.

• Fjern filteret fra støvbeholderen.
• Tap the filter gently to remove loose dirt.
• Rinse the filter under running water. Ensure it is completely dry before reinserting it into the dustbin. Do not use a brush or other tools to clean the filter, as this may damage it.
• It is recommended to clean the filter weekly and replace it every 3-6 months, depending on usage.

3. Rengøringsbørster

• Hovedbørste: Remove the main brush cover and then the main brush. Use the provided cleaning tool to remove hair and debris tangled around the brush. Reinstall the brush and cover. Clean weekly.
• Sidebørster: Check side brushes for tangled hair or debris. If necessary, remove them (they can be pulled off) and clean. Reinstall, ensuring they click into place. Replace if worn or damaged. Clean monthly.

4. Rengøring af sensorer og opladningskontakter

• Wipe the cliff sensors (on the bottom of the robot), wall sensor (on the side), and charging contacts (on the robot and charging dock) with a clean, dry cloth. This ensures proper navigation and charging. Clean monthly.

5. Water Tank and Mop Cloth Maintenance

• Efter mopping skal du fjerne vandtanken og tømme eventuelt resterende vand.
• Remove the mop cloth and wash it thoroughly. Allow it to air dry completely before reattaching or storing.
• Do not leave water in the tank when the robot is not in use for extended periods.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the warranty card included in your product packaging or visit the official 360 SmartAI website. You can also contact customer service through the 360 Robot app for assistance.

For additional resources and FAQs, please visit the 360 Store on Amazon.
