Geko G80300 24L oliesmurt luftkompressor brugsanvisning

1. Introduktion

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Geko G80300 24-liter oil-lubricated air compressor. This product is designed for durability and solid performance, manufactured from high-quality materials. Please read this manual thoroughly before using the compressor.

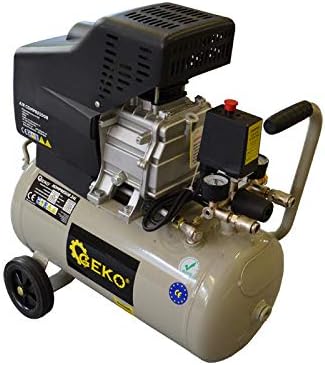

Figur 1: Geko G80300 24L Oil-Lubricated Air Compressor. This image shows the complete air compressor unit, featuring the motor housing, air tank, pressure gauges, regulator, and wheels for portability.

2. Sikkerhedsinstruktioner

Always observe the following safety precautions to prevent personal injury and damage to the compressor.

• Elektrisk sikkerhed: Ensure the power supply matches the compressor's requirements. Use a grounded outlet and avoid extension cords unless absolutely necessary and rated for the compressor's power.
• Tryksikkerhed: Never exceed the maximum operating pressure. Do not tamper with the safety valve. Always drain condensation from the tank regularly to prevent corrosion and tank failure.
• Personligt beskyttelsesudstyr (PPE): Wear safety glasses or goggles to protect against flying debris. Use hearing protection as compressors can be noisy.
• Ventilation: Brug kompressoren i et godt ventileret område for at forhindre overophedning og ophobning af dampe.
• Bevægelige dele: Hold hænder, hår og tøj væk fra bevægelige dele under drift.
• Varme overflader: The compressor pump and motor can become hot during operation. Avoid touching these surfaces to prevent burns.
• Børn og tilskuere: Hold børn og uautoriserede personer væk fra driftsområdet.
• Opretholdelse: Afbryd strømmen, før der udføres vedligeholdelse eller reparationer.

3. Komponenter overview

Familiarize yourself with the main components of your Geko G80300 air compressor.

• Luftbeholder: Stores compressed air.
• Motor/Pumpe-enhed: Compresses air into the tank.
• Trykmålere: Display tank pressure and regulated outlet pressure.
• Trykregulator: Adjusts the air pressure delivered to tools.
• Sikkerhedsventil: Releases excess pressure if the tank pressure exceeds a safe limit.
• Afløbsventil: Located at the bottom of the tank, used to release condensed moisture.
• Oil Sight Glass: Indicates the oil level in the pump.
• Hjul og håndtag: For bærbarhed.

4. Opsætning

Follow these steps to prepare your compressor for first use.

1. Udpakning: Carefully remove the compressor from its packaging. Inspect for any shipping damage. Report any damage to the retailer immediately.
2. Attach Wheels and Handle: If not pre-assembled, attach the wheels and handle using the provided hardware.
3. Tjek oliestand: The compressor is oil-lubricated. Before first use, and periodically thereafter, check the oil level using the oil sight glass. The oil level should be between the minimum and maximum marks. Add appropriate compressor oil if necessary.

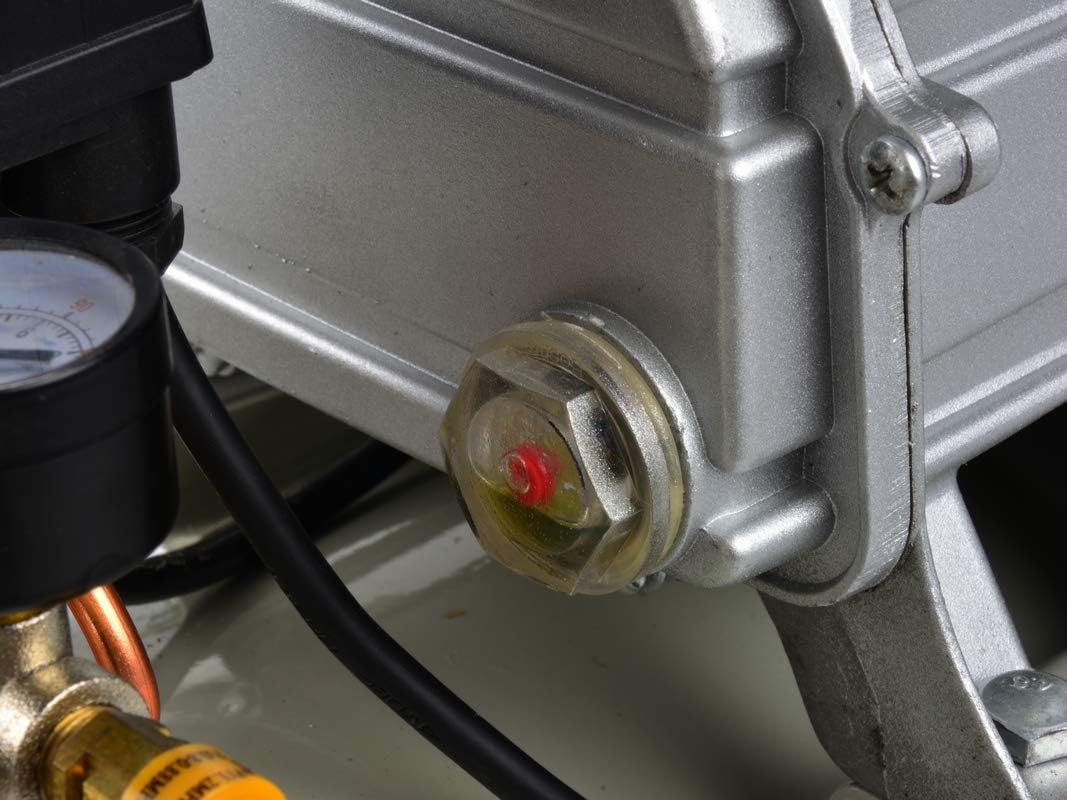

Figur 2: Close-up of the oil sight glass. This image highlights the transparent oil sight glass, which allows users to visually check the oil level in the compressor pump.

4. Installation af luftfilter: Ensure the air filter is securely installed.
5. Elektrisk tilslutning: Tilslut netledningen til en jordet stikkontakt, der matcher lydstyrken.tage og amperage requirements of the compressor.

5. Betjeningsvejledning

Steps for using your air compressor.

1. Initial Break-in (First Use):
   • Ensure the drain valve at the bottom of the tank is closed.
   • Turn on the compressor. Allow it to run for approximately 15-20 minutes with the tank drain valve open (no pressure build-up) to ensure proper lubrication and break-in of moving parts.
   • Turn off the compressor, close the drain valve, and allow it to cool.
2. Normal drift:
   • Luk tankens aftapningsventil.
   • Tilslut dit luftværktøj til hurtigkoblingen.
   • Turn on the compressor. It will build pressure until it reaches its maximum cut-out pressure and then shut off automatically.
   • Adjust the outlet pressure using the pressure regulator knob to the recommended pressure for your air tool. The regulated pressure will be shown on the outlet pressure gauge.
   • When finished, turn off the compressor. Disconnect the air tool.
   • Depressurize the Tank: Open the drain valve or use an air tool to release all air pressure from the tank before storing.

6. Vedligeholdelse

Regular maintenance ensures optimal performance and extends the life of your compressor. Always disconnect power before maintenance.

• Tøm tanken dagligt: Open the drain valve at the bottom of the tank after each use to release condensed moisture. Failure to do so can lead to tank corrosion and failure.
• Check Oil Level Weekly: Verify the oil level using the sight glass. Add or change oil as needed. Refer to the manufacturer's recommendations for oil type.
• Clean Air Filter Monthly: Remove and clean the air filter element. Replace if damaged or excessively dirty. A clogged filter reduces efficiency.
• Undersøg for utætheder: Periodically check all connections and hoses for air leaks. Tighten connections as necessary.
• Generel rengøring: Keep the compressor clean and free of dust and debris, especially around the motor and pump cooling fins.

7. Fejlfinding

Se dette afsnit for almindelige problemer og deres løsninger.

8. Specifikationer

Key technical specifications for the Geko G80300 air compressor.

9. Garanti og support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Information regarding spare parts availability is not provided in the product specifications.
