MOOKA I3 robotstøvsuger brugermanual

1. Vigtige sikkerhedsinstruktioner

Please read all safety instructions carefully before using this product and keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Dette apparat er kun til indendørs brug. Må ikke anvendes udendørs eller på våde overflader.
• Do not allow children to operate the vacuum cleaner. Supervise children and pets when the vacuum is operating.
• Do not use the vacuum cleaner to pick up large objects, sharp objects, or liquids.
• Ensure the charging base is placed against a wall in an open area, free from obstacles.
• Do not handle the charging base or vacuum cleaner with wet hands.
• Turn off the power switch and unplug the charging base before cleaning or performing maintenance.
• Use only the original power adapter and charging base provided by MOOKA.
• Hvis netledningen er beskadiget, skal den udskiftes af producenten eller en kvalificeret serviceagent for at undgå farer.

2. Produktet er slutview

Familiarize yourself with the components of your MOOKA I3 Robot Vacuum Cleaner.

2.1 robotstøvsuger

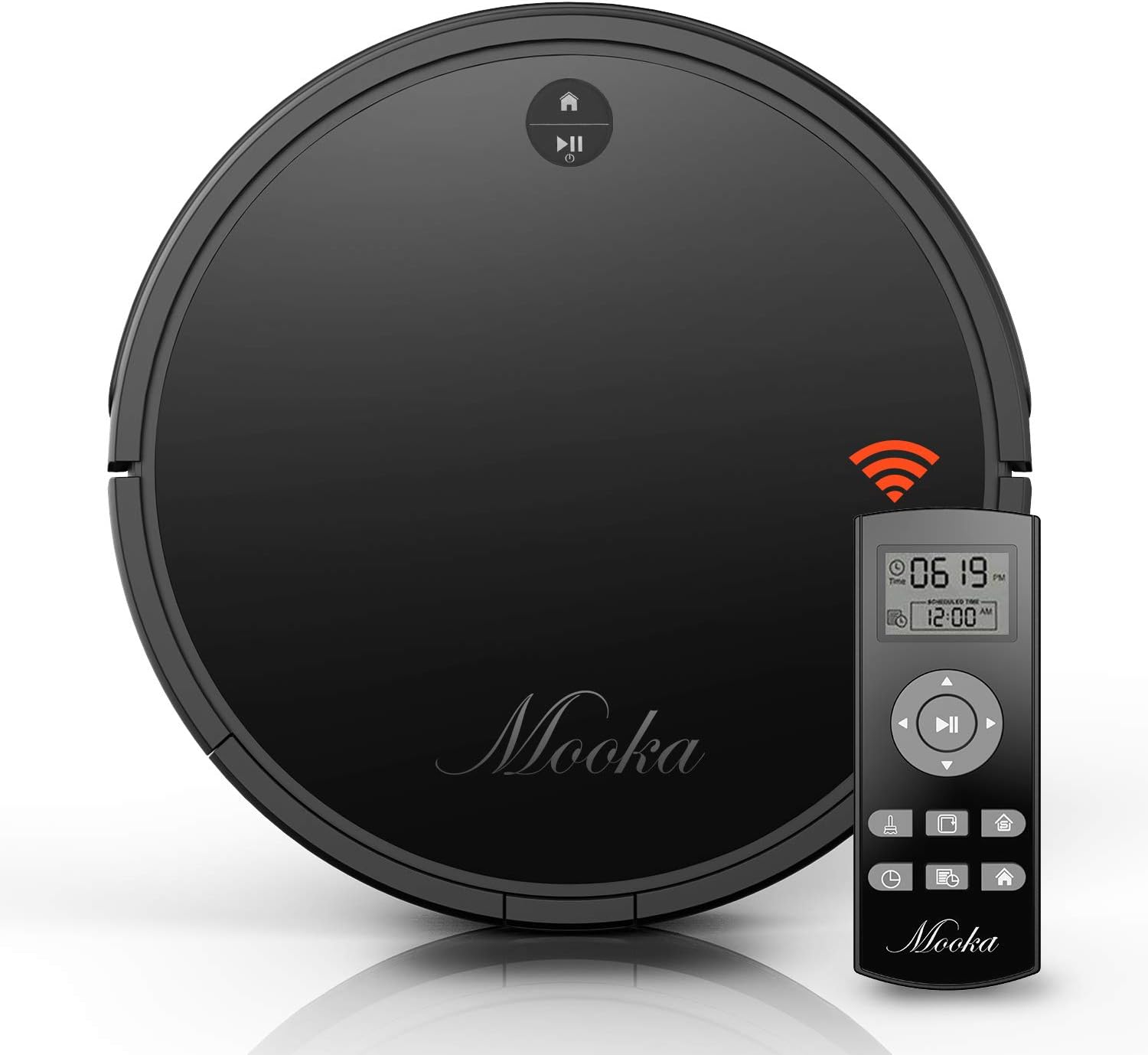

The main unit of the MOOKA I3 Robot Vacuum Cleaner features a sleek, low-profile design allowing it to clean under furniture. It is equipped with various sensors for navigation and cleaning.

The robot utilizes laser distance sensors, numerous other sensors, and an advanced processor for intelligent navigation and cleaning. It employs a precise SLAM algorithm for efficient path planning.

The underside reveals a 3-point cleaning system, including dual side brushes, a floating main brush, and powerful suction for effective debris collection from various surfaces.

2.2 Fjernbetjening

The remote control allows you to operate the vacuum cleaner from a distance, select cleaning modes, set schedules, and direct the robot manually. It requires 2 AAA batteries (not included).

2.3 Opladningsbase

The charging base serves as the robot's home station, where it automatically returns to recharge when its battery is low or after completing a cleaning cycle. It connects to an AC power adapter.

2.4 Inkluderet tilbehør

Pakken indeholder følgende varer:

• MOOKA I3 Robot Vacuum Cleaner
• Fjernbetjening (2 AAA-batterier medfølger ikke)
• Opladningsbase
• AC strømadapter
• HEPA-style Filter (1 pre-installed, 1 replacement)
• Sidebørster (2 par)
• Rengøringsbørste
• Skruetrækker
• Instruktionsmanual

3. Kom godt i gang

3.1 Unboxing

Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere transport eller opbevaring.

3.2 Placering af ladestation

Place the charging base against a wall in an open, uncluttered area. Ensure there is at least 1 meter (3 feet) of clear space to the front and 0.5 meters (1.5 feet) to each side of the charging base. Plug the AC power adapter into the charging base and then into a wall outlet. The indicator light on the charging base will illuminate.

3.3 Indledende opladning

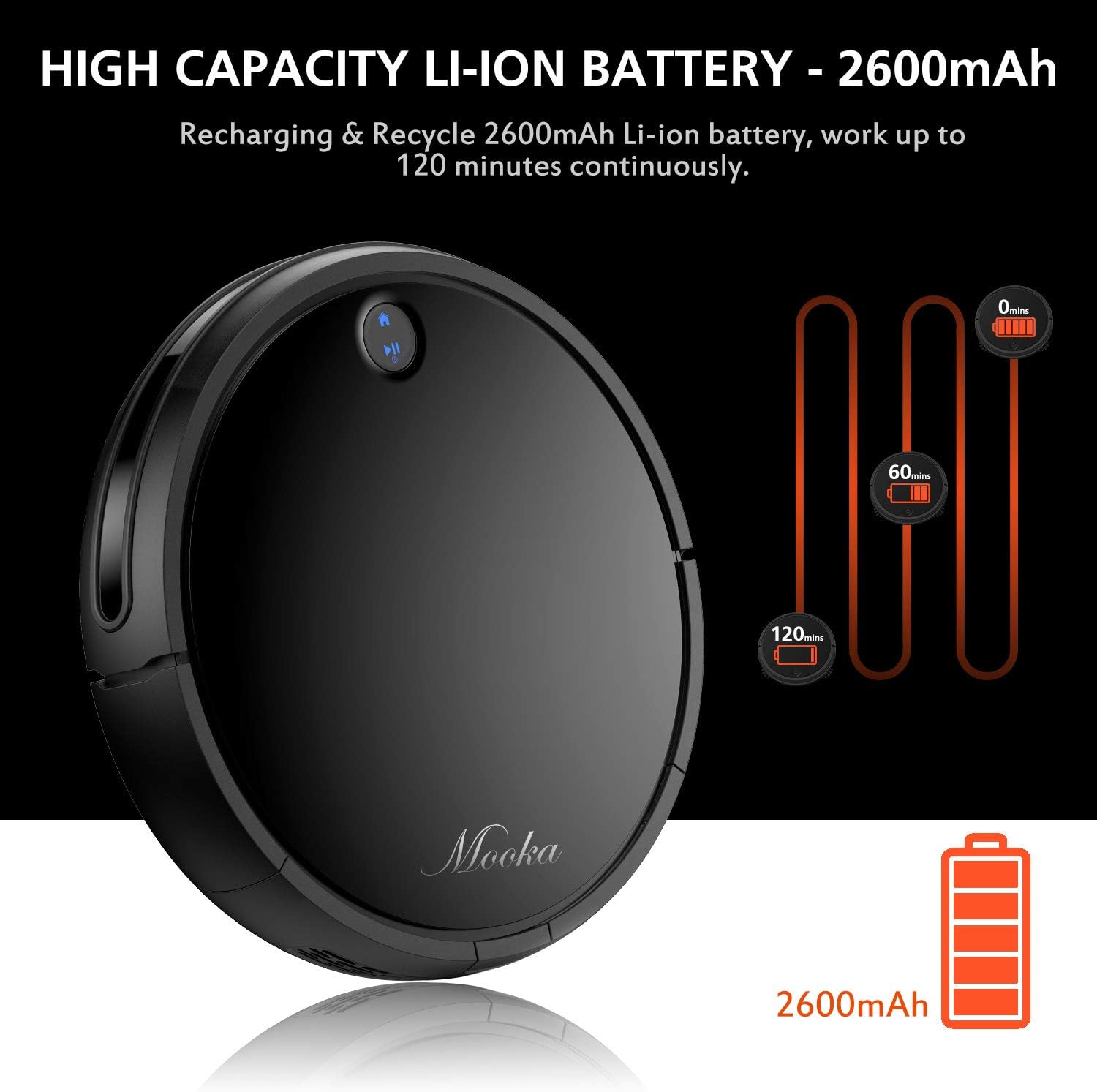

Before first use, fully charge the robot vacuum cleaner. Place the robot onto the charging base, ensuring the charging contacts align. The robot will emit a sound and the indicator light will show charging status. A full charge typically takes 3 to 5 hours. The robot features a 2600mAh Lithium-ion battery, providing approximately 100-120 minutes of cleaning time on a full charge.

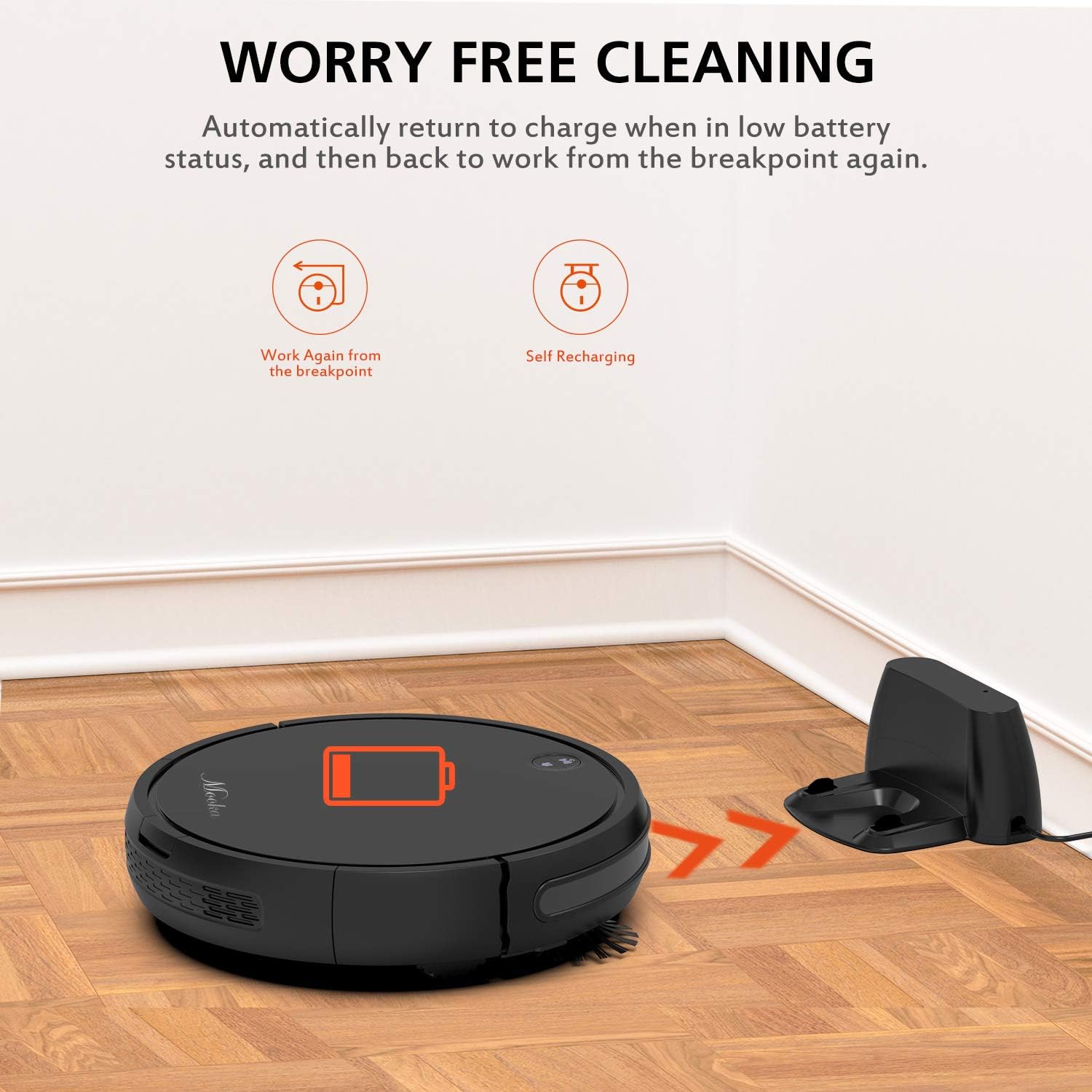

The robot is designed to automatically return to its charging base when the battery is low, ensuring it is always ready for the next cleaning cycle.

3.4 Montering af sidebørster

Attach the side brushes by pressing them onto the posts on the underside of the robot until they click into place. Ensure they are securely fastened.

4. Betjening af robotstøvsugeren

4.1 Tænd/sluk

• For at tænde: Tryk på tænd/sluk-knappen på robotten eller fjernbetjeningen. Indikatorlampen lyser.
• For at slukke: Press and hold the power button on the robot until the indicator light turns off, or use the power button on the remote control.

4.2 Rengøringstilstande

The MOOKA I3 offers multiple cleaning modes to suit different needs:

• Auto rengøring: The robot automatically navigates and cleans the entire floor area. This is the default mode.
• Rengøring af pletter: The robot cleans a concentrated area in a spiral pattern, ideal for small spills or heavily soiled spots.
• Kantrensning: Robotten rengør langs vægge og møbelkanter for at sikre grundig dækning.
• Rengøring af enkeltværelse: The robot cleans a specific room and then returns to its charging base.

4.3 Planlægning af rengøring

You can program the robot to clean automatically at a specific time each day (Daily Cycle Cleaning). Refer to the remote control section for detailed instructions on setting the time and schedule.

4.4 Brug af fjernbetjeningen

The remote control provides convenient access to all functions. Insert 2 AAA batteries into the remote control before use. The remote control distance is approximately 7 meters.

• Power knap: Tænder eller slukker robotten.
• Retningsknapper: Styr robotten manuelt.
• Hjemknappen: Sender robotten tilbage til ladestationen.
• Knapper til valg af tilstand: Select Auto, Spot, Edge, or Single Room cleaning modes.
• Planlæg-knap: Set or cancel daily cleaning schedules.
• Tidsindstilling: Adjust the current time on the robot.

5. Vedligeholdelse og pleje

Regular maintenance ensures optimal performance and extends the lifespan of your MOOKA I3 Robot Vacuum Cleaner.

5.1 Tømning af støvbeholderen

The dust bin should be emptied after each cleaning cycle or when the 'full' indicator (if available) illuminates. Press the dust bin release button, remove the bin, and empty its contents into a trash receptacle.

5.2 Rengøring af HEPA-filteret

Remove the HEPA filter from the dust bin. Tap it gently over a trash can to remove loose debris. The filter can be rinsed with water; ensure it is completely dry before reinserting. Replace the HEPA filter every 3-6 months, or as needed, to maintain suction performance.

5.3 Cleaning the Side Brushes and Main Brush

Periodically check the side brushes and main brush for tangled hair or debris. Use the provided cleaning tool or a pair of scissors to cut and remove any tangled hair. The side brushes can be pulled off for easier cleaning and replaced if worn.

5.4 Rengøring af sensorer

Wipe the anti-drop sensors, anti-collision sensors, and charging contacts on the robot and charging base with a clean, dry cloth. Keep these sensors clear of dust and debris for proper operation.

6. Fejlfinding

If you encounter issues with your MOOKA I3, refer to the table below for common problems and solutions.

7. Tekniske specifikationer

Below are the technical specifications for the MOOKA I3 Robot Vacuum Cleaner:

8. Garanti og kundesupport

MOOKA provides a 1-ÅRS garanti for the I3 Robot Vacuum Cleaner from the date of purchase. Additionally, a 30-dages pengene-tilbage-garanti is offered. This warranty covers manufacturing defects and issues arising from normal use.

For warranty claims, technical assistance, or any questions regarding your product, please contact MOOKA customer support. Please have your purchase receipt and product model number ready when contacting support.

Contact information for MOOKA customer support can typically be found on the product packaging, the official MOOKA webhjemmeside eller gennem din forhandler.
