Renogy Lifepo4 lithium-jernfosfatbatteri 12 Volt 170AH brugermanual

Produkt overview

The Renogy 12V 170Ah lithium-iron phosphate battery is designed for deep-cycle applications, suitable for use in cabins, solar/wind energy systems, UPS battery backups, telecommunication systems, medical equipment, and more. This LiFePO4 battery offers significant advantages over traditional gel or lead-acid batteries, being safer, lighter, and more powerful. It features a long service life and is a sealed, maintenance-free solution for off-grid systems.

Image: Renogy 12V 170Ah Lithium Iron Phosphate Battery, showcasing dens kompakte sorte casing and terminal posts.

Renogy LiFePO4 battery offering 4x longer life cycles than lead-acid

Image: A graphic illustrating that the Renogy LiFePO4 battery offers 4 times longer life cycles (2000 cycles) compared to lead-acid batteries (around 500 cycles).

Renogy LiFePO4 battery is 50% lighter than lead-acid

Image: A visual comparison showing the Renogy 170Ah LiFePO4 battery (48.5 lbs) is 50% lighter than a 200Ah Lead-Acid battery (115 lbs).

Nøglefunktioner

Forlænget levetid: Offers approximately 2000 cycles at 80% Depth of Discharge (DOD), providing a lifespan up to 4 times longer than conventional lead-acid batteries.
Høj effekt: Delivers a maximum of 2176 Wh power output, which is 2 to 3 times more powerful compared to most lead-acid batteries of the same size.
Superior Discharging Performance: Provides a maximum continuous discharge current of 125Ah, capable of powering most home appliances. Stable capacity and performance are maintained even in extreme temperatures ranging from -4°F (-20°C) to 140°F (60°C).
Enhanced Safety and Reliability: Equipped with a built-in Battery Management System (BMS) that provides protection against over-charge, over-discharge, over-current, high temperatures, and short-circuiting. The fully-sealed housing prevents acid leakage and corrosion, ensuring minimal maintenance.
Letvægtsdesign: Approximately 50% lighter than comparable lead-acid batteries, making it easier to transport and install while delivering more power.

Opsætning og installation

Proper setup is crucial for the optimal performance and longevity of your Renogy LiFePO4 battery. While these batteries are often marketed as "drop-in replacements," it is important to understand that direct connection to certain charging sources, such as an alternator without proper regulation, can damage the battery.

Vigtige overvejelser:

Opladningskompatibilitet: Ensure your existing RV charge controller or solar charge controller is compatible with lithium batteries. Many older controllers are not designed for LiFePO4 charging profiles.
Generator opladning: Do not connect the battery directly to an alternator without a suitable DC-to-DC charger. For this approach, consider using a dedicated DC-to-DC controller, such as Renogy's 20 AMP DC to DC controller, to regulate the charging current and voltage.
Cable Lugs: The battery terminals typically require 1/2-inch lugs. Ensure your cables are appropriately sized and terminated for secure connections.

Comparison of Renogy LiFePO4 battery vs. Conventional Lead-Acid battery

Image: A visual comparison highlighting the advantages of the Renogy 12V 170Ah LiFePO4 battery over a conventional 12V 200Ah Lead-Acid battery, including longer life cycles, higher usable capacity, and lighter weight.

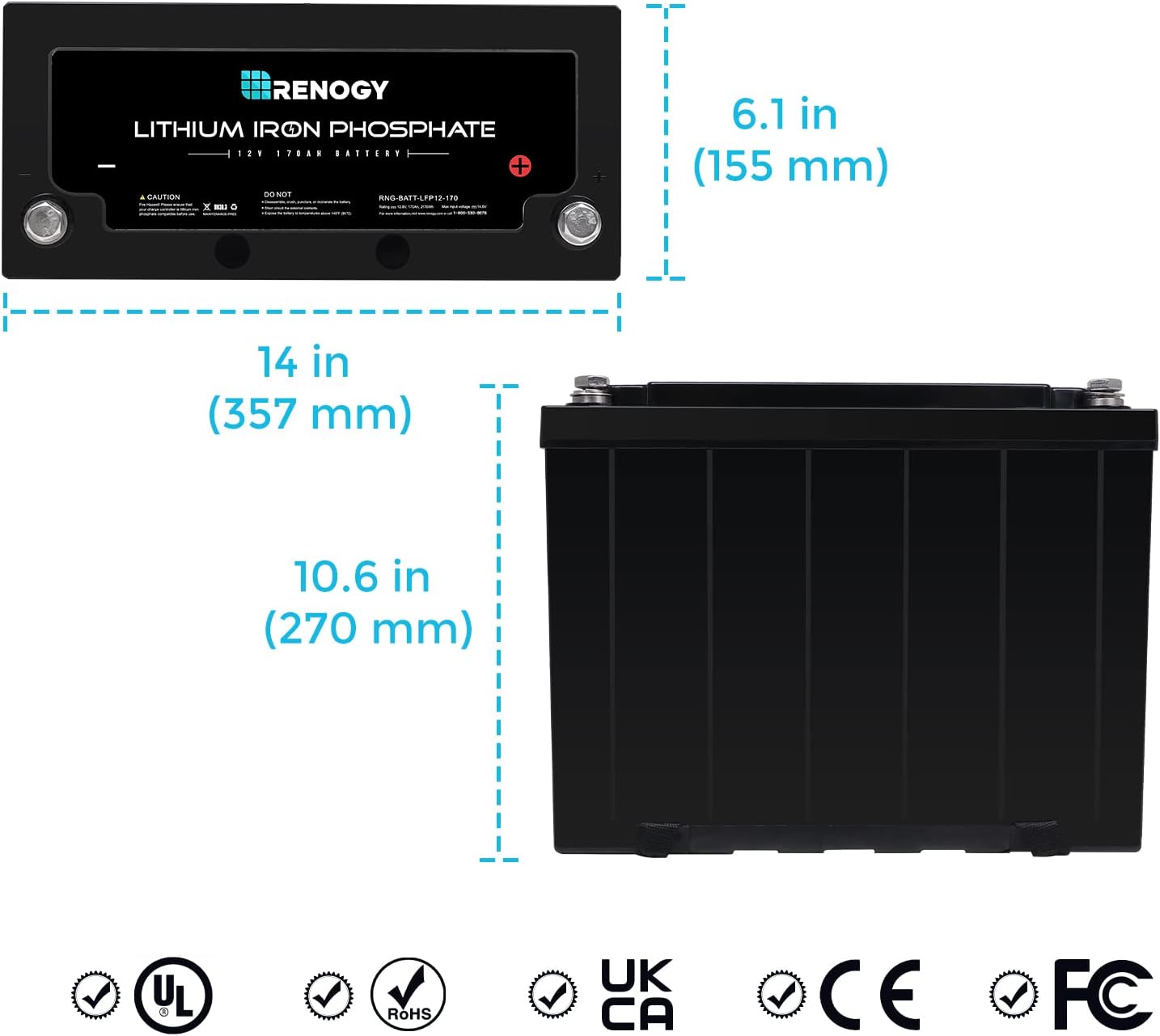

Dimensions of Renogy 12V 170Ah Lithium Iron Phosphate Battery

Image: Diagram showing the dimensions of the Renogy 12V 170Ah Lithium Iron Phosphate Battery: 14 inches (357 mm) length, 6.1 inches (155 mm) width, and 10.6 inches (270 mm) height.

Betjeningsvejledning

The Renogy LiFePO4 battery is designed for efficient and safe operation across various applications. Its built-in Battery Management System (BMS) actively monitors and protects the battery during use.

Generel drift:

Temperaturområde: The battery operates effectively in a wide temperature range from -4°F (-20°C) to 140°F (60°C).
Afladningsstrøm: The battery supports a maximum continuous discharge current of 125 Amperes, suitable for a variety of appliances.
Opladning Voltage: The BMS is designed to accept charging and will suspend charging when full, resuming once a certain amount of discharge occurs. A common recommended charging voltage is 14.4V (±0.2V).

Renogy LiFePO4 battery providing power in an off-grid setup

Image: The Renogy LiFePO4 battery integrated into a small off-grid setup, demonstrating its capability to provide significant power (2176 Wh), high discharge capability (125A), and wide discharge temperature range (-4°F to 140°F).

Opretholdelse

The Renogy 12V 170Ah LiFePO4 battery is a sealed, maintenance-free unit, meaning it does not require regular watering or acid checks like traditional lead-acid batteries. However, following best practices can further extend its already impressive lifespan.

Best Practices for Longevity:

Udladningsdybde (DOD): For maximum lifespan, avoid consistently discharging the battery below 25% (keeping DOD no more than 75%).
Opladning Ampalder: Keep charge amps below 50 Amperes, or ideally around 40 Amperes, to promote longer battery life.
Opbevaring: If storing the battery for extended periods, ensure it is charged to an appropriate level (e.g., 50-80% state of charge) and stored in a cool, dry place.

Fejlfinding

The built-in Battery Management System (BMS) in your Renogy LiFePO4 battery is designed to protect it from various conditions. If the battery appears to be malfunctioning or not performing as expected, the BMS may have activated a protection mode.

Common Issues and BMS Protections:

Ingen udgang/opladning: The BMS may have activated protection due to:
- Over-charge: Hvis opladningen voltage or current exceeds safe limits.
- Overudladning: Hvis batteriet voltage falder for lavt.
- Overstrøm: If the load draws too much current.
- Kortslutning: If a direct short occurs across the terminals.
In these cases, the BMS will temporarily shut down the battery to prevent damage. Remove the problematic load or charging source, and the battery should reset.
Low Temperature Charging Shutoff: The BMS includes a critical low-temperature charging shutoff. LiFePO4 cells can be damaged if charged below 32°F (0°C). If the battery is in a cold environment and not accepting a charge, this protection may be active. Allow the battery to warm up before attempting to charge.
Beskyttelse ved høj temperatur: If the battery's internal temperature exceeds safe operating limits, the BMS will activate protection to prevent thermal damage. Allow the battery to cool down.

Renogy LiFePO4 battery with safety features diagram

Image: Diagram illustrating the six safety features provided by the improved BMS: Over Charge Protection, Over Discharge Protection, Over Current Protection, Automatic Battery Cell Balancing, High Temperature Protection, and Short Circuit Protection.

Specifikationer

Attribut	Værdi
Produktdimensioner	13.7 x 6.1 x 10.6 tommer
Varens vægt	48.5 pund
Varemodelnummer	Lithium-Iron Phosphate Battery 12 Volt
Battericellesammensætning	Lithium Ion
Batterikapacitet	170 Amp Timer
Anbefalede anvendelser	UPS, RV, Solar, Marine, Off-Grid Applications
Fabrikant	Renogy

Garantioplysninger

The Renogy 12V 170Ah Lithium-Iron Phosphate Battery comes with a 5-year prorated warranty. This means that the coverage amount decreases over the warranty period. For example, if a replacement is needed in the fourth year, you may be responsible for a percentage of the new battery's cost.

For detailed terms and conditions of the warranty, please refer to the official Renogy warranty policy or contact customer support.

Support og ressourcer

For further assistance, technical support, or additional product information, please utilize the following resources:

Officiel brugermanual (PDF): Download PDF Manual
Renogy Brand Store: Explore other Renogy products and solutions on their official store page: Visit Renogy Store
Kundeservice: Contact Renogy customer support for specific inquiries or technical assistance.
