ECG OR 2090 olieradiator brugsanvisning

1. Vigtige sikkerhedsoplysninger

Læs venligst denne brugsanvisning omhyggeligt, inden du bruger apparatet, og gem den til senere brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• Sørg altid for, at apparatet er placeret på en fast, plan overflade.
• Do not cover the radiator. Overheating can occur if the radiator is covered.
• Keep flammable materials (curtains, furniture, etc.) at a safe distance from the radiator.
• Do not operate the radiator with a damaged cord or plug.
• This appliance is for indoor use only. Do not use in bathrooms or other damp miljøer.
• Unplug the radiator from the power outlet when not in use or before cleaning.
• Do not insert any objects into the radiator's openings.
• Hold opsyn med børn og kæledyr, når apparatet er i brug.
• The radiator is equipped with thermal safety to prevent overheating.

2. Produktet er slutview

The ECG OR 2090 is a 9-fin oil radiator designed for efficient and quiet heating of living spaces. Its robust construction ensures high heat retention, providing warmth even after the power is turned off.

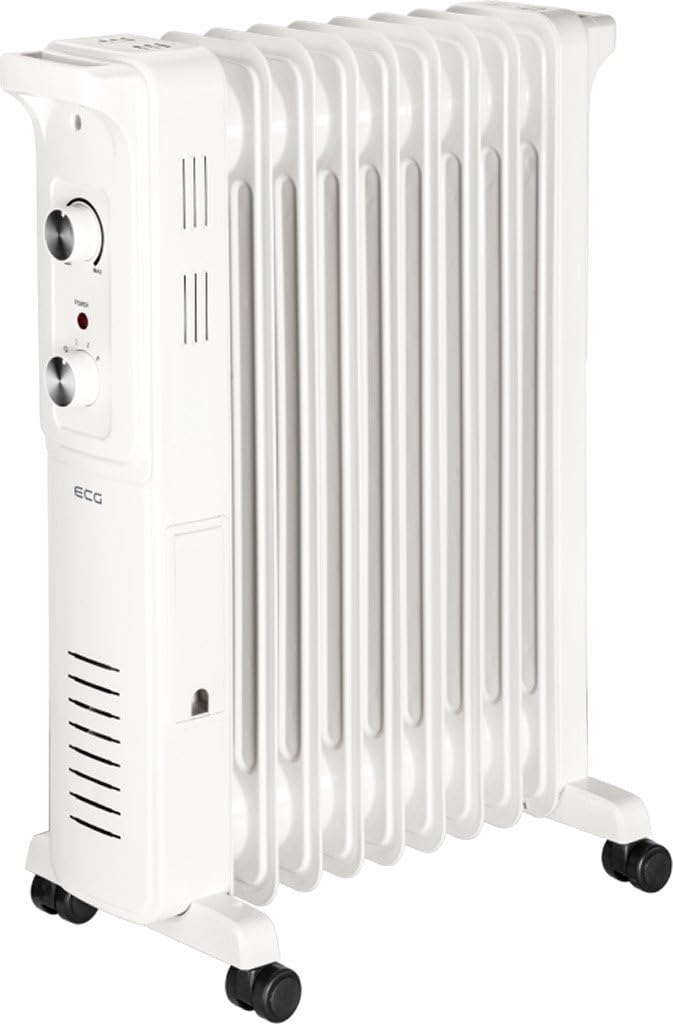

Figur 2.1: Forside view of the ECG OR 2090 Oil Radiator, showcasing its 9-fin design and overall structure.

Nøglefunktioner:

• 9-fin oil radiator for effective heating.
• Extremely quiet operation, suitable for bedrooms and living rooms.
• Stepless thermostat adjustment for precise temperature control.
• Three power levels: 750 W, 1500 W, and 2000 W.
• High heat retention for prolonged warmth.
• Integrated handle and wheels for effortless movement.
• Thermal safety feature for protection against overheating.
• Maintenance-free operation; no oil change required.
• Convenient cable storage.

3. Opsætning

The ECG OR 2090 oil radiator comes pre-assembled with wheels for easy setup. Follow these steps to prepare your radiator for use:

1. Udpakning: Carefully remove the radiator from its packaging. Retain packaging for future storage or transport.
2. Placering: Place the radiator on a stable, level surface. Ensure there is adequate clearance (at least 50 cm) from walls, furniture, curtains, and other flammable materials to allow for proper air circulation and prevent fire hazards.
3. Kabelstyring: Unwind the power cord completely from the cable storage area. Ensure the cord is not tangled or obstructed.


Figure 3.1: The integrated cable storage hook helps keep the power cord tidy when not in use or for transport.

4. Strømtilslutning: Plug the power cord into a suitable 220-240 V ~ 50/60 Hz grounded electrical outlet. Do not use extension cords or power strips unless absolutely necessary and ensure they are rated for the radiator's power consumption (2000 W).

Figur 3.2: Side view illustrating the radiator's fins and the sturdy wheels for easy movement.

4. Betjeningsvejledning

The ECG OR 2090 oil radiator is equipped with a thermostat and power level selector for optimal heating control.

Figure 4.1: Close-up of the control panel, showing the thermostat dial (Min-Max) and power selector (0-I-II-III).

1. Tænd: Ensure the radiator is plugged into a suitable power outlet.
2. Indstil effektniveau: Use the lower dial (Power selector) to choose your desired heating output:
   • 0: Slukket
   • I: Low Power (750 W)
   • II: Medium Power (1500 W)
   • III: High Power (2000 W)
   The power indicator light (red) will illuminate when the radiator is receiving power and operating.
3. Indstil termostat: Use the upper dial (Thermostat) to adjust the desired room temperature.
   • Turn the dial towards "Min" for lower temperatures.
   • Turn the dial towards "Max" for higher temperatures.
   Radiatoren tænder og slukker automatisk for at opretholde den indstillede temperatur.
4. Moving the Radiator: To move the radiator, ensure it is unplugged and has cooled down. Use the integrated handle and wheels for easy transport.


Figure 4.2: The ergonomic handle allows for easy lifting and repositioning of the radiator.

5. Sluk: To turn off the radiator, set the Power selector dial to "0" and unplug the appliance from the wall outlet.

5. Vedligeholdelse

The ECG OR 2090 oil radiator is designed for maintenance-free operation. No oil changes are required.

• Rensning: Before cleaning, always ensure the radiator is unplugged and completely cool. Wipe the exterior surfaces with a soft, damp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen.
• Opbevaring: If storing the radiator for an extended period, ensure it is clean and dry. Wrap the power cord around the cable storage hook. Store in a cool, dry place, preferably in its original packaging, to protect it from dust and damage.

6. Fejlfinding

If you experience issues with your ECG OR 2090 oil radiator, please consult the following table before contacting customer support.

7. Specifikationer

8. Garanti og support

ECG products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official ECG webwebsted. Gem din købsbevis i tilfælde af garantikrav.

For technical support, spare parts, or service inquiries, please contact your local distributor or the ECG customer service department. Contact information can typically be found on the product packaging or the brand's official webwebsted.

Note: Information on spare parts availability for this specific model is currently unavailable.
