Banshee BT-902

Banshee BT-902 Replacement Battery User Manual

For Vocollect A700, A710, A720, A730 Devices

Indledning

This manual provides essential instructions for the safe and effective use of your Banshee BT-902 Replacement Battery. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of the battery.

Produkt overview

The Banshee BT-902 is a high-capacity Lithium-ion replacement battery designed for specific Vocollect devices. It offers extended operational time compared to standard OEM batteries.

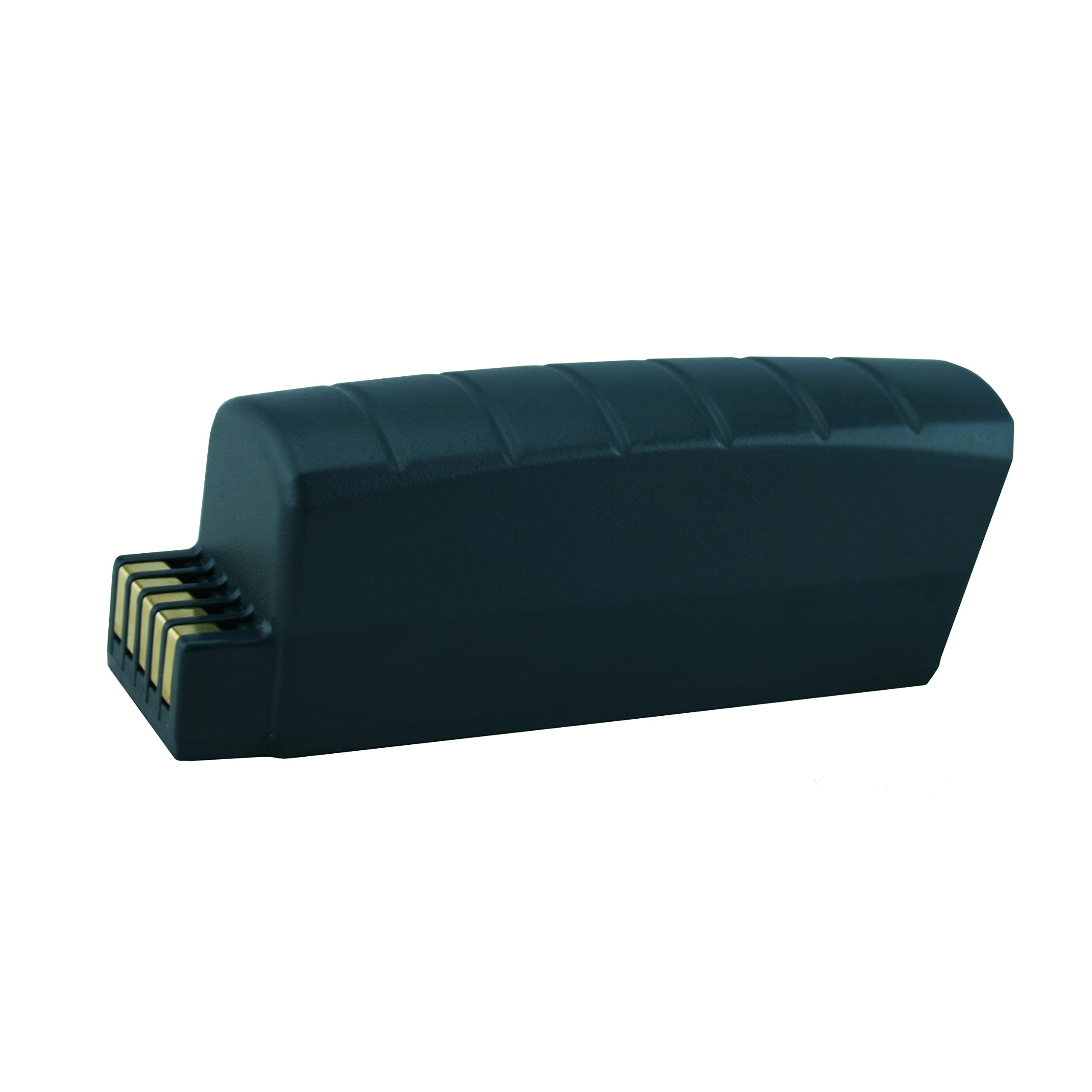

Banshee BT-902 Replacement Battery

Image: Banshee BT-902 Replacement Battery. This image displays the overall design of the black replacement battery, highlighting its compact form factor and the gold contact pins on one end.

Kompatibilitet

This Banshee BT-902 battery is a direct replacement for Vocollect OEM Number: BT-902 and is compatible with the following Vocollect devices:

  • Vocollect A700
  • Vocollect A710
  • Vocollect A720
  • Vocollect A730

Specifikationer

FeatureDetalje
BatteritypeLithium-ion (Li-ion)
Voltage3.7V
Kapacitet2500mAh / 9.25Wh
OEM-udskiftningBT-902
Materiale til husGE Cycology C2950 PC/ABS
Flammability StandardUL94-V0
Banshee BT-902 Battery Label

Image: Banshee BT-902 Battery Label. This image shows the product label with specifications like "IDB-VOCA700-ZY", "Li-ion Rechargeable Battery", "3.7V / 2500mAh / 9.25Wh", and instructions to "Fully charge before first use" and "Recycle or dispose of properly".

Opsætning og installation

  1. Forberedelse: Ensure the Vocollect device is powered off before attempting battery replacement.
  2. Fjern det gamle batteri: Locate the battery compartment on your Vocollect A700 series device. Follow the device manufacturer's instructions to safely open the compartment and remove the existing battery.
  3. Isæt nyt batteri: Align the Banshee BT-902 replacement battery with the battery compartment, ensuring the gold contact pins match the device's terminals. Gently push the battery into place until it is securely seated.
  4. Sikkert rum: Close the battery compartment cover according to your device's instructions.
  5. Indledende opkrævning: It is recommended to fully charge the new battery before its first use. Connect the Vocollect device to its charger and allow it to charge until the charging indicator shows a full charge.
Banshee BT-902 Battery Contacts

Image: Banshee BT-902 Battery Contacts. This close-up image displays the gold-plated electrical contacts on the battery, essential for proper connection with the Vocollect device.

Betjeningsvejledning

Opladning af batteriet

  • Use only the charger specified by Vocollect for your A700 series device.
  • Connect the device with the Banshee battery installed to the charger.
  • Monitor the device's charging indicator. Charging times may vary depending on the charger and the battery's current charge level.
  • Avoid overcharging by disconnecting the device once fully charged, although the battery includes protection against over-charge.

Batteriforbrug

  • The Banshee BT-902 battery is designed for daily use in compatible Vocollect devices.
  • For optimal battery life, avoid completely draining the battery frequently. Partial discharges and recharges are generally better for Lithium-ion batteries.
  • If the device will not be used for an extended period, store the battery with approximately 50% charge in a cool, dry place.

Vedligeholdelse og opbevaring

  • Rensning: Keep battery contacts clean and free of debris. Use a dry, soft cloth to wipe contacts if necessary.
  • Temperatur: Store and operate the battery within recommended temperature ranges (typically 0°C to 45°C or 32°F to 113°F). Extreme temperatures can degrade battery performance and lifespan.
  • Langtidsopbevaring: If storing the battery for more than one month, charge it to about 50% capacity and store it in a cool, dry environment. Recharge every 3-6 months to prevent deep discharge.
  • Bortskaffelse: Do not dispose of batteries in household waste. Follow local regulations for proper recycling of Lithium-ion batteries.

Fejlfinding

Batteri oplader ikke

  • Ensure the battery is correctly inserted into the device.
  • Verify the charger is properly connected to both the device and a power source.
  • Check for any visible damage to the battery, device, or charger.
  • Clean the battery contacts and device terminals with a dry, soft cloth.

Forkortet batterilevetid

  • Sørg for, at batteriet er fuldt opladet før brug.
  • Operating the device in extreme temperatures can reduce battery life.
  • If the battery is old, its capacity may naturally degrade over time, requiring replacement.

Sikkerhedsoplysninger

  • Batteriet må ikke skilles ad, knuses, punkteres eller kortsluttes.
  • Udsæt ikke batteriet for høje temperaturer (over 60 °C / 140 °F) eller direkte sollys.
  • Hold batteriet væk fra vand og andre væsker.
  • Hvis batteriet viser tegn på skade, hævelse eller lækage, skal brugen straks ophøre og bortskaffes korrekt.
  • Opbevares utilgængeligt for børn.

Garanti og support

The Banshee BT-902 Replacement Battery is backed by an 18 måneders garanti against manufacturing defects. For warranty claims or technical support, please contact Banshee customer service through the retailer where the product was purchased or visit the official Banshee webwebsted.

Derudover indeholder dette produkt en 30-dages pengene-tilbage-garanti.

Officiel produktvideo

Video: Replacement Battery for Vocollect BT-902. This video provides a visual overview of the Banshee BT-902 replacement battery, highlighting its features and compatibility with Vocollect A700 series devices. Please note that while the video mentions 5000mAh, the product specifications confirm a 2500mAh capacity.
