Brugermanual til trådløs stregkodelæser Quanta QTLBC95BT

1. Introduktion og overview

The Quanta QTLBC95BT is a versatile wireless barcode reader designed for efficient data capture. It offers dual connectivity options: USB wireless and Bluetooth, providing flexibility for various scanning environments. This manual provides essential information for setting up, operating, and maintaining your device.

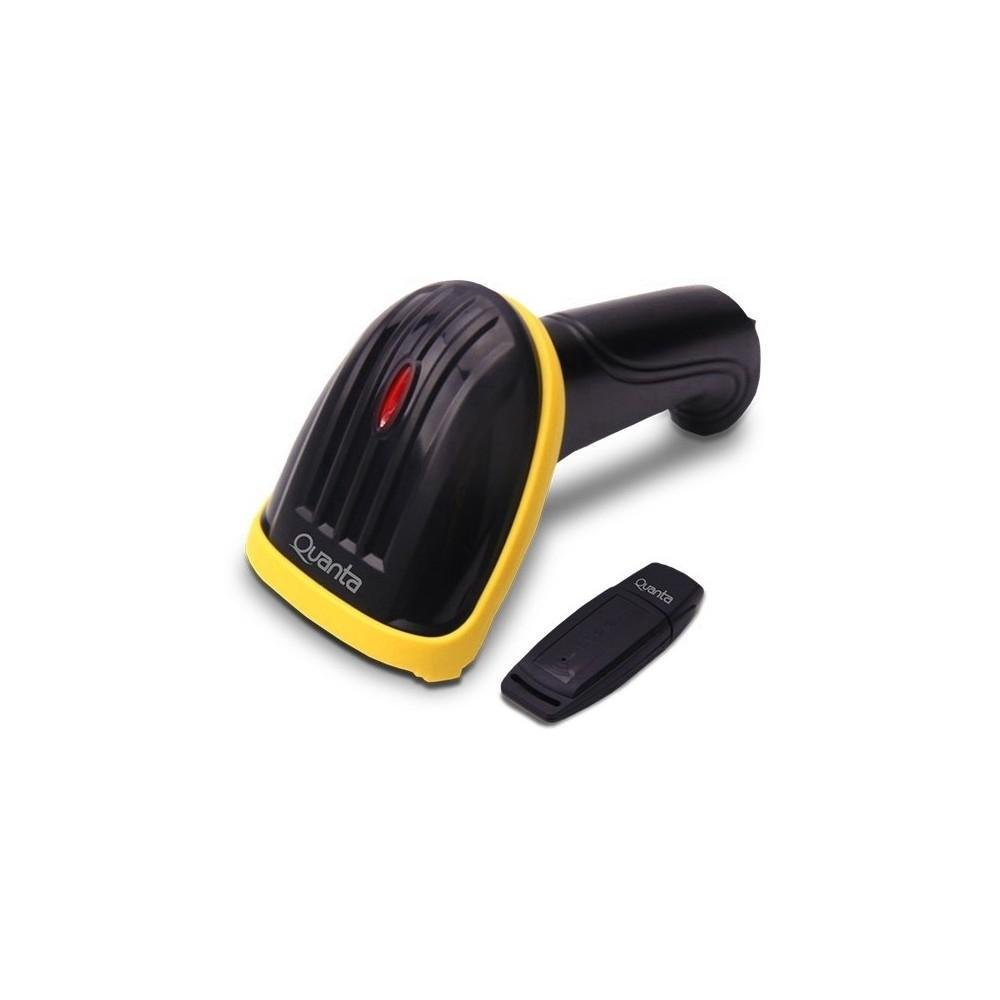

Image showing the black and yellow Quanta QTLBC95BT barcode reader and its compact black USB wireless adapter.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i pakken:

• 1 x Quanta QTLBC95BT Barcode Reader
• 1 x USB Wireless Adapter
• 1 x Charger (Bivolt 110V/220V)
• 1 x USB Cable (for charging and wired connection)

3. Opsætning

3.1. Opladning af enheden

1. Connect the charger to the barcode reader's charging port.
2. Plug the charger into a standard electrical outlet (110V/220V, 50Hz/60Hz).
3. The device features a 3.7V Li-Ion 750 mAh rechargeable battery. Allow sufficient time for a full charge before first use.

3.2. Connecting via USB Wireless Adapter

1. Insert the USB wireless adapter into an available USB port on your computer or host device.
2. Turn on the barcode reader. It should automatically pair with the adapter.
3. A successful connection is typically indicated by an audible beep or a change in the indicator light status on the scanner.
4. The wireless transmission range for the USB adapter is approximately 30 meters.

3.3. Tilslutning via Bluetooth

1. Sørg for, at din værtsenhed (computer, tablet, smartphone) har Bluetooth aktiveret.
2. Turn on the barcode reader.
3. Initiate the pairing mode on the barcode reader (refer to specific instructions if a dedicated pairing button or sequence exists, otherwise it may automatically enter pairing mode).
4. On your host device, search for new Bluetooth devices and select "Quanta QTLBC95BT" (or similar name) from the list.
5. Bekræft parringen.
6. Bluetooth-transmissionsrækkevidden er cirka 10 meter.

4. Betjeningsvejledning

4.1. Scanning af stregkoder

1. Ensure the device is powered on and successfully connected to your host device.
2. Ret scannerens vindue mod den stregkode, du vil læse.
3. Press the trigger button. A red scanning line will emit from the device.
4. Position the scanner approximately 25 cm (10 inches) from the barcode for optimal reading.
5. The scanner is bidirectional and has a decoding speed of 200 scans per second.
6. Upon successful scan, the device will typically emit an audible beep, and the data will be transmitted to your connected device.

4.2. Auto-Sensor Mode

The scanner features an auto-sensor mode with an interval time of 0.3 seconds. In this mode, the scanner can automatically detect and read barcodes without requiring a trigger press, which is useful for hands-free operation.

5. Vedligeholdelse

5.1. Rensning

• Use a soft, dry cloth to clean the exterior of the barcode reader.
• Brug en fnugfri klud, der er let tørret til scanningsvinduet.amprengøres med et mildt, ikke-slibende rengøringsmiddel. Undgå skrappe kemikalier.
• Sørg for, at enheden er slukket, inden rengøring.

5.2. Batteripleje

• For at forlænge batteriets levetid bør du undgå at aflade batteriet helt ofte.
• Opbevar enheden et køligt og tørt sted, når den ikke er i brug i længere perioder.

6. Fejlfinding

6.1. Device Not Scanning

• Sørg for, at enheden er tændt og fuldt opladet.
• Verify that the scanner is properly connected to your host device (USB adapter or Bluetooth).
• Check if the barcode is damaged or unreadable.
• Juster afstanden og vinklen mellem scanneren og stregkoden.

6.2. No Data Transmission

• Confirm the connection status (USB or Bluetooth). Re-pair if necessary.
• Ensure the host device's input method is active and ready to receive data.
• Check the operating range (30m for USB wireless, 10m for Bluetooth).

6.3. Batteriet oplader ikke

• Verify that the charger is correctly connected to both the scanner and the power outlet.
• Sørg for, at stikkontakten fungerer.
• Try using a different USB cable or charger if available.

7. Specifikationer

8. Garanti og support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Quanta customer service directly. Contact details can typically be found on the manufacturer's official webwebsted.
