Beghelli 56304 Anti Black-out Lamp Holderens brugermanual

1. Introduktion

The Beghelli Sorpresa PowerLED is an innovative lamp holder designed to add an emergency lighting function to your existing E27 LED or CFL light bulbs. This module ensures that you are never left in the dark during power outages, automatically activating its integrated LEDs when the main power supply is interrupted.

It features a built-in battery that recharges automatically whenever the light is switched on, providing up to 2 hours of emergency illumination. This product is ideal for household use, transforming a standard light fixture into a reliable emergency light source without the need for separate installations.

Figure 1: Beghelli 56304 Anti Black-out Lamp Holder. This image shows the white thermoplastic lamp holder with the Beghelli logo and a blue stripe, featuring an E27 screw base.

2. Sikkerhedsinstruktioner

• Læs alle instruktioner omhyggeligt før installation og brug.
• Ensure the power supply is disconnected before installing or removing the lamp holder.
• This module is only compatible with LED and compact fluorescent (CFL) lamps with an E27 fitting.
• Do not use with incandescent or halogen bulbs. Using incompatible bulbs may damage the device or pose a safety risk.
• The maximum compatible bulb power is 30W. Do not exceed this limit.
• Udsæt ikke enheden for vand eller overdreven fugt.
• Forsøg ikke at åbne eller reparere enheden selv. Kontakt kvalificeret personale for service.
• Opbevares utilgængeligt for børn.

3. Pakkens indhold

Pakken skal indeholde følgende vare:

• 1 x Beghelli Sorpresa PowerLED Anti Black-out Lamp Holder (Model: BEG56304)

4. Opsætning og installation

Follow these steps to install your Beghelli Sorpresa PowerLED lamp holder:

1. Sluk for strømmen: Before beginning installation, ensure the power to the light fixture is completely turned off at the circuit breaker to prevent electric shock.
2. Prepare the bulb: Select an E27 LED or CFL light bulb with a power consumption of no more than 30W.
3. Fastgør lamp holder: Screw the Beghelli Sorpresa PowerLED module onto the base of your chosen E27 LED or CFL light bulb. Ensure it is securely fastened.
4. Install into fixture: Screw the combined lamp holder and bulb assembly into your E27 light fixture.
5. Genopret strøm: Tænd for strømmen igen ved afbryderen.
6. Prøve: Switch on the light. The module will begin charging its internal battery. To test the emergency function, turn off the main power to the fixture; the module's LEDs should automatically illuminate.

Figure 2: Dimensions of the Beghelli 56304 Lamp Holder. The image shows the lamp holder with measurements: 72 mm in height and 42 mm in diameter.

Figure 3: Beghelli 56304 Lamp Holder in use. This image illustrates the module attached to an E27 LED bulb, highlighting its 2-hour autonomy during a power outage. The top right inset shows the module's integrated LEDs illuminated.

5. Betjeningsvejledning

The Beghelli Sorpresa PowerLED operates automatically once installed:

• Normal drift: When the main power is on, the connected E27 LED/CFL bulb functions as usual. During this time, the PowerLED module's internal lithium-ion battery automatically recharges.
• Emergency Mode (Power Outage): In the event of a power failure, the PowerLED module's innovative switching circuit detects the absence of main power. Its integrated LEDs will automatically switch on, providing emergency illumination.
• Emergency Runtime: The module provides emergency light for approximately 2 hours on a full charge.
• Strømgendannelse: When the main power supply is restored, the PowerLED module's emergency LEDs will automatically switch off, and the connected E27 bulb will resume normal operation. The module will then begin recharging again.

Figure 4: Beghelli Sorpresa PowerLED Anti Black-out Module Features. This image highlights key functionalities: it turns on when the power goes out, never leaving you in the dark; it has an E27 fitting; it adds emergency function to LED and CFL bulbs up to 30W; and it recharges every time the light is switched on, with LEDs automatically activating during a black-out. It also reiterates incompatibility with incandescent and halogen bulbs.

6. Vedligeholdelse

The Beghelli Sorpresa PowerLED requires minimal maintenance:

• Rensning: Ensure the power is off before cleaning. Wipe the surface of the lamp holder with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Batterilevetid: The integrated lithium-ion battery is designed for long-term use. To maintain optimal battery performance, ensure the module is regularly used and allowed to charge.
• Opbevaring: If storing the device for an extended period, ensure it is fully charged before storage and recharge it periodically (e.g., every 3-6 months) to prevent deep discharge.

7. Fejlfinding

8. Specifikationer

Information om energieffektivitet

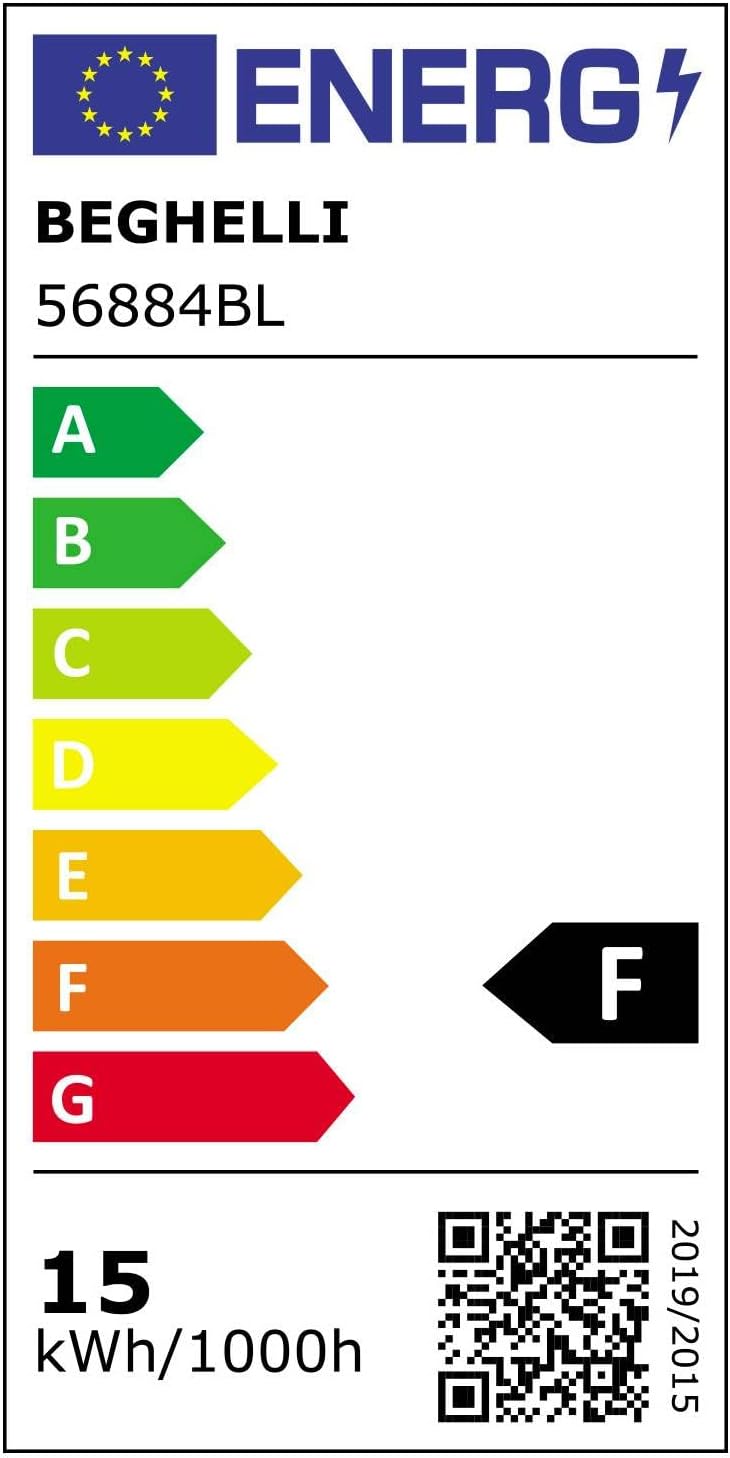

Figure 5: Beghelli Energy Label. This label indicates the energy efficiency class and consumption for a related Beghelli product (model 56884BL), showing an 'F' rating and 15 kWh/1000h. For specific product energy details, refer to the product packaging or manufacturer's webwebsted.

Additional Technical Data (from related product 56884K)

While the primary product is a lamp holder, the manufacturer provides detailed specifications for a related SuperLED Goccia bulb (model 56884K) which can be indicative of compatible bulb characteristics. Please note these are for the bulb, not the holder itself, but provide context for compatible lighting.

Figure 6: Technical Data Sheet for Beghelli SuperLED Goccia 15W E27 3K 5pz (Model 56884K). This sheet provides detailed technical specifications for a compatible E27 LED bulb, including power consumption (15W), AC supply voltage (230 Vac), ambient temperature range (-15°C to 45°C), CCT light tone (3000K), beam angle (270°), consumption (15 kWh/1000h), CRI (>80), efficiency (100 lm/W), energy efficiency class (F), luminous flux (1500 lm), and lifespan (15000 hours).

9. Garanti og support

For warranty information and customer support, please refer to the official Beghelli webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.

Official Beghelli Webwebsted: www.beghelli.it
