DBPOWER bærbar DVD-afspiller brugermanual

Indledning

Tak for købetasing the DBPOWER Portable DVD Player. This manual provides detailed instructions on how to set up, operate, and maintain your device. Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your viewing experience. This portable DVD player is designed for versatile entertainment on the go, featuring a swivel screen, long-lasting battery, and broad media compatibility.

Image: The DBPOWER Portable DVD Player in blue, shown with its remote control. The screen displays a child happily watching a movie, highlighting the player's entertainment purpose.

Produktegenskaber

• Forlænget batterilevetid: Equipped with a 2,500 mAh rechargeable lithium battery, providing up to 4 hours of continuous playback. Can also be powered by car charger or AC adapter.
• Wide Multimedia Support: Compatible with CD, DVD, CD-R/RW, DVD -R/+R, DVD+RW/-RW, VCD, SVCD (not Blu-ray DVD). Region-free playback. Supports USB and SD cards up to 32GB for MP3/WMA/WAV, JPEG, MPEG2/AVI/DIVX files.
• Swivel Display Screen: Features a 10.5-inch (1024x600 resolution) screen with 270-degree rotation and 180-degree flip, allowing for optimal viewing angles. Easily attachable to car headrests.
• Flere afspilningsmuligheder: AV output for connecting to a TV for larger screen viewing. Two DVD players can be connected by an AV to AV cable for synchronized viewing.
• Break-Point Memory Function: Automatically resumes playback from where you left off.

Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• 1 x DBPOWER Portable DVD Player
• 1 x brugermanual
• 1 x Car Charger (1.8 Meter)
• 1 x AV-kabel
• 1 x strømadapter
• 1 x fjernbetjening
• 1 x Car Headrest Mount (as per product description, though not explicitly listed in the image)

Image: A visual representation of the package contents, including the DVD player, user manual, car charger, AV cable, power adapter, and remote control.

Produkt overview og komponenter

Familiarize yourself with the various ports and controls on your portable DVD player.

Billede: En detaljeret side view of the portable DVD player, clearly labeling its USB port, SD card slot, earphone jack, AV input/output, power switch, and DC input.

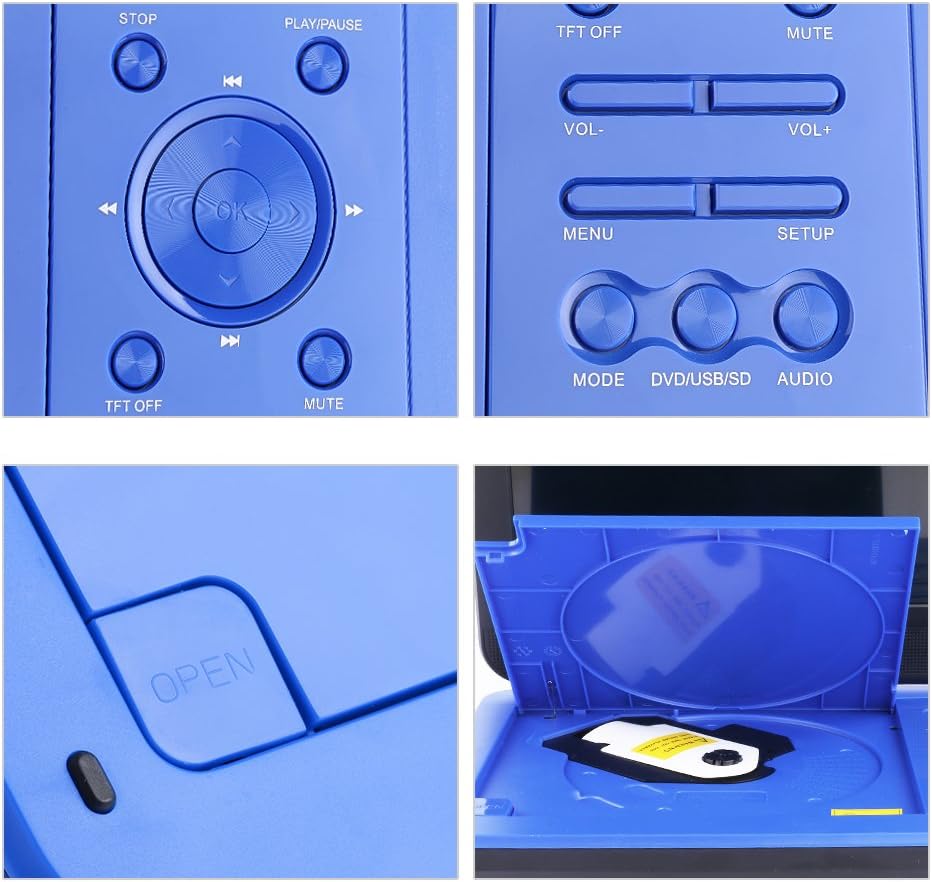

Control Panel and Disc Tray

Image: A composite image showing close-ups of the player's control buttons (Stop, Play/Pause, navigation, volume, menu, setup, mode, DVD/USB/SD, audio, TFT Off, Mute) and the open disc tray.

Opsætning og første brug

1. Indledende opladning: Before first use, fully charge the portable DVD player using the provided AC power adapter. Connect the adapter to the DC IN port on the player and plug it into a wall outlet. The charging indicator light will show the charging status.
2. Tænd/sluk: Slide the ON/OFF switch to the 'ON' position to power on the device. To power off, slide the switch to 'OFF'.
3. Inserting a DVD: Gently open the disc cover. Place the DVD disc onto the spindle with the label side facing up. Press down gently on the center of the disc until it clicks into place. Close the disc cover firmly.
4. Justering af skærmen: The 10.5-inch screen can swivel 270 degrees and flip 180 degrees. Adjust the screen to your preferred viewvinkel.
5. Connecting to a TV (AV Output):

   Use the provided AV cable to connect the player's AV OUT port to the AV IN ports (Yellow for Video, White for Left Audio, Red for Right Audio) on your television. Select the correct AV input on your TV to view spillerens output.



   Image: A visual guide demonstrating the connection of the portable DVD player to a television using the included AV cable for synchronized screen viewing.

6. Bilbrug: Use the 1.8-meter car charger to power the device in your vehicle. The player can be easily attached to a car headrest using the included mount (mount not shown in image, but mentioned in product description).

Image: The portable DVD player shown mounted on a car headrest, illustrating its suitability for travel. Note: Bag is not included in the package.

Betjeningsvejledning

Grundlæggende afspilning

• Afspil/pause: Tryk på AFSPIL/PAUSE knappen for at starte eller sætte afspilning på pause.
• Stop: Tryk på STOP for at stoppe afspilning.
• Skip Tracks/Chapters: Brug SPRINGE knapper (Forrige/Næste) to navigate between tracks or chapters.
• Hurtigt frem/tilbage: Brug FF/RW buttons to fast forward or rewind through content.
• Lydstyrkekontrol: Juster lydstyrken ved hjælp af VOL+ og VOL- knapper.
• Stum: Tryk på STUM knappen for at slå lyden fra. Tryk igen for at slå lyden til.
• Break-Point Memory: The player automatically remembers the last playback position. When you power on the device again, it will prompt you to resume from where you left off.

Using USB and SD Cards

• Indsæt et USB-drev i USB-porten eller et SD-kort i SD-kortstikket.
• Tryk på MODE or DVD/USB/SD button to switch to USB or SD card mode.
• Naviger gennem din files using the directional buttons and press OK to select and play.

Connecting Two Players

To watch the same movie on two DBPOWER portable DVD players simultaneously:

1. Set one player to DVD mode to play the disc. Connect an AV cable to its AV OUT port.
2. Set the second player to AV mode. Connect the other end of the AV cable to its AV IN port.
3. The movie playing on the first player will now be displayed on the second player.

Mediekompatibilitet

Your DBPOWER Portable DVD Player supports a wide range of media formats:

• Diskformater: CD, DVD, CD-R/RW, DVD -R/+R, DVD+RW/-RW, VCD, SVCD. (Note: Blu-ray DVDs are not supported).
• Digital Media (USB/SD Card): MP3, WMA, WAV (audio), JPEG (images), MPEG2, AVI, DIVX (video).
• The player is region-free, allowing playback of DVDs from any region.

Image: A graphic illustrating the multiple DVD and CD formats supported by the player, including EVD, DVD, CD-R, DVD-R, DVD-RW, VCD, SVCD, CD, and HDCD.

Opladning og batterioplysninger

The portable DVD player is equipped with a built-in 2,500 mAh rechargeable lithium battery, providing approximately 4-5 hours of playback time on a full charge.

• Opladning: Use the provided AC power adapter for home charging or the car charger for in-vehicle charging.
• Batterivedligeholdelse: To prolong battery life, it is recommended to charge the battery once per month if not in regular use and to unplug the charger once the battery is fully charged.

Image: A visual display of the charging accessories included: a car charger, a power adapter, and an icon representing the rechargeable lithium battery.

Vedligeholdelse og pleje

• Keep the device away from water, moisture, and direct sunlight.
• Clean the screen and exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Undgå at tabe enheden eller udsætte den for kraftige stød.
• When not in use for extended periods, store the player in a cool, dry place.

Fejlfinding

If you encounter issues with your DBPOWER Portable DVD Player, please refer to the following common solutions:

For further assistance, please contact DBPOWER customer support.

Produktspecifikationer

• Model: MK101
• Mærke: DBPOWER
• Skærmstørrelse: 10.5 tommer
• Skærmtype: LCD
• Produktdimensioner: 10.24 x 7.17 x 1.57 tommer
• Varens vægt: 1.98 pund
• Batteri: 1 Lithium Metal battery (included), 2,500 mAh
• Batterilevetid: Up to 5 hours (approx. 4 hours for DVD playback)
• Understøttede medietyper: CD, DVD, CD-R/RW, DVD -R/+R, DVD+RW/-RW, VCD, SVCD, MP3, WMA, WAV, JPEG, MPEG2, AVI, DIVX
• USB/SD Card Support: Max 32 GB
• Område: Regionsfri
• Oprindelsesland: Kina
• Dato først tilgængelig: 27. oktober 2016

Officielle produktvideoer

Watch these official videos from the seller for more information and demonstrations of your DBPOWER Portable DVD Player.

Garanti og support

DBPOWER is committed to providing excellent customer service and support for your product.

• Garanti: The product comes with a 12-month exchange or return policy.
• Kundeservice:
  • Amazon messenger support within 24 hours.
  • Live Product Assistance Chat.
  • Local Phone Support.

For any inquiries or issues, please reach out to DBPOWER customer support through the Amazon platform or via the contact information provided in your product packaging.
