Indledning
This user manual provides essential information for the safe and efficient installation, operation, and maintenance of your Philips MyLiving CAVANAL LED Ceiling Light. Please read this manual thoroughly before installation and keep it for future reference.
Sikkerhedsoplysninger
- Elektrisk sikkerhed: Installation must be performed by a qualified electrician and in accordance with local electrical codes. Always disconnect power at the main fuse or circuit breaker before installation or maintenance.
- Håndtering: Handle the product with care to avoid damage. Do not drop or subject the light to strong impacts.
- Miljø: This product is designed for indoor use only (IP20 rating). Do not expose to water or high humidity.
- Lyskilde: The LED light source is integrated and not replaceable. Do not attempt to disassemble the light fixture.
- Rensning: Rengør kun med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Philips MyLiving CAVANAL LED Ceiling Light fixture
- Monteringsudstyr (skruer, vægdyvler)
- Brugervejledning (dette dokument)
Opsætning og installation
Follow these steps carefully to install your ceiling light. It is recommended to have two people for installation.
- Forbered til installation:
- Afbryd strømmen: Turn off the main power supply to the installation area at the circuit breaker or fuse box. Verify that power is off using a voltage tester.
- Pakker ud: Carefully remove the light fixture and all components from the packaging. Inspect for any damage.
- Montering af armaturet:

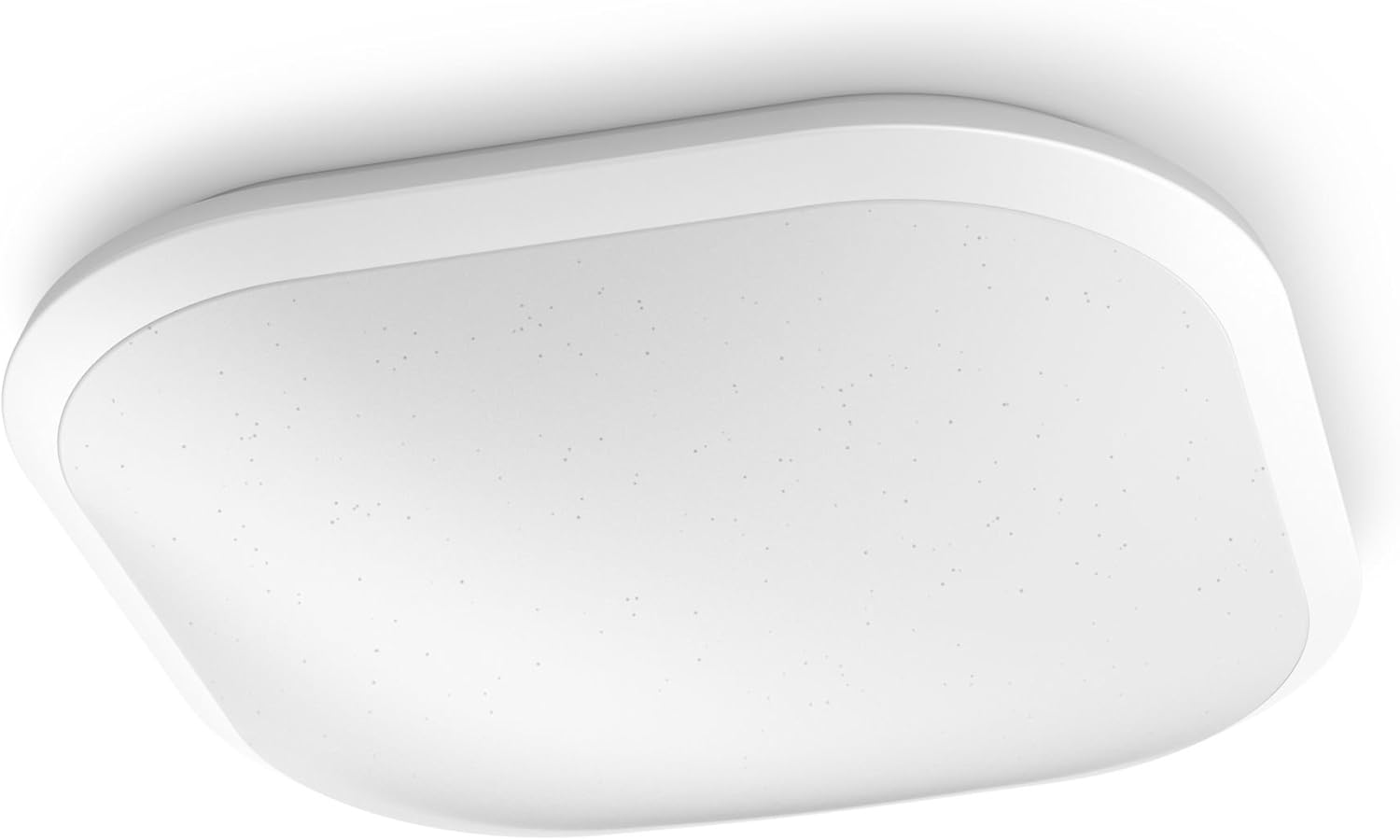

Figure 1: Philips MyLiving CAVANAL LED Ceiling Light. This image shows the square white LED ceiling light, designed for flush mounting, with a smooth, minimalist appearance.- Markér borepunkter: Hold the mounting bracket (if separate) or the fixture base against the ceiling at the desired installation location. Use a pencil to mark the drilling points.
- Bore huller: Drill holes at the marked points using an appropriate drill bit for your ceiling material. Insert wall plugs if necessary.
- Sikker monteringsbeslag: Attach the mounting bracket or fixture base to the ceiling using the provided screws. Ensure it is securely fastened.
- Elektrisk tilslutning:
- Tilslut ledninger: Connect the electrical wires from the ceiling to the corresponding terminals on the light fixture. Typically, this involves connecting live (L), neutral (N), and earth (ground) wires. Ensure all connections are tight and secure. Refer to the wiring diagram if provided with the product.
- Tuck-ledninger: Carefully tuck all wires into the junction box or fixture base, ensuring no wires are pinched.
- Fastgør armaturet:
- Sikker armatur: Align the light fixture with the mounting bracket/base and secure it using the provided screws or locking mechanism. Ensure the fixture is flush with the ceiling and stable.
- Gendan strøm:
- Tænd for strømmen: Restore power at the main circuit breaker or fuse box.
- Testlys: Turn on the light switch to verify that the fixture is working correctly.
Betjeningsvejledning
The Philips MyLiving CAVANAL LED Ceiling Light is designed for simple operation.
- Tænd/sluk: Use a standard wall switch connected to the light fixture to turn the light on or off.
- Dæmpningsfunktion: This light is dimmable. If connected to a compatible dimmer switch (sold separately), you can adjust the light intensity to your preference. Ensure the dimmer switch is suitable for LED lighting.
Opretholdelse
The Philips MyLiving CAVANAL LED Ceiling Light requires minimal maintenance.
- Rensning: To clean the fixture, ensure the power is off. Use a soft, dry, lint-free cloth to wipe the surface. Do not use liquid or aerosol cleaners, as they may damage the finish or electrical components.
- Lyskilde: The integrated LED light source is designed for a long lifespan (20,000 hours) and is not user-replaceable. If the light source fails, the entire fixture must be replaced.
Fejlfinding
If you encounter issues with your Philips MyLiving CAVANAL LED Ceiling Light, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strømforsyning. Løs elektrisk forbindelse. Defekt vægafbryder. | Tjek afbryder/sikring. Ensure all wires are securely connected (disconnect power first!). Test vægkontakten, eller udskift den om nødvendigt. |
| Lyset flimrer eller dæmpes uventet. | Inkompatibel lysdæmper. Løs forbindelse. | Ensure dimmer switch is compatible with LED lighting. Check electrical connections (disconnect power first!). |
| Lyset er ikke så klart som forventet. | Dæmperindstillingen er for lav. Dust accumulation on diffuser. | Juster lysdæmperen til maksimal lysstyrke. Clean the light fixture with a dry cloth. |
Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte kundesupport.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Philips belysning |
| Modelnummer | 3281031P3 |
| Produktmål (L x B x H) | 38.6 x 32.8 x 14 cm (15.2 x 12.9 x 5.5 tommer) |
| Vægt | 436 gram (0.96 lbs) |
| Ingress Protection (IP) Rating | IP20 |
| Stil | Integreret LED |
| Farve | Hvid |
| Materiale | Plast |
| Finish Type | Hvid |
| Antal lyskilder | 1 |
| Maks. Watttage | 19 watt |
| Voltage | 230 volt |
| Speciel funktion | Dæmpbar |
| Lyskildetype | LED |
| Glødelampe Tilsvarende Wattage | 115 watt |
| Color Rendering Index (CRI) | 80 |
| Bedømt levetid | 20,000 timer |
| Farvetemperatur | 4000K (Cool White) |
Garanti og support
For warranty information and technical support, please refer to the official Philips Lighting webhjemmeside eller kontakt deres kundeservice direkte.
- Officiel Webwebsted: www.lighting.philips.com
- Kundesupport: Refer to the contact information provided on the Philips Lighting webwebsted for din region.
Gem din købskvittering som købsbevis i tilfælde af garantikrav.
