Indledning

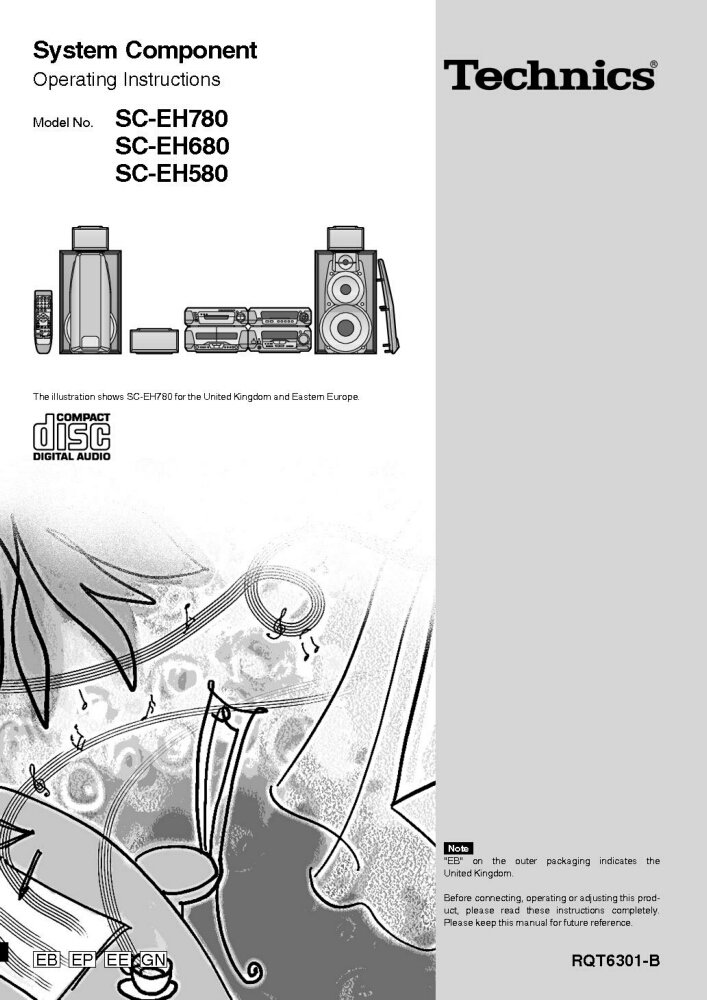

This manual provides comprehensive operating instructions for the Technics System Components, including models SC-EH780, SC-EH680, SC-EH580, SA-EH580, SL-EH680, and RS-DV280. To ensure proper connection, operation, and adjustment of your product, please read these instructions completely before use. Keep this manual for future reference.
Note: The designation "EB" on the outer packaging indicates that the product is intended for the United Kingdom market.
Opsætning og installation
Proper setup is crucial for optimal performance. Follow these steps carefully:
- Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Kontroller, at alle dele, der er anført på pakkelisten, er til stede.
- Placering: Position the main unit, speakers, and other components on a stable, level surface. Ensure adequate ventilation around all units to prevent overheating. Avoid direct sunlight, heat sources, and areas with high humidity.
- Højttalerforbindelse: Tilslut højttalerledningerne til de tilsvarende terminaler på amplifier and speakers. Ensure correct polarity (+ to + and - to -) for proper sound reproduction. Refer to the wiring diagram in the original manual for specific connections.
- Component Interconnection: Connect the various system components (CD player, cassette deck, tuner) to the main amplifier unit using the provided audio cables. Match input and output jacks correctly.
- Strømtilslutning: Once all audio connections are made, plug the power cord into a suitable AC outlet.
For detailed diagrams and specific connection types, please consult the original Technics manual.
Betjeningsvejledning
This section covers the basic operation of your Technics System Component.
Tænd/sluk
- Tryk på MAGT knappen på hovedenheden eller fjernbetjeningen for at tænde eller slukke systemet.
Valg af kilde
- Brug FUNGERE or INPUTVÆLGER buttons on the unit or remote to switch between CD, Tuner, Tape, and other available inputs.
Betjening af cd-afspiller
- Tryk på ÅBN/LUK knappen for at åbne diskskuffen.
- Placer en cd med etiketten opad i bakken.
- Trykke ÅBN/LUK igen for at lukke bakken.
- Trykke SPIL for at starte afspilningen.
- Bruge SPRINGE knapper til at navigere i spor og STOP for at afslutte afspilningen.
Tuner betjening
- Vælg TUNER fungere.
- Brug TUNING buttons to manually tune to a station or FORUDINDSTILLING buttons to select a stored station.
Betjening af kassettedeck
- Insert a cassette tape into the deck.
- Bruge SPIL, SPOLE TILBAGE, HURTIG FREM, og STOP buttons for tape control.
- Trykke OPTAGE to begin recording (ensure appropriate input is selected).
Vedligeholdelse og pleje
To ensure the longevity and optimal performance of your Technics system, follow these maintenance guidelines:
- Rensning: Use a soft, dry cloth to wipe down the exterior surfaces of the components. For stubborn dirt, slightly dampen the cloth with water and a mild detergent, then wipe dry. Avoid abrasive cleaners or solvents.
- Diskbakke: Keep the CD disc tray clean and free of dust. Do not force the tray open or closed.
- Cassette Deck Heads: Periodically clean the cassette deck heads and pinch rollers using a specialized tape head cleaner. This prevents sound degradation.
- Ventilation: Ensure that the ventilation openings on all units are not blocked. Proper airflow prevents overheating.
- Strømledning: Regularly inspect the power cord for any damage. If damaged, discontinue use and contact a qualified service technician.
Fejlfinding
If you encounter issues with your Technics system, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Power cord unplugged; Power outlet faulty; System in standby mode. | Check power cord connection; Try a different outlet; Press the POWER button. |
| Ingen lyd | Volume too low; Incorrect input selected; Speaker wires disconnected/incorrectly connected. | Increase volume; Select correct input (CD, Tuner, etc.); Check speaker connections and polarity. |
| CD Does Not Play | Disc inserted incorrectly; Disc dirty or scratched; Disc tray not closed. | Insert disc label-side up; Clean disc with a soft cloth; Ensure disc tray is fully closed. |
| Dårlig radiomodtagelse | Antenna not connected or poorly positioned; Interference from other electronics. | Connect antenna securely and adjust its position; Move system away from other electronic devices. |
Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte kundesupport.
Specifikationer
While specific detailed specifications vary by model (SC-EH780, SC-EH680, SC-EH580, SA-EH580, SL-EH680, RS-DV280), the Technics System Components typically feature:
- AmpLifier Sektion: Stereo integrated amplifier with various input/output terminals.
- CD-afspiller: Single or multi-disc CD changer, compatible with standard audio CDs.
- Tuner sektion: AM/FM digital tuner with preset memory.
- Kassettedeck: Auto-reverse cassette deck (single or dual).
- Højttalere: Multi-way speaker system designed for balanced audio reproduction.
- Strømkrav: AC 220-240V, 50/60Hz (specifics may vary by region).
- Dimensioner (ca.): Varies per component and model.
- Vægt (ca.): Varies per component and model.
For precise technical specifications for your specific model, please refer to the original product documentation or the label on the rear of the unit.
Garanti og support
This manual is a reprint and does not include specific warranty information. For details regarding warranty coverage, technical support, or service for your Technics System Component, please refer to the original purchase documentation or contact Technics customer service directly.
You may also visit the official Technics website for updated support information, FAQs, and service center locations.
- Online support: www.technics.com/support (Note: This is a placeholder link, please verify the actual support URL for Technics.)
- Servicecentre: Consult the Technics website or your local dealer for authorized service centers.
