AfterShokz Air Wireless Bone Conduction Headphones User Manual

Indledning

The AfterShokz Air Open Ear Wireless Bone Conduction Headphones (Model AS650CR) utilize patented bone conduction technology to deliver audio through your cheekbones, leaving your ears open to your surroundings. This design enhances situational awareness, making them ideal for outdoor activities and daily use where hearing ambient sounds is crucial for safety and connection.

These headphones are designed for comfort, durability, and a reliable wireless experience, featuring a lightweight titanium frame and IP55 sweat resistance.

Pakkens indhold

Før du begynder, skal du sørge for, at alle varer er til stede i din pakke:

• AfterShokz Air Wireless Bone Conduction Headphones
• Magnetisk opladningskabel
• Bæretaske
• Earplugs (for enhanced audio in quiet environments)

Image: Contents of the AfterShokz Air package, showing the headphones, charging cable, carrying case, and a pair of earplugs.

Opsætning

1. Opladning af dine hovedtelefoner

Before first use, fully charge your AfterShokz Air headphones. Connect the magnetic charging cable to the charging port on the headphones and plug the USB end into a compatible USB power adapter or computer USB port. The LED indicator will show charging status.

• Opladning: Konstant rød LED
• Fuldt opladet: Solid blå LED

A full charge provides approximately 6 hours of continuous music and calls.

Image: The AfterShokz Air headphones, highlighting their 6-hour battery life for music and calls, and Bluetooth V4.2 connectivity.

2. Parring med en Bluetooth-enhed

The AfterShokz Air headphones use Bluetooth for wireless connectivity. Follow these steps to pair them with your smartphone, tablet, or computer:

1. Tænd: Press and hold the power button (usually the multifunction button) for 3-5 seconds until the LED indicator flashes red and blue, and you hear "pairing."
2. Aktiver Bluetooth: On your device (smartphone, tablet, etc.), go to the Bluetooth settings and ensure Bluetooth is turned on.
3. Vælg enhed: Look for "AfterShokz Air" or "AS650CR" in the list of available Bluetooth devices and select it.
4. Bekræft parring: Once successfully paired, the LED indicator will flash blue once, and you will hear "connected."

The headphones have a Bluetooth range of approximately 10 meters (33 feet).

Image: The AfterShokz Air headphones, showcasing their open-ear design and flexible frame, ready for pairing.

Betjeningsvejledning

Iført hovedtelefoner

Place the headphones so that the transducers rest on your cheekbones, just in front of your ears. The band should wrap around the back of your head. Adjust for a comfortable and secure fit.

Image: A user wearing the AfterShokz Air headphones, illustrating how the open-ear design allows awareness of surroundings.

Multifunktionsknap kontrol

The multifunction button provides easy control over audio playback and calls:

• Afspil/pause: Tryk én gang.
• Spring fremad: Dobbelttryk.
• Besvar/afslut opkald: Tryk én gang.
• Afvis opkald: Tryk og hold i 2 sekunder.
• Aktivér stemmeassistent (Siri/Google Assistant): Press and hold for 2 seconds (when not on a call).

Lydstyrkekontrol

Dedicated volume buttons allow you to adjust the audio level:

• Lydstyrke op: Tryk på '+'-knappen.
• Skrue ned for lyden: Tryk på '-' knappen.

Situationsbevidsthed

The open-ear design allows you to hear ambient sounds, which is crucial for safety during outdoor activities like running or cycling. This feature ensures you remain aware of traffic and other environmental noises.

Image: A man cycling while wearing AfterShokz Air headphones, emphasizing the ability to hear both music and surrounding traffic for safer outdoor activities.

Opretholdelse

Rensning

Tør hovedtelefonerne af med en blød, damp cloth after each use, especially after workouts, to remove sweat and dirt. Do not use harsh chemicals or abrasive cleaners.

Vandmodstand

The AfterShokz Air headphones are IP55 certified, meaning they are sweatproof and resistant to light splashes of water. They are not designed for submersion in water. Ensure the charging port is dry before charging.

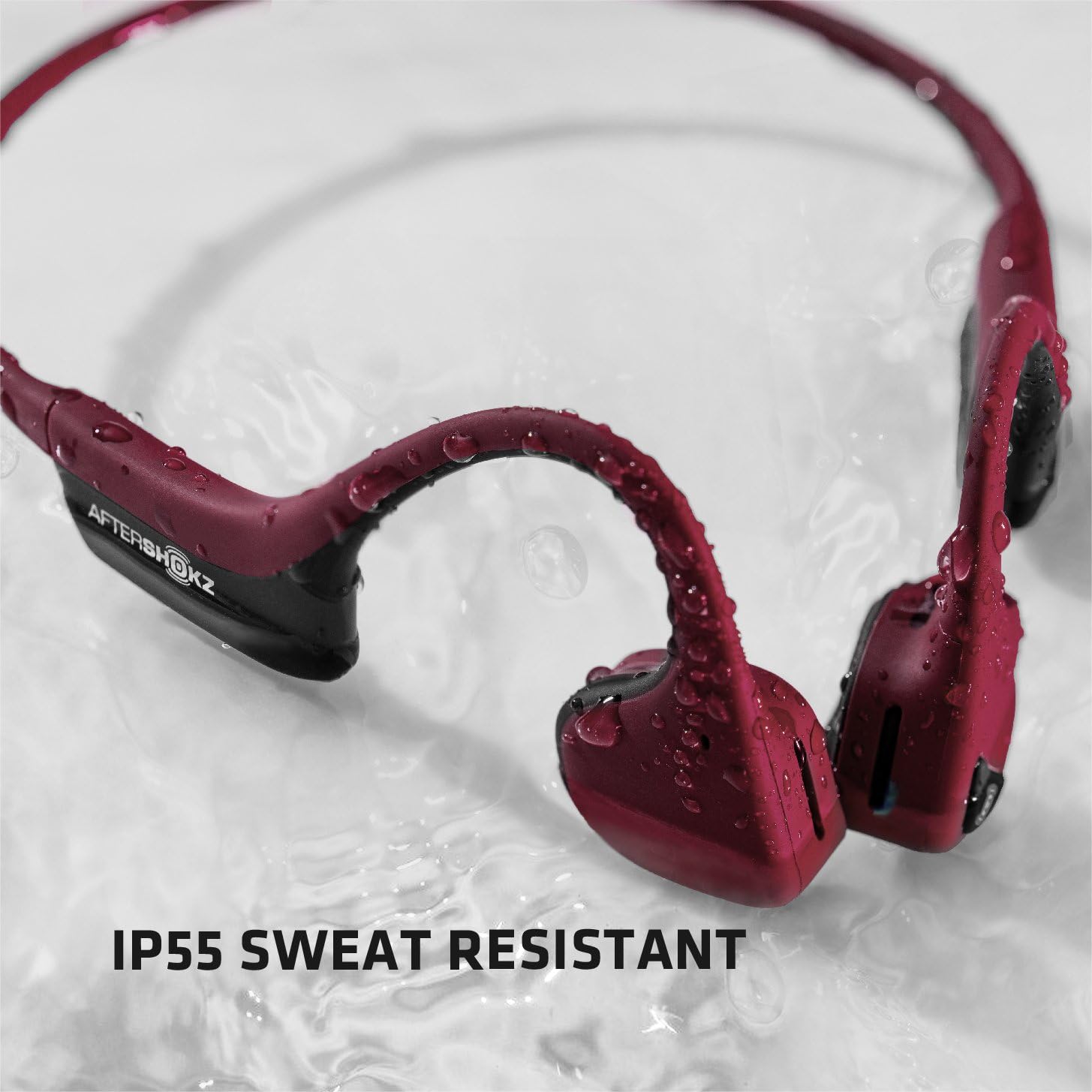

Image: The AfterShokz Air headphones covered in water droplets, demonstrating their IP55 sweat and water resistance.

Opbevaring

Store your headphones in the provided carrying case when not in use to protect them from dust and damage. Avoid storing them in extreme temperatures.

Fejlfinding

Ingen strøm

• Sørg for, at hovedtelefonerne er fuldt opladede.
• Kontroller opladningskablet og strømkilden for korrekt forbindelse.

Kan ikke parre

• Make sure the headphones are in pairing mode (flashing red and blue LED).
• Sørg for, at Bluetooth er aktiveret på din enhed.
• Flyt hovedtelefonerne tættere på din enhed.
• Try turning off and on Bluetooth on your device, or restarting your device.
• Hvis den tidligere har været parret, kan du prøve at "glemme" enheden i dine Bluetooth-indstillinger og parre den igen.

Poor Sound Quality or Low Volume

• Juster lydstyrken på både hovedtelefonerne og din tilsluttede enhed.
• Sørg for, at transducerne er placeret korrekt på dine kindben.
• Flyt tættere på din tilsluttede enhed for at undgå Bluetooth-interferens.
• In noisy environments, consider using the included earplugs to enhance audio perception.

Specifikationer

Garanti og support

AfterShokz (now Shokz) products typically come with a manufacturer's warranty. Please refer to the official AfterShokz/Shokz webwebstedet eller din købsdokumentation for specifikke garantivilkår og -betingelser.

For technical support, troubleshooting assistance, or warranty claims, please visit the official AfterShokz/Shokz support page or contact their customer service directly. Keep your proof of purchase handy.

Officiel Webwebsted: shokz.com
