Bestron Cordless Handheld Vacuum Cleaner User Manual

Indledning

Thank you for choosing the Bestron Cordless Handheld Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Figure 1: Bestron Cordless Handheld Vacuum Cleaner (Model AVC850A) fully assembled with the extension rod and floor nozzle.

Sikkerhedsinstruktioner

• Always ensure the vacuum cleaner is switched off and unplugged before cleaning or performing maintenance.
• Brug ikke apparatet til at støvsuge vand eller andre væsker, varm aske eller skarpe genstande.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Brug ikke støvsugeren, hvis den er blevet tabt, beskadiget, efterladt udendørs eller tabt i vand.
• Dette apparat er kun beregnet til indendørs husholdningsbrug.
• Brug kun tilbehør anbefalet af producenten.

Produktkomponenter

The Bestron Cordless Handheld Vacuum Cleaner comes with several components for versatile cleaning:

• Hovedenhed (håndstøvsuger)
• Telescopic Extension Rod
• Floor Nozzle with 180° Rotatable Turbo Brush
• Wall Mount with Accessory Storage
• Strømadapter
• Sprækkeværktøj
• Børsteudstyr
• Other specialized accessories (total of 5 accessories included)

Opsætning

Forsamling

1. Opladning af batteriet: Before first use, fully charge the vacuum cleaner. Connect the power adapter to the charging port on the main unit and plug it into a wall outlet. The charging indicator light will illuminate.
2. Attaching the Extension Rod: Align the extension rod with the main unit's suction inlet and push firmly until it clicks into place.
3. Attaching the Floor Nozzle: Connect the floor nozzle to the end of the extension rod, ensuring it clicks securely.
4. Using as Handheld: For handheld use, attach desired accessories (crevice tool, brush attachment) directly to the main unit's suction inlet.

Vægmontering

The included wall mount provides convenient storage and accessory organization.

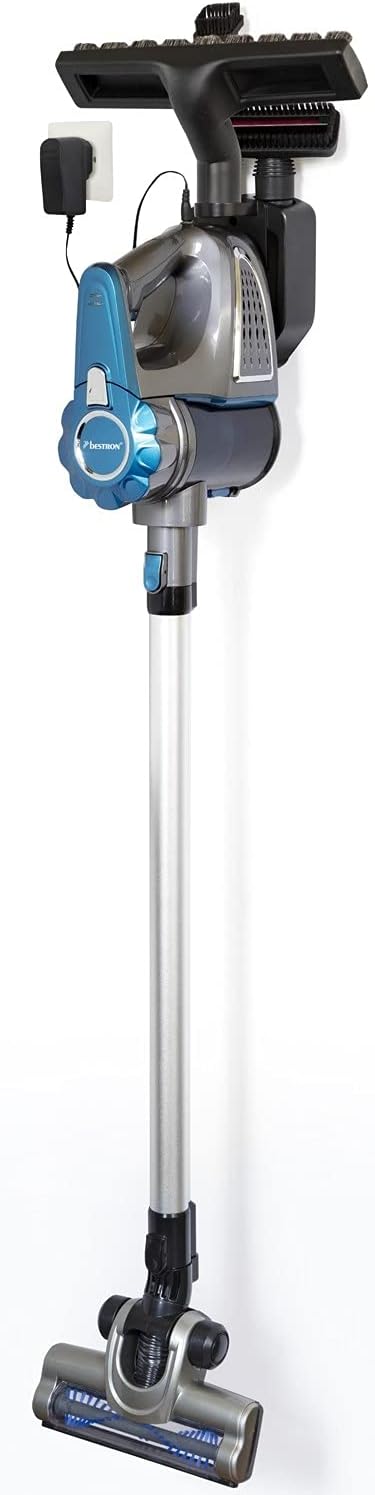

Figure 2: The vacuum cleaner stored on its wall mount, which also holds accessories and provides a charging point.

• Vælg et passende sted i nærheden af ​​en stikkontakt.
• Marker borepunkterne til vægbeslaget.
• Drill holes and secure the wall mount using appropriate screws and wall plugs.
• Hang the vacuum cleaner on the mount and store accessories in the designated slots.

Betjeningsvejledning

Powering On/Off and Suction Levels

• Tryk på tænd/sluk-knappen for at tænde for støvsugeren.
• The vacuum features 2 suction levels. Press the suction level button to switch between standard and maximum suction power.
• Tryk på tænd/sluk-knappen igen for at slukke støvsugeren.

Brug af støvsugeren

The Bestron vacuum cleaner can be used in two primary configurations:

1. With Extension Rod and Floor Nozzle (for floors, walls, ceilings)

Figure 3: Cleaning under furniture using the vacuum cleaner with the extension rod and floor nozzle.

• Ensure the extension rod and floor nozzle are securely attached.
• Adjust the telescopic tube (up to 67cm) for comfortable reach.
• The 180° rotatable turbo nozzle allows for easy maneuverability around obstacles and into tight spaces.

2. As a Handheld Vacuum (for furniture, car interiors, tight spots)

Figure 4: Using the vacuum cleaner in handheld mode to clean upholstery.

• Detach the extension rod and floor nozzle.
• Attach the desired accessory (crevice tool for narrow gaps, brush attachment for upholstery or delicate surfaces) directly to the main unit.
• The lightweight design and practical handle make it easy to clean hard-to-reach areas.

Opretholdelse

Tømning af støvbeholderen

The dust container has a capacity of 0.6 liters and should be emptied regularly to maintain optimal suction performance.

Figure 5: Detaching and emptying the dust container into a waste bin.

1. Sørg for, at støvsugeren er slukket.
2. Locate the dust container release button/latch on the main unit.
3. Press the button and carefully detach the dust container.
4. Hold the dust container over a trash bin and open its bottom flap to release the collected debris.
5. Close the flap and reattach the dust container to the main unit, ensuring it clicks securely.

Rengøring af filteret

The filter is removable and washable. Regular cleaning is crucial for maintaining suction power and appliance longevity.

1. After emptying the dust container, remove the filter assembly.
2. Separate the filter components.
3. Skyl filteret under koldt rindende vand, indtil vandet er klart. Do not use detergents or hot water.
4. Allow the filter to air dry completely for at least 24 hours before reassembling and placing it back into the vacuum cleaner. Do not use the vacuum cleaner with a wet filter.

Generel rengøring

• Tør støvsugeren af ​​med en blød, tør klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Periodically check the floor nozzle for tangled hair or debris and remove as necessary.

Fejlfinding

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

Specifikationer

Garanti og support

Bestron products are manufactured to high quality standards. In the unlikely event of a defect, please refer to your purchase receipt for warranty terms and conditions.

Reservedelstilgængelighed: EU-reservedele er tilgængelige i en periode på 5 år fra købsdatoen.

For technical support, service, or questions regarding your Bestron Cordless Handheld Vacuum Cleaner, please contact Bestron customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt.
