1. Introduktion
Thank you for choosing the Rheem Portable Air Conditioner RPAI-12H1. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your unit. Please read it thoroughly before use and retain it for future reference.
This portable air conditioner offers multiple functions including cooling, heating, fan operation, and dehumidification, providing comfort in various environments. It features a modern control panel, wireless remote control, and a self-diagnosis system for ease of use and maintenance.
2. Sikkerhedsoplysninger
Vigtige sikkerhedsinstruktioner:
- Tilslut altid enheden til en korrekt jordet stikkontakt.
- Betjen ikke enheden med en beskadiget strømledning eller stik.
- Sørg for tilstrækkelig ventilation omkring enheden. Bloker ikke luftindtag eller -udtag.
- Hold enheden væk fra varmekilder, direkte sollys og brandfarlige materialer.
- Stik ikke genstande ind i luftudløbene.
- Tag stikket ud af enheden, før du rengør eller udfører vedligeholdelse.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
- The unit is equipped with wheels for easy movement; however, ensure it is stable on a flat surface during operation.
3. Produktet er slutview
The Rheem RPAI-12H1 is a versatile portable air conditioner designed for convenience and performance. Key components include the main unit, exhaust hose, window kit, and remote control.
Figur 3.1: Front view of the Rheem Portable Air Conditioner RPAI-12H1. This image shows the sleek white design with the Rheem logo prominently displayed on the front panel.
Figur 3.2: Side view of the Rheem Portable Air Conditioner RPAI-12H1. This image illustrates the unit's profile, highlighting the air intake and exhaust port on the side.
4. Opsætning
Korrekt opsætning er afgørende for optimal ydeevne og sikkerhed.
4.1 Udpakning
Carefully remove the unit and all accessories from the packaging. Check for any damage during transit. Keep the packaging for future storage or transport.
4.2 Placering
Place the air conditioner on a firm, level surface in a location that allows for proper air circulation. Ensure there is at least 20 cm (8 inches) of space around the unit for air intake and exhaust. Position the unit near a window for exhaust hose installation.

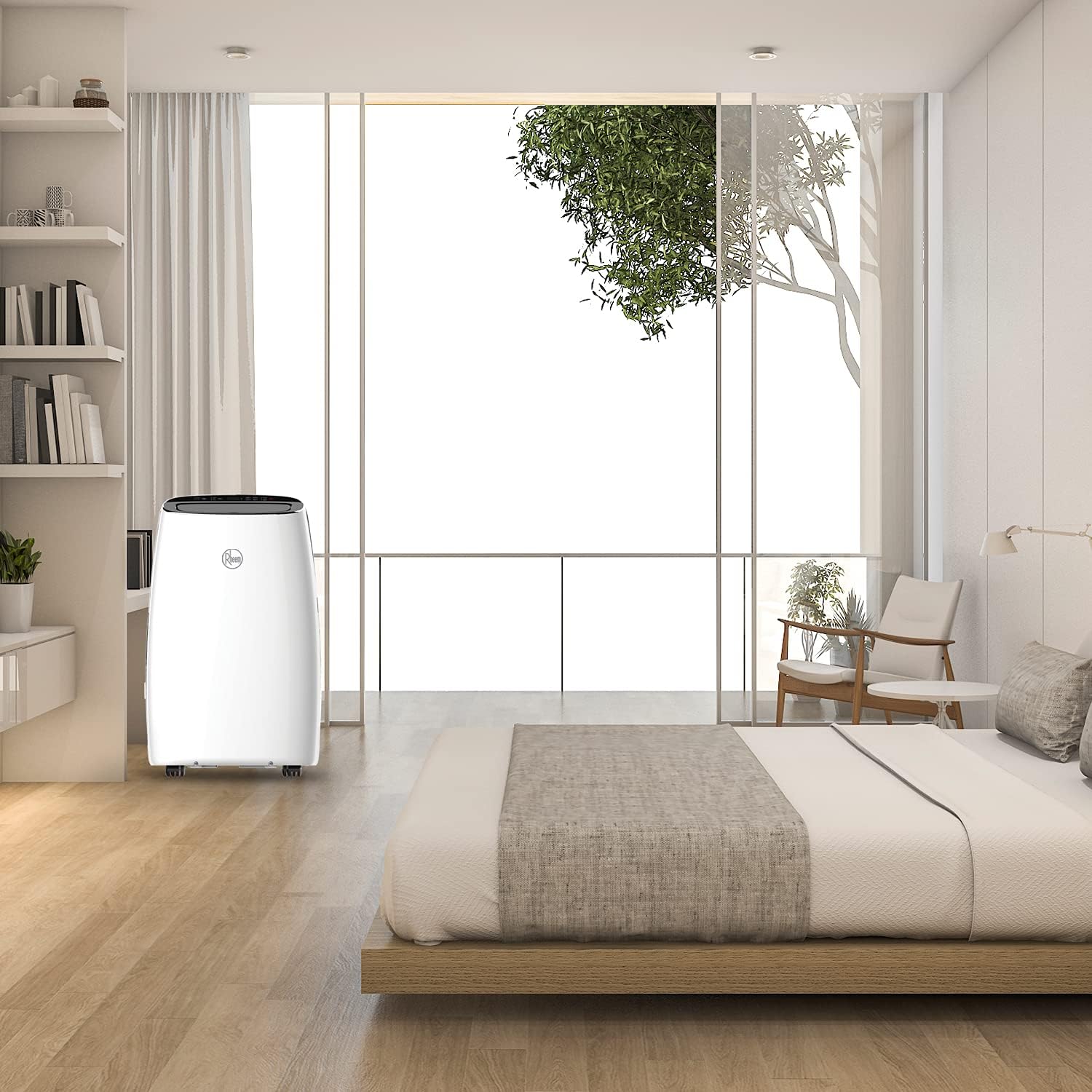

Figur 4.1: The Rheem Portable Air Conditioner RPAI-12H1 positioned in a bedroom. This image demonstrates a typical placement scenario, showing the unit near a window for exhaust.
4.3 Montering af udstødningsslange og vinduessæt
- Fastgør udstødningsslangens tilslutningsstykke til udstødningsudløbet på bagsiden af enheden.
- Forlæng udstødningsslangen, og fastgør vinduesadapteren til den anden ende.
- Adjust the window kit to fit your window opening and secure it.
- Insert the window kit adapter into the opening of the window kit, ensuring a tight seal to prevent air leakage.
Figur 4.2: Dimensions of the Rheem Portable Air Conditioner RPAI-12H1. The diagram shows the unit's height (79.5 cm), width (48 cm), and depth (40 cm), which are important for placement and window kit compatibility.
4.4 Strømtilslutning
Plug the power cord into a standard 115 Volt, grounded electrical outlet. Do not use extension cords or power strips.
5. Betjeningsvejledning
The RPAI-12H1 can be operated using the control panel on the unit or the wireless digital remote control.
5.1 Kontrolpanel og fjernbetjening
The control panel features buttons for Power, Mode, Fan Speed, Temperature Adjustment, Timer, and Swing. The wireless remote control duplicates these functions for convenient operation.
5.2 driftstilstande
- Køletilstand: Select 'Cool' mode and set your desired temperature. The unit will cool the room to the set temperature.
- Opvarmningstilstand: Select 'Heat' mode and set your desired temperature. The unit will heat the room to the set temperature.
- Ventilatortilstand: Select 'Fan' mode for air circulation without cooling or heating. Adjust fan speed as desired.
- Affugtertilstand: Select 'Dry' or 'Dehumidify' mode to remove excess moisture from the air.
5.3 Yderligere funktioner
- Autosving: Activate the Auto Swing function for uniform air distribution throughout the room.
- Programmerbar tænd/sluk: Use the timer function to set specific times for the unit to turn on or off automatically.
- Selvdiagnosesystem: The unit is equipped with a self-diagnosis system that can detect and display error codes on the digital display, aiding in troubleshooting.
- All-Quiet Technology: Designed with isolated components to minimize vibrations and reduce operational noise.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer dit klimaanlægs levetid og effektivitet.
6.1 Rengøring af luftfilter
The unit features a washable filter. It is recommended to clean the air filter every two weeks, or more frequently depending on usage and air quality.
- Tag enheden ud af stikkontakten.
- Remove the air filter from its housing (refer to the diagram in your full manual for exact location).
- Vask filteret med lunkent vand og et mildt rengøringsmiddel. Skyl grundigt.
- Lad filteret lufttørre helt, før det monteres igen. Udsæt det ikke for direkte sollys.
6.2 Afvanding
In dehumidifier mode or high humidity conditions, the unit will collect condensed water. The unit may have an auto-evaporation system, but manual drainage might be required. Refer to your full manual for specific drainage instructions, including continuous drainage options.
6.3 Udvendig rengøring
Tør ydersiden af enheden af med en blød, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
6.4 Auto-Cleaning System
The unit includes an auto-cleaning system designed to prevent odors and the growth of harmful microorganisms. This system operates automatically to maintain internal cleanliness.
7. Fejlfinding
Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | No power, power cord unplugged, circuit breaker tripped | Kontroller strømtilslutningen, nulstil afbryderen. |
| Enheden køler/varmer ikke effektivt | Dirty air filter, blocked air intake/exhaust, room too large, window kit not sealed | Clean air filter, ensure clear airflow, check window kit seal, ensure room size is within unit capacity. |
| Usædvanlig støj eller vibrationer | Unit not on a level surface, foreign object inside | Place unit on a level surface. If noise persists, contact support. |
| Vandlækage | Drain plug not properly secured, drainage hose blocked (if applicable) | Check drain plug. Clear any blockages in the drainage hose. |
| Fejlkode vises | Internal system fault detected by self-diagnosis | Notér fejlkoden, og se den fulde manual, eller kontakt kundesupport. |
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnavn | RPAI-12H1 |
| Dimensioner (H x B x D) | 79.5 cm x 48 cm x 40 cm |
| Vægt | 38 kg |
| Kølekraft | 12000 britiske termiske enheder (BTU) |
| Voltage | 115 volt |
| Strømkilde | Elektrisk med kabel |
| Særlige funktioner | Dehumidifier, Auto Swing, Self-Diagnosis, Auto-Cleaning, Programmable On/Off, All-Quiet Technology |
| Materiale | Stål og aluminium |
| Formfaktor | Transportabel |
9. Garanti og support
The Rheem Portable Air Conditioner RPAI-12H1 comes with a limited warranty. Please refer to the warranty card included with your product for specific terms and conditions.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Rheem customer support. Contact information can typically be found on the Rheem official webwebstedet eller på dit produkts emballage.
