Levenhuk Skyline Travel 80 Refraktor Teleskop Brugermanual

Indledning

This manual provides detailed instructions for the assembly, operation, and maintenance of your Levenhuk Skyline Travel 80 Refractor Telescope. Please read this manual thoroughly before using your telescope to ensure proper setup and optimal viewing experience for both astronomical and terrestrial observations.

Sikkerhedsinstruktioner

• Never look directly at the Sun through the telescope or its finderscope without a professionally manufactured solar filter. Doing so can cause permanent eye damage or blindness.

• Do not leave the telescope unsupervised, especially when children are present. Ensure proper adult supervision during use.

• Handle optical components with care. Avoid touching lens surfaces with bare hands.

• Store the telescope in a dry, dust-free environment when not in use.

Pakkens indhold

The Levenhuk Skyline Travel 80 Refractor Telescope package includes the following items:

• Teleskop optisk rør
• Altazimuth-bjerget
• Justerbart aluminiumstativ
• Finderscope
• Diagonal spejl
• Eyepieces (K9mm, K25mm)
• Barlow linse 3x
• Tilbehørsbakke
• Skuldertaske
• Brugermanual

The Levenhuk Skyline Travel 80 telescope and its main accessories neatly stored within the included shoulder bag, highlighting its portability.

Produkt overview

Familiarize yourself with the various components of your Levenhuk Skyline Travel 80 Refractor Telescope.

This diagram illustrates the main parts of the Levenhuk Skyline Travel 80 telescope, including the optical tube, finderscope, eyepiece, diagonal mirror, focuser, compass, dust cap, azimuth lock knob, altitude lock knobs, tripod, and accessory tray.

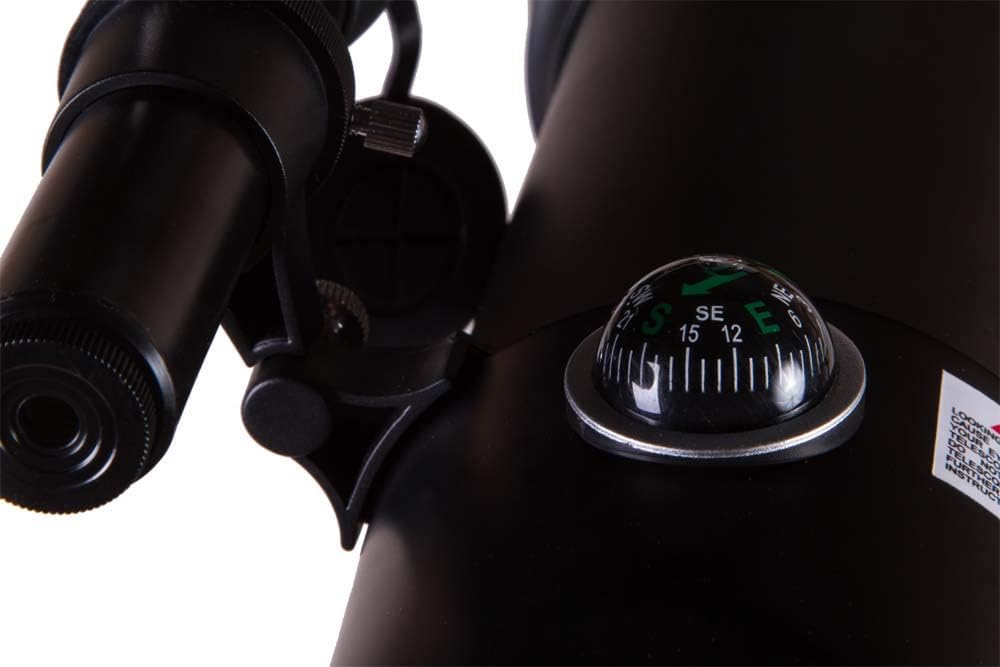

Et nærbillede view of the integrated compass located on the telescope's optical tube, useful for initial orientation.

Opsætning

Følg disse trin for at samle dit teleskop:

1. Opsætning af stativet: Extend the tripod legs to a suitable height and spread them apart for stability. Secure the accessory tray to the center brace of the tripod.

2. Fastgør det optiske rør: Place the telescope's optical tube onto the altazimuth mount. Secure it using the provided mounting screws or clamps, ensuring it is firmly attached.

3. Installer Finderscope: Slide the finderscope into its bracket on the optical tube and tighten the retaining screws. The finderscope aids in locating objects before viewat se dem gennem hovedteleskopet.

4. Indsæt det diagonale spejl: Løsn fingerskruen på fokussatoren, og indsæt det diagonale spejl. Spænd fingerskruen for at fastgøre det.

5. Indsæt et okular: Insert the desired eyepiece (e.g., K25mm for lower magnification) into the diagonal mirror. Secure it with the thumbscrew. For higher magnification, you can use the K9mm eyepiece or the 3x Barlow lens in conjunction with an eyepiece.

The Levenhuk Skyline Travel 80 telescope fully assembled on its adjustable tripod, ready for observation.

Drift

This section guides you through using your telescope for observation.

1. Justering af søgerkikkerten

Before observing, align the finderscope with the main telescope. Point the main telescope at a distant, stationary object (e.g., a treetop or building) during daylight hours. Center the object in the main telescope's eyepiece. Then, adjust the finderscope's alignment screws until the same object is centered in the finderscope's crosshairs.

2. Fokusering

Once an object is centered in the eyepiece, turn the focuser knob slowly until the image appears sharp and clear. You may need to make minor adjustments as objects move or as your eyes adapt.

3. Ændring af forstørrelse

To change magnification, swap eyepieces. The K25mm eyepiece provides lower magnification and a wider field of view, ideal for locating objects. The K9mm eyepiece offers higher magnification for more detailed views. For even higher magnification, insert the 3x Barlow lens into the focuser before inserting an eyepiece.

The included K9mm and K25mm eyepieces, along with the 3x Barlow lens, which can be used to increase the magnification of any eyepiece.

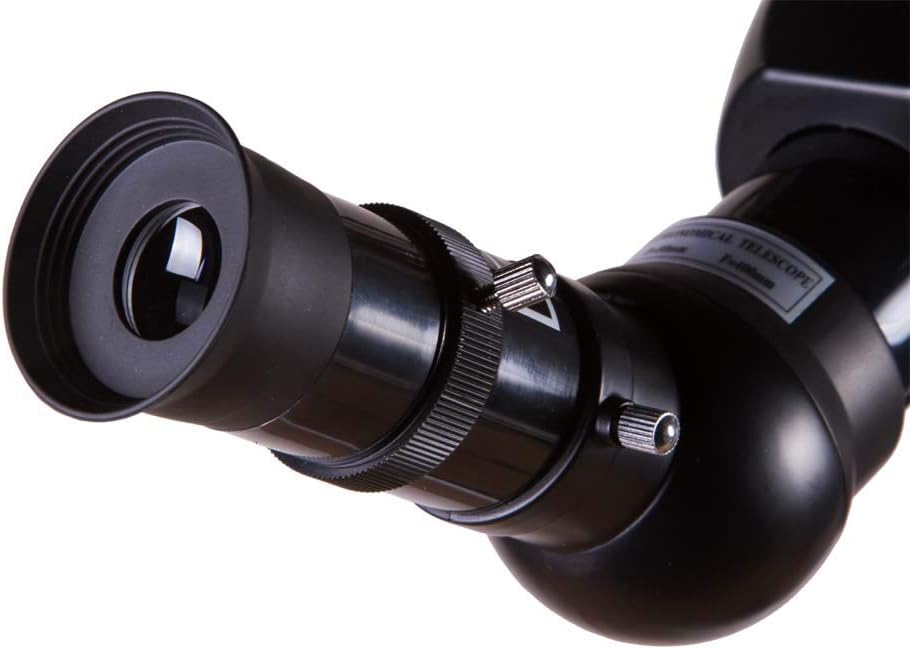

Et nærbillede view of an eyepiece inserted into the diagonal mirror, showing the focuser mechanism.

4. Astronomical Observations

For astronomiske viewing, choose a dark location away from city lights. Use the finderscope to locate celestial objects, then fine-tune the view with the main telescope. The altazimuth mount allows for easy movement up/down (altitude) and left/right (azimuth) to track objects.

5. Terrestrial Observations

The Levenhuk Skyline Travel 80 can also be used for terrestrial viewing. Point the telescope at distant landscapes, wildlife, or other ground-based objects. The diagonal mirror provides a corrected, upright image, suitable for land viewing.

Opretholdelse

Proper care ensures the longevity and performance of your telescope.

• Rengøring af linser: Use a soft, clean lens brush or compressed air to remove dust. For smudges, use a specialized optical cleaning solution and a microfiber cloth designed for optics. Apply solution to the cloth, not directly to the lens. Wipe gently in a circular motion from the center outwards.

• Rengøring af teleskophuset: Tør de udvendige overflader af med en blød, damp klæde. Undgå slibende rengøringsmidler.

• Opbevaring: When not in use, store the telescope in its carrying bag in a cool, dry, dust-free environment. Ensure all caps are on the lenses to prevent dust accumulation.

• Undgå ekstreme temperaturer: Udsæt ikke teleskopet for hurtige temperaturændringer eller ekstrem varme/kulde, da dette kan påvirke de optiske komponenter.

Fejlfinding

Her er løsninger på almindelige problemer, du kan støde på:

Specifikationer

The following are the technical specifications for the Levenhuk Skyline Travel 80 Refractor Telescope:

• Modelnavn: Levenhuk Skyline Travel 80
• Varemodelnummer: 72053
• Objektiv linsediameter: 80 millimeter
• Telescope Mount: Altazimuth-bjerget
• Eyepiece Lens Description: Barlow (includes K9mm, K25mm eyepieces and 3x Barlow lens)
• Finderscope: Refleks
• Fokustype: Manuel fokus
• Produktmål (emballeret): 26.38" D x 10.24" B x 5.51" H
• Varens vægt: 8.33 pund
• Fabrikant: Levenhuk, Inc.

Garanti og support

Levenhuk products are designed for durability and performance. For information regarding warranty coverage, product support, or service inquiries, please refer to the official Levenhuk webwebstedet eller kontakt deres kundeserviceafdeling. Behold din købskvittering som købsbevis.

For yderligere hjælp, besøg den officielle Levenhuk-butikken på Amazon.
