1. Introduktion
This manual provides essential information for the safe installation, operation, and maintenance of your Luceco EBER10S40 LED Outdoor Round Bulkhead Light. Please read these instructions carefully before installation and retain them for future reference.
The Luceco EBER10S40 is a 10W LED bulkhead light designed for both indoor and outdoor applications. It features a durable polycarbonate construction, an IP54 weather resistance rating, and provides 700 lumens of 4000K neutral white light. The product includes interchangeable black and white bezels to suit various aesthetic preferences.

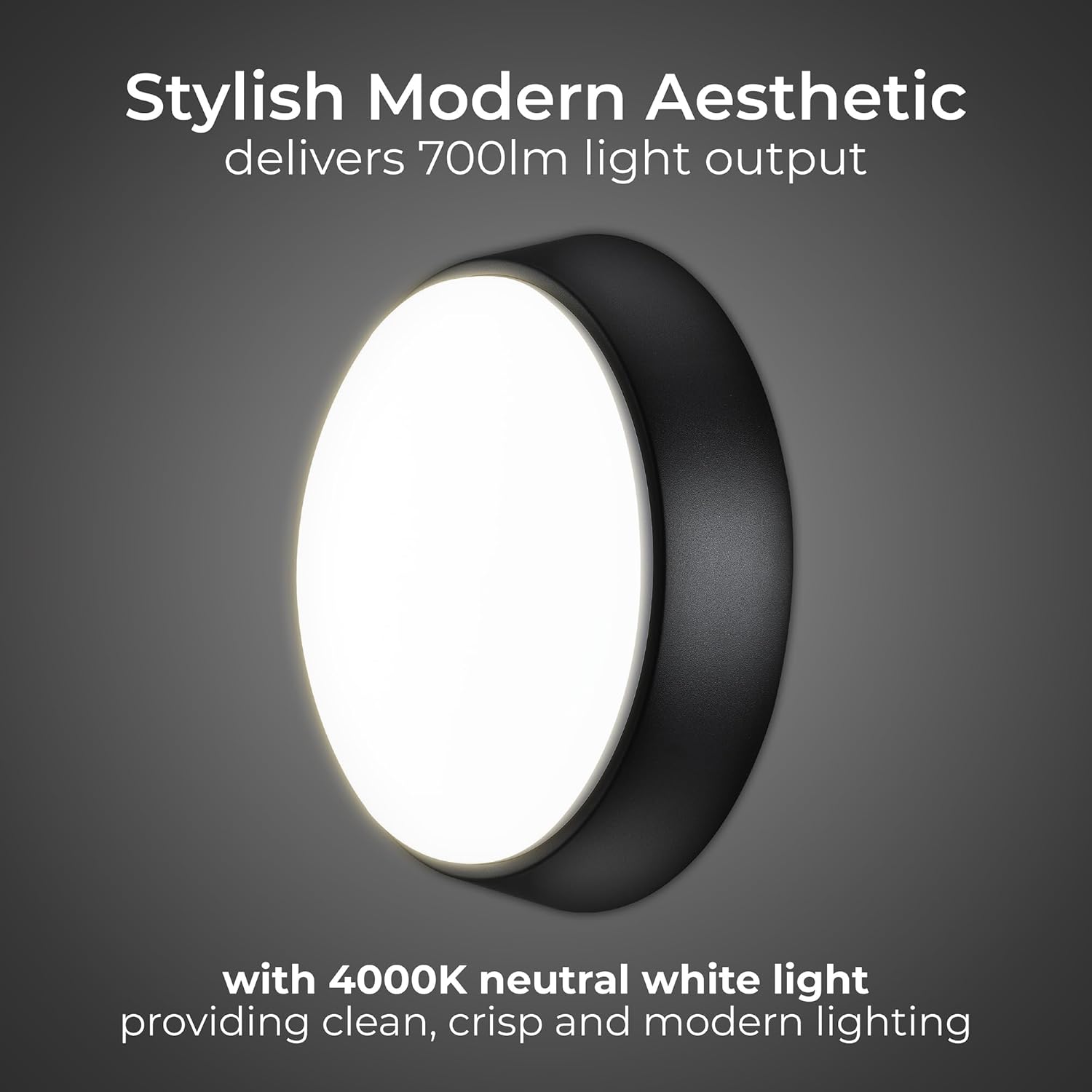

Figure 1: The Luceco EBER10S40 LED bulkhead light, showcasing its modern design and neutral white light output.
2. Sikkerhedsoplysninger
For your safety, always follow these precautions:
- Installation should be carried out by a qualified electrician in accordance with national wiring regulations.
- Ensure the main power supply is switched off at the consumer unit/fuse box before commencing installation or maintenance.
- Do not connect this fitting to an unearthed circuit.
- Nedsænk ikke produktet i vand.
- This product is designed for permanent connection to fixed wiring.
- Forsøg ikke at ændre produktet.
- Hold emballagemateriale væk fra børn.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- 1 x Luceco EBER10S40 LED Bulkhead Light Fixture
- 1 x Black Bezel (pre-installed or separate)
- 1 x White Bezel (interchangeable option)
- Fastgørelse af skruer og vægdyvler
- Instruktionsmanual
Figure 2: The interchangeable black and white bezels included with the light fixture.
4. Opsætning og installation
The Luceco EBER10S40 is suitable for both wall and ceiling mounting. Follow these steps for installation:
- Forberedelse: Ensure the electricity supply is completely isolated at the main fuse board.
- Monteringssted: Choose a suitable mounting location on a wall or ceiling, ensuring the surface is flat and capable of supporting the fixture's weight.
- Fjern rammen: Gently twist and remove the outer bezel (if pre-installed) to access the mounting holes and wiring terminals.
- Mærkning og boring: Place the light fixture base against the chosen surface and mark the positions for the fixing screws. Drill appropriate holes and insert wall plugs if necessary.
- Ledningsføring: Connect the mains supply cables to the inline terminals within the fixture. Ensure correct polarity: Live (L), Neutral (N), and Earth (E). Double-check all connections for security.
- Sikker armatur: Mount the fixture base to the wall or ceiling using the provided fixing screws. Ensure it is securely fastened.
- Attach Bezel: Select either the black or white bezel. Align it with the fixture and twist it into place until it is securely seated.
- Gendan strøm: Once installation is complete and all connections are secure, restore the electricity supply.
Figure 3: The Luceco EBER10S40 light installed on a brick wall, illustrating its suitability for various mounting surfaces.
Figure 4: The Luceco EBER10S40 light fixture seamlessly integrated into an exterior brick wall.
5. Betjeningsvejledning
The Luceco EBER10S40 LED bulkhead light operates via a standard wall switch. Once installed and connected to the mains power supply, simply toggle the connected light switch to turn the light on or off.
Figure 5: The Luceco EBER10S40 light providing illumination in an outdoor setting at night.
6. Vedligeholdelse
This LED bulkhead light requires minimal maintenance.
- Rensning: To clean the fixture, ensure the power is off. Wipe the surface with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen.
- Lamp Udskiftning: The LED light source in this luminaire is not replaceable by the user. When the light source reaches its end of life, the entire luminaire should be replaced.
- Inspektion: Periodically inspect the fixture for any signs of damage or wear. If damage is observed, disconnect power and consult a qualified electrician.
7. Fejlfinding
If you encounter issues with your Luceco EBER10S40 light, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply. Faulty wiring connection. Faulty switch. | Check the circuit breaker/fuse. Verify all wiring connections are secure. Test the switch. If issues persist, consult a qualified electrician. |
| Lyset er svagt eller flimrer. | Unstable power supply. Loose wiring connection. | Ensure stable power supply. Check and secure all wiring connections. If issues persist, consult a qualified electrician. |
| Water ingress inside the fixture. | Improper installation or damaged seal. | Immediately disconnect power. Inspect the installation for proper sealing and ensure the bezel is correctly fitted. If damage is present, the fixture may need replacement. |
For problems not listed here, or if the suggested solutions do not resolve the issue, please contact Luceco customer support.
8. Specifikationer
Detailed technical specifications for the Luceco EBER10S40 LED Outdoor Round Bulkhead Light:
| Feature | Specifikation |
|---|---|
| Mærke | Luceco |
| Modelnummer | EBER10S40-01 |
| Produktmål (L x B x H) | 21.8 x 8.5 x 21.8 cm |
| Varens vægt | 443 gram |
| Materiale | Polycarbonat (PC) |
| IP-vurdering | IP54 |
| Wattage | 10 watt |
| Lysstrøm | 700 lm |
| Farvetemperatur | 4000 Kelvin (Neutral hvid) |
| Color Rendering Index (CRI) | 80 |
| Voltage | 240 volt |
| Stil | Moderne |
| Monteringstype | Wall Mount (also suitable for ceiling) |
| Energieffektivitetsvurdering | E |
Figure 6: The durable, weatherproof housing of the Luceco EBER10S40, rated IP54.
9. Garanti og support
Luceco provides a 3 års producentgaranti for dette produkt, der dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis til garantikrav.
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Luceco customer support through their official webwebstedet eller den forhandler, hvorfra produktet blev købt.
