Maxlite 6 tommer J-Box Downlight brugsanvisning

1. Sikkerhedsoplysninger

Please read these instructions carefully before installation and retain them for future reference. Failure to follow these instructions could result in electric shock or fire, which could cause property damage, serious injury, or death.

• Always turn off power at the circuit breaker or fuse box before beginning installation or performing any maintenance.
• Alle elektriske forbindelser skal være i overensstemmelse med lokale og National Electrical Code (NEC) standarder. Hvis du ikke er bekendt med korrekte elektriske ledningsforbindelser, skal du kontakte en kvalificeret elektriker.
• Do not install this fixture in wet locations or where it will be directly exposed to water. This product is rated for indoor use only.
• Sørg for, at alle forbindelser er sikre og korrekt isolerede.
• Undlad at ændre armaturet på nogen måde. Enhver ændring kan ugyldiggøre garantien og skabe en sikkerhedsrisiko.

2. Produktet er slutview

The Maxlite 6 inch J-Box Downlight is a modern, recessed LED lighting fixture designed for easy installation directly into a junction box. It provides efficient and consistent illumination for various indoor spaces.

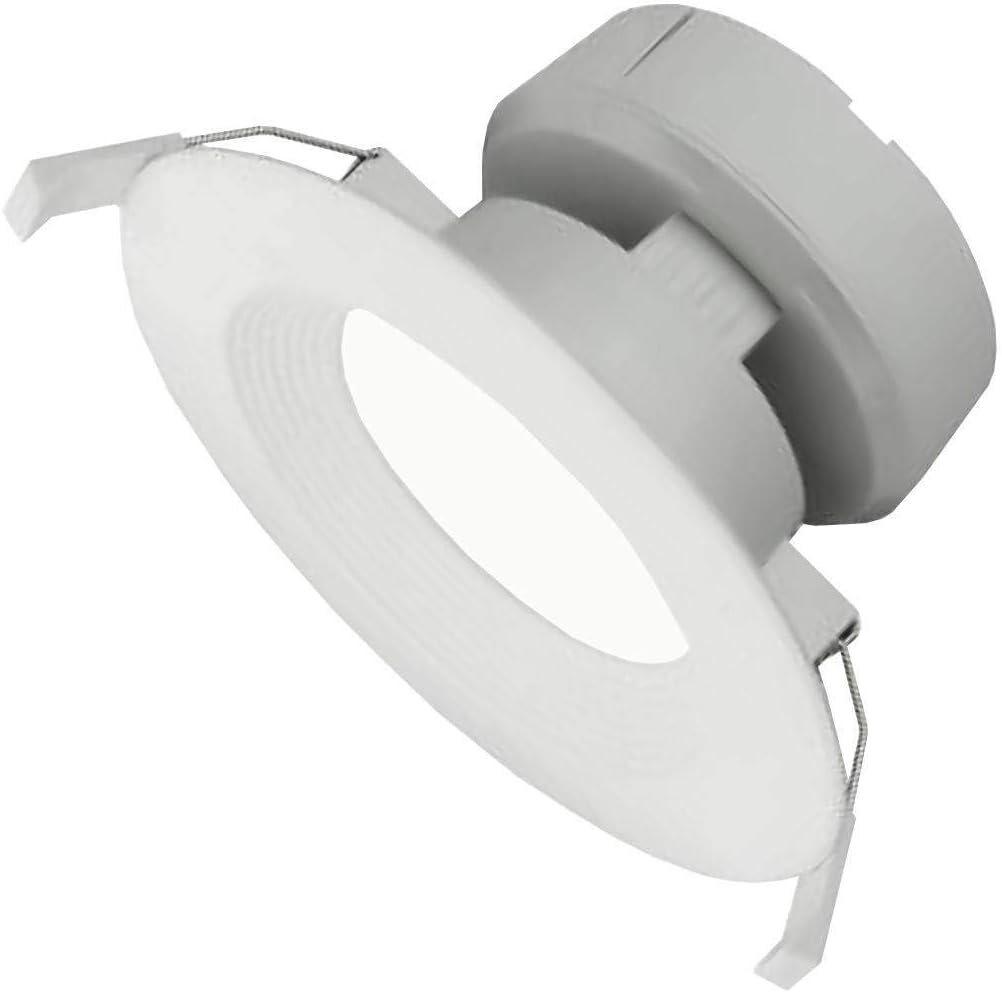

Image: Maxlite 6 inch J-Box Downlight, showing its white finish and integrated junction box connection.

Inkluderede komponenter:

• 6 inch J-Box Downlight Fixture
• Junction Box (integrated or separate, depending on model variant)
• Monteringshardware

3. Opsætning og installation

This downlight is designed for direct installation into a standard electrical junction box in the ceiling. Ensure the power is OFF at the circuit breaker before proceeding.

1. Forbered installationsområdet: Sluk for strømmen til kredsløbet ved hovedelpanelet. Brug en voltmeter.tage testeren for at bekræfte, at strømmen er slukket.
2. Access Junction Box: If installing in a new location, ensure a suitable junction box is securely mounted in the ceiling. If replacing an existing fixture, remove the old fixture and ensure the junction box is accessible and in good condition.
3. Foretag elektriske forbindelser: Open the wiring compartment of the downlight's integrated junction box. Connect the house wiring to the fixture's wires:
   • Connect the black (hot) wire from the ceiling to the black wire of the fixture.
   • Connect the white (neutral) wire from the ceiling to the white wire of the fixture.
   • Connect the green or bare copper (ground) wire from the ceiling to the green wire of the fixture.
   Secure all connections with approved wire nuts (not included unless specified). Ensure no bare wires are exposed.
4. Sikker ledningsføring: Carefully tuck all wires and wire nuts into the junction box, ensuring they are not pinched. Close the junction box cover.
5. Monter armaturet: Align the downlight fixture with the junction box opening. Use the provided mounting hardware to secure the fixture firmly to the junction box or ceiling structure. Ensure the fixture is flush with the ceiling surface.
6. Gendan strøm: Once the fixture is securely installed, turn the power back on at the circuit breaker. Test the light to ensure proper operation.

4. Betjeningsvejledning

The Maxlite 6 inch J-Box Downlight operates like any standard hardwired lighting fixture. It is controlled by a wall switch connected to the circuit.

• Tænd/sluk: Brug vægkontakten, der er tilsluttet armaturets kredsløb, til at tænde eller slukke lyset.
• Dæmpning (hvis relevant): If connected to a compatible dimmer switch, the light output can be adjusted by operating the dimmer control. Ensure any dimmer used is rated for LED lighting.

5. Vedligeholdelse

The Maxlite 6 inch J-Box Downlight is designed for long-lasting, maintenance-free operation. As it uses integrated LED technology, there are no bulbs to replace.

• Rensning: To clean the fixture, ensure the power is off at the circuit breaker. Use a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or cleaners containing alcohol, as these may damage the finish or electrical components.
• Inspektion: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, turn off power immediately and consult a qualified electrician.

6. Fejlfinding

If you experience issues with your Maxlite 6 inch J-Box Downlight, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, contact a qualified electrician or Maxlite customer support.

7. Specifikationer

8. Garanti og support

Maxlite products are manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or replacement parts, please visit the official Maxlite webwebsted eller kontakt deres kundeserviceafdeling.

Please have your model number (RF6101CAT40W) and date of purchase available when contacting support.
