EZVIZ CS-BW2424-B1E10 Trådløst NVR-system Brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your EZVIZ CS-BW2424-B1E10 Wireless NVR System. Please read this manual thoroughly before using the product to ensure proper setup and functionality. Keep this manual for future reference.

2. Produktet er slutview

The EZVIZ CS-BW2424-B1E10 is a wireless network video recorder (NVR) system designed for home or small business surveillance. It includes a central NVR unit with a pre-installed 1TB hard disk drive and four 2-megapixel wireless cameras, providing a comprehensive security solution.

2.1 Systemkomponenter

2.2 NVR Unit Features

The NVR unit serves as the central hub for recording and managing video footage from the connected cameras. It features various ports for connectivity and a pre-installed hard drive for storage.

• Strømindgang: Tilsluttes strømadapteren.
• Lyd ind/ud: For external audio devices.
• VGA port: Connects to a monitor for video output.
• HDMI-port: Connects to an HDMI-compatible monitor or TV for high-definition video output.
• LAN-port: Connects to your network router via an Ethernet cable for internet access.
• USB-porte: For connecting a USB mouse or external storage devices.
• Nulstil hul: Used to reset the NVR to factory default settings.

The NVR comes with a 1TB hard disk drive pre-installed, providing ample storage for recorded video footage.

2.3 Kamerafunktioner

The four wireless cameras capture 2-megapixel resolution video and connect wirelessly to the NVR. They are designed for outdoor or indoor use and include features for easy management.

• Nulstil knap: Bruges til at nulstille kameraet til fabriksindstillingerne.
• QR Code: Essential for adding the camera to the EZVIZ app and for initial setup.

3. Opsætningsvejledning

3.1 Udpakning og første inspektion

1. Pak forsigtigt alle komponenter ud af kassen.
2. Verify that all items listed in the packaging contents are present and undamaged.
3. If any items are missing or damaged, contact customer support immediately.

3.2 NVR-forbindelse

Before powering on, connect the necessary peripherals to the NVR.

1. Connect a Monitor: Brug et HDMI- eller VGA-kabel til at forbinde NVR'en til en skærm eller et tv.
2. Connect a Mouse: Sæt USB-musen i en af ​​NVR'ens USB-porte.
3. Netværks forbindelse: For initial setup and remote access, connect the NVR's LAN port to your router using an Ethernet cable.
4. Tænd: Connect the power adapter to the NVR's power input and then plug it into a power outlet. The NVR will start automatically.

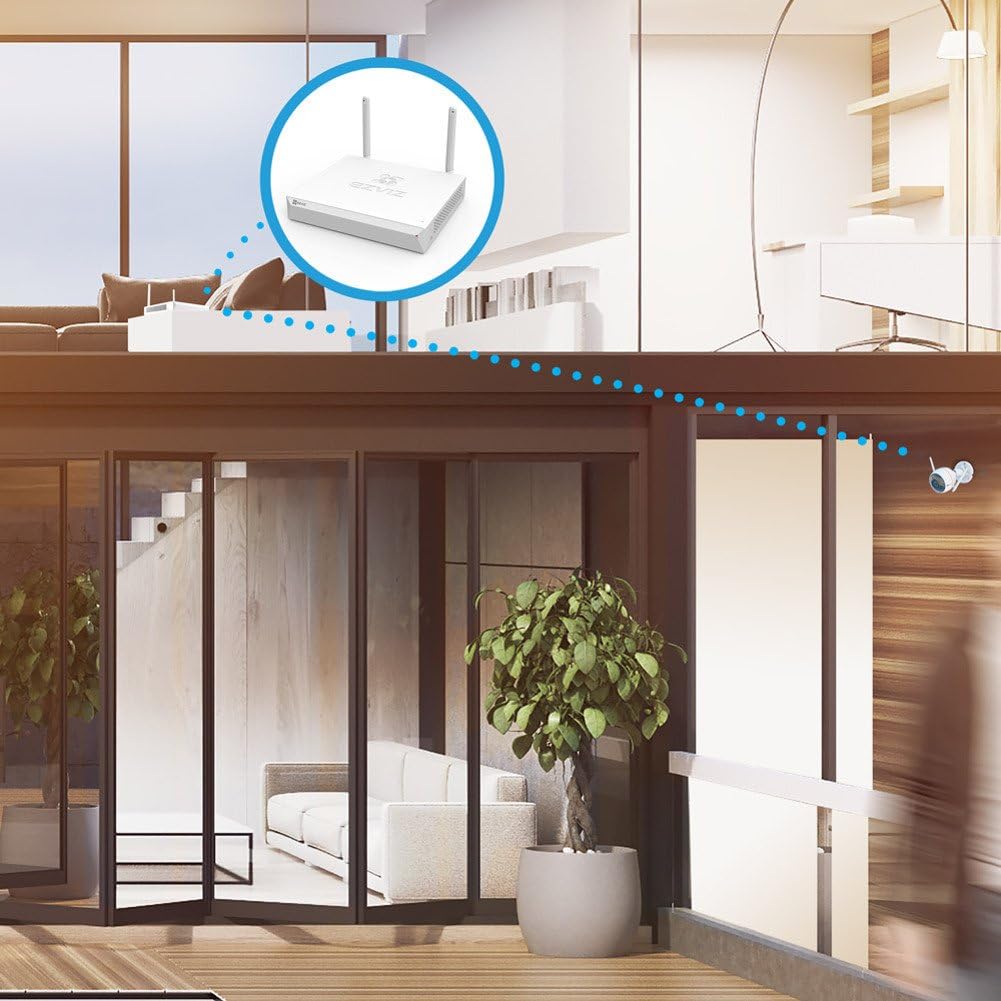

3.3 Placering og installation af kamera

The cameras connect wirelessly to the NVR. Ensure optimal placement for signal strength and coverage.

1. Choose Locations: Select locations for your cameras that provide the desired viewing angle and are within the wireless range of the NVR or your home router. Avoid obstructions that could interfere with the wireless signal.
2. Monter kameraer: Use the provided mounting hardware to securely install each camera. Ensure the camera is positioned correctly to capture the desired area.
3. Strømkameraer: Connect each camera to its respective power adapter and plug it into a power outlet.

3.4 Systemkonfiguration

1. First-Time Setup Wizard: Upon first boot, the NVR will guide you through a setup wizard. Follow the on-screen prompts to set up language, date/time, and network settings.
2. Parring af kamera: The cameras are typically pre-paired with the NVR. If a camera does not display video, you may need to manually pair it. Refer to the NVR's on-screen menu for camera management options.
3. Opsætning af mobilapp: Download the EZVIZ app from your smartphone's app store. Create an account and add your NVR system by scanning the QR code on the NVR or its packaging. This enables remote viewing og kontrol.

4. Betjeningsvejledning

4.1 Live View

Når systemet er konfigureret, kan du view live footage from all connected cameras on your monitor or through the EZVIZ mobile app.

• On Monitor: The NVR interface displays a multi-channel view. Use the mouse to select a specific camera for a full-screen view.
• På mobilapp: Open the EZVIZ app, select your NVR system, and tap on the desired camera feed to view live video.

4.2 Optagelsesstyring

The NVR continuously records footage to the 1TB hard drive. You can configure recording schedules and modes.

• Kontinuerlig optagelse: Optagelser 24/7.
• Bevægelsesudløst optagelse: Records only when motion is detected, saving storage space. Configure motion detection zones and sensitivity via the NVR menu or mobile app.

4.3 Afspilning

Review optaget footage from the NVR's hard drive.

• On Monitor: Access the 'Playback' menu on the NVR interface. Select the date, time, and camera to view optagelser.
• På mobilapp: In the EZVIZ app, select the NVR, then choose the camera and navigate to the playback timeline to review recorded events.

4.4 Bevægelsesdetektion og advarsler

Configure the system to send alerts when motion is detected.

• Enable motion detection for each camera in the NVR settings or EZVIZ app.
• Set up notification preferences in the EZVIZ app to receive instant alerts on your smartphone.

4.5 Fjernadgang

Access your security system from anywhere using the EZVIZ mobile app or web portal.

• Ensure the NVR is connected to the internet.
• Log in to your EZVIZ account on the app or web portal til view live feeds, playback recordings, and manage settings remotely.

5. Vedligeholdelse

5.1 Rengøring

• Regularly clean the camera lenses with a soft, dry cloth to ensure clear image quality.
• Wipe the NVR unit with a dry cloth. Do not use liquid cleaners.

5.2 firmwareopdateringer

Periodically check for firmware updates for both the NVR and cameras to ensure optimal performance and security. Updates can typically be performed through the NVR's system menu or the EZVIZ app.

5.3 Harddiskstyring

The 1TB hard drive will automatically overwrite the oldest footage when full. You can configure recording settings to optimize storage usage.

6. Fejlfinding

• No Video Display: Check power connections for NVR and cameras. Ensure HDMI/VGA cables are securely connected to the monitor. Verify cameras are paired with the NVR.
• Ingen netværksforbindelse: Ensure the Ethernet cable is properly connected to the NVR and router. Check router status. Restart NVR and router.
• Dårlig videokvalitet: Clean camera lenses. Ensure cameras are within optimal wireless range. Check for strong Wi-Fi signal.
• Ingen optagelse: Verify the hard drive status in the NVR settings. Check recording schedules and motion detection settings.
• Cannot Access Remotely: Ensure the NVR has an active internet connection. Verify your EZVIZ app account is correctly linked to the NVR.
• Systemnulstilling: If issues persist, you may need to reset the NVR or individual cameras to factory settings using the reset button/hole. Note that this will erase all configurations.

7. Specifikationer

8. Garanti og support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official EZVIZ website. You can also contact EZVIZ customer service for assistance with product setup, troubleshooting, and other inquiries.

Fabrikant: EZVIZ
