1. Produktet er slutview

The Respekta CH33060WB is an angled wall-mounted cooker hood designed for efficient ventilation in your kitchen. It features a white metal housing with a glass screen and is suitable for both exhaust air (Abluft) and recirculation air (Umluft) operation. The hood is equipped with LED lighting and offers three power levels for various cooking needs.

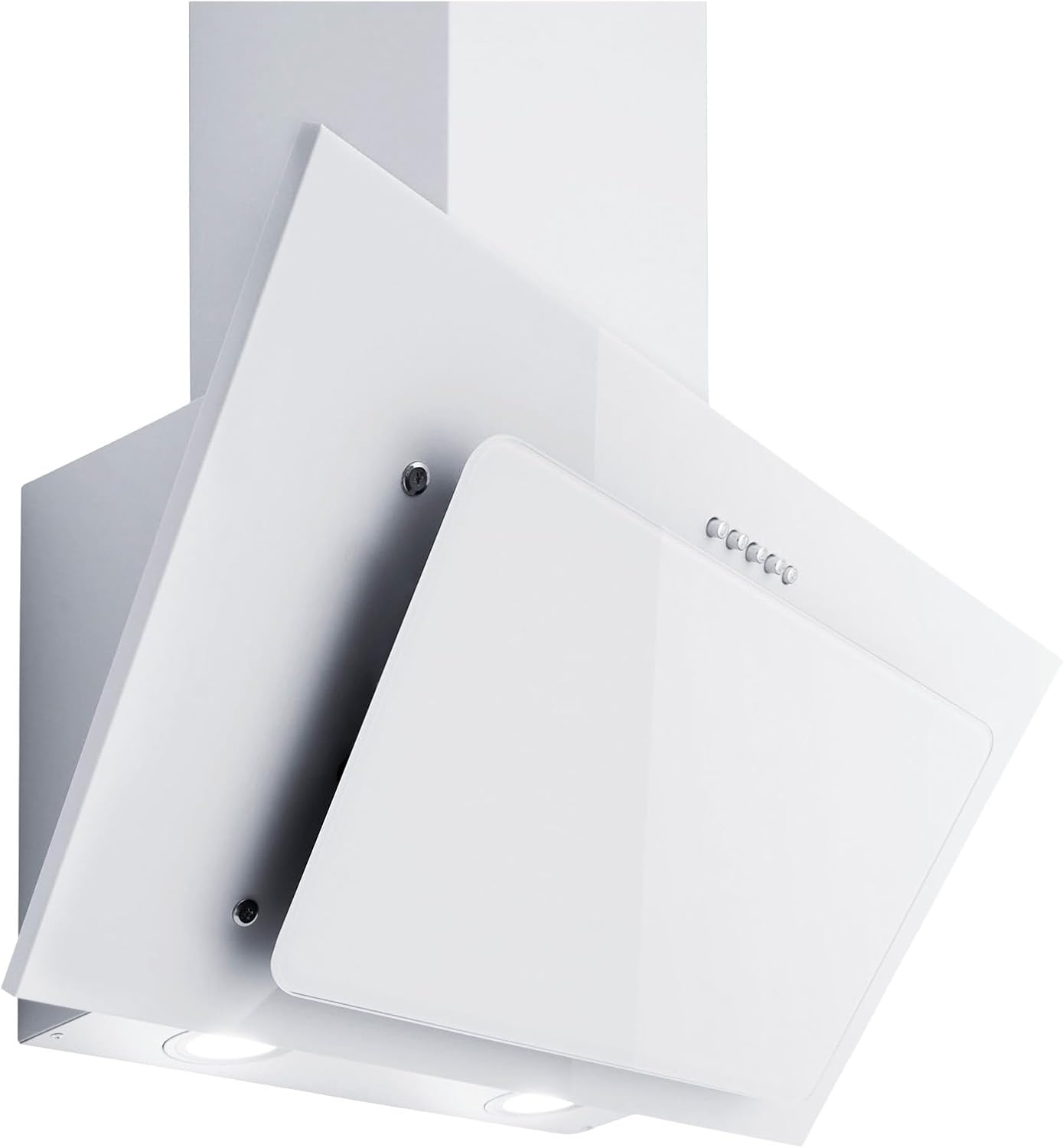

Figur 1: Forside view of the Respekta CH33060WB cooker hood.

Figure 2: Key features including Energy Efficiency Class B and 60 cm width.

2. Sikkerhedsoplysninger

Please read all safety instructions carefully before installation and operation to prevent injury or damage. Keep this manual for future reference.

• Sørg for, at strømforsyningen matcher voltage specified on the appliance's rating plate.
• Betjen ikke apparatet med en beskadiget netledning eller stik.
• Afbryd altid apparatet fra strømforsyningen før rengøring eller vedligeholdelse.
• Installationen skal udføres af en kvalificeret tekniker i overensstemmelse med lokale regler.
• Adequate ventilation must be provided in the room when the cooker hood is used simultaneously with appliances burning gas or other fuels.
• Der må ikke flamberes under emhætten.
• The metal grease filter must be cleaned regularly to prevent fire hazards.
• For recycling information regarding lamps and disposal of broken or damaged lamps, please refer to local waste management guidelines.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede og ubeskadigede ved udpakning:

• Cooker Hood (Respekta CH33060WB)
• Metal Grease Filter (1x MIZ33060)
• Aksel
• Brugervejledning (dette dokument)
• Monteringsmaterialer

4. Specifikationer

5. Installation

The Respekta CH33060WB cooker hood is designed for wall mounting. Ensure the mounting surface is strong enough to support the appliance's weight.

5.1 Montering af emhætten

• Carefully unpack the cooker hood and check for any transport damage.
• Bestem den optimale monteringshøjde over din kogeplade, typisk mellem 65-75 cm for elektriske kogeplader og 75-85 cm for gaskomfurer.
• Mark the drilling points on the wall according to the provided mounting template (if included) or the dimensions in the manual.
• Bor hullerne og indsæt vægpropper.
• Fastgør monteringsbeslaget til væggen med de medfølgende skruer.
• Carefully lift the cooker hood and hang it onto the mounting bracket.
• Attach the shaft to the top of the hood and secure it to the wall. The hood can be installed with or without the decorative shaft, depending on your kitchen design.

Figure 3: General installation overview of the cooker hood.

Figure 4: Installation flexibility, showing options with and without the decorative shaft.

5.2 Elektrisk tilslutning

Connect the cooker hood to a grounded electrical outlet. The power cable length is 120 cm.

5.3 Opsætning af ventilationssystem

The hood supports both exhaust and recirculation modes:

• Exhaust Air (Abluft): For exhaust operation, connect the hood to an external ducting system. The connection diameter for exhaust air is 150 cm. Ensure the ducting is clear and unobstructed.
• Recirculation Air (Umluft): For recirculation operation, the air is filtered and returned to the kitchen. This mode requires the installation of activated carbon filters (e.g., MIZ 0060 N), which are not included and must be purchased separately.

Figure 5: Diagrams illustrating exhaust and recirculation air functions, including filter requirements.

6. Betjening

The cooker hood is operated via user-friendly push buttons located on the front panel.

6.1 Effektniveauer

The hood offers three power levels to adjust the extraction rate according to your cooking needs:

• Niveau 1 (Lav): Suitable for light odors and simmering.
• Niveau 2 (medium): For moderate cooking and general ventilation.
• Niveau 3 (Høj): For strong odors and intensive cooking, providing maximum airflow of 316 m³/h.

Figure 6: Illustration of the three power levels and their recommended use.

Figur 7: Detaljeret view of the push button control panel.

6.2 LED belysning

The integrated LED lights (2 x 1.5 Watt) illuminate your cooking surface. Use the dedicated light button on the control panel to switch them on or off.

Figure 8: The control panel with push buttons and the integrated LED lighting.

6.3 Noise Levels

The cooker hood operates quietly, with noise levels ranging from 51 to 63.5 dB depending on the selected power level.

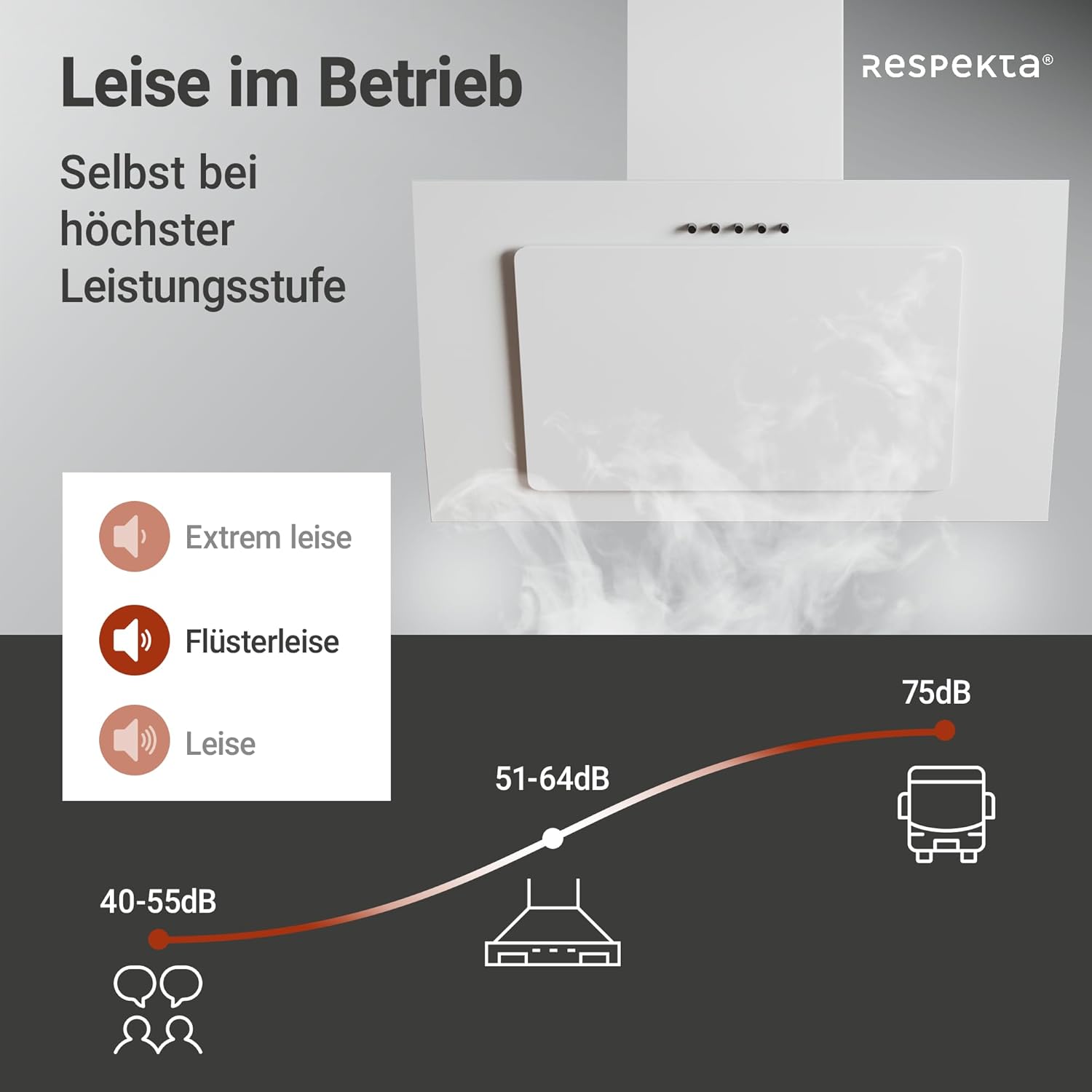

Figure 9: Chart illustrating the quiet operation of the cooker hood across different power levels.

7. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på din emhætte.

7.1 Cleaning the Metal Grease Filter

The metal grease filter (MIZ 33060) collects grease particles from cooking vapors. It should be cleaned regularly, typically every 2-4 weeks depending on usage, to maintain effective extraction.

• To remove the filter, locate the release latches and gently pull the filter downwards.
• The filter is washable and dishwasher-safe. For manual cleaning, use warm soapy water and a soft brush.
• Ensure the filter is completely dry before re-inserting it.
• To re-insert, align the filter with the slots and push it upwards until it clicks into place.

Figure 10: The removable and washable metal grease filter (MIZ 33060).

7.2 Udskiftning af aktivt kulfiltre (kun recirkulationstilstand)

If you are using the hood in recirculation mode, the activated carbon filters absorb odors. These filters cannot be washed and must be replaced regularly, typically every 3-6 months depending on usage.

• Refer to the specific instructions provided with your activated carbon filters for replacement procedures.
• Ensure the hood is disconnected from power before replacing filters.

7.3 Udvendig rengøring

Clean the exterior surfaces of the hood with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using harsh chemicals or abrasive materials that could damage the finish.

8. Fejlfinding

If you experience issues with your cooker hood, consult the following common troubleshooting steps:

• Emhætten tænder ikke:
  • Kontroller, om netledningen er sat ordentligt i en fungerende stikkontakt.
  • Kontroller, at afbryderen ikke er udløst.
• Dårlig ekstraktionsevne:
  • Ensure the metal grease filter is clean and not clogged.
  • If in recirculation mode, check if the activated carbon filters need replacement.
  • Verify that the exhaust ducting (if used) is not blocked or kinked.
  • Ensure there is adequate air supply in the kitchen.
• Overdreven støj:
  • Check if the metal grease filter is correctly installed.
  • Ensure all mounting screws are tightened.
  • Verify that the ducting (if used) is properly installed and not vibrating.
• Lys virker ikke:
  • Tjek om lyskontakten er tændt.
  • LED lights typically have a long lifespan, but if they fail, contact customer service for replacement options.

If the problem persists after performing these checks, please contact Respekta customer service.

9. Garanti og kundesupport

Respekta stands for quality and reliability, with over 50 years of experience in kitchen and electrical appliances. We offer dedicated customer service to assist you with any inquiries or issues.

Figure 11: Respekta's commitment to quality and customer support.

For warranty claims, technical support, or spare parts, please contact Respekta customer service through their official website or the contact information provided with your purchase documentation. Please have your model number (CH33060WB) and purchase date ready when contacting support.

You can find more information and contact details on the official Respekta webwebsted: www.respekta.de
